The <mat-paginator>, an Angular Directive, is used to show a navigator with paged information.

In this chapter, we will showcase the configuration required to show a paginator using Angular Material.

Following is the content of the modified module descriptor app.module.ts.

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';
import {BrowserAnimationsModule} from '@angular/platform-browser/animations';
import {MatPaginatorModule} from '@angular/material'
import {FormsModule, ReactiveFormsModule} from '@angular/forms';
@NgModule({
   declarations: [
      AppComponent
   ],
   imports: [
      BrowserModule,
      BrowserAnimationsModule,
      MatPaginatorModule,
      FormsModule,
      ReactiveFormsModule
   ],
   providers: [],
   bootstrap: [AppComponent]
})
export class AppModule { }

Following is the content of the modified HTML host file app.component.html.

<mat-paginator [length] = "100"
   [pageSize] = "10"
   [pageSizeOptions] = "[5, 10, 25, 100]"
   (page) = "pageEvent = $event">
</mat-paginator>
<div *ngIf = "pageEvent">
   <h5>Page Change Event</h5>
   <div>List length: {{pageEvent.length}}</div>
   <div>Page size: {{pageEvent.pageSize}}</div>
   <div>Page index: {{pageEvent.pageIndex}}</div>
</div>

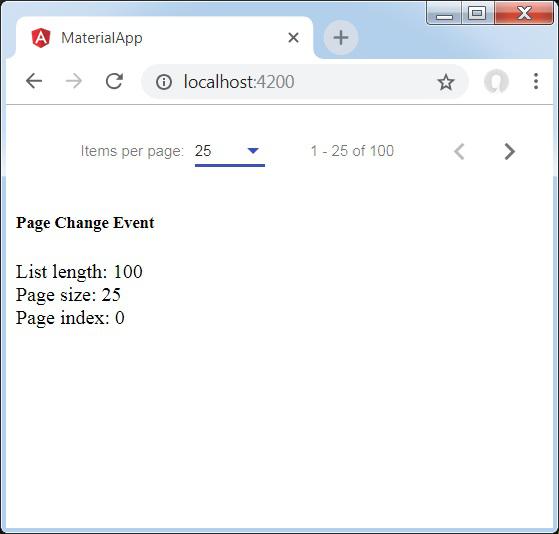

Result

Verify the result.

Paginator

Details

  • Here, we've created a paginator using mat-paginator and handles its change event.
