Event Manager Administration

This includes T-codes which are used for controlling and using events in SAP Workflow. Following tasks can be performed under Event Manager Administration −

Event Queue Administration

This is used to define an administrator for event queues and to manage who is notified by e-mail, if there are errors relating to events in Workflows.

Type Linkages and Instance Linkages

This is maintained in the table which contains the assignment of events to the event receivers interested in the event.

Event Trace for Workflows

You can use Event Trace in Workflows to log all information for creating and using events.

Event Queue

You can make use of Event queue to store events temporarily.

General Settings → Workflow → Maintain the event queue settings

In an event trace, maintain the following data −

• Event data
• Triggering program
• Trigger date and time
• Triggering object
• Triggering object Type
• Event name

Following are the useful transactions under SAP Workflow in ABAP development −

• SWE4 − Switch event trace on/off

• SWEL − Display event trace

• RSWELOGD − Delete event trace

• SWEC − Link change documents to events

• SWED − Assign change document objects to object types

To activate/deactivate the event trace, navigate to the following path −

Tools → Business Workflow → Development → Administration → Event Manager → Event → Switch Event Trace On/Off or use T-Code: SWELS/SWE4

To display the event trace, navigate to the following path −

Tools → Business Workflow → Development → Administration → Event Manager → Event Trace → Display Event Trace or SWEL as shown in the following screenshot.

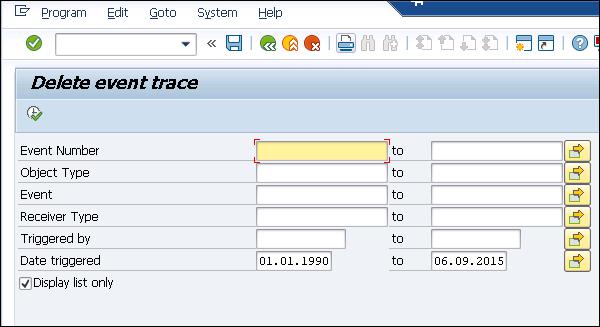

To delete the event trace, navigate to the following path −

Tools → Business Workflow → Development → Administration → Event Manager → Event Trace → Delete Event Trace or use T-code: RSWELOGD as shown in the following screenshot.
