SAP APO - Core Interface

Technical Integration Between Systems

To integrate data between SAP R/3 or ECC system to SAP SCM system, you use a Core Interface (CIF) to enable data exchange between the systems. Core Interface provides different integration and data transfer functions.

You can transfer master from SAP ECC system to SCM system.
When SAP SCM system involves APO, CIF is used to transfer planning results back to ERP.
Different administration tools to manage the data transfer between systems.
Support for different source/target systems.

To transfer the data between ERP and SCM system, you need to customize CIF settings in both the systems. Customizing CIF depends on the types of source and target system.

Customizing CIF Settings in ERP System

To perform integration between two systems, you have to customize the settings in both the systems. Customization of settings are target system specific or client system dependent. Following settings can be done in the system −

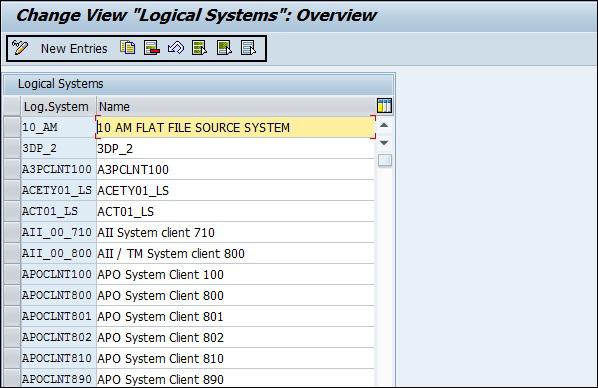

Define Logical System and Assign the Logical System to a Client

Transaction Code − BD54

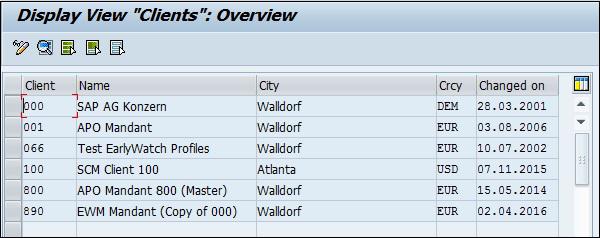

Transaction Code − SCC4

Define Trusted RFC Connection and Assign Destination to Various Applications

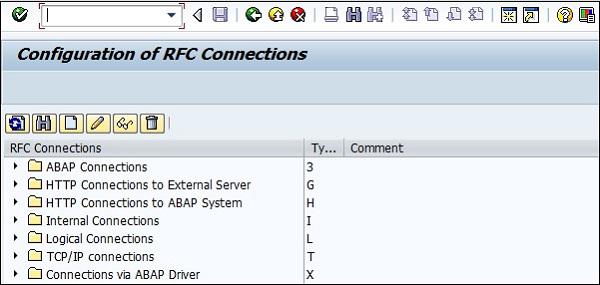

Transaction Code − SM59

Transaction Code − CFC7

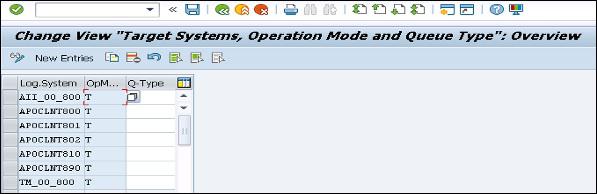

Defining the Target System and Queue Type

Transaction Code − CFC1

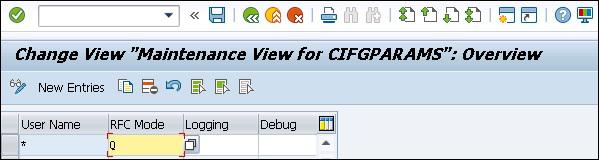

Define User Parameters

Transaction Code − CFC2

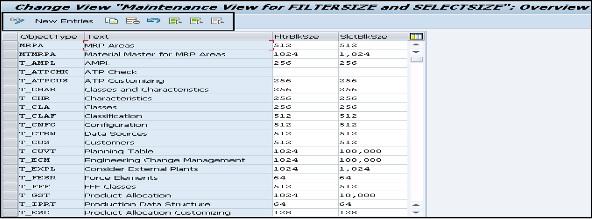

Define Filters and Select Size in CIF Settings

Transaction Code − CFC3

Define the Number Ranges for Parallelization

Transaction Code − CFC8

Integration of Master and Transaction Data

You need to transfer the master data and master data changes to SAP APO system from the transaction system. This data is transferred via Core Interface.

In SAP APO system, you can check the master data transferred to APO system.

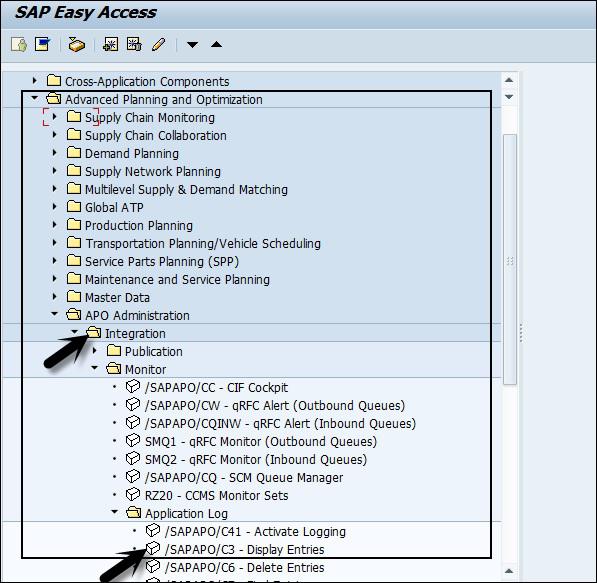

Navigate to SAP Easy Access − Advanced Planning and Optimization − APO Administration − Integration − Monitor − Application Log − Display Entries

Integration of Transaction Data

You can integrate different transactional data to SAP R/3 system - Orders and Stock Transfer Processes.

Orders define the technical component, which includes procurement details about the product - when and where the product is required and where the different resources are during this process. The different orders such as production orders, purchase orders are transferred from R/3 system to APO system.

In SAP APO system, planned orders are transferred to R/3 system −

Following objects are considered as Order transactions −

Planned order
Planned independent requirement
Production order
Purchase order and purchase requisition
Transfer order
Scheduling agreement
Stock
Inspection lot
Project order
Maintenance order
