iText - Tiling PDF Pages

The following Java program demonstrates how to tile the contents of a PDF page to different pages using the iText library. It creates a PDF document with the name tilingPdfPages.pdf and saves it in the path C:/itextExamples/.

Save this code in a file with the name TilingPDFPages.java.

import com.itextpdf.kernel.geom.AffineTransform;
import com.itextpdf.kernel.geom.PageSize;
import com.itextpdf.kernel.geom.Rectangle;

import com.itextpdf.kernel.pdf.PdfDocument;
import com.itextpdf.kernel.pdf.PdfPage;
import com.itextpdf.kernel.pdf.PdfReader;
import com.itextpdf.kernel.pdf.PdfWriter;
import com.itextpdf.kernel.pdf.canvas.PdfCanvas;
import com.itextpdf.kernel.pdf.xobject.PdfFormXObject;

public class TilingPDFPages {
   public static void main(String args[]) throws Exception {
      // Creating a PdfWriter object
      String dest = "C:/itextExamples/tilingPdfPages.pdf";
      PdfWriter writer = new PdfWriter(dest);

      // Creating a PdfReader
      String src = "C:/itextExamples/pdfWithImage.pdf";
      PdfReader reader = new PdfReader(src);

      // Creating a PdfDocument objects
      PdfDocument destpdf = new PdfDocument(writer);
      PdfDocument srcPdf = new PdfDocument(reader);

      // Opening a page from the existing PDF
      PdfPage origPage = srcPdf.getPage(1);

      // Getting the page size
      Rectangle orig = origPage.getPageSizeWithRotation();

      // Getting the size of the page
      PdfFormXObject pageCopy = origPage.copyAsFormXObject(destpdf);

      // Tile size
      Rectangle tileSize = PageSize.A4.rotate();
      AffineTransform transformationMatrix =
         AffineTransform.getScaleInstance(tileSize.getWidth() / orig.getWidth() *
         2f, tileSize.getHeight() / orig.getHeight() * 2f);

      // The first tile
      PdfPage page =
      destpdf.addNewPage(PageSize.A4.rotate());

      PdfCanvas canvas = new PdfCanvas(page);
      canvas.concatMatrix(transformationMatrix);
      canvas.addXObject(pageCopy, 0, -orig.getHeight() / 2f);

      // The second tile
      page = destpdf.addNewPage(PageSize.A4.rotate());
      canvas = new PdfCanvas(page);
      canvas.concatMatrix(transformationMatrix);
      canvas.addXObject(pageCopy, -orig.getWidth() / 2f, -orig.getHeight() / 2f);

      // The third tile
      page = destpdf.addNewPage(PageSize.A4.rotate());
      canvas = new PdfCanvas(page);
      canvas.concatMatrix(transformationMatrix);
      canvas.addXObject(pageCopy, 0, 0);

      // The fourth tile
      page = destpdf.addNewPage(PageSize.A4.rotate());
      canvas = new PdfCanvas(page);
      canvas.concatMatrix(transformationMatrix);
      canvas.addXObject(pageCopy, -orig.getWidth() / 2f, 0);

      // closing the documents
      destpdf.close();
      srcPdf.close();

      System.out.println("PDF created successfully..");
   }
}

Compile and execute the saved Java file from the Command prompt using the following commands −

javac TilingPDFPages.java
java TilingPDFPages

Upon execution, the above program creates a PDF document, displaying the following message.

PDF created successfully..

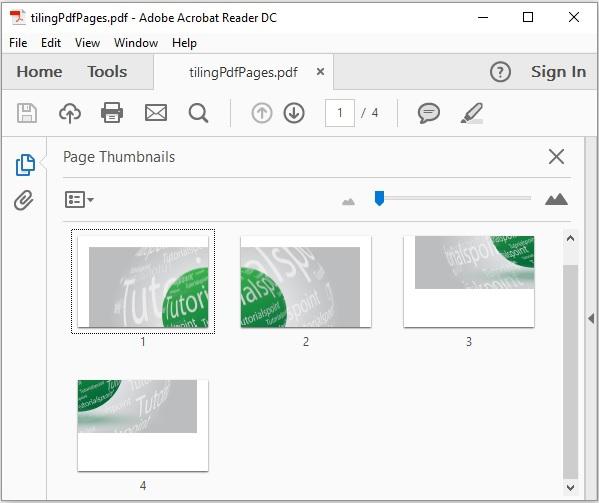

If you verify the specified path, you can find the created PDF document, as shown below −
