In this chapter, we will see how to create a PDF document with AreaBreak using the iText library.

Creating an AreaBreak

You can create an empty PDF Document by instantiating the Document class. While instantiating this class, you need to pass a PdfDocument object as a parameter, to its constructor. Then, to add an areabreak to the document, you need to instantiate the AreaBreak class and add this object to document using the add() method.

Following are the steps to create an empty PDF document with AreaBreak.

Step 1: Creating a PdfWriter object

The PdfWriter class represents the Doc Writer for a PDF, this class belongs to the package com.itextpdf.kernel.pdf. The constructor of this class accepts a string, representing the path of the file where the PDF is to be created.

Instantiate PdfWriter class by passing a string value representing the path where you need to create a PDF, to its constructor, as shown below.

// Creating a PdfWriter
String dest = "C:/itextExamples/addingAreaBreak.pdf";
PdfWriter writer = new PdfWriter(dest);

When an object of this type is passed to a PdfDocument (class), then every element added to this document will be written to the file specified.

Step 2: Creating a PdfDocument object

The PdfDocument class is the class that represents the PDF Document in iText, this class belongs to the package com.itextpdf.kernel.pdf. To instantiate this class (in writing mode) you need to pass an object of the class PdfWriter to its constructor.

Instantiate the PdfDocument class by passing above created PdfWriter object to its constructor, as shown below.

// Creating a PdfDocument
PdfDocument pdfDoc = new PdfDocument(writer);

Once a PdfDocument object is created you can add various elements like page, font, file attachment, event handler using the respective methods provided by its class.

Step 3: Creating a Document object

The Document class of the package com.itextpdf.layout is the root element while creating a self-sufficient PDF. One of the constructors of this class accepts an object of the class PdfDocument.

Instantiate the Document class by passing the object of the class PdfDocument created in the previous steps, as shown below.

// Creating a Document
Document document = new Document(pdfDoc);

Step 4: Creating an Area Break object

The AreaBreak class belongs to the package com.itextpdf.layout.element. On instantiating this class, the current context area will be terminated and a new one will be created with the same size (in case we use default constructor).

Instantiate the AreaBreak class as shown below.

// Creating an Area Break
AreaBreak aB = new AreaBreak();

Step 5: Adding AreaBreak

Add the areabreak object created in the previous step using the add() method of the Document class, as shown below.

// Adding area break to the PDF
document.add(aB);

Step 6: Closing the Document

Close the document using the close() method of the Document class as shown below.

// Closing the document
document.close();

Example

The following Java program demonstrates how to create a PDF document with AreaBreak using the iText library. It creates a PDF document with the name addingAreaBreak.pdf, adds an areabreak to it, and saves it in the path C:/itextExamples/.

Save this code in a file with the name AddingAreaBreak.java.

import com.itextpdf.kernel.pdf.PdfDocument;
import com.itextpdf.kernel.pdf.PdfWriter;
import com.itextpdf.layout.Document;
import com.itextpdf.layout.element.AreaBreak;

public class AddingAreaBreak {
   public static void main(String args[]) throws Exception {
      // Creating a PdfWriter
      String dest = "C:/itextExamples/addingAreaBreak.pdf";
      PdfWriter writer = new PdfWriter(dest);

      // Creating a PdfDocument
      PdfDocument pdf = new PdfDocument(writer);

      // Creating a Document by passing PdfDocument object to its constructor
      Document document = new Document(pdf);

      // Creating an Area Break
      AreaBreak aB = new AreaBreak();

      // Adding area break to the PDF
      document.add(aB);

      // Closing the document
      document.close();
      System.out.println("Pdf created");
   }
}

Compile and execute the saved Java file from the Command prompt using the following commands −

javac AddingAreaBreak.java
java AddingAreaBreak

Upon execution, the above program creates a PDF document, displaying the following message.

Pdf Created

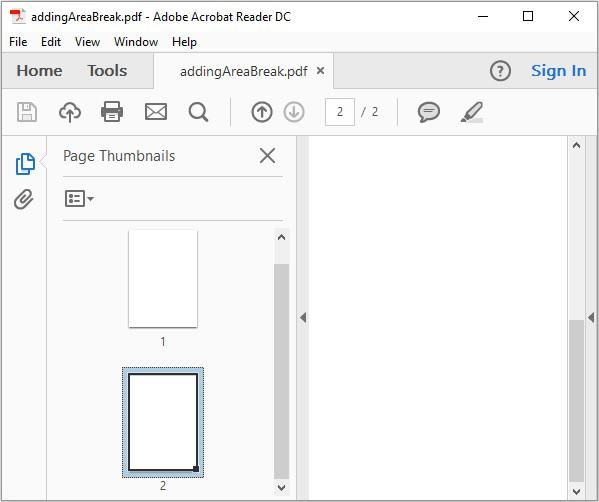

If you verify the specified path, you can find the created PDF document, as shown below.

Adding AreaBreak
