iText - Markup Annotation

Creating a Markup Annotation in a PDF

You can create an empty PDF Document by instantiating the Document class. While instantiating this class, you need to pass a PdfDocument object as a parameter to its constructor. To use text annotation in your PDF document, you need to create an object of PdfTextAnnotation class and add this to the PdfPage.

Following are the steps to use text annotation in the PDF document.

Step 1: Creating a PdfWriter object

The PdfWriter class represents the DocWriter for a PDF. This class belongs to the package com.itextpdf.kernel.pdf. The constructor of this class accepts a string, representing the path of the file where the PDF is to be created.

Instantiate the PdfWriter class by passing a string value (representing the path where you need to create a PDF) to its constructor, as shown below.

// Creating a PdfWriter
String dest = "C:/itextExamples/markupAnnotation.pdf";
PdfWriter writer = new PdfWriter(dest);

When an object of this type is passed to a PdfDocument (class), every element added to this document will be written to the file specified.

Step 2: Creating a PdfDocument object

The PdfDocument class is the class that represents the PDF Document in iText. This class belongs to the package com.itextpdf.kernel.pdf. To instantiate this class (in writing mode), you need to pass an object of the class PdfWriter to its constructor.

Instantiate the PdfDocument class by passing the PdfWriter object to its constructor, as shown below.

// Creating a PdfDocument
PdfDocument pdfDoc = new PdfDocument(writer);

Once a PdfDocument object is created, you can add various elements like page, font, file attachment, and event handler using the respective methods provided by its class.

Step 3: Creating the Document object

The Document class of the package com.itextpdf.layout is the root element while creating a self-sufficient PDF. One of the constructors of this class accepts an object of the class PdfDocument.

Instantiate the Document class by passing the object of the class PdfDocument created in the previous steps, as shown below.

// Creating a Document
Document document = new Document(pdfDoc);

Step 4: Creating PdfAnnotation object

The PdfAnnotation class of the package com.itextpdf.kernel.pdf.annot represents the superclass of all the annotations.

Among its derived classes, PdfTextMarkupAnnotation class represents the text markup annotation. Create an object of this class as shown below.

// Creating a PdfTextMarkupAnnotation object
Rectangle rect = new Rectangle(105, 790, 64, 10);
float[] floatArray = new float[]{169, 790, 105, 790, 169, 800, 105, 800};
PdfAnnotation annotation = PdfTextMarkupAnnotation.createHighLight(rect,floatArray);

Step 5: Setting the color of the annotation

Set color to the annotation using the setColor() method of the PdfAnnotation class. To this method, pass the color object representing the color of the annotation as a parameter.

// Setting color to the annotation
annotation.setColor(Color.YELLOW);

Step 6: Setting the title and contents of the annotation

Set the title and contents of the annotation using the setTitle() and setContents() methods of the PdfAnnotation class respectively.

// Setting title to the annotation
annotation.setTitle(new PdfString("Hello!"));

// Setting contents to the annotation
annotation.setContents(new PdfString("Hi welcome to Howcodex"));

Step 7: Adding the annotation to a page

Create a new PdfPage class using the addNewPage() method of the PdfDocument class and add the above created annotation using the addAnnotation() method of PdfPage class, as shown below.

// Creating a new Pdfpage
PdfPage pdfPage = pdfDoc.addNewPage();

// Adding annotation to a page in a PDF
pdfPage.addAnnotation(annotation);

Step 8: Closing the Document

Close the document using the close() method of the Document class, as shown below.

// Closing the document
document.close();

Example

The following Java program demonstrates how to add text markup annotation to a PDF document using the iText library. It creates a PDF document with the name markupAnnotation.pdf, adds a text markup annotation to it, and saves it in the path C:/itextExamples/

Save this code in a file with the name MarkupAnnotation.java.

import com.itextpdf.kernel.color.Color;
import com.itextpdf.kernel.geom.Rectangle;
import com.itextpdf.kernel.pdf.PdfDocument;
import com.itextpdf.kernel.pdf.PdfPage;
import com.itextpdf.kernel.pdf.PdfString;
import com.itextpdf.kernel.pdf.PdfWriter;
import com.itextpdf.kernel.pdf.annot.PdfAnnotation;
import com.itextpdf.kernel.pdf.annot.PdfTextMarkupAnnotation;
import com.itextpdf.layout.Document;

public class MarkupAnnotation {
   public static void main(String args[]) throws Exception {
      // Creating a PdfDocument object
      String file = "C:/itextExamples/markupAnnotation.pdf";
      PdfDocument pdfDoc = new PdfDocument(new PdfWriter(file));

      // Creating a Document object
      Document doc = new Document(pdfDoc);

      // Creating a PdfTextMarkupAnnotation object
      Rectangle rect = new Rectangle(105, 790, 64, 10);
      float[] floatArray = new float[]{169, 790, 105, 790, 169, 800, 105, 800};
      PdfAnnotation annotation =
         PdfTextMarkupAnnotation.createHighLight(rect,floatArray);

      // Setting color to the annotation
      annotation.setColor(Color.YELLOW);

      // Setting title to the annotation
      annotation.setTitle(new PdfString("Hello!"));

      // Setting contents to the annotation
      annotation.setContents(new PdfString("Hi welcome to Howcodex"));

      // Creating a new Pdfpage
      PdfPage pdfPage = pdfDoc.addNewPage();

      // Adding annotation to a page in a PDF
      pdfPage.addAnnotation(annotation);

      // Closing the document
      doc.close();

      System.out.println("Annotation added successfully");
   }
}

Compile and execute the saved Java file from the Command prompt using the following commands −

javac MarkupAnnotation.java
java MarkupAnnotation

Upon execution, the above program creates a PDF document displaying the following message.

Annotation added successfully

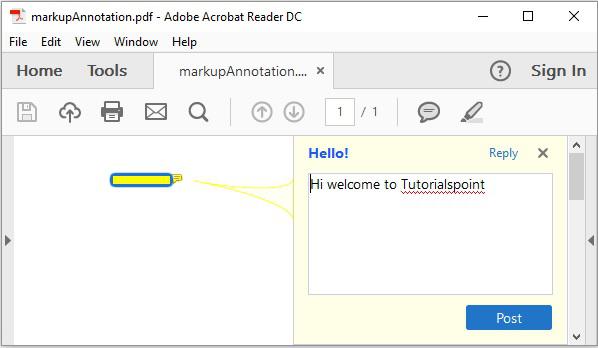

If you verify the specified path, you can find the created PDF document as shown below.
