The following Java program demonstrates how to perform N-up on a PDF page using the iText library. It creates a PDF document with the name nUppingPDF.pdf and saves it in the path C:/itextExamples/

Save this code in a file with the name NUppingPDF.java.

import com.itextpdf.kernel.geom.AffineTransform;
import com.itextpdf.kernel.geom.PageSize;
import com.itextpdf.kernel.geom.Rectangle;

import com.itextpdf.kernel.pdf.PdfDocument;
import com.itextpdf.kernel.pdf.PdfPage;
import com.itextpdf.kernel.pdf.PdfReader;
import com.itextpdf.kernel.pdf.PdfWriter;
import com.itextpdf.kernel.pdf.canvas.PdfCanvas;
import com.itextpdf.kernel.pdf.xobject.PdfFormXObject;

public class NUppingPDF {
   public static void main(String args[]) throws Exception {
      // Creating a PdfWriter object
      String dest = "C:/itextExamples/nUppingPDF.pdf";
      PdfWriter writer = new PdfWriter(dest);

      // Creating a PdfReader
      String src = "C:/itextExamples/pdfWithImage.pdf";
      PdfReader reader = new PdfReader(src);

      // Creating a PdfDocument objects
      PdfDocument destpdf = new PdfDocument(writer);
      PdfDocument srcPdf = new PdfDocument(reader);

      // Opening a page from the existing PDF
      PdfPage origPage = srcPdf.getPage(1);
      Rectangle orig = origPage.getPageSize();
      PdfFormXObject pageCopy = origPage.copyAsFormXObject(destpdf);

      // N-up page
      PageSize nUpPageSize = PageSize.A4.rotate();
      PdfPage page = destpdf.addNewPage(nUpPageSize);
      PdfCanvas canvas = new PdfCanvas(page);

      // Scale page
      AffineTransform transformationMatrix = AffineTransform.getScaleInstance(
         nUpPageSize.getWidth() / orig.getWidth() /
         2f, nUpPageSize.getHeight() / orig.getHeight() / 2f);
      canvas.concatMatrix(transformationMatrix);

      // Add pages to N-up page
      canvas.addXObject(pageCopy, 0, orig.getHeight());
      canvas.addXObject(pageCopy, orig.getWidth(), orig.getHeight());
      canvas.addXObject(pageCopy, 0, 0);
      canvas.addXObject(pageCopy, orig.getWidth(), 0);

      // closing the documents
      destpdf.close();
      srcPdf.close();

      System.out.println("PDF created successfully..");
   }
}

Compile and execute the saved Java file from the Command prompt using the following commands −

javac NUppingPDF.java
java NUppingPDF

Upon execution, the above program creates a PDF document displaying the following message.

PDF created successfully..

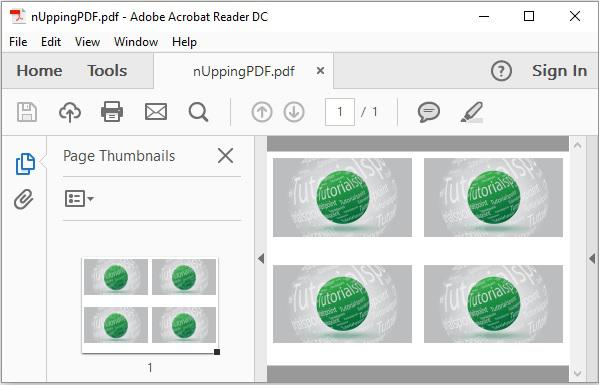

If you verify the specified path, you can find the created PDF document, as shown below.

Nupping
