SAP SCM - Planned Order Creation
In SAP system, you can create a planned order request during planning run for a plant to trigger the procurement of material with the certain quantity for a specific time period.
Planned orders are created as a result of shortage of materials that are set to internal procurement, will create planned orders and you can convert planned orders to production orders using T-Code: CO40/CO41.

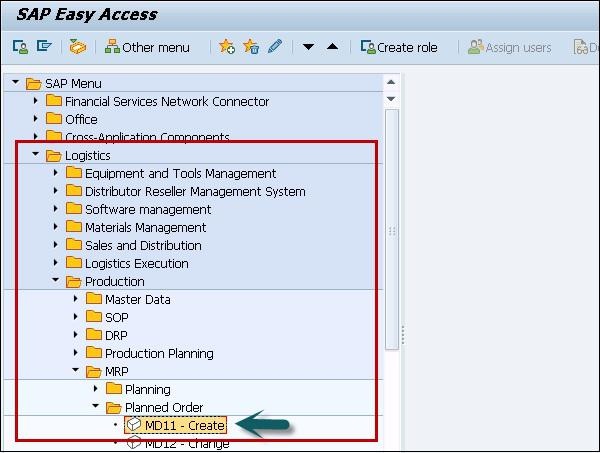

Step 1 − You can create a planned order manually using T-Code: MD11 or automatically via MRP run using T-Code: MD01/MD02. You can also navigate to Logistics → Production → MRP → Planned Order → Create.

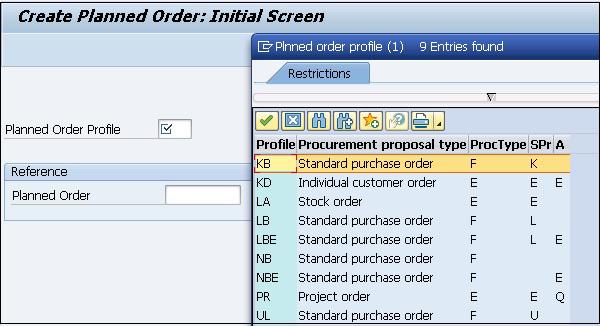

Step 2 − In the next screen, select Planned Order Profile to choose the type of Planned order to be created. You can select from the following options.

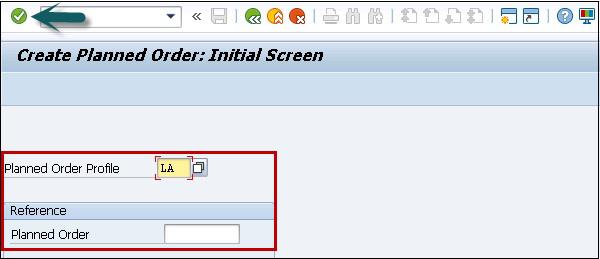

Step 3 − Here, we have selected a Stock order. Click the green tick to create a planned order in system.

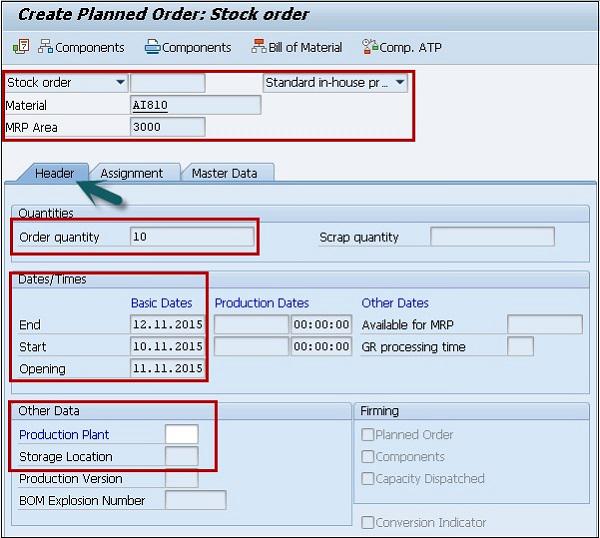

Step 4 − In the next window, you can see Planned order Stock order creation screen. Enter the details as shown below −
In Header tab, select the following values −
- Material
- MRP Area
- Order Quantity
- Dates/Time
- Production Plant
- Storage location
Step 5 − Next go to Assignment tab.
Step 6 − Select MRP Controller field to select Controller option.
Step 7 − Enter Production Supervisor if not selected. In a company, you can find multiple options.

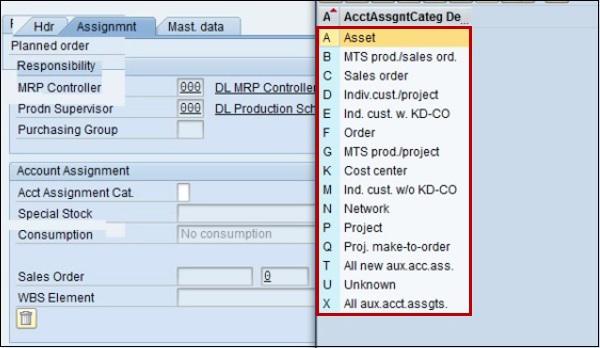

Step 8 − Next is to select Acct Assignment Category.
Step 9 − Next go to the Master data tab and enter lot size. Following are the available options −

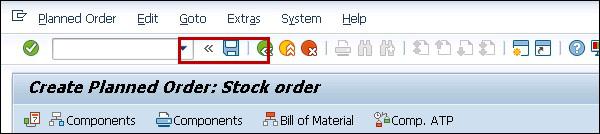

Step 10 − To finalize the Planned order, click the Save button.
You will get a confirmation- Planned order created and the number displayed.

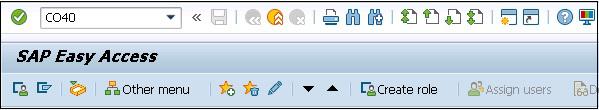

Step 11 − To go to Production order from Planned Order, use T-code: CO40.

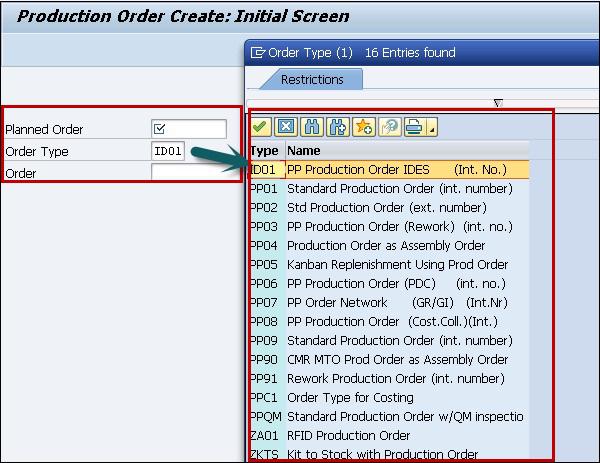

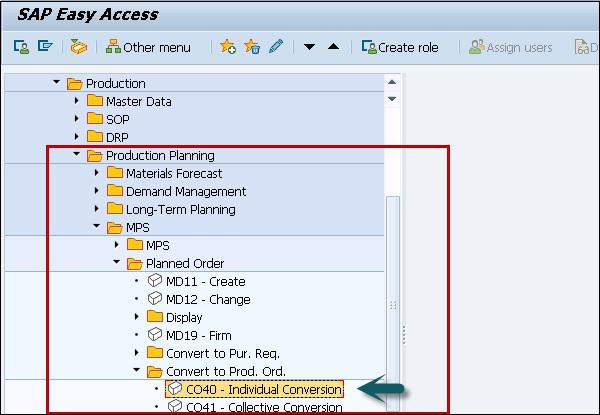

You can navigate to Logistics → Production → Production Planning → MPS → Planned Order → Convert to Prod Ord.
