SAP BPC - Process Flow Management


Advertisements

This is used to manage processes created by users and to create and manage business process flow templates. To manage business process flows, you need to have manage processes task profile.

Process template is defined as business process, which contains all the tasks that is spread across multiple modules of BPC system. It includes step-by-step process flow, user performed activities link, process context and timing when process takes place, all the participants and their roles.

Example

An area manager entering monthly budget data, which includes each manager creating a process and entering the data for each department.

To create a new Business Process Template, login to Web portal → Planning and Consolidation Administration.

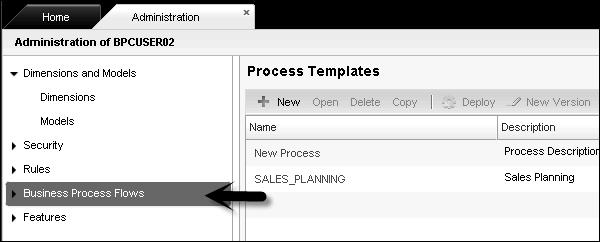

On the left side, you can see the option of Business Process Flows.

Business Process Flow

Expand this tab and you will see Process Templates and Process Instances.

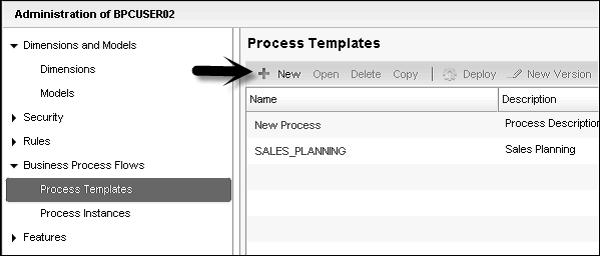

To create a new Business Process template, go to tab Process Templates. Click ‘+New’.

Business Process Flow

BPC admins are responsible to create and manage process templates. Once process templates are created, the business user can use the templates to create processes.

Work Status

Work status is used to lock a region of data in a model. This is used to override user’s member access privilege to write to a particular region.

There are multiple dimensions defined for a region with one property called as OWNER. While defining the work status, following are defined −

  • Work Status − It belongs to physical state of data.

  • Security − You can set different level of security on changing data in the system – All or Locked. You can set who can change the work state - Manager or Owner.

  • Data Update − This defines how data will be updated by the customer.

  • Push − This option is used to push same work state for all the children of a member.

Once work status is defined, they can be used by the users to lock the data for review and approval, etc. To implement e-mail notification of work status, you should set the parameters, APPROVALSTATUSMAIL, APPROVALSTATUSMSG, SMTPPASSWORD, SMTPPORT, SMTP SERVER, SMTPAUTH, etc.

Defining the Work Status

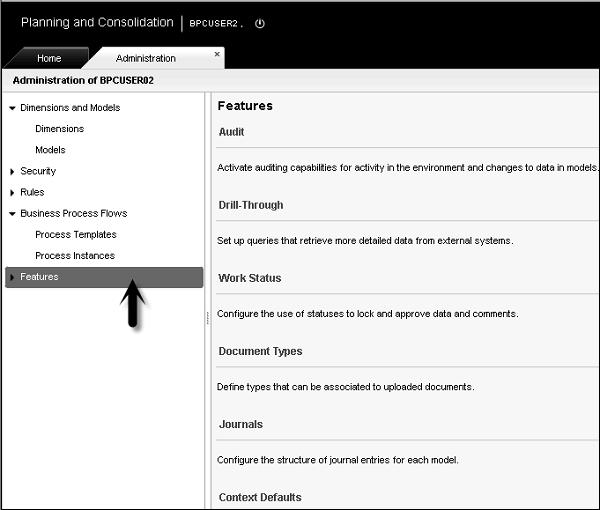

Go to Business Planning and Administration → Features.

Work Status

On the left side, you have Features tab. Expand this tab and you will see Work Status as the first option.

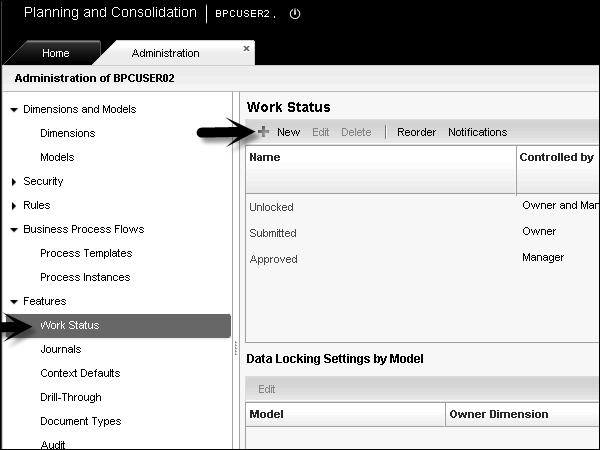

Go to Work Status and on the right side you will get options to create and manage work status.

Work Status

Controlling the Work Status

You can define in BPC system, who can change the data. This includes the following access levels −

Who can change data?

All − This allows all users with appropriate access to change the data.

Locked − This locks the change on the data. None can change the data.

Manager − Only parents of owners/manager can change the data.

Owner - Only the owner can change the data.

Who can control work status?

Both − If you select both, owner of the specific member ID and the owner of the parent to the specific member ID.

Owner − Owner of the specific member ID.

Manager − Owner of the parent to member ID.

Determining Manager or Owner in Base Hierarchies

Parent member owners act as an owner for that specific parent member ID and work as manager for direct children.

This allows parent member owner to change the work status of direct children. In case you are selecting all children, owner of a parent can update children at all levels.

Base members’ owners act as owner only.

Members with no parent but have children act as their own manager and owner too.

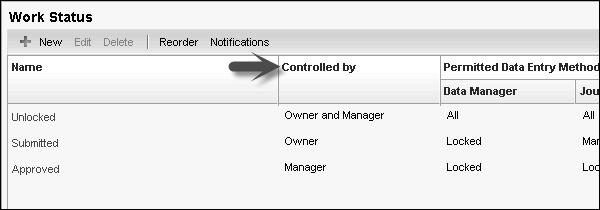

Controlled by Rule

An owner is defined by one dimension hierarchy − OWNER dimension.

You can set a work state on a single member ID, in this Manager doesn’t include - All Children.

You can also set work state on multiple member IDs, manager uses Include - All Children.

Work Status

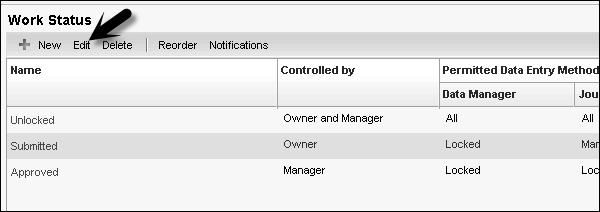

To edit a work status − Select the Work Status, click on Edit button at the top.

Work Status

Work Status

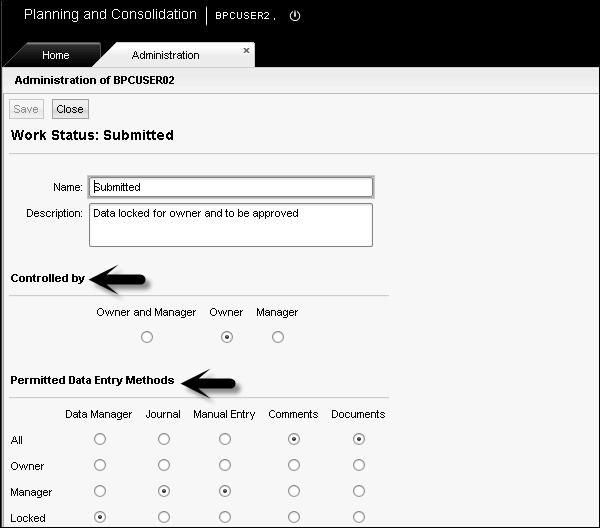

You can set from the above ‘Controlled by’ fields.

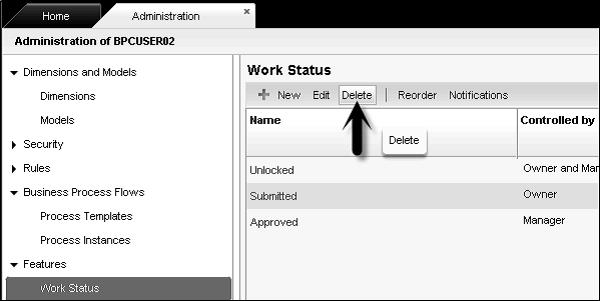

To delete a Work Status, select the work state and click ‘Delete’.

Work Status

Book Publishing

You can publish books to BPC web. Administrators and power users have an option to create books of reports by collecting series of reports. You can select an output as Printer copy or .pdf file, which can be stored on the server.

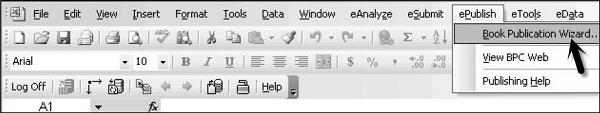

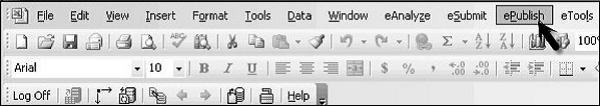

You can use Book Publishing wizard for this. Go to ePublish option and select Book Publishing wizard from there.

Book Publishing

Book Publishing

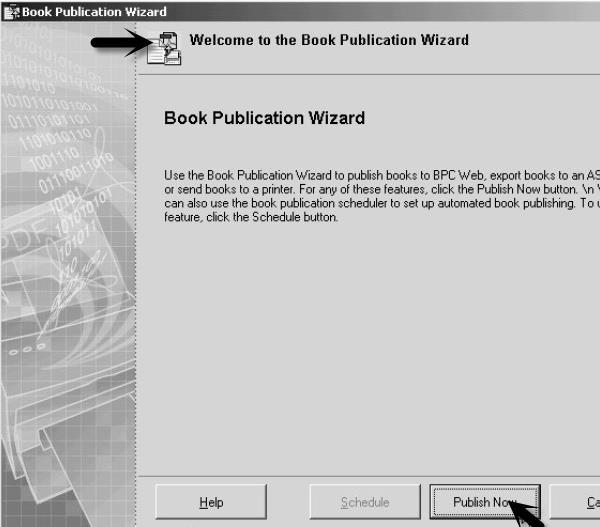

It will open Book Publishing Wizard → Select Publish Now as shown in the following screenshot.

Book Publishing

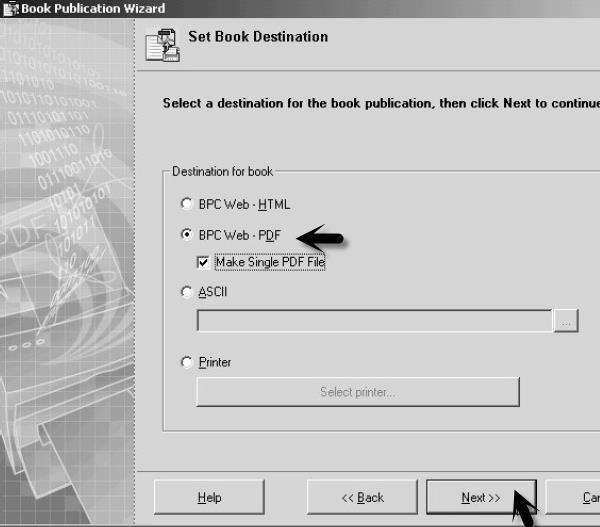

You get two options - Publish to a PDF file or print to a printer.

Book Publishing

To delete books in BPC web, go to BPC administration.

Select Administration Configuration action pane → Manage Books.

Select the book you want to manage by using the checkbox and click ‘Delete’.
