OpenCV - Morphological Operations


Advertisements

In the earlier chapters, we discussed the process of erosion and dilation. In addition to these two, OpenCV has more morphological transformations. The morphologyEx() of the method of the class Imgproc is used to perform these operations on a given image.

Following is the syntax of this method −

morphologyEx(src, dst, op, kernel)

This method accepts the following parameters −

  • src − An object of the class Mat representing the source (input) image.

  • dst − object of the class Mat representing the destination (output) image.

  • op − An integer representing the type of the Morphological operation.

  • kernel − A kernel matrix.

Example

The following program demonstrates how to apply the morphological operation "top-hat" on an image using OpenCV library.

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

public class MorphologyExTest {
   public static void main(String args[]) {
      // Loading the OpenCV core library
      System.loadLibrary( Core.NATIVE_LIBRARY_NAME );

      // Reading the Image from the file and storing it in to a Matrix object
      String file ="E:/OpenCV/chap12/morph_input.jpg";
      Mat src = Imgcodecs.imread(file);

      // Creating an empty matrix to store the result
      Mat dst = new Mat();

      // Creating kernel matrix
      Mat kernel = Mat.ones(5,5, CvType.CV_32F);

      // Applying Blur effect on the Image
      Imgproc.morphologyEx(src, dst, Imgproc.MORPH_TOPHAT, kernel);

      // Writing the image
      Imgcodecs.imwrite("E:/OpenCV/chap12/morph_tophat.jpg", dst);

      System.out.println("Image Processed");
   }
}

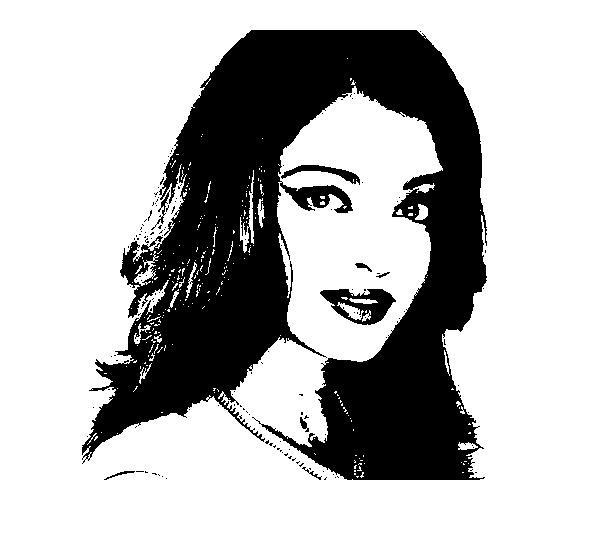

Assume that following is the input image morph_input.jpg specified in the above program.

Morph Input

Output

On executing the program, you will get the following output −

Image Processed

If you open the specified path, you can observe the output image as follows −

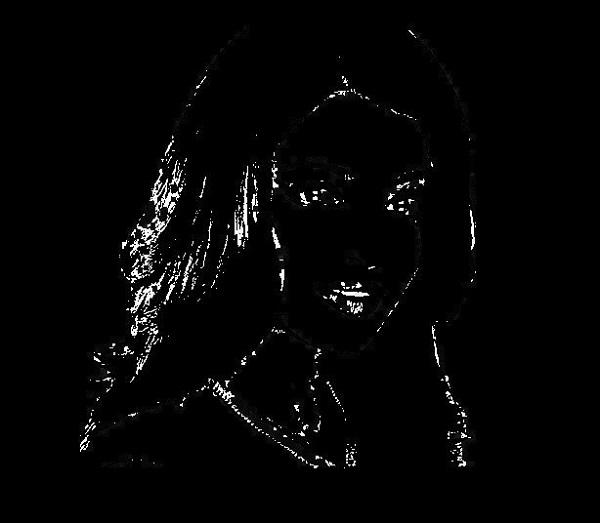

Morph Output

More Operations

In addition to the morphological operation TOPHAT, demonstrated in the previous example, OpenCV caters various other types of morphologies. All these types are represented by predefined static fields (fixed values) of Imgproc class.

You can choose the type of the morphology you need by passing their respective predefined value to the parameter op of the morphologyEx() method.

// Applying Blur effect on the Image
Imgproc.morphologyEx(src, dst, Imgproc.MORPH_TOPHAT, kernel);

Following are the values representing the type of morphological operations and their respective outputs.

Operation and Description Output
MORPH_BLACKHAT MORPH_BLACKHAT
MORPH_CLOSE MORPH_CLOSE
MORPH_CROSS MORPH_CROSS
MORPH_DILATE MORPH_DILATE
MORPH_ELLIPSE MORPH_ELLIPSE
MORPH_ERODE MORPH_ERODE
MORPH_GRADIENT MORPH_GRADIENT
MORPH_OPEN MORPH_OPEN
MORPH_RECT MORPH_RECT
MORPH_TOPHAT MORPH_TOPHAT
