OpenCV - Color Maps


Advertisements

In OpenCV, you can apply different color maps to an image using the method applyColorMap() of the class Imgproc. Following is the syntax of this method −

applyColorMap(Mat src, Mat dst, int colormap)

It accepts three parameters −

  • src − An object of the class Mat representing the source (input) image.

  • dst − An object of the class Mat representing the destination (output) image.

  • colormap − A variable of integer type representing the type of the color map to be applied.

Example

The following program demonstrates how to apply color map to an image.

import org.opencv.core.Core;
import org.opencv.core.Mat;

import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

public class ColorMapTest {
   public static void main(String args[]) {
      // Loading the OpenCV core library
      System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

      // Reading the Image from the file and storing it in to a Matrix object
      String file ="E:/OpenCV/chap25/color_input.jpg";
      Mat src = Imgcodecs.imread(file);

      // Creating an empty matrix to store the result
      Mat dst = new Mat();

      // Applying color map to an image
      Imgproc.applyColorMap(src, dst, Imgproc.COLORMAP_HOT);

      // Writing the image
      Imgcodecs.imwrite("E:/OpenCV/chap25/colormap_hot.jpg", dst);
      System.out.println("Image processed");
   }
}

Assume that following is the input image color_input.jpg specified in the above program.

Color Input

Output

On executing the above program, you will get the following output −

Image Processed

If you open the specified path, you can observe the output image as follows −

Color Output

More Operations

In addition to COLORMAP_HOT demonstrated in the previous example, OpenCV caters various other types of color maps. All these types are represented by predefined static fields (fixed values) of Imgproc class.

You can choose the type of the colormap you need, by passing its respective predefined value to the parameter named colormap of the applyColorMap() method.

Imgproc.applyColorMap(src, dst, Imgproc.COLORMAP_HOT);

Following are the values representing various types of color maps and their respective outputs.

Operation and Description Output
COLORMAP_AUTUMN COLORMAP_AUTUMN
COLORMAP_BONE COLORMAP_BONE
COLORMAP_COOL COLORMAP_COOL
COLORMAP_HOT COLORMAP_HOT
COLORMAP_HSV COLORMAP_HSV
COLORMAP_JET COLORMAP_JET

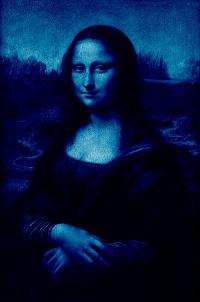

COLORMAP_OCEAN COLORMAP_OCEAN
COLORMAP_PARULA COLORMAP_PARULA
COLORMAP_PINK COLORMAP_PINK
COLORMAP_RAINBOW COLORMAP_RAINBOW
COLORMAP_SPRING COLORMAP_SPRING

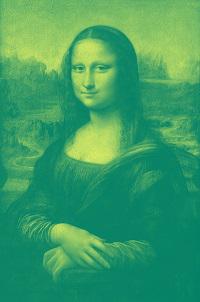

COLORMAP_SUMMER COLORMAP_SUMMER
COLORMAP_WINTER COLORMAP_WINTER
