Neo4j CQL - Creating a Relationship


Advertisements

In Noe4j, a relationship is an element using which we connect two nodes of a graph. These relationships have direction, type, and the form patterns of data. This chapter teaches you how to −

  • Create relationships
  • Create a relationship between the existing nodes
  • Create a relationship with label and properties

Creating Relationships

We can create a relationship using the CREATE clause. We will specify relationship within the square braces “[ ]” depending on the direction of the relationship it is placed between hyphen “ - ” and arrow “ → ” as shown in the following syntax.

Syntax

Following is the syntax to create a relationship using the CREATE clause.

CREATE (node1)-[:RelationshipType]->(node2)

Example

First of all, create two nodes Ind and Dhawan in the database, as shown below.

CREATE (Dhawan:player{name: "Shikar Dhawan", YOB: 1985, POB: "Delhi"})
CREATE (Ind:Country {name: "India"})

Now, create a relationship named BATSMAN_OF between these two nodes as −

CREATE (Dhawan)-[r:BATSMAN_OF]->(Ind)

Finally, return both the nodes to see the created relationship.

RETURN Dhawan, Ind

Browser App

Copy and paste the desired query in the dollar prompt and press the play button (to execute the query) highlighted in the following screenshot.

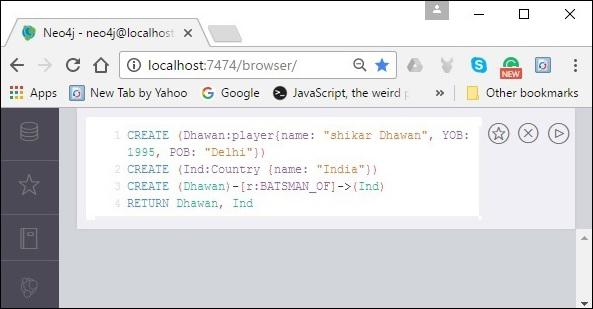

Highlighted Query

Result

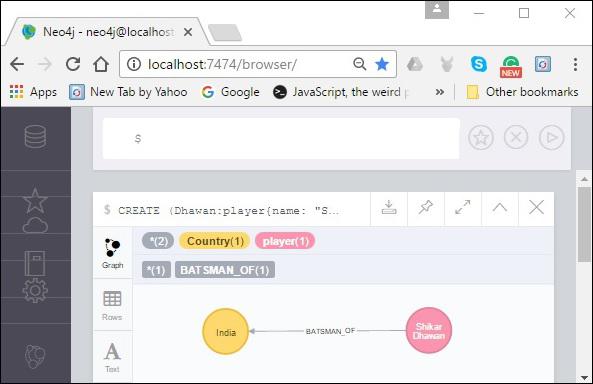

On executing, you will get the following result.

Executing

Creating a Relationship Between the Existing Nodes

You can also create a relationship between the existing nodes using the MATCH clause.

Syntax

Following is the syntax to create a relationship using the MATCH clause.

MATCH (a:LabeofNode1), (b:LabeofNode2)
   WHERE a.name = "nameofnode1" AND b.name = " nameofnode2"
CREATE (a)-[: Relation]->(b)
RETURN a,b

Example

Following is a sample Cypher Query which creates a relationship using the match clause.

MATCH (a:player), (b:Country) WHERE a.name = "Shikar Dhawan" AND b.name = "India"
CREATE (a)-[r: BATSMAN_OF]->(b)
RETURN a,b

To execute the above query, carry out the following steps.

Step 1 − Open the Neo4j desktop App and start the Neo4j Server. Open the built-in browser app of Neo4j using the URL http://localhost:7474/ as shown in the following screenshot.

Browser App

Step 2 − Copy and paste the desired query in the dollar prompt and press the play button (to execute the query) highlighted in the following screenshot.

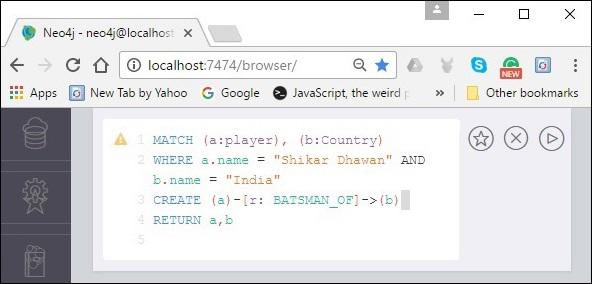

Existing Node

Result

On executing, you will get the following result.

Executing

Creating a Relationship with Label and Properties

You can create a relationship with label and properties using the CREATE clause.

Syntax

Following is the syntax to create a relationship with label and properties using the CREATE clause.

CREATE (node1)-[label:Rel_Type {key1:value1, key2:value2, . . . n}]-> (node2)

Example

Following is a sample Cypher Query which creates a relationship with label and properties.

MATCH (a:player), (b:Country) WHERE a.name = "Shikar Dhawan" AND b.name = "India"
CREATE (a)-[r:BATSMAN_OF {Matches:5, Avg:90.75}]->(b)
RETURN a,b

To execute the above query, carry out the following steps −

Step 1 − Open the Neo4j desktop App and start the Neo4j Server. Open the built-in browser app of Neo4j using the URL http://localhost:7474/ as shown in the following screenshot.

Browser App

Step 2 − Copy and paste the desired query in the dollar prompt and press the play button (to execute the query) highlighted in the following screenshot.

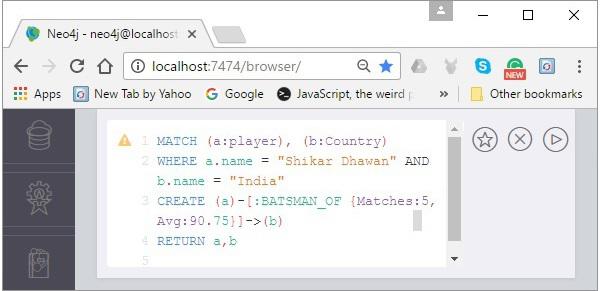

Label Property

Result

On executing, you will get the following result.

Executing

Creating a Complete Path

In Neo4j, a path is formed using continuous relationships. A path can be created using the create clause.

Syntax

Following is the syntax to create a path in Neo4j using the CREATE clause.

CREATE p = (Node1 {properties})-[:Relationship_Type]->
   (Node2 {properties})[:Relationship_Type]->(Node3 {properties})
RETURN p

Example

To execute the above query, carry out the following steps −

Step 1 − Open the Neo4j desktop App and start the Neo4j Server. Open the built-in browser app of Neo4j using the URL http://localhost:7474/ as shown in the following screenshot.

Browser App

Step 2 − Copy and paste the desired query in the dollar prompt and press the play button (to execute the query) highlighted in the following screenshot.

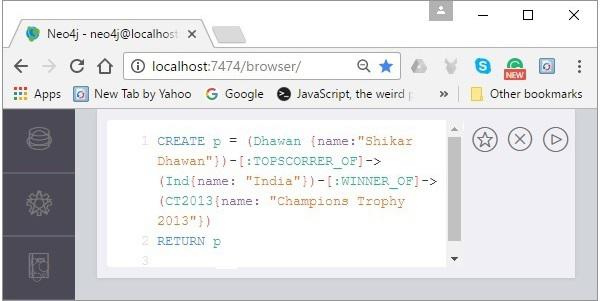

Champions Trophy

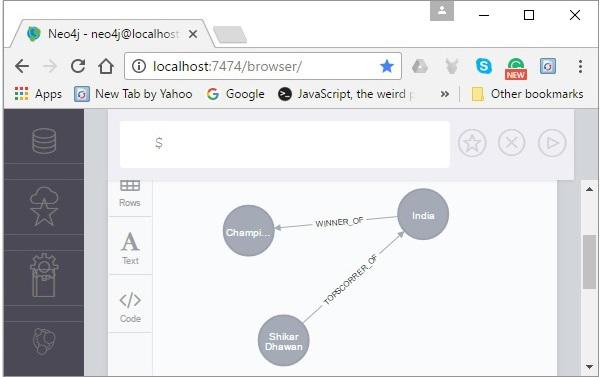

Result

On executing, you will get the following result.

Result
