Neo4j - Backup & Restore


Advertisements

In real-time applications, we should take backup of our application database regularly, so that we can restore to some working condition at any failure point.

This rule is applicable for both RDBMS and NoSQL databases.

In this section, we are going to discuss about two important DBA tasks.

  • How to back up a Neo4j Database.
  • How to restore Neo4j Database to a specific backup.

Note − These steps are applicable to Windows Operating System only. We should use similar kind of commands to do the same steps in other operating systems.

Neo4j Database Backup

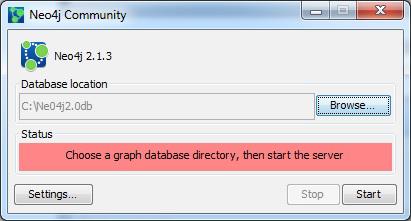

Step 1 − Click "Neo4j Community" using the following path −

Windows "Start" button → "All Programs" → "Neo4j Community" → "Neo4j Community"

By default, it selects c:\Users\[username]\Documents\Neo4j\default.graphdb. However if we wish to, we can change the path to a different directory.

Step 2 − Here we have changed to our Neo4j Database folder.

C:\Ne04j2.0db

Community Setting

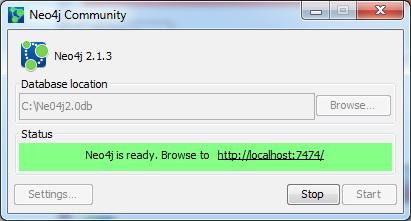

Step 3 − Click the "Start" button.

Browse Stop

Once the server starts, we can observe our Neo4j Database files are generated at a specified directory.

Observed Directory

Before taking a database backup, the first and foremost thing we should do is shutdown the Neo4j Database server.

Step 4 − Click the "Stop" button to shut down the server.

Community Setting

Neo4j Database files are available at C:\Ne04j2.0db

Observe Directory

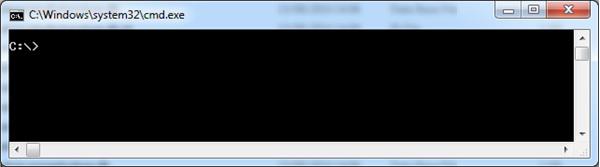

Step 5 − Open the command prompt.

Command Prompt

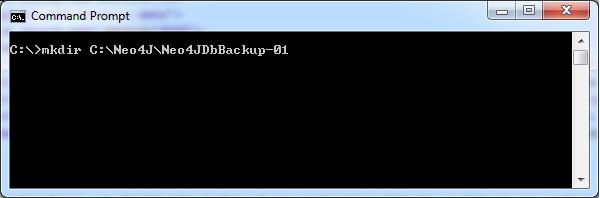

Step 6 − Create a folder "Neo4jDbBackup-01" at C:\Neo4j (This may be any location in your file system).

mkdir C:\Neo4j\Neo4jDbBackup-01

Cmd Mkdir

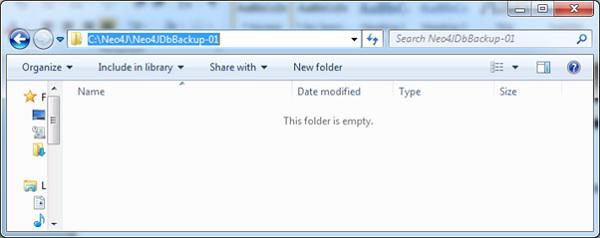

It creates a new folder "Neo4jDbBackup-01" at the specified file system location "C:\Neo4j\"

New Directory

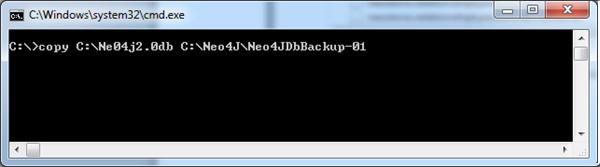

Step 7 − Type the following command and press Enter key.

copy C:\Ne04j2.0db C:\Neo4j\Neo4jDbBackup-01

Backup Command

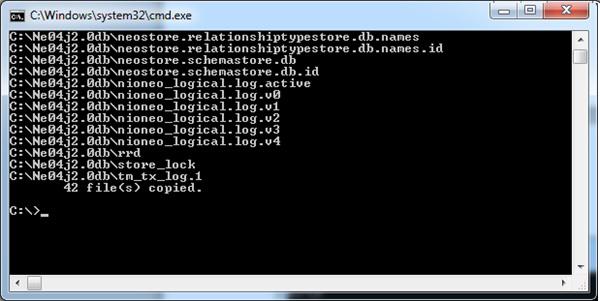

Copied Statements

This means our files are copied to the required destination folder. Access that folder and observe that the folder has our database files.

Database files

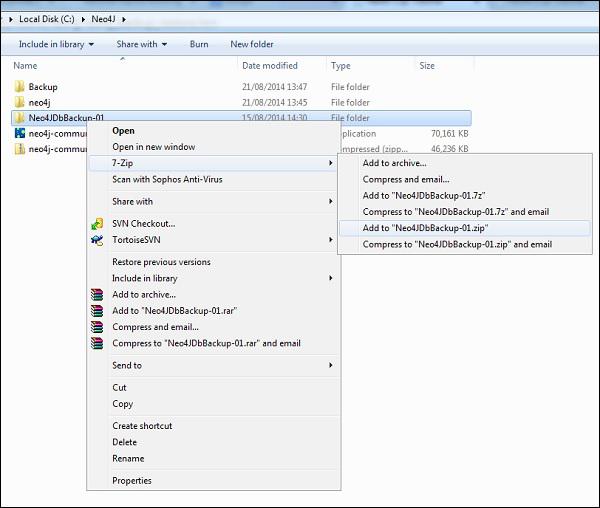

Step 8 − Use any Windows compression/decompression tool like WinZip, 7 Zip, or WinRAR to zip our Database folder.

ZIP Folder

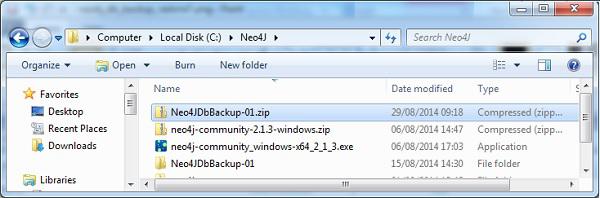

Step 9 − Now our Neo4jDbBackup-01.zip file is created. If you have any memory constraints in your file system, then remove "Neo4jDbBackup-01" folder at "C:\Neo4j\"

Memory Constraint

Neo4j Database Restore

Step 1 − Shutdown the database server. Please refer to the previous steps to shut down the server.

Community Setting

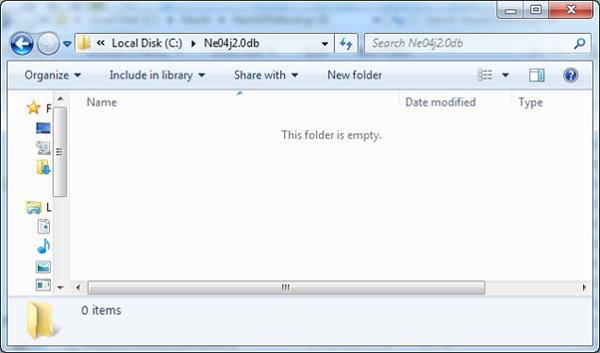

Step 2 − Empty the current database folder.

Current Database

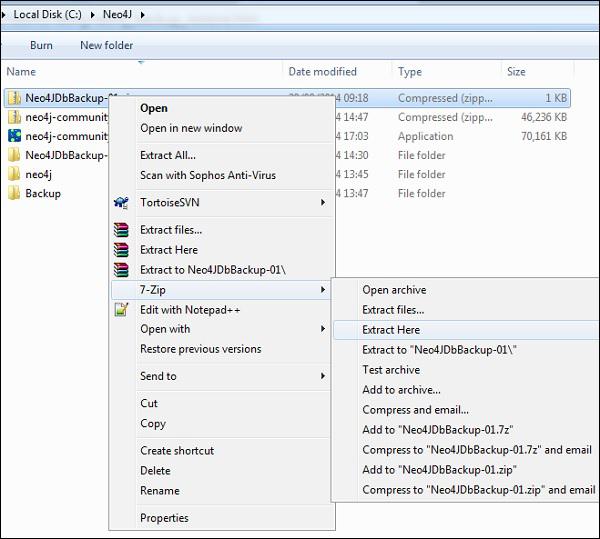

Step 3 − Use any Windows compression/decompression tool like WinZip, 7 Zip, or WinRar to unzip our backup folder.

Extracting Files

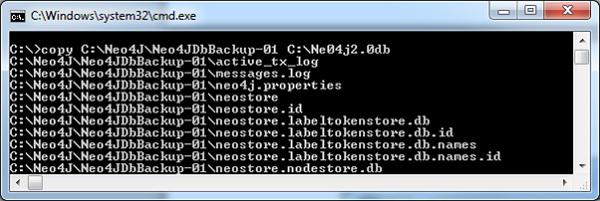

Step 4 − Open the command prompt and execute the following command.

Copy C:\Neo4j\Neo4jDbBackup-01 C:\Ne04j2.0db

Execute

Now we can observe that our database folder contains working backup files

Step 5 − Start the server by clicking the "Start" button.

Community Setting

Browse Stop

Step 6 − Execute some MATCH + RETURN commands to verify whether we have restored our database properly.
