Kibana - Environment Setup


Advertisements

To start working with Kibana we need to install Logstash, Elasticsearch and Kibana. In this chapter, we will try to understand the installation of the ELK stack here.

We would discuss the following installations here −

  • Elasticsearch Installation
  • Logstash Installation
  • Kibana Installation

Elasticsearch Installation

A detailed documentation on Elasticsearch exists in our library. You can check here for elasticsearch installation. You will have to follow the steps mentioned in the tutorial to install Elasticsearch.

Once done with the installation, start the elasticsearch server as follows −

Step 1

For Windows

> cd kibanaproject/elasticsearch-6.5.4/elasticsearch-6.5.4/bin
> elasticsearch

Please note for windows user, the JAVA_HOME variable has to be set to the java jdk path.

For Linux

$ cd kibanaproject/elasticsearch-6.5.4/elasticsearch-6.5.4/bin
$ elasticsearch

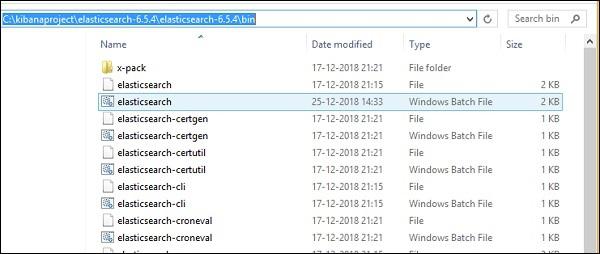

Elasticsearch Installation

The default port for elasticsearch is 9200. Once done, you can check the elasticsearch at port 9200 on localhost http://localhost:9200/as shown below −

Elasticsearch Default Port

Elasticsearch localhost

Logstash Installation

For Logstash installation, follow this elasticsearch installation which is already existing in our library.

Kibana Installation

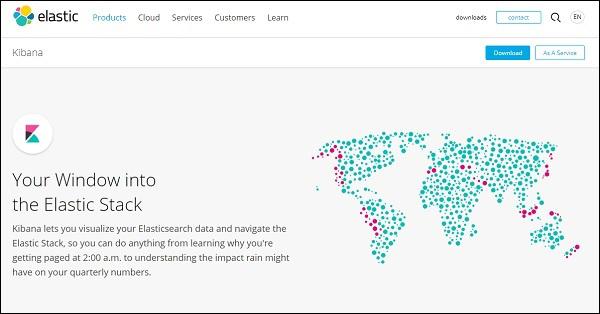

Go to the official Kibana site −https://www.elastic.co/products/kibana

Kibana Installation

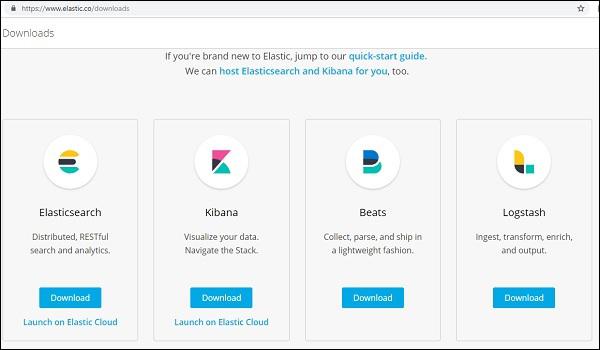

Click the downloads link on the top right corner and it will display screen as follows −

Kibana downloads

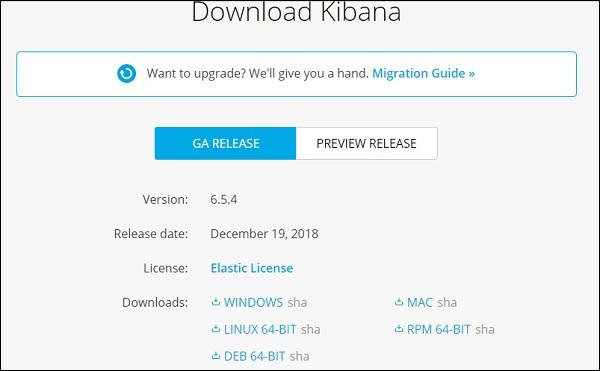

Click the Download button for Kibana. Please note to work with Kibana we need 64 bit machine and it will not work with 32 bit.

Kibana button

In this tutorial, we are going to use Kibana version 6. The download option is available for Windows, Mac and Linux. You can download as per your choice.

Create a folder and unpack the tar/zip downloads for kibana. We are going to work with sample data uploaded in elasticsearch. Thus, for now let us see how to start elasticsearch and kibana. For this, go to the folder where Kibana is unpacked.

For Windows

> cd kibanaproject/kibana-6.5.4/kibana-6.5.4/bin
> kibana

For Linux

$ cd kibanaproject/kibana-6.5.4/kibana-6.5.4/bin
$ kibana

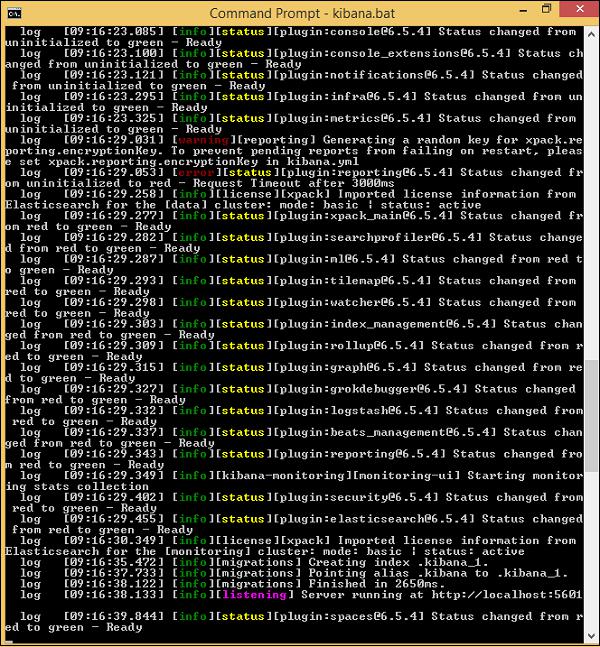

Once Kibana starts, the user can see the following screen −

Kibana starts

Once you see the ready signal in the console, you can open Kibana in browser using http://localhost:5601/.The default port on which kibana is available is 5601.

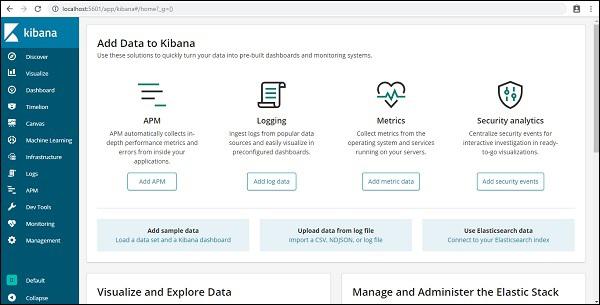

The user interface of Kibana is as shown here −

Kibana interface

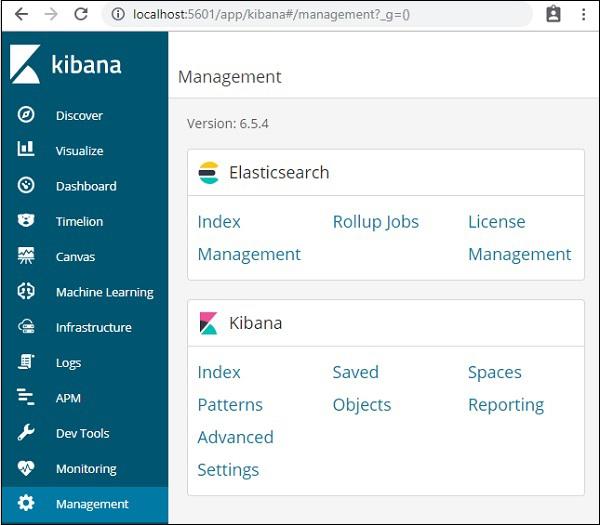

In our next chapter, we will learn how to use the UI of Kibana. To know the Kibana version on Kibana UI, go to Management Tab on left side and it will display you the Kibana version we are using currently.

Kibana UI
