DC.js - Heat Map

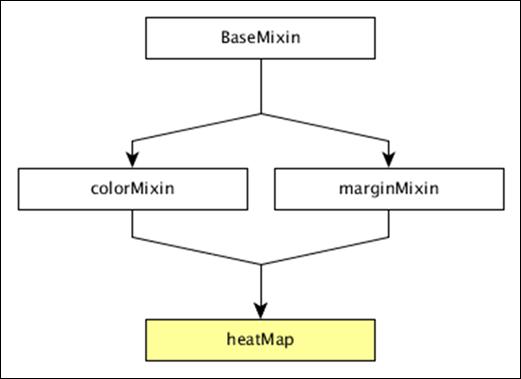

boxOnClick( [handler])

This method is used to get or set the handler, when an individual cell is clicked in the heatmap.

cols( [cols])

This method is used get or set the keys to create the columns of the heatmap.

colsLabel( [label])

This method is used to get or set the column label, which is represented as the column name. Similarly, we can perform a row label as well.

rows( [rows])

This method is used to get or set the values used to create the rows of the heatmap.

xAxisOnClick( [handler])

This method is used to get or set the handler, when a column tick is clicked in the x-axis.

xBorderRadius( [border])

This method is used to set the X border radius. If the value is set to 0, then you will get full rectangles.

Draw a Heatmap

Let us draw a heatmap in DC. To do this, we need to follow the steps given below −

Step 1: Define a variable

Let us define a variable as shown below −

var chart = dc.heatMap('#heatmap');

Here, the heatMap function is mapped with the id heatmap.

Step 2: Read the data

Read the data from the howell1.csv file as shown below −

d3.csv("data/howell1.csv", function(errors, people) {
   var mycrossfilter = crossfilter(people);
}

Here, we have used the same howell1.csv file and it looks as shown below −

"height","weight","age","male"
151.765,47.8256065,63,1
139.7,36.4858065,63,0
136.525,31.864838,65,0
156.845,53.0419145,41,1
145.415,41.276872,51,0
163.83,62.992589,35,1
149.225,38.2434755,32,0
168.91,55.4799715,27,1
147.955,34.869885,19,0
165.1,54.487739,54,1
154.305,49.89512,47,0

......................
......................

Step 3: Fetch the records

Let us fetch the records using the coding given below −

people.forEach(function(x) {
   x.age = Math.floor(x.age) + 1;
   x.heightRange = Math.floor(x.height / 10) + 1;
   x.weightRange = Math.floor(x.weight / 10) + 1;
   if(x.male == 1) {
      x.gender = 1;
   } else {
      x.gender = 2;
   }
});

Here, we have checked the gender and have set the height and width range of the x-axis by using the above formula.

Step 4: Set the dimension

You can set the dimension using the coding given below −

var ageDimension = mycrossfilter.dimension(function(data) {
   return [+data.gender, +data.heightRange];
});

After the dimension has been assigned, group the gender using the coding given below −

var genderGroup = genderDimension.group().reduceCount();

Step 5: Generate a chart

Now, generate a heatmap using the coding given below −

chart
   .width(20 * 45 + 80)
   .height(2 * 45 + 40)
   .dimension(ageDimension)
   .group(ageGroup)
   .keyAccessor(function(d) { return +d.key[1]; })
   .valueAccessor(function(d) { return +d.key[0]; })
   .colorAccessor(function(d) { return +d.value; })
   .title(function(d) {
      return "Height Range:   " + ((d.key[1] - 1) * 10) + " - " + (d.key[1] * 10) + "cm\n" +
      "Gender:  " + (d.key[0] == 1 ? "Male" : "Female") + "\n" +
      "Count: " + (d.value) + " count";
   })
   .calculateColorDomain()

chart.render();
});

Here,

We have assigned the chart width as 20 × 45 + 80 and height as 2 × 45 + 40.
Then we have assigned the gender dimension and group.
Key and value accessor returns the key and value from the heatmaps.
We have to use the colorAccessor() function to return the color.
Finally, set the title and render the chart.

Step 6: Working example

The complete coding is as follows. Create a web page heatmap.html and add the following changes to it.

<html>
   <head>
      <title>DC heat map Sample</title>
      <link rel = "stylesheet" type = "text/css" href = "css/bootstrap.css">
      <link rel = "stylesheet" type = "text/css" href = "css/dc.css"/>

      <script src = "js/d3.js"></script>
      <script src = "js/crossfilter.js"></script>
      <script src = "js/dc.js"></script>
   </head>

   <body>
      <div>
         <div id = "heatmap"></div>
      </div>

      <script language = "javascript">
         var chart = dc.heatMap('#heatmap');

         d3.csv("data/howell1.csv", function(errors, people) {
            var mycrossfilter = crossfilter(people);

            people.forEach(function(x) {
               x.age = Math.floor(x.age) + 1;
               x.heightRange = Math.floor(x.height / 10) + 1;
               x.weightRange = Math.floor(x.weight / 10) + 1;
               if(x.male == 1) {
                  x.gender = 1;
               } else {
                  x.gender = 2;
               }
            });

            var ageDimension = mycrossfilter.dimension(function(data) {
               return [+data.gender, +data.heightRange];
            });

            var ageGroup = ageDimension.group().reduceCount();
            chart
               .width(20 * 45 + 80)
               .height(2 * 45 + 40)
               .dimension(ageDimension)
               .group(ageGroup)
               .keyAccessor(function(d) { return +d.key[1]; })
               .valueAccessor(function(d) { return +d.key[0]; })
               .colorAccessor(function(d) { return +d.value; })
               .title(function(d) {
                  return "Height Range:   " + ((d.key[1] - 1) * 10) + " - " +
                  (d.key[1] * 10) + "cm\n" +
                  "Gender:  " + (d.key[0] == 1 ? "Male" : "Female") + "\n" +
                  "Count: " + (d.value) + " count";})
               .calculateColorDomain()

            chart.render();
         });
      </script>
   </body>
</html>

Now, request the browser and we will see the following response.
