Android Progress Bar using ProgressDialog

Progress bars are used to show progress of a task. For example, when you are uploading or downloading something from the internet, it is better to show the progress of download/upload to the user.

In android there is a class called ProgressDialog that allows you to create progress bar. In order to do this, you need to instantiate an object of this class. Its syntax is.

ProgressDialog progress = new ProgressDialog(this);

Now you can set some properties of this dialog. Such as, its style, its text etc.

progress.setMessage("Downloading Music :) ");
progress.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
progress.setIndeterminate(true);

Apart from these methods, there are other methods that are provided by the ProgressDialog class

Example

This example demonstrates the horizontal use of the progress dialog which is in fact a progress bar. It display a progress bar on pressing the button.

To experiment with this example, you need to run this on an actual device after developing the application according to the steps below.

Following is the content of the modified main activity file src/MainActivity.java.

package com.example.sairamkrishna.myapplication;

import android.app.ProgressDialog;
import android.support.v7.app.ActionBarActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

public class MainActivity extends ActionBarActivity {
   Button b1;
   private ProgressDialog progress;

   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      b1 = (Button) findViewById(R.id.button2);
   }

   public void download(View view){
      progress=new ProgressDialog(this);
      progress.setMessage("Downloading Music");
      progress.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL);
      progress.setIndeterminate(true);
      progress.setProgress(0);
      progress.show();

      final int totalProgressTime = 100;
      final Thread t = new Thread() {
         @Override
         public void run() {
            int jumpTime = 0;

            while(jumpTime < totalProgressTime) {
               try {
                  sleep(200);
                  jumpTime += 5;
                  progress.setProgress(jumpTime);
               } catch (InterruptedException e) {
                  // TODO Auto-generated catch block
                  e.printStackTrace();
               }
            }
         }
      };
      t.start();
   }
}

Modify the content of res/layout/activity_main.xml to the following −

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
   android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:id="@+id/textView"
      android:layout_alignParentTop="true"
      android:layout_centerHorizontal="true"
      android:textSize="30dp"
      android:text="Progress bar" />

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Howcodex"
      android:id="@+id/textView2"
      android:layout_below="@+id/textView"
      android:layout_centerHorizontal="true"
      android:textSize="35dp"
      android:textColor="#ff16ff01" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Download"
      android:onClick="download"
      android:id="@+id/button2"
      android:layout_marginLeft="125dp"
      android:layout_marginStart="125dp"
      android:layout_centerVertical="true" />

</RelativeLayout>

This is the default AndroidManifest.xml −

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.example.sairamkrishna.myapplication" >
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:theme="@style/AppTheme" >

      <activity
         android:name=".MainActivity"
         android:label="@string/app_name" >

         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>

      </activity>

   </application>
</manifest>

Let's try to run your application. We assume, you have connected your actual Android Mobile device with your computer. To run the app from Android studio, open one of your project's activity files and click Run icon from the toolbar. Before starting your application, Android studio will display following window to select an option where you want to run your Android application.

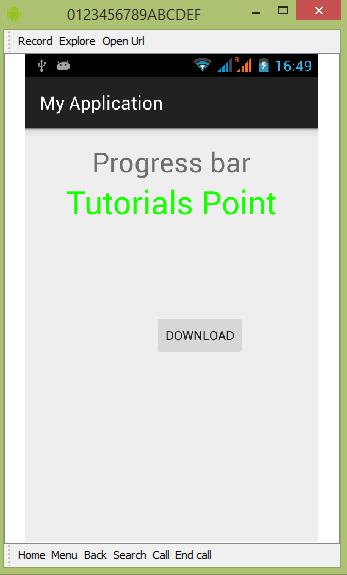

Select your mobile device as an option and then check your mobile device which will display following screen −

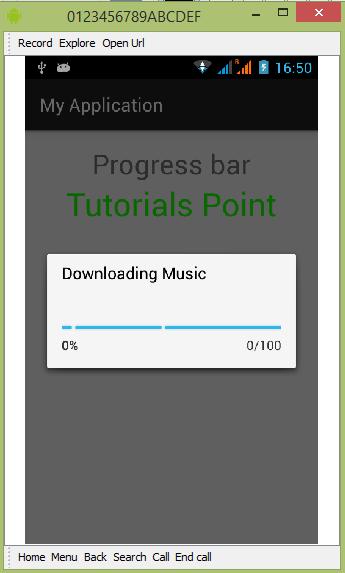

Just press the button to start the Progress bar. After pressing, following screen would appear −

It will continuously update itself.
