Android - Image Switcher

Sometimes you don't want an image to appear abruptly on the screen, rather you want to apply some kind of animation to the image when it transitions from one image to another. This is supported by android in the form of ImageSwitcher.

An image switcher allows you to add some transitions on the images through the way they appear on screen. In order to use image Switcher, you need to define its XML component first. Its syntax is given below −

<ImageSwitcher
   android:id="@+id/imageSwitcher1"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:layout_centerHorizontal="true"
   android:layout_centerVertical="true" >
</ImageSwitcher>

Now we create an intance of ImageSwithcer in java file and get a reference of this XML component. Its syntax is given below −

private ImageSwitcher imageSwitcher;
imageSwitcher = (ImageSwitcher)findViewById(R.id.imageSwitcher1);

The next thing we need to do implement the ViewFactory interface and implement unimplemented method that returns an imageView. Its syntax is below −

imageSwitcher.setImageResource(R.drawable.ic_launcher);
imageSwitcher.setFactory(new ViewFactory() {
   public View makeView() {
      ImageView myView = new ImageView(getApplicationContext());
      return myView;
   }
}

The last thing you need to do is to add Animation to the ImageSwitcher. You need to define an object of Animation class through AnimationUtilities class by calling a static method loadAnimation. Its syntax is given below −

Animation in = AnimationUtils.loadAnimation(this,android.R.anim.slide_in_left);
imageSwitcher.setInAnimation(in);
imageSwitcher.setOutAnimation(out);

The method setInAnimaton sets the animation of the appearance of the object on the screen whereas setOutAnimation does the opposite. The method loadAnimation() creates an animation object.

Apart from these methods, there are other methods defined in the ImageSwitcher class. They are defined below −

Example

The below example demonstrates some of the image switcher effects on the bitmap. It crates a basic application that allows you to view the animation effects on the images.

To experiment with this example , you need to run this on an actual device.

Following is the content of the modified main activity file src/MainActivity.java.

In the below code tp and abc indicates the logo of howcodex.com

package com.example.sairamkrishna.myapplication;

import android.app.Activity;
import android.app.ActionBar.LayoutParams;
import android.os.Bundle;
import android.view.View;

import android.widget.Button;
import android.widget.ImageSwitcher;
import android.widget.ImageView;
import android.widget.Toast;
import android.widget.ViewSwitcher.ViewFactory;

public class MainActivity extends Activity {
   private ImageSwitcher sw;
   private Button b1,b2;

   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);

      b1 = (Button) findViewById(R.id.button);
      b2 = (Button) findViewById(R.id.button2);

      sw = (ImageSwitcher) findViewById(R.id.imageSwitcher);
      sw.setFactory(new ViewFactory() {
         @Override
         public View makeView() {
            ImageView myView = new ImageView(getApplicationContext());
            myView.setScaleType(ImageView.ScaleType.FIT_CENTER);
            myView.setLayoutParams(new
               ImageSwitcher.LayoutParams(LayoutParams.WRAP_CONTENT,
                  LayoutParams.WRAP_CONTENT));
            return myView;
         }
      });

      b1.setOnClickListener(new View.OnClickListener() {
         @Override
         public void onClick(View v) {
            Toast.makeText(getApplicationContext(), "previous Image",
               Toast.LENGTH_LONG).show();
            sw.setImageResource(R.drawable.abc);
         }
      });

      b2.setOnClickListener(new View.OnClickListener() {
         @Override
         public void onClick(View v) {
            Toast.makeText(getApplicationContext(), "Next Image",
               Toast.LENGTH_LONG).show();
            sw.setImageResource(R.drawable.tp);
         }
      });
   }
}

Following is the modified content of the xml res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
   xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   android:paddingBottom="@dimen/activity_vertical_margin"
   tools:context=".MainActivity">

   <TextView android:text="Gestures  Example"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:id="@+id/textview"
      android:textSize="35dp"
      android:layout_alignParentTop="true"
      android:layout_centerHorizontal="true" />

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Tutorials point"
      android:id="@+id/textView"
      android:layout_below="@+id/textview"
      android:layout_centerHorizontal="true"
      android:textColor="#ff7aff24"
      android:textSize="35dp" />

   <ImageSwitcher
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:id="@+id/imageSwitcher"
      android:layout_below="@+id/textView"
      android:layout_centerHorizontal="true"
      android:layout_marginTop="168dp" />

   <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/left"
        android:id="@+id/button"
        android:layout_below="@+id/textView"
        android:layout_centerHorizontal="true" />

   <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/right"
        android:id="@+id/button2"
        android:layout_alignParentBottom="true"
        android:layout_alignLeft="@+id/button"
        android:layout_alignStart="@+id/button" />

</RelativeLayout>

Following is the content of Strings.xml file.

<resources>
    <string name="app_name">My Application</string>
    <string name="left"><![CDATA[<]]></string>
    <string name="right"><![CDATA[>]]></string>
</resources>

Following is the content of AndroidManifest.xml file.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.example.sairamkrishna.myapplication"

   <application
      android:allowBackup="true"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:theme="@style/AppTheme" >

      <activity
         android:name="com.example.sairamkrishna.myapplication.MainActivity"
         android:label="@string/app_name" >

         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>

      </activity>

   </application>
</manifest>

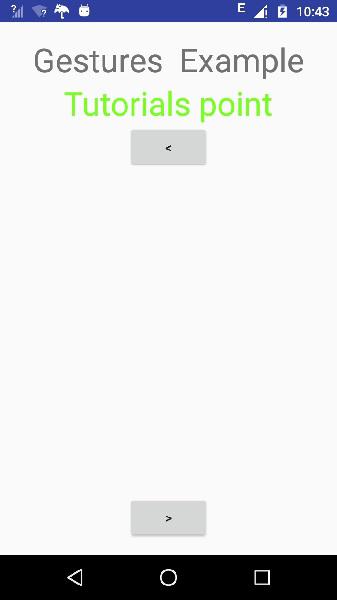

Let's try to run your application we just modified. I assume you had created your AVD while doing environment setup. To run the app from Android studio, open one of your project's activity files and click Run icon from the toolbar. Android studio installs the app on your AVD and starts it and if everything is fine with your setup and application, it will display following Emulator window −

Now if you will look at your device screen , you will see the two buttons.

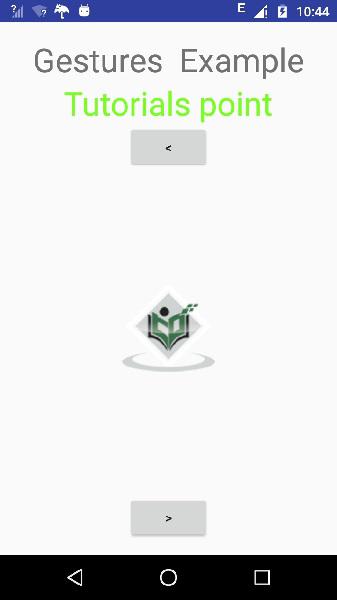

Now just select the upper button that right arrow. An image would appear from right and move towards left. It is shown below −

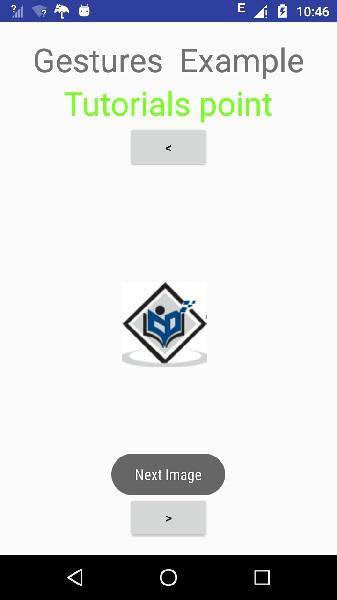

Now tap on the below button, that will bring back the previous image with some transition. It is shown below −
