Android - Image Effects

Android allows you to manipulate images by adding different kinds of effects on the images. You can easily apply image processing techniques to add certain kinds of effects on images. The effects could be brightness,darkness, grayscale conversion e.t.c.

Android provides Bitmap class to handle images. This can be found under android.graphics.bitmap. There are many ways through which you can instantiate bitmap. We are creating a bitmap of image from the imageView.

private Bitmap bmp;
private ImageView img;
img = (ImageView)findViewById(R.id.imageView1);
BitmapDrawable  abmp = (BitmapDrawable)img.getDrawable();

Now we will create bitmap by calling getBitmap() function of BitmapDrawable class. Its syntax is given below −

bmp = abmp.getBitmap();

An image is nothing but a two dimensional matrix. Same way you will handle a bitmap. An image consist of pixels. So you will get pixels from this bitmap and apply processing to it. Its syntax is as follows −

for(int i=0; i<bmp.getWidth(); i++){
   for(int j=0; j<bmp.getHeight(); j++){
      int p = bmp.getPixel(i, j);
   }
}

The getWidth() and getHeight() functions returns the height and width of the matrix. The getPixel() method returns the pixel at the specified index. Once you got the pixel, you can easily manipulate it according to your needs.

Apart from these methods, there are other methods that helps us manipulate images more better.

Example

The below example demonstrates some of the image effects on the bitmap. It crates a basic application that allows you to convert the picture into grayscale and much more.

To experiment with this example , you need to run this on an actual device.

Following is the content of the modified MainActivity.java.

package com.example.sairamkrishna.myapplication;

import android.graphics.Bitmap;
import android.graphics.Color;
import android.graphics.drawable.BitmapDrawable;
import android.support.v7.app.ActionBarActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;

public class MainActivity extends ActionBarActivity {
   Button b1, b2, b3;
   ImageView im;

   private Bitmap bmp;
   private Bitmap operation;

   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);

      b1 = (Button) findViewById(R.id.button);
      b2 = (Button) findViewById(R.id.button2);
      b3 = (Button) findViewById(R.id.button3);
      im = (ImageView) findViewById(R.id.imageView);

      BitmapDrawable abmp = (BitmapDrawable) im.getDrawable();
      bmp = abmp.getBitmap();
   }

   public void gray(View view) {
      operation = Bitmap.createBitmap(bmp.getWidth(),bmp.getHeight(), bmp.getConfig());
      double red = 0.33;
      double green = 0.59;
      double blue = 0.11;

      for (int i = 0; i < bmp.getWidth(); i++) {
         for (int j = 0; j < bmp.getHeight(); j++) {
            int p = bmp.getPixel(i, j);
            int r = Color.red(p);
            int g = Color.green(p);
            int b = Color.blue(p);

            r = (int) red * r;
            g = (int) green * g;
            b = (int) blue * b;
            operation.setPixel(i, j, Color.argb(Color.alpha(p), r, g, b));
         }
      }
      im.setImageBitmap(operation);
   }

   public void bright(View view){
      operation= Bitmap.createBitmap(bmp.getWidth(), bmp.getHeight(),bmp.getConfig());

      for(int i=0; i<bmp.getWidth(); i++){
         for(int j=0; j<bmp.getHeight(); j++){
            int p = bmp.getPixel(i, j);
            int r = Color.red(p);
            int g = Color.green(p);
            int b = Color.blue(p);
            int alpha = Color.alpha(p);

            r = 100  +  r;
            g = 100  + g;
            b = 100  + b;
            alpha = 100 + alpha;
            operation.setPixel(i, j, Color.argb(alpha, r, g, b));
         }
      }
      im.setImageBitmap(operation);
   }

   public void dark(View view){
      operation= Bitmap.createBitmap(bmp.getWidth(),bmp.getHeight(),bmp.getConfig());

      for(int i=0; i<bmp.getWidth(); i++){
         for(int j=0; j<bmp.getHeight(); j++){
            int p = bmp.getPixel(i, j);
            int r = Color.red(p);
            int g = Color.green(p);
            int b = Color.blue(p);
            int alpha = Color.alpha(p);

            r =  r - 50;
            g =  g - 50;
            b =  b - 50;
            alpha = alpha -50;
            operation.setPixel(i, j, Color.argb(Color.alpha(p), r, g, b));
         }
      }
      im.setImageBitmap(operation);
   }

   public void gama(View view) {
      operation = Bitmap.createBitmap(bmp.getWidth(),bmp.getHeight(),bmp.getConfig());

      for(int i=0; i<bmp.getWidth(); i++){
         for(int j=0; j<bmp.getHeight(); j++){
            int p = bmp.getPixel(i, j);
            int r = Color.red(p);
            int g = Color.green(p);
            int b = Color.blue(p);
            int alpha = Color.alpha(p);

            r =  r + 150;
            g =  0;
            b =  0;
            alpha = 0;
            operation.setPixel(i, j, Color.argb(Color.alpha(p), r, g, b));
         }
      }
      im.setImageBitmap(operation);
   }

   public void green(View view){
      operation = Bitmap.createBitmap(bmp.getWidth(),bmp.getHeight(), bmp.getConfig());

      for(int i=0; <bmp.getWidth(); i++){
         for(int j=0; j<bmp.getHeight(); j++){
            int p = bmp.getPixel(i, j);
            int r = Color.red(p);
            int g = Color.green(p);
            int b = Color.blue(p);
            int alpha = Color.alpha(p);

            r =  0;
            g =  g+150;
            b =  0;
            alpha = 0;
            operation.setPixel(i, j, Color.argb(Color.alpha(p), r, g, b));
         }
      }
      im.setImageBitmap(operation);
   }

   public void blue(View view){
      operation = Bitmap.createBitmap(bmp.getWidth(),bmp.getHeight(), bmp.getConfig());

      for(int i=0; i<bmp.getWidth(); i++){
         for(int j=0; j<bmp.getHeight(); j++){
            int p = bmp.getPixel(i, j);
            int r = Color.red(p);
            int g = Color.green(p);
            int b = Color.blue(p);
            int alpha = Color.alpha(p);

            r =  0;
            g =  0;
            b =  b+150;
            alpha = 0;
            operation.setPixel(i, j, Color.argb(Color.alpha(p), r, g, b));
         }
      }
      im.setImageBitmap(operation);
   }
}

Following is the modified content of the xml res/layout/activity_main.xml.

Here abc indicates about logo of howcodex.com

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:id="@+id/textView"
      android:layout_alignParentTop="true"
      android:layout_centerHorizontal="true"
      android:textSize="30dp"
      android:text="Image Effects" />

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Howcodex"
      android:id="@+id/textView2"
      android:layout_below="@+id/textView"
      android:layout_centerHorizontal="true"
      android:textSize="35dp"
      android:textColor="#ff16ff01" />

   <ImageView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:id="@+id/imageView"
      android:layout_below="@+id/textView2"
      android:layout_centerHorizontal="true"
      android:src="@drawable/abc"/>

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Gray"
      android:onClick="gray"
      android:id="@+id/button"
      android:layout_alignParentBottom="true"
      android:layout_alignParentLeft="true"
      android:layout_alignParentStart="true"
      android:layout_marginBottom="97dp" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="dark"
      android:onClick="dark"
      android:id="@+id/button2"
      android:layout_alignBottom="@+id/button"
      android:layout_alignParentRight="true"
      android:layout_alignParentEnd="true" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Bright"
      android:onClick="bright"
      android:id="@+id/button3"
      android:layout_alignTop="@+id/button2"
      android:layout_centerHorizontal="true" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Red"
      android:onClick="gama"
      android:id="@+id/button4"
      android:layout_below="@+id/button3"
      android:layout_alignParentLeft="true"
      android:layout_alignParentStart="true" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Green"
      android:onClick="green"
      android:id="@+id/button5"
      android:layout_alignTop="@+id/button4"
      android:layout_alignLeft="@+id/button3"
      android:layout_alignStart="@+id/button3" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="blue"
      android:onClick="blue"
      android:id="@+id/button6"
      android:layout_below="@+id/button2"
      android:layout_toRightOf="@+id/textView"
      android:layout_toEndOf="@+id/textView" />

</RelativeLayout>

Following is the content of AndroidManifest.xml file.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.example.sairamkrishna.myapplication" >
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:theme="@style/AppTheme" >

      <activity
         android:name=".MainActivity"
         android:label="@string/app_name" >

         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>

      </activity>

   </application>
</manifest>

Let's try to run our application we just modified. I assume you had created your AVD while doing environment setup. To run the app from Android studio, open one of your project's activity files and click Run icon from the toolbar. Android studio installs the app on your AVD and starts it and if everything is fine with your setup and application, it will display following Emulator window −

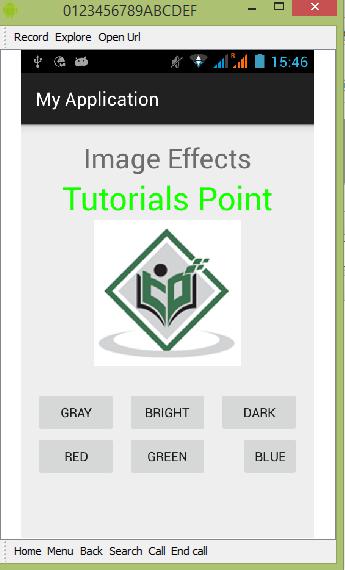

Now if you will look at your device screen , you will see the an image of android along with three buttons.

Now just select the Gray button that will convert your image into grayscale and will update the UI. It is shown below −

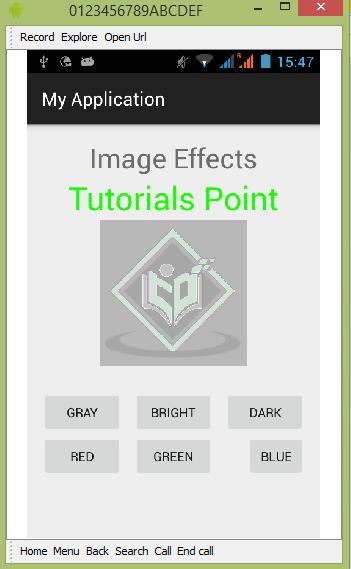

Now tap on the bright button, that will add some value to each pixel of the image and thus makes an illusion of brightness. It is shown below −

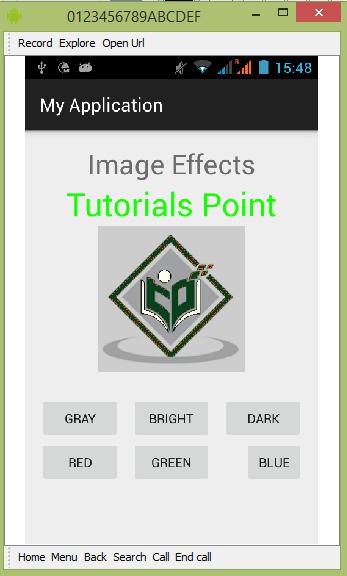

Now tap on the dark button, that will subtract some value to each pixel of the image and thus makes an illusion of dark. It is shown below −

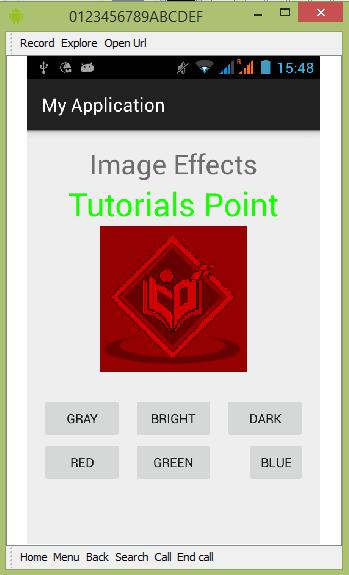

Now tap on the red button, that will subtract some value to each pixel of the image and thus makes an illusion of dark. It is shown below −

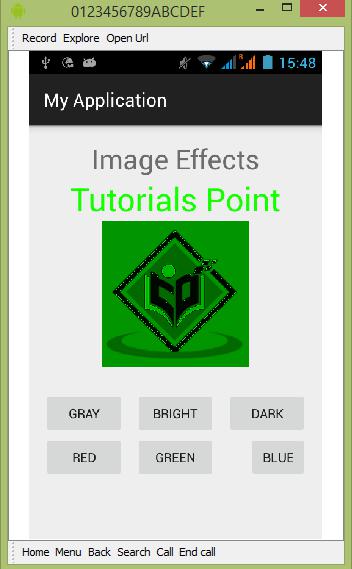

Now tap on the green button, that will subtract some value to each pixel of the image and thus makes an illusion of dark. It is shown below −

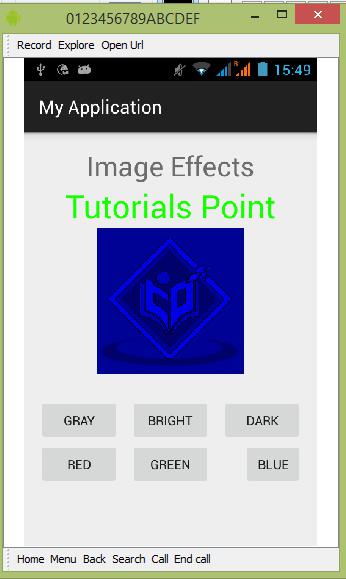

Now tap on the blue button, that will subtract some value to each pixel of the image and thus makes an illusion of dark. It is shown below −
