Android - Animations

Animation is the process of creating motion and shape change

Animation in android is possible from many ways. In this chapter we will discuss one easy and widely used way of making animation called tweened animation.

Tween Animation

Tween Animation takes some parameters such as start value , end value, size , time duration , rotation angle e.t.c and perform the required animation on that object. It can be applied to any type of object. So in order to use this , android has provided us a class called Animation.

In order to perform animation in android , we are going to call a static function loadAnimation() of the class AnimationUtils. We are going to receive the result in an instance of Animation Object. Its syntax is as follows −

Animation animation = AnimationUtils.loadAnimation(getApplicationContext(),
   R.anim.myanimation);

Note the second parameter. It is the name of the our animation xml file. You have to create a new folder called anim under res directory and make an xml file under anim folder.

This animation class has many useful functions which are listed below −

In order to apply this animation to an object , we will just call the startAnimation() method of the object. Its syntax is −

ImageView image1 = (ImageView)findViewById(R.id.imageView1);
image.startAnimation(animation);

Example

The following example demonstrates the use of Animation in android. You would be able to choose different type of animation from the menu and the selected animation will be applied on an imageView on the screen.

To experiment with this example , you need to run this on an emulator or an actual device.

Here is the modified code of MainActivity.java.

package com.example.sairamkrishna.myapplication;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.ImageView;
import android.widget.Toast;

public class MainActivity extends Activity {
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
   }

   public void clockwise(View view){
      ImageView image = (ImageView)findViewById(R.id.imageView);
      Animation animation = AnimationUtils.loadAnimation(getApplicationContext(),
         R.anim.myanimation);
      image.startAnimation(animation);
   }

   public void zoom(View view){
      ImageView image = (ImageView)findViewById(R.id.imageView);
      Animation animation1 = AnimationUtils.loadAnimation(getApplicationContext(),
         R.anim.clockwise);
      image.startAnimation(animation1);
   }

   public void fade(View view){
      ImageView image = (ImageView)findViewById(R.id.imageView);
      Animation animation1 =
         AnimationUtils.loadAnimation(getApplicationContext(),
            R.anim.fade);
      image.startAnimation(animation1);
   }

   public void blink(View view){
      ImageView image = (ImageView)findViewById(R.id.imageView);
      Animation animation1 =
         AnimationUtils.loadAnimation(getApplicationContext(),
            R.anim.blink);
      image.startAnimation(animation1);
   }

   public void move(View view){
      ImageView image = (ImageView)findViewById(R.id.imageView);
      Animation animation1 =
         AnimationUtils.loadAnimation(getApplicationContext(), R.anim.move);
      image.startAnimation(animation1);
   }

   public void slide(View view){
      ImageView image = (ImageView)findViewById(R.id.imageView);
      Animation animation1 =
         AnimationUtils.loadAnimation(getApplicationContext(), R.anim.slide);
      image.startAnimation(animation1);
   }
}

Here is the modified code of res/layout/activity_main.xml.

Here abc indicates about logo of howcodex

<RelativeLayout
   xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:paddingLeft="@dimen/activity_horizontal_margin"
   android:paddingRight="@dimen/activity_horizontal_margin"
   android:paddingTop="@dimen/activity_vertical_margin"
   android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Alert Dialog"
      android:id="@+id/textView"
      android:textSize="35dp"
      android:layout_alignParentTop="true"
      android:layout_centerHorizontal="true" />

   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="Howcodex"
      android:id="@+id/textView2"
      android:textColor="#ff3eff0f"
      android:textSize="35dp"
      android:layout_below="@+id/textView"
      android:layout_centerHorizontal="true" />

   <ImageView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:id="@+id/imageView"
      android:src="@drawable/abc"
      android:layout_below="@+id/textView2"
      android:layout_alignRight="@+id/textView2"
      android:layout_alignEnd="@+id/textView2"
      android:layout_alignLeft="@+id/textView"
      android:layout_alignStart="@+id/textView"/>

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="zoom"
      android:id="@+id/button"
      android:layout_below="@+id/imageView"
      android:layout_alignParentLeft="true"
      android:layout_alignParentStart="true"
      android:layout_marginTop="40dp"
      android:onClick="clockwise"/>

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="clockwise"
      android:id="@+id/button2"
      android:layout_alignTop="@+id/button"
      android:layout_centerHorizontal="true"
      android:onClick="zoom"/>

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="fade"
      android:id="@+id/button3"
      android:layout_alignTop="@+id/button2"
      android:layout_alignParentRight="true"
      android:layout_alignParentEnd="true"
      android:onClick="fade"/>

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="blink"
      android:onClick="blink"
      android:id="@+id/button4"
      android:layout_below="@+id/button"
      android:layout_alignParentLeft="true"
      android:layout_alignParentStart="true" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="move"
      android:onClick="move"
      android:id="@+id/button5"
      android:layout_below="@+id/button2"
      android:layout_alignRight="@+id/button2"
      android:layout_alignEnd="@+id/button2"
      android:layout_alignLeft="@+id/button2"
      android:layout_alignStart="@+id/button2" />

   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="slide"
      android:onClick="slide"
      android:id="@+id/button6"
      android:layout_below="@+id/button3"
      android:layout_toRightOf="@+id/textView"
      android:layout_toEndOf="@+id/textView" />

</RelativeLayout>

Here is the code of res/anim/myanimation.xml.

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android">

   <scale xmlns:android="http://schemas.android.com/apk/res/android"
      android:fromXScale="0.5"
      android:toXScale="3.0"
      android:fromYScale="0.5"
      android:toYScale="3.0"
      android:duration="5000"
      android:pivotX="50%"
      android:pivotY="50%" >
   </scale>

   <scale xmlns:android="http://schemas.android.com/apk/res/android"
      android:startOffset="5000"
      android:fromXScale="3.0"
      android:toXScale="0.5"
      android:fromYScale="3.0"
      android:toYScale="0.5"
      android:duration="5000"
      android:pivotX="50%"
      android:pivotY="50%" >
   </scale>

</set>

Here is the code of res/anim/clockwise.xml.

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android">

   <rotate xmlns:android="http://schemas.android.com/apk/res/android"
      android:fromDegrees="0"
      android:toDegrees="360"
      android:pivotX="50%"
      android:pivotY="50%"
      android:duration="5000" >
   </rotate>

   <rotate xmlns:android="http://schemas.android.com/apk/res/android"
      android:startOffset="5000"
      android:fromDegrees="360"
      android:toDegrees="0"
      android:pivotX="50%"
      android:pivotY="50%"
      android:duration="5000" >
   </rotate>

</set>

Here is the code of res/anim/fade.xml.

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
   android:interpolator="@android:anim/accelerate_interpolator" >

   <alpha
      android:fromAlpha="0"
      android:toAlpha="1"
      android:duration="2000" >
   </alpha>

   <alpha
      android:startOffset="2000"
      android:fromAlpha="1"
      android:toAlpha="0"
      android:duration="2000" >
   </alpha>

</set>

Here is the code of res/anim/blink.xml.

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android">
   <alpha android:fromAlpha="0.0"
      android:toAlpha="1.0"
      android:interpolator="@android:anim/accelerate_interpolator"
      android:duration="600"
      android:repeatMode="reverse"
      android:repeatCount="infinite"/>
</set>

Here is the code of res/anim/move.xml.

<?xml version="1.0" encoding="utf-8"?>
<set
   xmlns:android="http://schemas.android.com/apk/res/android"
   android:interpolator="@android:anim/linear_interpolator"
   android:fillAfter="true">

   <translate
      android:fromXDelta="0%p"
      android:toXDelta="75%p"
      android:duration="800" />
</set>

Here is the code of res/anim/slide.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
   android:fillAfter="true" >

   <scale
      android:duration="500"
      android:fromXScale="1.0"
      android:fromYScale="1.0"
      android:interpolator="@android:anim/linear_interpolator"
      android:toXScale="1.0"
      android:toYScale="0.0" />
</set>

Here is the modified code of res/values/string.xml.

<resources>
   <string name="app_name">My Application</string>
</resources>

Here is the default code of AndroidManifest.xml.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="com.example.sairamkrishna.myapplication" >

   <application
      android:allowBackup="true"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:theme="@style/AppTheme" >

      <activity
         android:name="com.example.animation.MainActivity"
         android:label="@string/app_name" >

         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>

      </activity>

   </application>
</manifest>

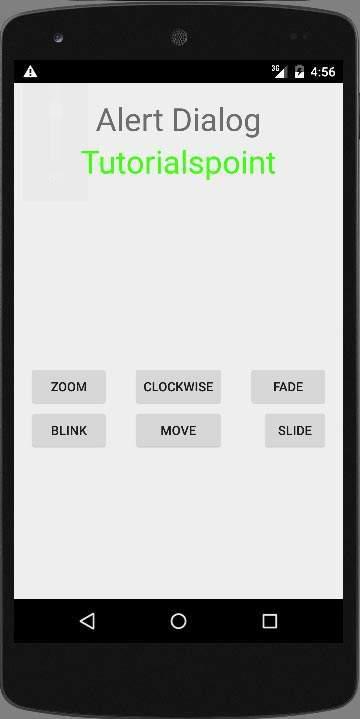

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from Android studio, open one of your project's activity files and click Run icon from the toolbar. Android studio will display following images

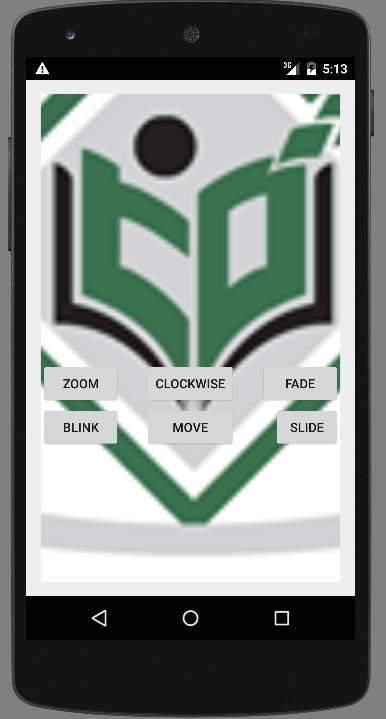

Select zoom button, it will display following screen −

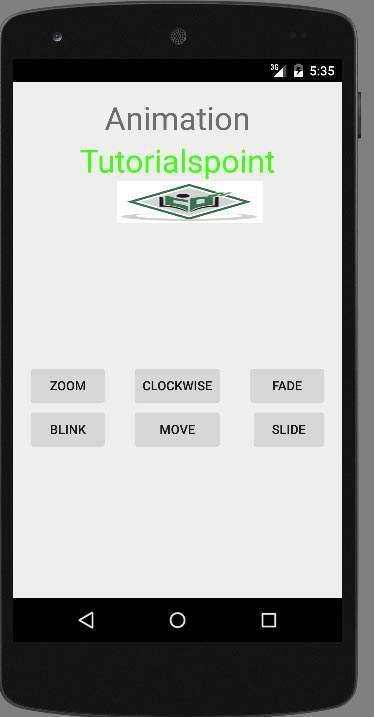

Now select slide button, it will display following screen

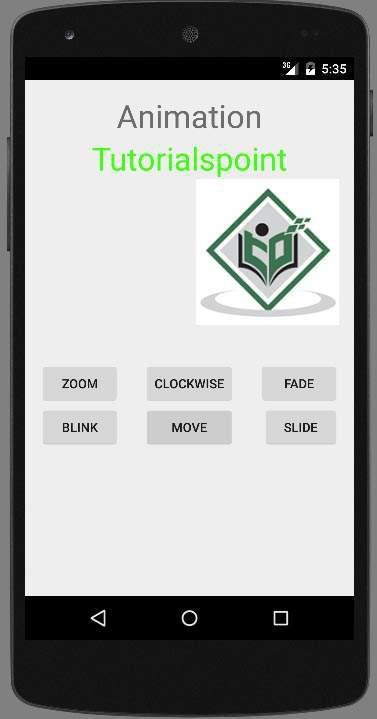

Now select move button, it will display following screen

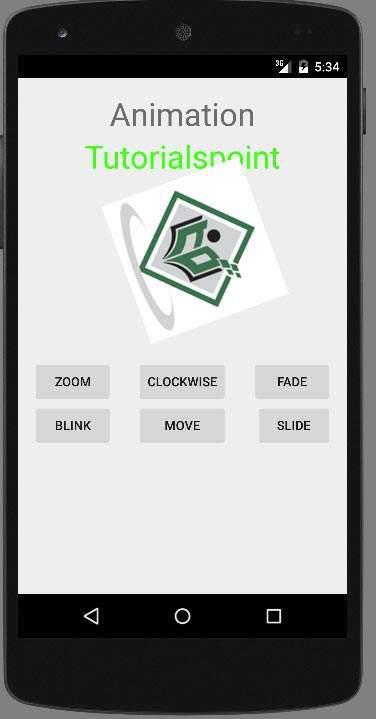

Now the clockwise button, it will display following screen

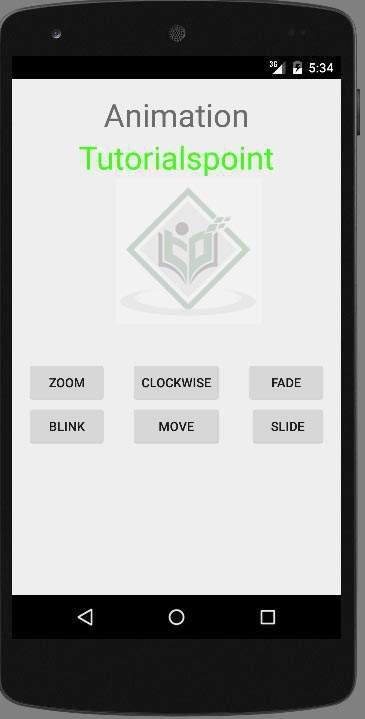

Now Fade button, it will display following screen

Note − If you run it in emulator , you may not experience smooth animation effect. You have to run it in your android mobile in order to experience the smooth animation.
