Xamarin - Android Resources

Advertisements

Previous Page
Next Page

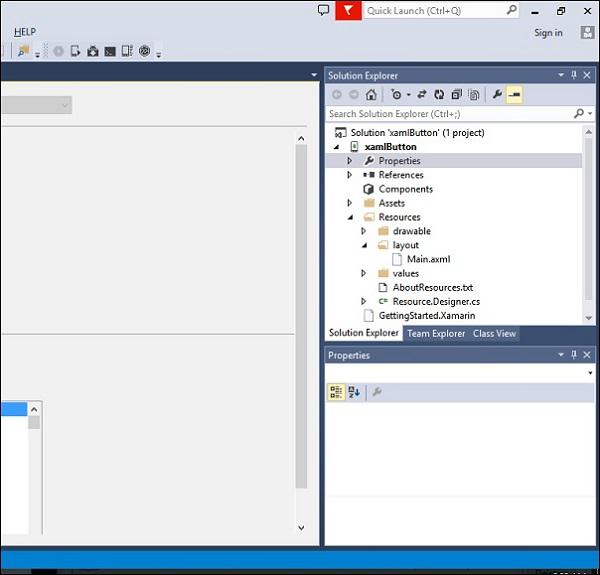

When a new Android project is created, there are some files that are added to the project, by default. We call these default project files and folders as Android Resources. Take a look at the following screenshot.

Android Resources

The default Android resources include the following −

  • AndroidManifest.xml file − It contains information about your Android applications, e.g., the application name, permissions, etc.

  • Resources folder − Resources can be images, layouts, strings, etc. that can be loaded via Android’s resource system.

  • Resources/drawable folder − It stores all the images that you are going to use in your application.

  • Resources/layout folder − It contains all the Android XML files (.axml) that Android uses to build user interfaces.

  • The Resources/values folder − It contains XML files to declare key-value pairs for strings (and other types) throughout an application. This is how localization for multiple languages is normally set up on Android.

  • Resources.designer.cs − This file is created automatically when the Android projected is created and it contains unique identifiers that reference the Android resources.

  • MainActivity.cs file − This is the first activity of your Android application and from where the main application actions are launched from.

Resource files can be accessed programmatically through a unique ID which is stored in the resources.designer.cs file. The ID is contained under a class called Resource. Any resource added to the project is automatically generated inside the resource class.

The following code shows how to create a gridview project containing seven images −

namespace HelloGridView {
   [System.CodeDom.Compiler.GeneratedCodeAttribute
      ("Xamarin.Android.Build.Tas ks",
      "1.0.0.0")]
   public partial class Resource {
      static Resource() {
         global::Android.Runtime.ResourceIdManager.UpdateIdValues();
      }

      public static void UpdateIdValues() {}
      public partial class Attribute {
         static Attribute() {
            global::Android.Runtime.ResourceIdManager.UpdateIdValues();
         }

         private Attribute() {}
      }

      public partial class Drawable {
         // aapt resource value: 0x7f020000
         public const int Icon = 2130837504;

         // aapt resource value: 0x7f020001
         public const int img1 = 2130837505;

         // aapt resource value: 0x7f020002
         public const int img2 = 2130837506;

         // aapt resource value: 0x7f020003
         public const int img3 = 2130837507;

         // aapt resource value: 0x7f020004
         public const int img4 = 2130837508;

         // aapt resource value: 0x7f020005
         public const int img5 = 2130837509;

         // aapt resource value: 0x7f020006
         public const int img6 = 2130837510;

         // aapt resource value: 0x7f020007
         public const int img7 = 2130837511;

         static Drawable() {
            global::Android.Runtime.ResourceIdManager.UpdateIdValues();
         }

         private Drawable() {}
      }

      public partial class Id {
         // aapt resource value: 0x7f050000
         public const int gridview = 2131034112;

         static Id() {
            global::Android.Runtime.ResourceIdManager.UpdateIdValues();
         }

         private Id() {}
      }

      public partial class Layout {
         // aapt resource value: 0x7f030000
         public const int Main = 2130903040;
         static Layout() {
            global::Android.Runtime.ResourceIdManager.UpdateIdValues();
         }
         private Layout() {}
      }

      public partial class String {
         // aapt resource value: 0x7f040001
         public const int ApplicationName = 2130968577;

         // aapt resource value: 0x7f040000
         public const int Hello = 2130968576;

         static String() {
            global::Android.Runtime.ResourceIdManager.UpdateIdValues();
         }
         private String() {}
      }
   }
}

From the above code, the seven images are referenced in a class called drawable. These images are added programmatically. If a user adds another image to the project, it will also be added to the drawable class. The gridview contained in the project is also added and stored in a class on its own. Each item contained in the resources folder is automatically generated and stored in a class.
