ListViews

A Listview is a user interface element that displays lists of items that are scrollable.

Binding data to listviews

In this example, you are going to create a listView that displays the days of the week. To start with, let us create a new XML file and name it listViewTemplate.xml.

In listViewTemplate.xml, we add a new textview as shown below.

<?xml version = "1.0" encoding = "utf-8" ?>
<TextView xmlns:android = "http://schemas.android.com/apk/res/android"
android:id = "@+id/textItem"
android:textSize ="20sp"
android:layout_width = "fill_parent"
android:layout_height = "wrap_content"/>

Next, go to Main.axml and create a new listview inside the Linear Layout.

<ListView
   android:minWidth="25px"
   android:minHeight="25px"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:id="@+id/listView1" />

Open MainActivity.cs and type the following code to bind the data to the listview we created. The code must be written inside the OnCreate() method.

SetContentView(Resource.Layout.Main);
var listView = FindViewById<ListView>(Resource.Id.listView1);
var data = new string[] {
   "Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"
};
listView.Adapter = new ArrayAdapter(this, Resource.Layout.ListViewTemplate, data);

Var data = new string[] simply holds our items as an array.

Array Adapter returns the items in our collection as a view. By default, the Array Adapter uses a default textView to display each item. In the above code, we created our own textview in ListViewTemplate.xml and referenced it using the constructor shown below.

ArrayAdapter(this, Resource.Layout.ListViewTemplate, data);

Finally, build and run your application to view the output.

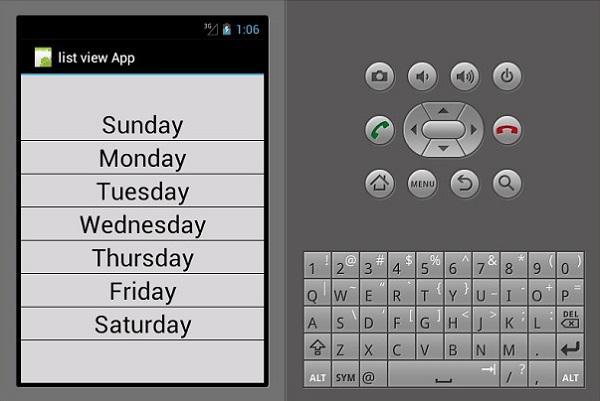

ListView App

GridViews

A gridView is a view group that allows applications to lay out content in a two-dimensional way, scrollable grid.

To add a GridView, create a new project and call it gridViewApp. Go to Main.axml and add a grid as shown below.

<?xml version = "1.0" encoding="utf-8"?>
<GridView xmlns:android = "http://schemas.android.com/apk/res/android"
   android:id = "@+id/gridview"
   android:layout_width = "fill_parent"
   android:layout_height = "fill_parent"
   android:columnWidth = "90dp"
   android:numColumns = "auto_fit"
   android:verticalSpacing = "10dp"
   android:horizontalSpacing = "10dp"
   android:stretchMode = "columnWidth"
   android:gravity = "center" />

Next, create a new class and name it ImageAdpter.cs. This class will contain the adapter classes for all items which will be shown in the grid.

Inside ImageAdapter, add the following code −

public class ImageAdapter : BaseAdapter {
   Context context;
   public ImageAdapter(Context ch) {
      context = ch;
   }

   public override int Count {
      get {
         return cars.Length;
      }
   }

   public override long GetItemId(int position) {
   return 0;
   }

   public override Java.Lang.Object GetItem(int position) {
      return null;
   }

   public override View GetView(int position,
      View convertView, ViewGroup parent) {
      ImageView imageView;
      if (convertView == null) {
         imageView = new ImageView(context);
         imageView.LayoutParameters = new GridView.LayoutParams(100, 100);
         imageView.SetScaleType(ImageView.ScaleType.CenterCrop);
         imageView.SetPadding(8, 8, 8, 8);
      } else {
         imageView = (ImageView)convertView;
      }

      imageView.SetImageResource(cars[position]);
      return imageView;
   }

   int[] cars = {
      Resource.Drawable.img1, Resource.Drawable.img2,
      Resource.Drawable.img3, Resource.Drawable.img4,
      Resource.Drawable.img5, Resource.Drawable.img6,
   };
}

In the above code, we have simply bound our car images to the image adapters. Next, open MainActivity.cs and add the following code after setContentView().

var gridview = FindViewById<GridView>(Resource.Id.gridview);
gridview.Adapter = new ImageAdapter(this);
gridview.ItemClick += delegate(object sender,
   AdapterView.ItemClickEventArgs args) {
      Toast.MakeText(this,
         args.Position.ToString(), ToastLength.Short).Show();
};

The above code finds the gridView in main.axml and binds it to the imageAdapter class. Gridview.ItemClick creates an onClick event which returns the position of the selected image when a user clicks on an image.

Now, build and run your application to view the output.

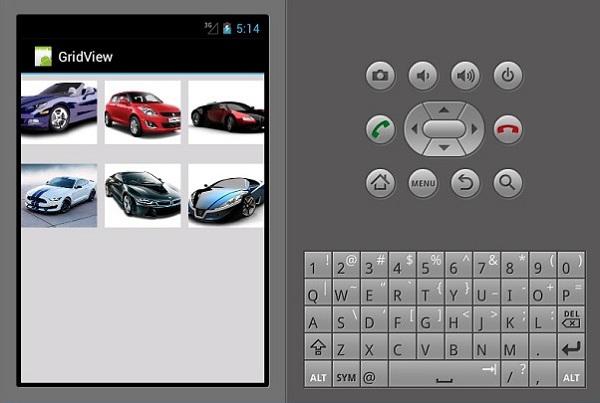

GridView
