Alert Dialog

In this section, we are going to create a button which on clicked displays an alert dialog box. The dialog box contains two buttons, i.e., Delete and Cancel buttons.

First of all, go to main.axml and create a new button inside the linear layout as shown in the following code.

<?xml version = "1.0" encoding = "utf-8"?>
<LinearLayout xmlns:android = "http://schemas.android.com/apk/res/android"
   android:orientation = "vertical"
   android:layout_width = "fill_parent"
   android:background = "#d3d3d3"
   android:layout_height = "fill_parent">
   <Button
      android:id="@+id/MyButton"
      android:layout_width = "fill_parent"
      android:layout_height = "wrap_content"
      android:text = "Click to Delete"
      android:textColor = "@android:color/background_dark"
      android:background = "@android:color/holo_green_dark" />
</LinearLayout>

Next, open MainActivity.cs to create the alert dialog and add its functionality.

protected override void OnCreate(Bundle bundle) {
   base.OnCreate(bundle);
   SetContentView(Resource.Layout.Main);
   Button button = FindViewById<Button>(Resource.Id.MyButton);
   button.Click += delegate {
      AlertDialog.Builder alertDiag = new AlertDialog.Builder(this);
      alertDiag.SetTitle("Confirm delete");
      alertDiag.SetMessage("Once deleted the move cannot be undone");
      alertDiag.SetPositiveButton("Delete", (senderAlert, args) => {
         Toast.MakeText(this, "Deleted", ToastLength.Short).Show();
      });
      alertDiag.SetNegativeButton("Cancel", (senderAlert, args) => {
         alertDiag.Dispose();
      });
      Dialog diag = alertDiag.Create();
      diag.Show();
   };
}

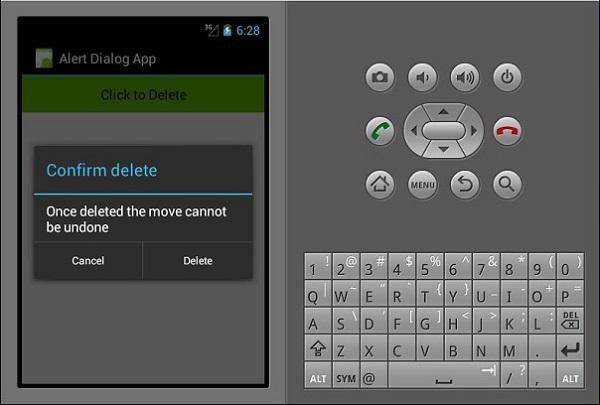

Once done, build and run your Application to view the outcome.

Confirm Delete

In the above code, we have created an alert dialog called alertDiag, with the following two buttons −

  • setPositiveButton − It contains the Delete button action which on clicked displays a confirmation message Deleted.

  • setNegativeButton − It contains a Cancel button which when clicked simply closes the alert dialog box.
