VB.Net - Event Handling

Handling Mouse Events

Mouse events occur with mouse movements in forms and controls. Following are the various mouse events related with a Control class −

MouseDown − it occurs when a mouse button is pressed
MouseEnter − it occurs when the mouse pointer enters the control
MouseHover − it occurs when the mouse pointer hovers over the control
MouseLeave − it occurs when the mouse pointer leaves the control
MouseMove − it occurs when the mouse pointer moves over the control
MouseUp − it occurs when the mouse pointer is over the control and the mouse button is released
MouseWheel − it occurs when the mouse wheel moves and the control has focus

The event handlers of the mouse events get an argument of type MouseEventArgs. The MouseEventArgs object is used for handling mouse events. It has the following properties −

Buttons − indicates the mouse button pressed
Clicks − indicates the number of clicks
Delta − indicates the number of detents the mouse wheel rotated
X − indicates the x-coordinate of mouse click
Y − indicates the y-coordinate of mouse click

Example

Following is an example, which shows how to handle mouse events. Take the following steps −

Add three labels, three text boxes and a button control in the form.
Change the text properties of the labels to - Customer ID, Name and Address, respectively.
Change the name properties of the text boxes to txtID, txtName and txtAddress, respectively.
Change the text property of the button to 'Submit'.
Add the following code in the code editor window −

Public Class Form1
   Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
      ' Set the caption bar text of the form.
      Me.Text = "tutorialspont.com"
   End Sub

   Private Sub txtID_MouseEnter(sender As Object, e As EventArgs)_
      Handles txtID.MouseEnter
      'code for handling mouse enter on ID textbox
      txtID.BackColor = Color.CornflowerBlue
      txtID.ForeColor = Color.White
   End Sub

   Private Sub txtID_MouseLeave(sender As Object, e As EventArgs) _
      Handles txtID.MouseLeave
      'code for handling mouse leave on ID textbox
      txtID.BackColor = Color.White
      txtID.ForeColor = Color.Blue
   End Sub

   Private Sub txtName_MouseEnter(sender As Object, e As EventArgs) _
      Handles txtName.MouseEnter
      'code for handling mouse enter on Name textbox
      txtName.BackColor = Color.CornflowerBlue
      txtName.ForeColor = Color.White
   End Sub

   Private Sub txtName_MouseLeave(sender As Object, e As EventArgs) _
      Handles txtName.MouseLeave
      'code for handling mouse leave on Name textbox
      txtName.BackColor = Color.White
      txtName.ForeColor = Color.Blue
   End Sub

   Private Sub txtAddress_MouseEnter(sender As Object, e As EventArgs) _
      Handles txtAddress.MouseEnter
      'code for handling mouse enter on Address textbox
      txtAddress.BackColor = Color.CornflowerBlue
      txtAddress.ForeColor = Color.White
   End Sub

   Private Sub txtAddress_MouseLeave(sender As Object, e As EventArgs) _
      Handles txtAddress.MouseLeave
      'code for handling mouse leave on Address textbox
      txtAddress.BackColor = Color.White
      txtAddress.ForeColor = Color.Blue
   End Sub

   Private Sub Button1_Click(sender As Object, e As EventArgs) _
      Handles Button1.Click
      MsgBox("Thank you " & txtName.Text & ", for your kind cooperation")
   End Sub
End Class

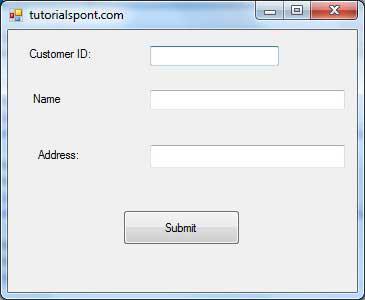

When the above code is executed and run using Start button available at the Microsoft Visual Studio tool bar, it will show the following window −

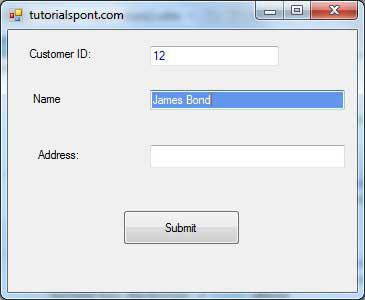

Try to enter text in the text boxes and check the mouse events −

Handling Keyboard Events

Following are the various keyboard events related with a Control class −

KeyDown − occurs when a key is pressed down and the control has focus
KeyPress − occurs when a key is pressed and the control has focus
KeyUp − occurs when a key is released while the control has focus

The event handlers of the KeyDown and KeyUp events get an argument of type KeyEventArgs. This object has the following properties −

Alt − it indicates whether the ALT key is pressed
Control − it indicates whether the CTRL key is pressed
Handled − it indicates whether the event is handled
KeyCode − stores the keyboard code for the event
KeyData − stores the keyboard data for the event
KeyValue − stores the keyboard value for the event
Modifiers − it indicates which modifier keys (Ctrl, Shift, and/or Alt) are pressed
Shift − it indicates if the Shift key is pressed

The event handlers of the KeyDown and KeyUp events get an argument of type KeyEventArgs. This object has the following properties −

Handled − indicates if the KeyPress event is handled
KeyChar − stores the character corresponding to the key pressed

Example

Let us continue with the previous example to show how to handle keyboard events. The code will verify that the user enters some numbers for his customer ID and age.

Add a label with text Property as 'Age' and add a corresponding text box named txtAge.
Add the following codes for handling the KeyUP events of the text box txtID.

Private Sub txtID_KeyUP(sender As Object, e As KeyEventArgs) _
   Handles txtID.KeyUp

   If (Not Char.IsNumber(ChrW(e.KeyCode))) Then
      MessageBox.Show("Enter numbers for your Customer ID")
      txtID.Text = " "
   End If
End Sub

Add the following codes for handling the KeyUP events of the text box txtID.

Private Sub txtAge_KeyUP(sender As Object, e As KeyEventArgs) _
   Handles txtAge.KeyUp

   If (Not Char.IsNumber(ChrW(e.keyCode))) Then
      MessageBox.Show("Enter numbers for age")
      txtAge.Text = " "
   End If
End Sub

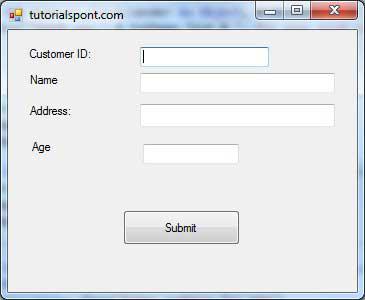

When the above code is executed and run using Start button available at the Microsoft Visual Studio tool bar, it will show the following window −

If you leave the text for age or ID as blank or enter some non-numeric data, it gives a warning message box and clears the respective text −
