VB.Net - Database Access

ADO.Net Object Model

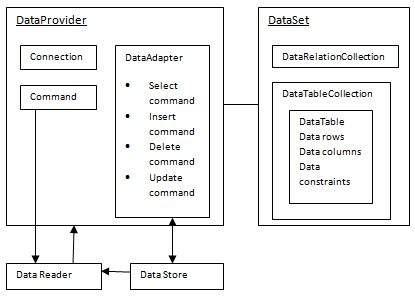

ADO.Net object model is nothing but the structured process flow through various components. The object model can be pictorially described as −

The data residing in a data store or database is retrieved through the data provider. Various components of the data provider retrieve data for the application and update data.

An application accesses data either through a dataset or a data reader.

Datasets store data in a disconnected cache and the application retrieves data from it.
Data readers provide data to the application in a read-only and forward-only mode.

Data Provider

A data provider is used for connecting to a database, executing commands and retrieving data, storing it in a dataset, reading the retrieved data and updating the database.

The data provider in ADO.Net consists of the following four objects −

Sr.No.	Objects & Description
1	Connection This component is used to set up a connection with a data source.
2	Command A command is a SQL statement or a stored procedure used to retrieve, insert, delete or modify data in a data source.
3	DataReader Data reader is used to retrieve data from a data source in a read-only and forward-only mode.
4	DataAdapter This is integral to the working of ADO.Net since data is transferred to and from a database through a data adapter. It retrieves data from a database into a dataset and updates the database. When changes are made to the dataset, the changes in the database are actually done by the data adapter.

There are following different types of data providers included in ADO.Net

The .Net Framework data provider for SQL Server - provides access to Microsoft SQL Server.
The .Net Framework data provider for OLE DB - provides access to data sources exposed by using OLE DB.
The .Net Framework data provider for ODBC - provides access to data sources exposed by ODBC.
The .Net Framework data provider for Oracle - provides access to Oracle data source.
The EntityClient provider - enables accessing data through Entity Data Model (EDM) applications.

DataSet

DataSet is an in-memory representation of data. It is a disconnected, cached set of records that are retrieved from a database. When a connection is established with the database, the data adapter creates a dataset and stores data in it. After the data is retrieved and stored in a dataset, the connection with the database is closed. This is called the 'disconnected architecture'. The dataset works as a virtual database containing tables, rows, and columns.

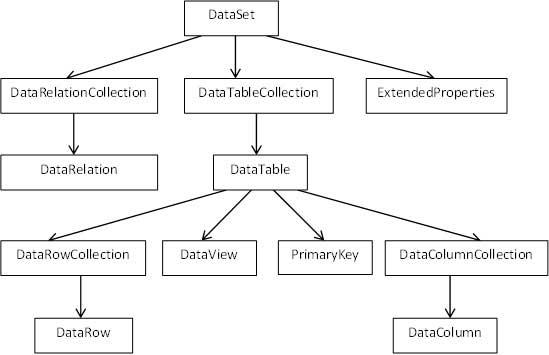

The following diagram shows the dataset object model −

The DataSet class is present in the System.Data namespace. The following table describes all the components of DataSet −

Sr.No.	Components & Description
1	DataTableCollection It contains all the tables retrieved from the data source.
2	DataRelationCollection It contains relationships and the links between tables in a data set.
3	ExtendedProperties It contains additional information, like the SQL statement for retrieving data, time of retrieval, etc.
4	DataTable It represents a table in the DataTableCollection of a dataset. It consists of the DataRow and DataColumn objects. The DataTable objects are case-sensitive.
5	DataRelation It represents a relationship in the DataRelationshipCollection of the dataset. It is used to relate two DataTable objects to each other through the DataColumn objects.
6	DataRowCollection It contains all the rows in a DataTable.
7	DataView It represents a fixed customized view of a DataTable for sorting, filtering, searching, editing and navigation.
8	PrimaryKey It represents the column that uniquely identifies a row in a DataTable.
9	DataRow It represents a row in the DataTable. The DataRow object and its properties and methods are used to retrieve, evaluate, insert, delete, and update values in the DataTable. The NewRow method is used to create a new row and the Add method adds a row to the table.
10	DataColumnCollection It represents all the columns in a DataTable.
11	DataColumn It consists of the number of columns that comprise a DataTable.

Connecting to a Database

The .Net Framework provides two types of Connection classes −

SqlConnection − designed for connecting to Microsoft SQL Server.
OleDbConnection − designed for connecting to a wide range of databases, like Microsoft Access and Oracle.

Example 1

We have a table stored in Microsoft SQL Server, named Customers, in a database named testDB. Please consult 'SQL Server' tutorial for creating databases and database tables in SQL Server.

Let us connect to this database. Take the following steps −

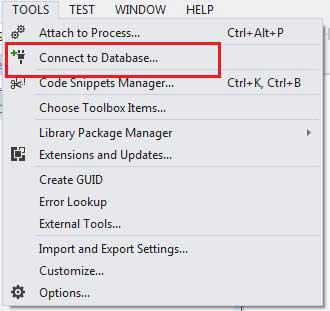

Select TOOLS → Connect to Database

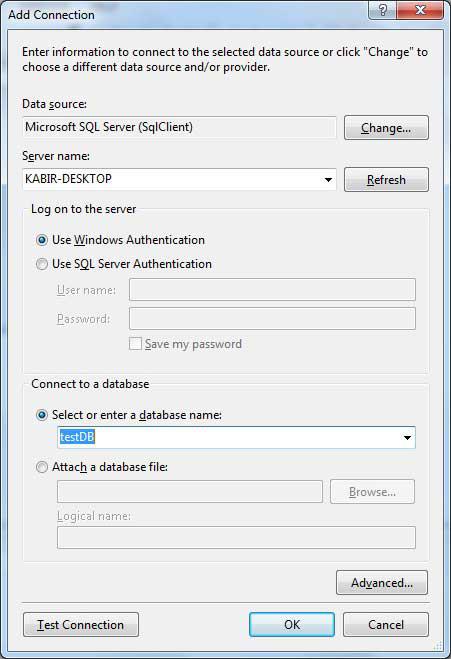

Select a server name and the database name in the Add Connection dialog box.
M

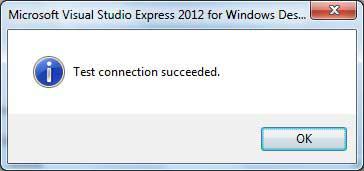

Click on the Test Connection button to check if the connection succeeded.

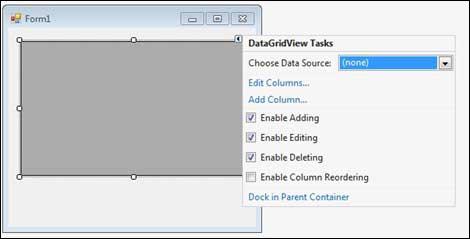

Add a DataGridView on the form.

Click on the Choose Data Source combo box.
Click on the Add Project Data Source link.

This opens the Data Source Configuration Wizard.

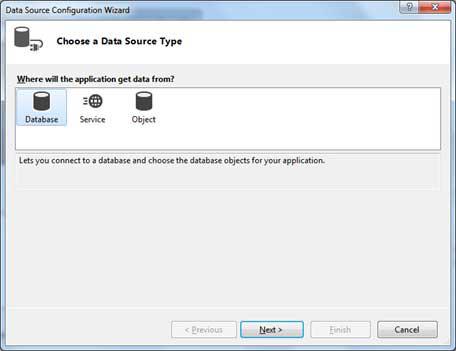

Select Database as the data source type

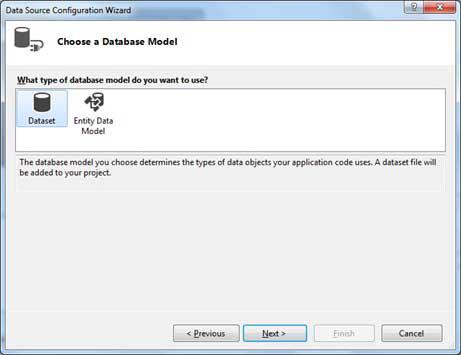

Choose DataSet as the database model.

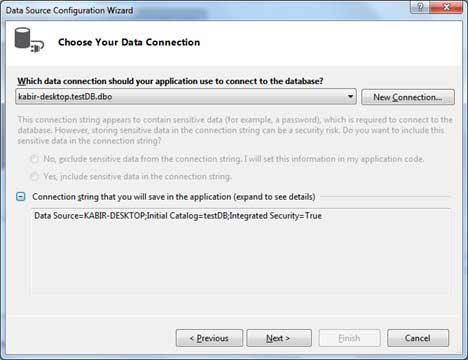

Choose the connection already set up.

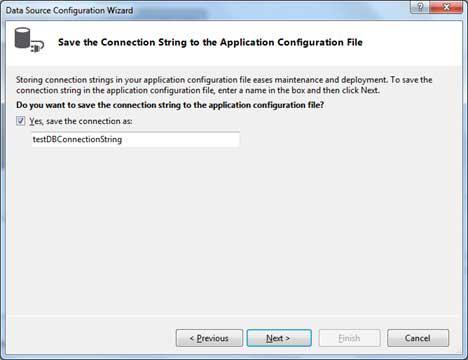

Save the connection string.

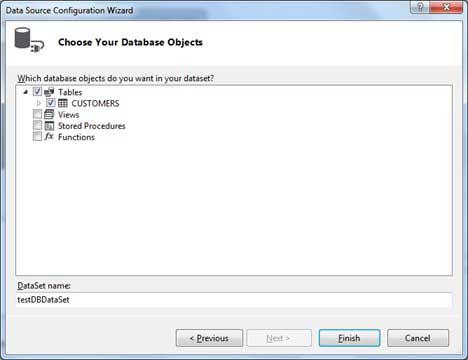

Choose the database object, Customers table in our example, and click the Finish button.

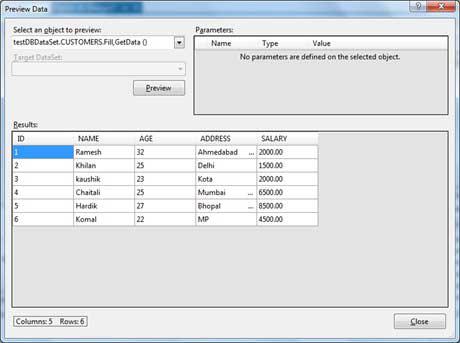

Select the Preview Data link to see the data in the Results grid −

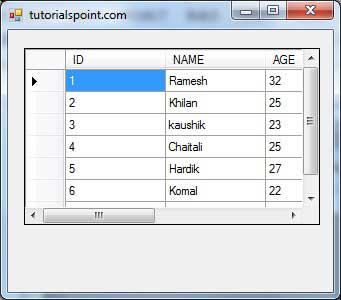

When the application is run using Start button available at the Microsoft Visual Studio tool bar, it will show the following window −

Example 2

In this example, let us access data in a DataGridView control using code. Take the following steps −

Add a DataGridView control and a button in the form.
Change the text of the button control to 'Fill'.
Double click the button control to add the required code for the Click event of the button, as shown below −

Imports System.Data.SqlClient
Public Class Form1
   Private Sub Form1_Load(sender As Object, e As EventArgs) _
   Handles MyBase.Load
      'TODO: This line of code loads data into the 'TestDBDataSet.CUSTOMERS' table.
      You can move, or remove it, as needed.

      Me.CUSTOMERSTableAdapter.Fill(Me.TestDBDataSet.CUSTOMERS)
      ' Set the caption bar text of the form.
      Me.Text = "howcodex.com"
   End Sub

   Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
      Dim connection As SqlConnection = New sqlconnection()
      connection.ConnectionString = "Data Source=KABIR-DESKTOP; _
         Initial Catalog=testDB;Integrated Security=True"
      connection.Open()
      Dim adp As SqlDataAdapter = New SqlDataAdapter _
      ("select * from Customers", connection)
      Dim ds As DataSet = New DataSet()
      adp.Fill(ds)
      DataGridView1.DataSource = ds.Tables(0)
   End Sub
End Class

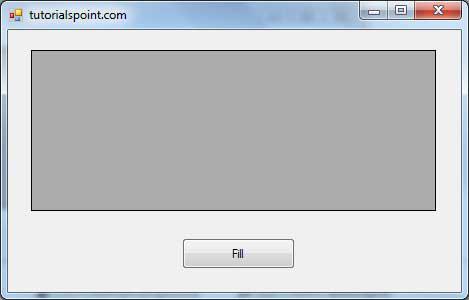

When the above code is executed and run using Start button available at the Microsoft Visual Studio tool bar, it will show the following window −

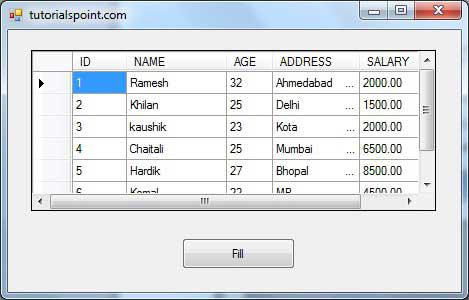

Clicking the Fill button displays the table on the data grid view control −

Creating Table, Columns and Rows

We have discussed that the DataSet components like DataTable, DataColumn and DataRow allow us to create tables, columns and rows, respectively.

The following example demonstrates the concept −

Example 3

So far, we have used tables and databases already existing in our computer. In this example, we will create a table, add columns, rows and data into it and display the table using a DataGridView object.

Take the following steps −

Add a DataGridView control and a button in the form.
Change the text of the button control to 'Fill'.
Add the following code in the code editor.

Public Class Form1
   Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
      ' Set the caption bar text of the form.
      Me.Text = "tutorialspont.com"
   End Sub

   Private Function CreateDataSet() As DataSet
      'creating a DataSet object for tables
      Dim dataset As DataSet = New DataSet()
      ' creating the student table
      Dim Students As DataTable = CreateStudentTable()
      dataset.Tables.Add(Students)
      Return dataset
   End Function

   Private Function CreateStudentTable() As DataTable
      Dim Students As DataTable
      Students = New DataTable("Student")
      ' adding columns
      AddNewColumn(Students, "System.Int32", "StudentID")
      AddNewColumn(Students, "System.String", "StudentName")
      AddNewColumn(Students, "System.String", "StudentCity")
      ' adding rows
      AddNewRow(Students, 1, "Zara Ali", "Kolkata")
      AddNewRow(Students, 2, "Shreya Sharma", "Delhi")
      AddNewRow(Students, 3, "Rini Mukherjee", "Hyderabad")
      AddNewRow(Students, 4, "Sunil Dubey", "Bikaner")
      AddNewRow(Students, 5, "Rajat Mishra", "Patna")
      Return Students
   End Function

   Private Sub AddNewColumn(ByRef table As DataTable, _
   ByVal columnType As String, ByVal columnName As String)
      Dim column As DataColumn = _
         table.Columns.Add(columnName, Type.GetType(columnType))
   End Sub

   'adding data into the table
   Private Sub AddNewRow(ByRef table As DataTable, ByRef id As Integer,_
   ByRef name As String, ByRef city As String)
      Dim newrow As DataRow = table.NewRow()
      newrow("StudentID") = id
      newrow("StudentName") = name
      newrow("StudentCity") = city
      table.Rows.Add(newrow)
   End Sub

   Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
      Dim ds As New DataSet
      ds = CreateDataSet()
      DataGridView1.DataSource = ds.Tables("Student")
   End Sub
End Class

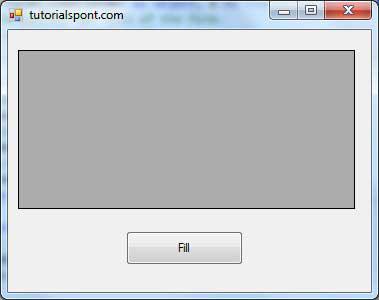

When the above code is executed and run using Start button available at the Microsoft Visual Studio tool bar, it will show the following window −

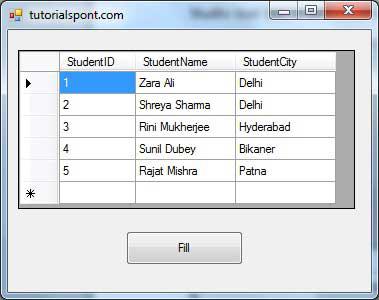

Clicking the Fill button displays the table on the data grid view control −
