SAP Webi - Charts

Chart Types

You can convert the tables in a Webi report into different chart types. There are different Chart types available in Webi.

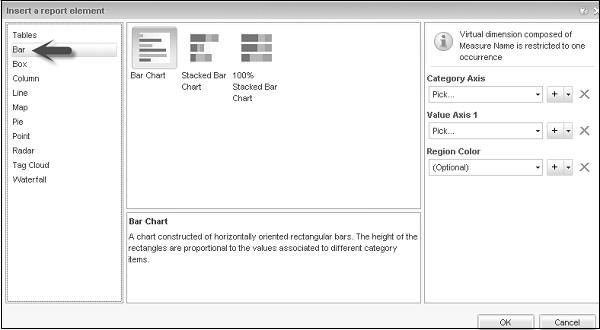

Bar Charts

Bar charts are used to compare similar groups of data and they display data in rectangular form horizontally. Following are the different types of Bar Chart −

Bar Chart
Stacked Bar Chart
100% Stacked Bar Chart

Box Plot Charts

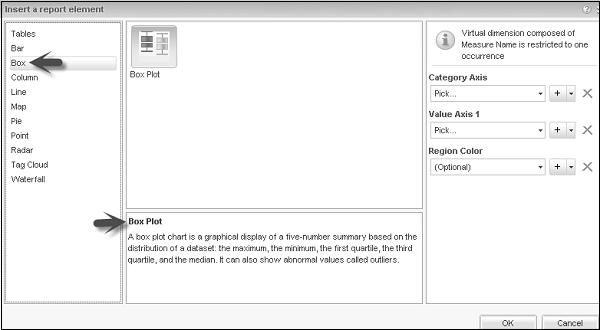

As mentioned in description of box charts, it is a graphical display of a five number summary based on distribution of a dataset: the maximum, the minimum, the first quartile, the third quartile, and the median. It can also show abnormal values called outliers.

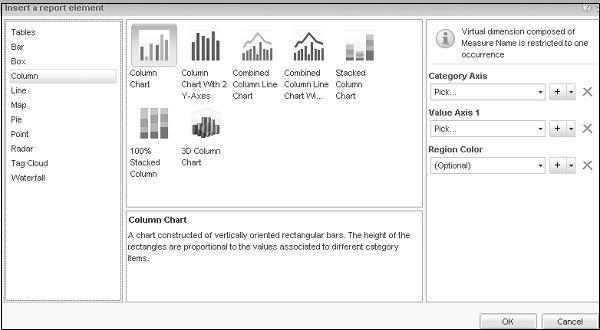

Column Charts

Column charts are constructed of vertically-oriented rectangular bars. The height of the rectangles are proportional to the values associated with different category items.

Following are the different types of Column charts −

Column Chart
Column Chart with 2 Y-axes
Combined column Line Chart
Stacked Column Chart
100% Stacked Column Chart
3D Column Chart

Line Charts

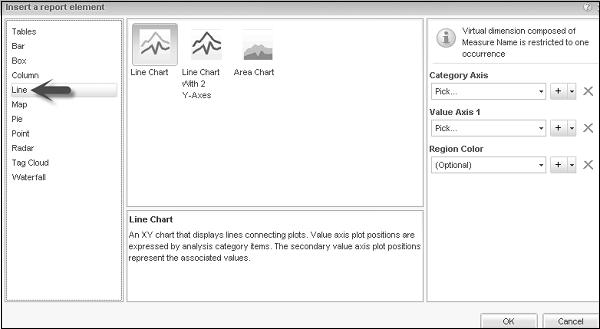

An XY chart that displays lines connecting plots. Value axis plot positions are expressed by analysis category items. The second value axis plot positions represent the associated values.

Following are the different types of Line Chart −

Line Chart
Line Chart with 2 Y Axes
Area Chart

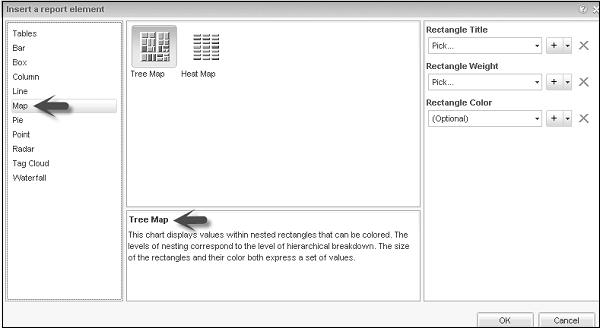

Map Charts

This chart displays values within nested rectangles that can be colored. The levels of nesting correspond to the levels of hierarchy breakdown. The size of rectangles and their color both express a set of values.

Following are the different types of Map Charts −

Tree Map
Heat Map

Pie Charts

A circular chart made up of sectors. The area of circle represents a whole, and the sectors of circle represent the parts of a whole.

Different types of Pie Charts −

Pie Chart
Pie Chart with Variable Slice Depth
Donut Chart

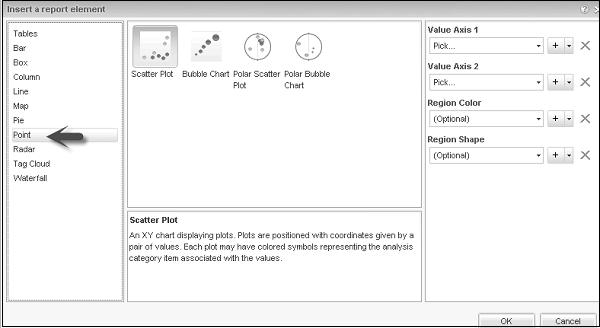

Point Charts

Point chart is an XY chart displaying plots. Plots are positioned with coordinates represented by a pair of values.

Following are the different type of Point Charts −

Scatter Plot
Bubble Chart
Polar Scatter Chart
Polar Bubble Chart

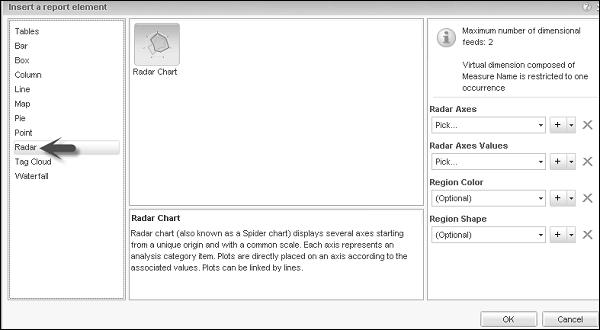

Radar Chart

It is also known as Spider chart and displays several axes starting from unique origin with a common scale.

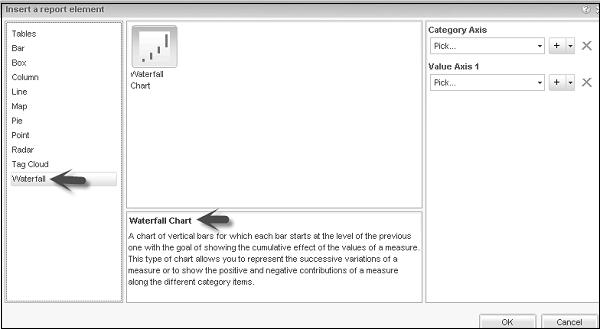

Waterfall

It is used to show the cumulative effect of values of a measure and each bar starts with the level of previous one.

Add a Chart to Report

You should be in Design mode to add a chart. There are different ways to add a chart to a Webi Report.

Method 1

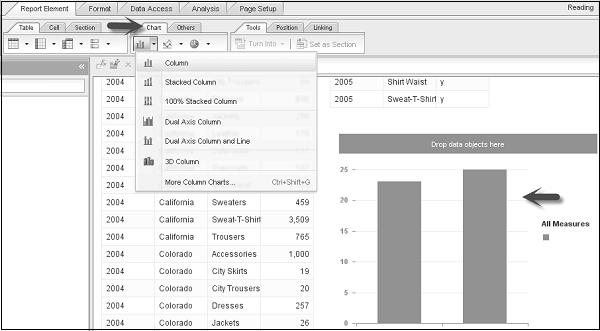

Go to Report Element → Chart → Select a Chart and click on the report area where you want to insert a chart.

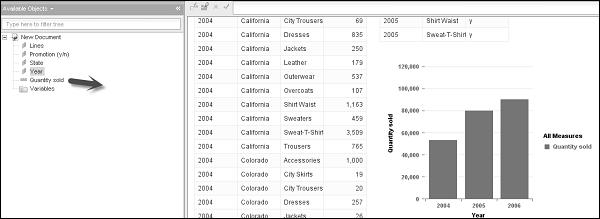

Chart is greyed when there is no data assigned to it. To assign data, you can drag the object from the list of available objects to chart axes.

Method 2

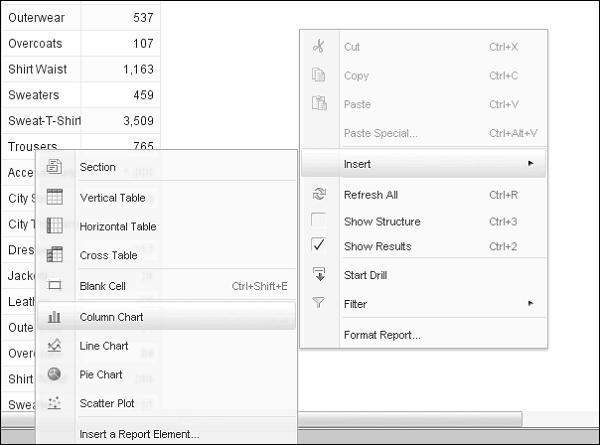

Right-click → Insert → Select the Chart type as shown in the following screenshot. Click the report to add a blank chart and then assign data by dragging objects from the list of available objects.

Method 3

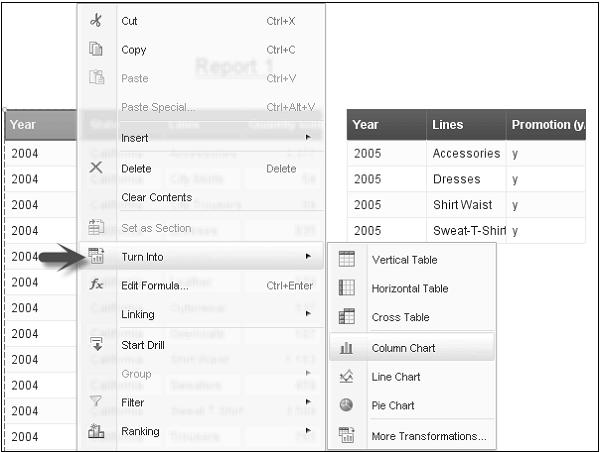

Another method is by converting a table into chart. You can do this by selecting a table in a Webi report. Right-click on a column → Turn Into → Select a Chart.

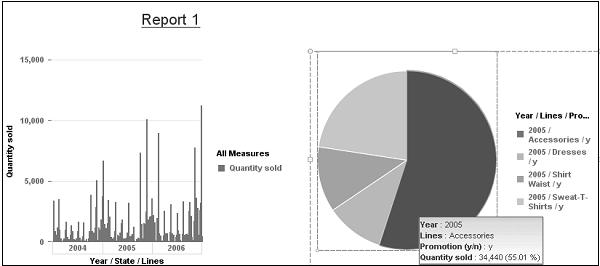

The table will be converted into a column chart.

Copy Chart

You can also copy a chart from a Webi report to the same report or to an application. To copy a chart, you have to first select the chart.

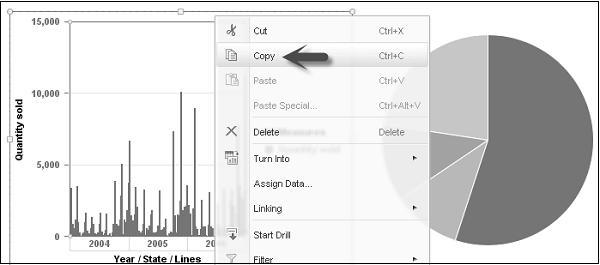

To copy a Chart, right-click on the chart and select copy.

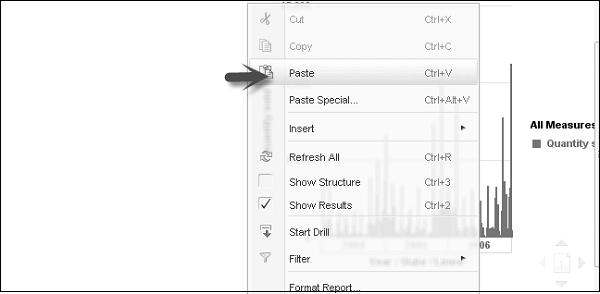

Now to paste this chart in the same report, select an area in the report. Right-click and Paste.

To copy this chart to an application, you can drag the chart directly to an open application or this can be done by copying the chart to the clipboard and pasting it in the application.

Delete a Chart

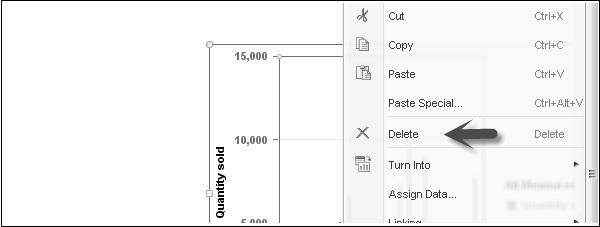

To delete a chart, you can select a chart. Right-click → press Delete or select delete option.

Changing a Chart Type

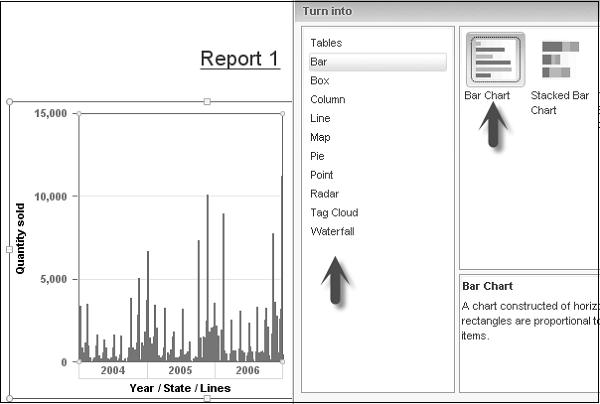

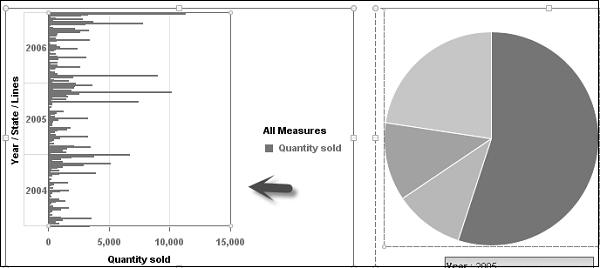

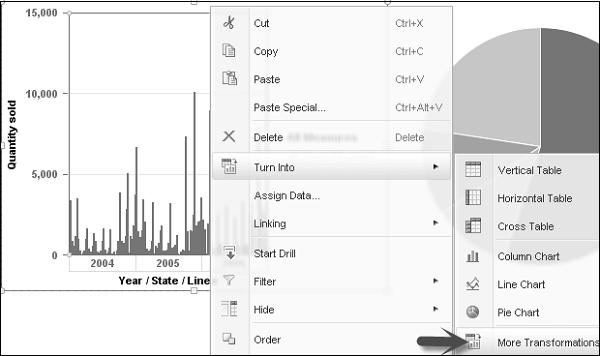

Select the table or Chart → Right-click → Turn into → More Transformations.

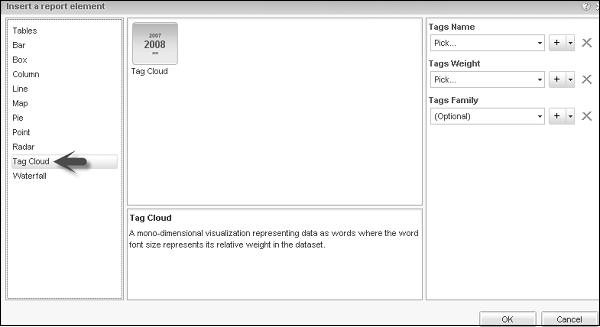

Once you click on More Transformation, it will open a window with different Chart options. You can select any chart type and the chart will be changed in the report.

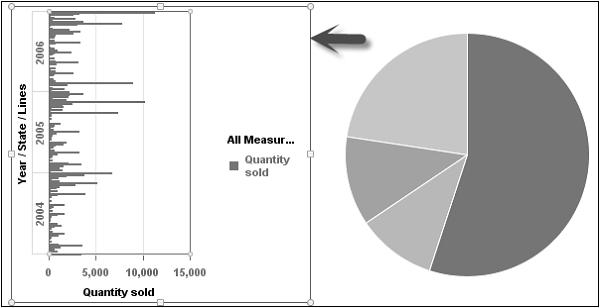

Resize Charts

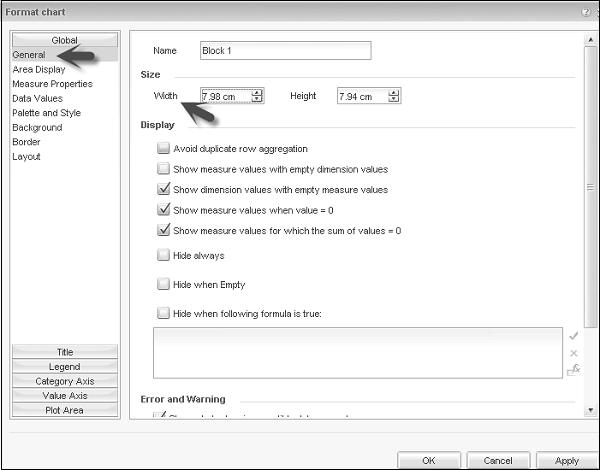

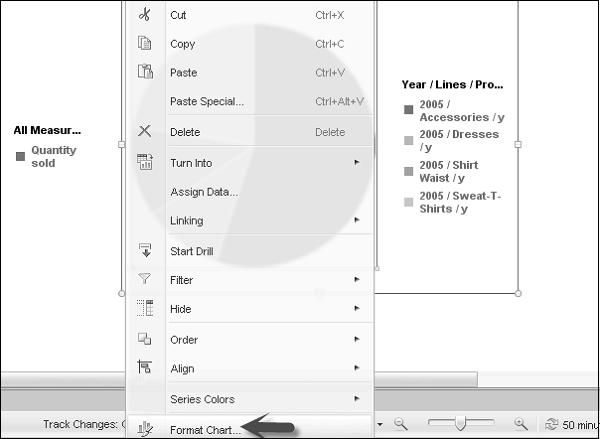

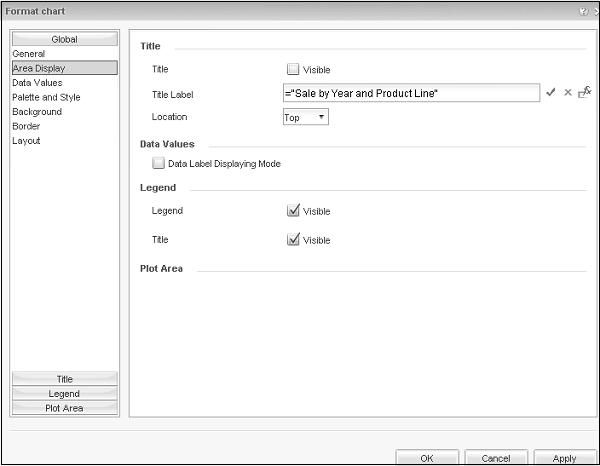

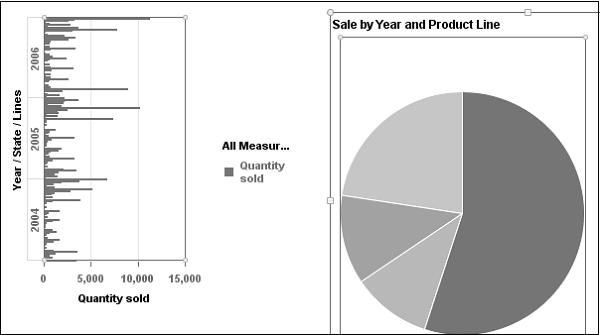

You can also resize the chart by using the mouse option. Right-click the chart and select format chart option. It will open a new window. Go to General tab → Width and Height option → Select the chart parameters. Click ‘Apply’ and then ‘Ok’.
