SAP QM - Sampling

Sampling procedure in QM is used to determine the size of the inspection lot to be used in inspection plan under Quality planning. You can define a sampling procedure as fixed sample, percentage or other sample. A sampling scheme contains collection of sampling plans.

In sampling plan, you define the sample size specification for the inspection lot, to determine if a sample is accepted or not accepted.

Creating a Sampling Procedure

To create a sampling procedure, use T-Code: QDV1. The image given below shows how to create a Sampling procedure.

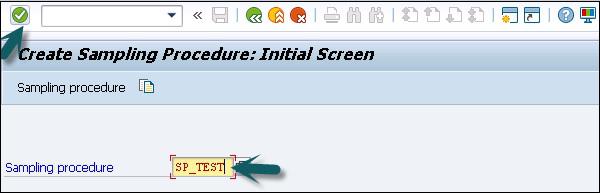

Step 1 − In the next window, you have to enter the Sampling procedure name and click the tick icon at the top.

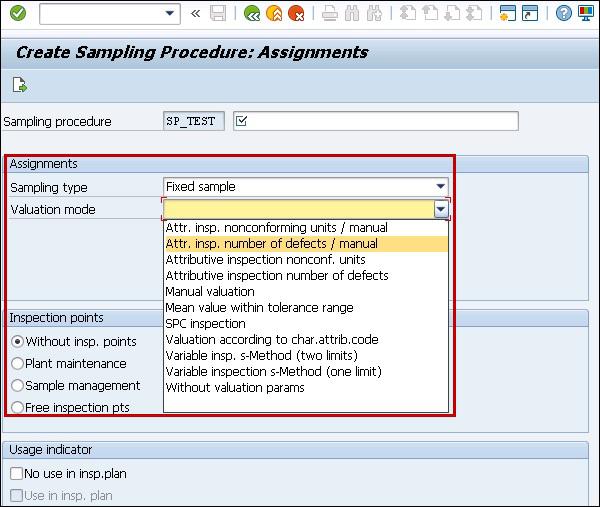

Step 2 − In the next window, enter the following details −

• Sampling type
• Valuation mode
• Inspection Points

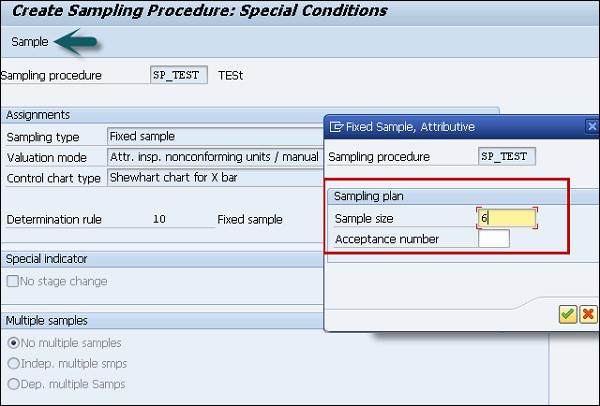

Step 3 − Press ENTER, select Control chart type. At the top, you have a Sample button. Click the Sample button to open a Sample attribute window. Enter the sample size and click the tick button.

To save the sampling procedure click the save button at the top.
