In SAP Logistics, you have Information System that contains details about Purchasing Information system, Sales Information system, Plant Maintenance Information system, Quality Management Information system, and Retail Information system.

Plant Maintenance Information system consists of the following fields −

  • Information Structure
  • Standard Analysis
  • Characteristics and Key Figures
  • MTTR/MTBR

Information Structure

Following information structures are available under Plant Maintenance −

  • S061 Location and Planning Group Analysis
  • S070 Breakdown Analysis
  • S114 Vehicle Consumption Analysis
  • S115 Cost Analysis
  • S116 Sales Notification Analysis
  • S065 Object Statistics
  • S062 Object Class and Manufacturer Analysis
  • S063 Single Object Damage Analysis

Standard Analysis

You have the following functions under SAP Plant Maintenance Standard Analysis −

  • Object Class
  • Manufacturer
  • Location
  • Object Statistics
  • Breakdown Statistics
  • Costs Analysis
  • Customer Notifications
  • Vehicle consumption
  • Planning Group
  • Damage Analysis

Characteristics and Key Figures

You have the following functions under SAP Plant Maintenance Characteristics and Key Figures −

  • Damage Analysis
  • Object Statistics
  • Breakdown Analysis
  • Cost Analysis
  • Customer Notifications
  • Vehicle Consumption Analysis

MTTR/MTBR

You can evaluate Mean Time to Repair (MTTR) and Mean Time Between Repair (MTBR) for equipment/functional location.

In SAP Plant Maintenance, to perform MTTR/MTBR, you can select one of the following menu paths in the Plant Maintenance or Customer Service menu −

Information System → Report Selection → Information Systems → MTTR/MTBR Equipment

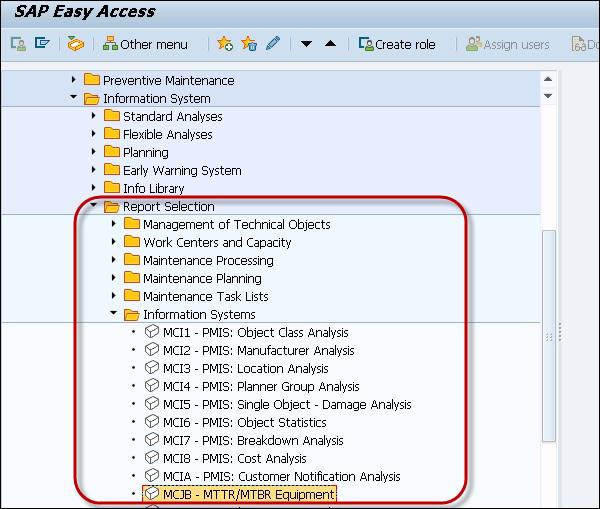

Report Selection

In the next window, select Equipment and click Execute.

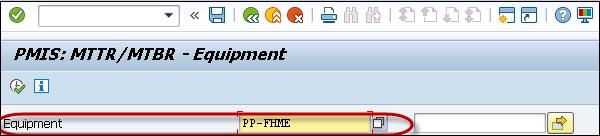

MTTR Equipment

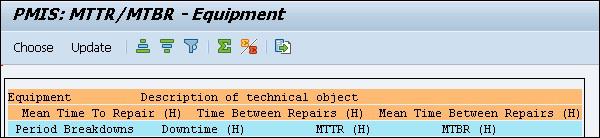

Description

Similarly, you can perform MTTR/MTBR analysis as per Functional Location.

Information System → Report Selection → Information Systems → MTTR/MTBR Functional Location

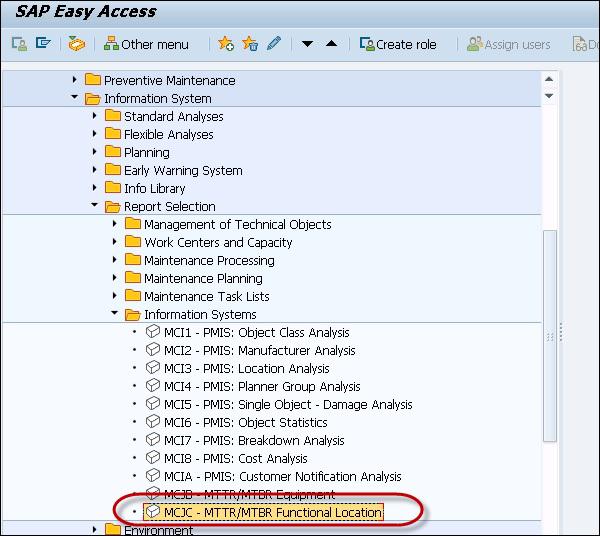

MTTR Functional Location

Functional Location Tab

Description of Object
