GraphQL - Apollo Client

Sr.No.	Platform & Framework
1	Javascript React,Angular,Vue,Meteor,Ember
2	WebComponents Polymer, lit-apollo
3	Native Mobile Native Android with Java, Native iOS with Swift

Illustration

Let us see how to use Apollo Client to build client applications using the following steps −

Setting up Server

We have to follow the below steps for setting up a server −

Step 1 − Download and Install Required Dependencies for the Project

Create a folder apollo-server-app. Change your directory to apollo-server-app from the terminal. Then, follow steps 3 to 5 explained in the Environment Setup chapter.

Step 2 − Create a Schema

Add schema.graphql file in the project folder apollo-server-app and add the following code −

type Query
{
   students:[Student]
}

type Student {
   id:ID!
   firstName:String
   lastName:String
   college:College
}

type College {
   id:ID!
   name:String
   location:String
   rating:Float
}

Step 3 − Add Resolvers

Create a file resolvers.js in the project folder and add the following code −

const db = require('./db')

const Query = {
   //resolver function for students returns list
   students:() => db.students.list(),
}

const Student = {
   college:(root) => {
      return db.colleges.get(root.collegeId);
   }
}
module.exports = {Query,Student}

Step 4 − Run the Application

Create a server.js file. Refer step 8 in the Environment Setup Chapter. Execute the command npm start in the terminal. The server will be up and running on 9000 port. Here, we will use GraphiQL as a client to test the application.

Open browser and type the URL http://localhost:9000/graphiql. Type the following query in the editor.

{
   students{
      id
      firstName
      college{
         name
      }
   }
}

The response for the query is as given below −

{
   "data": {
      "students": [
         {
            "id": "S1001",
            "firstName": "Mohtashim",
            "college": {
               "name": "CUSAT"
            }
         },

         {
            "id": "S1002",
            "firstName": "Kannan",
            "college": {
               "name": "AMU"
            }
         },

         {
            "id": "S1003",
            "firstName": "Kiran",
            "college": {
               "name": "AMU"
            }
         }
      ]
   }
}

Setting up the Client

Open a new terminal for client. The server terminal should be kept running before executing the client application. React application will be running on port number 3000 and server application on port number 9000.

Step 1 − Create a React Application

In the client terminal, type the following command −

npx create-react-app hello-world-client

This will install everything needed for a typical react application. The npx utility and create-react-app tool create a project with name hello-world-client. Once the installation is completed, open the project in VSCode.

Step 2 − Start hello-world-client

Change the current folder path in the terminal to hello-world-client. Type npm start to launch the project. This will run a development server at port 3000 and will automatically open the browser and load the index page.

This is shown in the screenshot given below −

Step 3 − Install Apollo Client Libraries

To install an Apollo Client, open a new terminal and be in current project folder path. Type the following command −

npm install apollo-boost graphql

This will download the graphql libraries for client side and also the Apollo Boost package. We can cross check this by typing npm view in apollo-boost dependencies. This will have many dependencies as shown below −

{
   'apollo-cache': '^1.1.15',
   'apollo-cache-inmemory': '^1.2.8',
   'apollo-client': '^2.4.0',
   'apollo-link': '^1.0.6',
   'apollo-link-error': '^1.0.3',
   'apollo-link-http': '^1.3.1',
   'apollo-link-state': '^0.4.0',
   'graphql-tag': '^2.4.2'
}

We can clearly see that Apollo-Client library is installed.

Step 4 − Modify the App Component in index.js File

With Apollo Client, we can directly call server without the use of fetch API. Also, the queries and mutations should not be embedded in a string made with back tick notation. This is because, the gql function directly parses the queries. This means, a programmer can directly write queries in the same way when writing queries in GraphiQL tool. gql is a tag function which will parse the template string written in back tick notation to graphql query object. The Apollo Client query method returns a promise.

Following code snippet shows how to import Apollo Client −

import {ApolloClient, HttpLink, InMemoryCache} from 'apollo-boost'

const endPointUrl = 'http://localhost:9000/graphql'
const client = new ApolloClient({
   link: new HttpLink({uri:endPointUrl}),
   cache:new InMemoryCache()
});

In the previous chapter, we discussed how to use fetch API for HTTP requests. The following code shows how to use gql function. The loadStudentsAsync function uses graphql client to query the server.

async function loadStudentsAsync() {
   const query = gql`
   {
      students{
         id
         firstName
         lastName
         college{
            name
         }
      }
   }`
   const {data} = await client.query({query}) ;
   return data.students;
}

You only need to keep the index.js in src folder and index.html in public folder; all other files that are auto generated can be removed.

The directory structure is given below −

hello-world-client /
   -->node_modules
   -->public
         index.html
   -->src
         index.js
   -->package.json

Following is the index.js in react application −

import React, {Component} from 'react';
import ReactDOM from 'react-dom';

// apollo client

import {ApolloClient, HttpLink, InMemoryCache} from 'apollo-boost'
import gql from 'graphql-tag'

const endPointUrl = 'http://localhost:9000/graphql'
const client = new ApolloClient({
   link: new HttpLink({uri:endPointUrl}),
   cache:new InMemoryCache()
});

async function loadStudentsAsync() {
   const query = gql`
   {
      students{
         id
         firstName
         lastName
         college{
            name
         }
      }
   }
   `
   const {data} = await client.query({query}) ;
   return data.students;
}
class  App  extends Component {
   constructor(props) {
      super(props);
      this.state = {
         students:[]
      }
      this.studentTemplate =  [];
   }
   async loadStudents() {
      const studentData =  await loadStudentsAsync();
      this.setState({
         students: studentData
      })
      console.log("loadStudents")
   }
   render() {
      return(
         <div>
            <input type = "button"  value = "loadStudents" onClick = {this.loadStudents.bind(this)}/>
            <div>
               <br/>
               <hr/>
               <table border = "3">
                  <thead>
                     <tr>
                        <td>First Name</td>
                        <td>Last Name</td>
                        <td>college Name</td>
                     </tr>
                  </thead>

                  <tbody>
                     {
                        this.state.students.map(s => {
                           return (
                              <tr key = {s.id}>
                                 <td>
                                    {s.firstName}
                                 </td>
                                 <td>
                                    {s.lastName}
                                 </td>
                                 <td>
                                    {s.college.name}
                                 </td>
                              </tr>
                           )
                        })
                     }
                  </tbody>
               </table>
            </div>
         </div>
      )
   }
}
ReactDOM.render(<App/>, document.getElementById('root'));

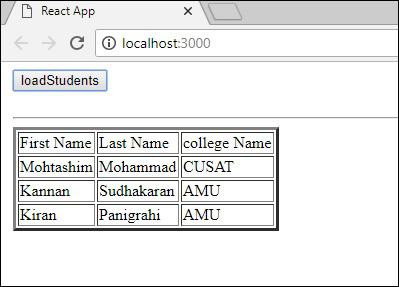

The react application will load students from GraphQL server, once we click on loadStudents button as shown below −
