The set of techniques employed by WCF for binding a set of messages (client requests) to service instances is known as Instance Management. WCF supports three types of instance activation and they are discussed in this chapter.

Per-Call Service

Per-call service is the default instance activation mode of WCF. When a WCF service is configured for a per-call service, a CLR object is created for the timespan a client call or request is in progress. CLR stands for Common Language Runtime and it includes service instances in WCF.

In per-call service, every client request achieves a new dedicated service instance and its memory consumption is less as compared to other types of instance activation.

The InstanceContextMode property is required to be set to InstanceContextMode.PerCall, in order to indicate a WCF service to act as a per-call service. The InstanceContextMode property belongs to the ServiceBehavior attribute. Hence, a per-call service can be configured as follows −

[ServiceContract]
interface IMyContract
{...}
[ServiceBehavior (InstanceContextMode = InstanceContextMode.PerCall)]
class MyService : IMyContract
{...}

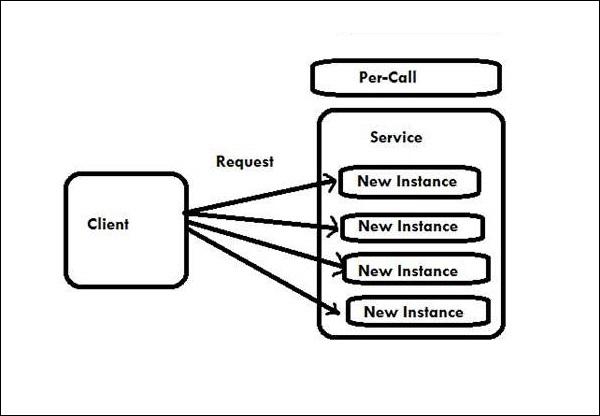

A service is here expressed as IMyContract. The following figure shows the process of per-call service instance activation.

Wcf Instance Management Per Call Service

Implementing a Per-Call Service

[DataContract]
class Param {....}

[ServiceContract]
interface IMyContract {
   [OperationContract]
   void MyMethod(Param objectIdentifier);
}
class MyPerCallService : IMyContract, IDisposable {
   public void MyMethod(Param objectIdentifier) {
      GetState(objectIdentifier);
      DoWork();
      SaveState(objectIdentifier);
   }

   void GetState(Param objectIdentifier) {....}
   void DoWork() {....}
   void SaveState(Param objectIdentifier) {....}
   public void Dispose() {....}
}

Here, Param is the pseudo type parameter invented for the above example.

Per-Session Service

In this activation mode of WCF, a private or we can say a confidential session is maintained between the two entities, i.e., the client and a particular service instance. Also known as the private session service, the per-session service offers a new service instance which remains dedicated to each client request and autonomous of all the other instances pertaining to that session-aware service.

To initiate a per-session service, the InstanceContextMode property is required to set to PerSession. Here, the service instance stays in memory all through the session duration.

The activation mode suffers from scalability as the configured service is unable to support any additional outstanding clients other than a few (or maybe up to some hundred) because of the cost involved in each of this dedicated service instance.

A per-session service can be configured as −

[ServiceBehavior (InstanceContextMode = InstanceContextMode.PerSession)]
class MyService : IMyContract
{...}

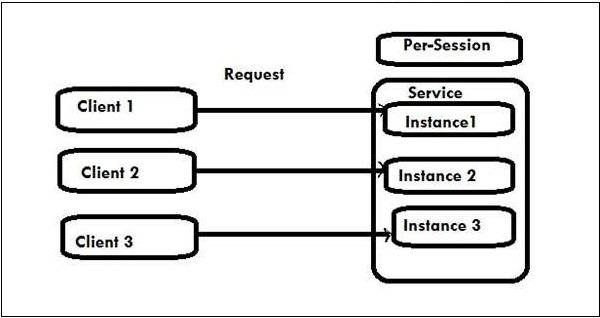

The process of per-session service can be described as shown in the following figure −

Wcf Instance Management Per Session Service

The following code shows a contract and service configured for the usage of a private session. The output indicates that the client indeed got a dedicated service instance.

Service code

[ServiceContract(Session = true)]
interface IMyContract {
   [OperationContract]
   void MyMethod();
}

[ServiceBehavior(InstanceContextMode = InstanceContextMode.PerSession)]
class MyService : IMyContract, IDisposable {
   int m_Counter = 0; MyService() {Console.WriteLine("MyService.MyService()"); }

   public void MyMethod() {
      m_Counter++;
      Console.WriteLine("Counter = " + m_Counter);
   }
   public void Dispose() {
      Console.WriteLine("MyService.Dispose()");
   }
}

Client Code

MyContractProxy proxy = new MyContractProxy(); proxy.MyMethod(); proxy.MyMethod();
proxy.Close();

Output

MyService.MyService() Counter = 1 Counter = 2 MyService.Dispose()

Singleton Service

In this activation mode of WCF, all client requests independent to each other get connected to the same well-known single instance, irrespective of their connection to the service endpoints. The singleton service gets disposed only when the host closes down.

This service is created just for once when the host is created. In case, the host is not provided with any singleton instance, the service returns as NULL. The activation mode is at its best when the work amount in each method call is little and no pending operations are there in the background.

The InstanceContextMode property is required to set to InstanceContextMode.Single to initiate this Singleton service.

Hence, a Singleton service can be configured as −

[ServiceBehavior(InstanceContextMode = InstanceContextMode.Single)]
class MySingleton : ...
{...}

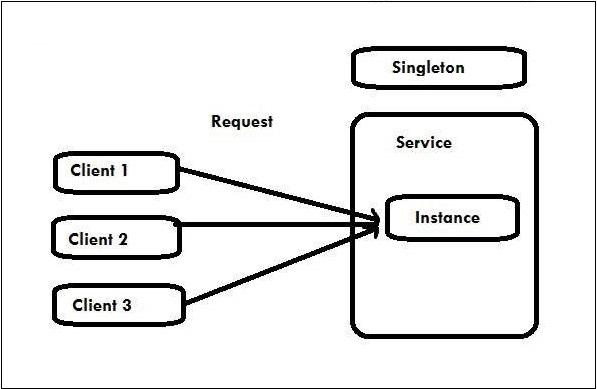

The process of Singleton service is shown in the following figure −

Wcf Instance Management Singleton Service

The following code is used for initializing and hosting a singleton instance.

Service code

[ServiceContract]
interface IMyContract {
   [OperationContract]
   void MyMethod( );
}
[ServiceBehavior(InstanceContextMode = InstanceContextMode.Single)]
class MySingleton : IMyContract {
   int m_Counter = 0;

   public int Counter {
      get {
         return m_Counter;
      }
      set {
         m_Counter = value;
      }
   }
   public void MyMethod( ) {
      m_Counter++;
      Trace.WriteLine("Counter = " + Counter);
   }
}

Host code

MySingleton singleton = new MySingleton( );
singleton.Counter = 42;
ServiceHost host = new ServiceHost(singleton);
host.Open( );

//Do some blocking calls then
host.Close( );

Client code

MyContractClient proxy = new MyContractClient( );
proxy.MyMethod( );
proxy.Close( );

Output

Counter = 43
