WCF - Consuming WCF Service


Advertisements

WCF services allow other applications to access or consume them. A WCF service can be consumed by many ways depending on the hosting type. Here, we are explaining the step-by-step method to consume a WCF service for each of the following popular hosting options −

  • Consuming WCF Service hosted in IIS 5/6
  • Consuming WCF Service that is self-hosted
  • Consuming WCF Service hosted in Windows Activation Service
  • Consuming WCF Service hosted in Windows Service

Consuming WCF Service Hosted in IIS 5/6

The process of consumption of a WCF service hosted in IIS 5/6 is discussed below in detail. In addition, the discussion includes how to create proxy and console applications.

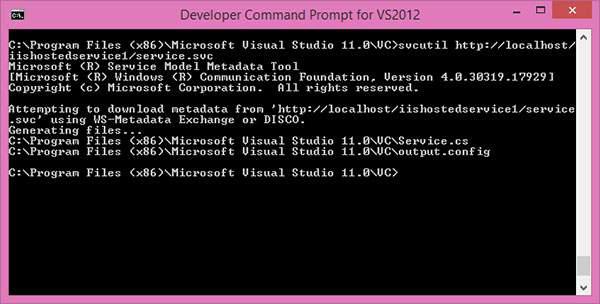

Step 1 − Once a service is hosted in IIS, we have to consume it in client applications. Before creating the client application, we need to create a proxy for the service. This proxy is used by the client application to interact with the service. To create a proxy, run Visual Studio 2008 command prompt. Using service utility, we can create the proxy class and its configuration information.

svcutilhttp://localhost/IISHostedService/Service.svc

Wcf Consuming Services IIS 1

After executing this command, we will get two files generated in the default location.

  • MyService.cs − Proxy class for the WCF service

  • output.config − Configuration information about the service

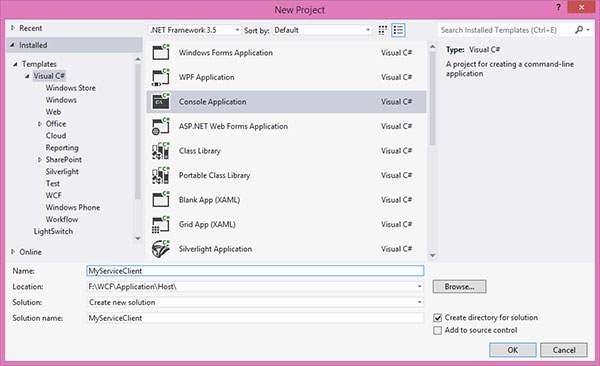

Step 2 − Now, we will start creating the Console application using Visual Studio 2008 (Client application).

Wcf Consuming Services IIS 2

Step 3 − Add the reference 'System.ServiceModel'; this is the core dll for WCF.

Step 4 − Create a Proxy class.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace MyServiceClient {
   Class Program {
      Static void Main(string[] args) {
         // Creating Proxy for the MyService
         ServiceClient Client = newServiceClient();
         Console.WriteLine("Client calling the service...");
         Console.WriteLine("Hello Ram");
         Console.Read();
      }
   }
}

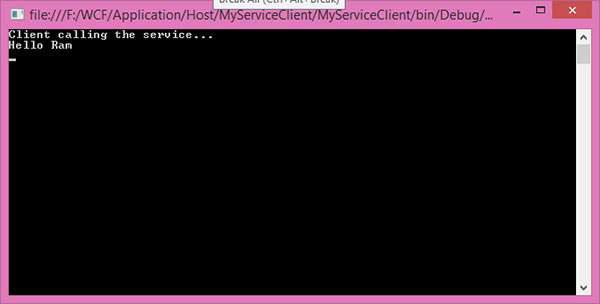

The output appears as follows −

Wcf Consuming Services IIS 4

Consuming Self-hosted WCF Service

Here, the entire process of consuming a self-hosted WCF Service is explained step-by-step along with ample coding and screenshots wherever necessary.

Step 1 − Service is hosted, now we need to implement the proxy class for the client. There are different ways of creating the proxy.

  • Using SvcUtil.exe, we can create the proxy class and its configuration file with end-points.

  • Adding Service reference to the client application.

  • Implementing ClientBase<T> class

Of these three methods, Implementing ClientBase<T> is the best practice. If you are using the other two methods, we need to create a proxy class every time we make any changes in the Service implementation. But this is not the case for ClientBase<T>. It will create the proxy only at runtime and so it will take care of everything.

For this purpose, create one proxy class, which includes the references of System.ServiceModel and MyCalculatorService.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using MyCalculatorService;

namespace MyCalculatorServiceProxy {
   // WCF create proxy for ISimpleCalculator using ClientBase
   Public class MyCalculatorServiceProxy :
   ClientBase<ISimpleCalculator>,

   ISimpleCalculator {
      Public int Add(int num1, int num2) {
         //Call base to do funtion
         returnbase.Channel.Add(num1, num2);
      }
   }
}

Now, create one console application, which includes the references of System.ServiceModel and MyCalculatorServiceProxy.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using MyCalculatorServiceProxy;

namespace MyCalculatorServiceClient {
   classProgram {
      Static void Main(string[] args) {
         MyCalculatorServiceProxy.MyCalculatorServiceProxy proxy = newMyCalculatorServiceProxy.MyCalculatorServiceProxy();

         Console.WriteLine("Client is running at " + DateTime.Now.ToString());
         Console.WriteLine("Sum of two numbers. 5 + 5 =" + proxy.Add(5,5));
         Console.ReadLine();
      }
   }
}

Step 2 − End-point (same as service) information should be added to the configuration file of the client application.

<?xmlversion = "1.0"encoding = "utf-8" ?>
<configuration>
   <system.serviceModel>
      <client>
         <endpoint address
            ="http://localhost:8090/MyCalculatorServiceProxy/ISimpleCalculator"
            binding = "wsHttpBinding" contract "MyCalculatorServiceProxy.ISimpleCalculator">
            </endpoint>
      </client>
   </system.serviceModel>
</configuration>

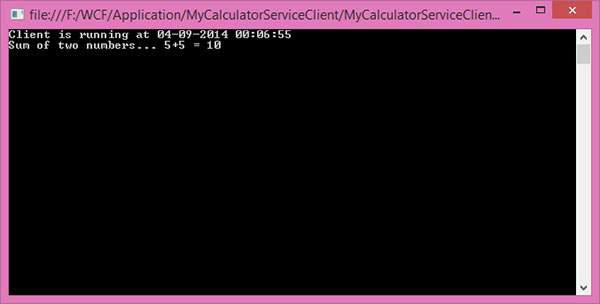

Step 3 − Before running the client application, you need to run the service. Shown below is the output of the client application.

Wcf Consuming Services Self 3

Consuming WCF Service Hosted in WAS

Consuming a WCF service that is hosted in WAS is a simple process involving only a few steps. The steps are as follows −

  • Add the proxy class and the configuration file to the client application.
  • Create the object for the MathServiceClient and call the method.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespaceWASHostedClient {
   classProgram {
      staticvoid Main(string[] args) {
         MathServiceClient client = newMathServiceClient();
         Console.WriteLine("Sum of two number 5,6");
         Console.WriteLine(client.Add(5, 6));
         Console.ReadLine();
      }
   }
}

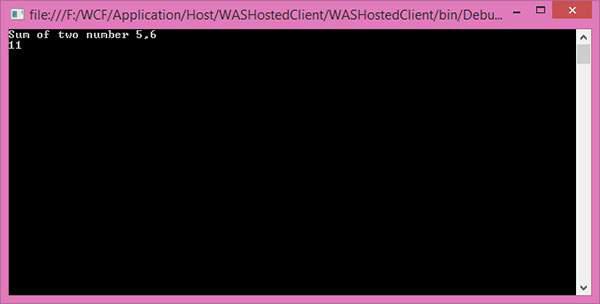

The output appears as shown below.

Wcf Consuming Services WAS 2

Consuming WCF Service Hosted in Windows Service

The step-by-step process of how to consume a WCF service hosted in Windows Service is expressed below in detail with coding and instructions.

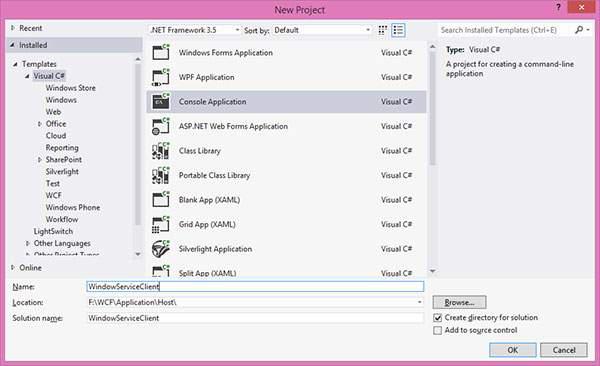

Once it is hosted successfully, we can create a proxy class for the service and start using in the client application. Here, it is shown with the IIS hosting type consuming.

Wcf Consuming Services Windows Service 1

Add the reference of ServiceModel.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespaceWindowServiceClient {
   classProgram {
      staticvoid Main(string[] args) {
         //Creating Proxy for the MyService
         MyServiceClient client = newMyServiceClient();
         Console.WriteLine("Client calling the service...");
         Console.WriteLine("Sum of two numbers 5,6");
         Console.WriteLine(client.Add(5, 6));

         Console.WriteLine("Subtraction of two numbers 6,5");
         Console.WriteLine(client.Sub(6, 5));

         Console.WriteLine("Multiplication of two numbers 6,5");
         Console.WriteLine(client.Mul(6, 5));

         Console.WriteLine("Division of two numbers 6,3");
         Console.WriteLine(client.Div(6, 3));
         Console.Read();
      }
   }
}

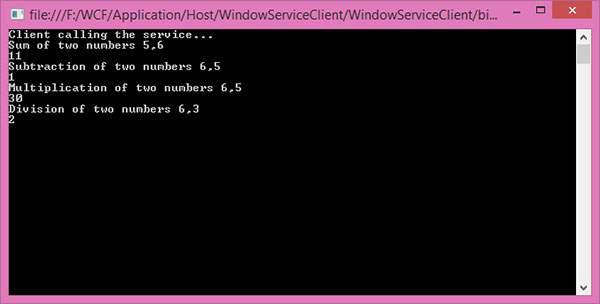

The output appears as follows −

Wcf Consuming Services Windows Service 3
