VHDL stands for very high-speed integrated circuit hardware description language. It is a programming language used to model a digital system by dataflow, behavioral and structural style of modeling. This language was first introduced in 1981 for the department of Defense (DoD) under the VHSIC program.

Describing a Design

In VHDL an entity is used to describe a hardware module. An entity can be described using,

  • Entity declaration
  • Architecture
  • Configuration
  • Package declaration
  • Package body

Let’s see what are these?

Entity Declaration

It defines the names, input output signals and modes of a hardware module.

Syntax

entity entity_name is
   Port declaration;
end entity_name;

An entity declaration should start with ‘entity’ and end with ‘end’ keywords. The direction will be input, output or inout.

In Port can be read
Out Port can be written
Inout Port can be read and written
Buffer Port can be read and written, it can have only one source.

Architecture

Architecture can be described using structural, dataflow, behavioral or mixed style.

Syntax

architecture architecture_name of entity_name
architecture_declarative_part;

begin
   Statements;
end architecture_name;

Here, we should specify the entity name for which we are writing the architecture body. The architecture statements should be inside the ‘begin’ and ‘énd’ keyword. Architecture declarative part may contain variables, constants, or component declaration.

Data Flow Modeling

In this modeling style, the flow of data through the entity is expressed using concurrent (parallel) signal. The concurrent statements in VHDL are WHEN and GENERATE.

Besides them, assignments using only operators (AND, NOT, +, *, sll, etc.) can also be used to construct code.

Finally, a special kind of assignment, called BLOCK, can also be employed in this kind of code.

In concurrent code, the following can be used −

  • Operators
  • The WHEN statement (WHEN/ELSE or WITH/SELECT/WHEN);
  • The GENERATE statement;
  • The BLOCK statement

Behavioral Modeling

In this modeling style, the behavior of an entity as set of statements is executed sequentially in the specified order. Only statements placed inside a PROCESS, FUNCTION, or PROCEDURE are sequential.

PROCESSES, FUNCTIONS, and PROCEDURES are the only sections of code that are executed sequentially.

However, as a whole, any of these blocks is still concurrent with any other statements placed outside it.

One important aspect of behavior code is that it is not limited to sequential logic. Indeed, with it, we can build sequential circuits as well as combinational circuits.

The behavior statements are IF, WAIT, CASE, and LOOP. VARIABLES are also restricted and they are supposed to be used in sequential code only. VARIABLE can never be global, so its value cannot be passed out directly.

Structural Modeling

In this modeling, an entity is described as a set of interconnected components. A component instantiation statement is a concurrent statement. Therefore, the order of these statements is not important. The structural style of modeling describes only an interconnection of components (viewed as black boxes), without implying any behavior of the components themselves nor of the entity that they collectively represent.

In Structural modeling, architecture body is composed of two parts − the declarative part (before the keyword begin) and the statement part (after the keyword begin).

Logic Operation – AND GATE

AND GATE
X Y Z
0 0 0
0 1 0
1 0 0
1 1 1

VHDL Code:
Library ieee;
use ieee.std_logic_1164.all;

entity and1 is
   port(x,y:in bit ; z:out bit);
end and1;

architecture virat of and1 is
begin
   z<=x and y;
end virat;

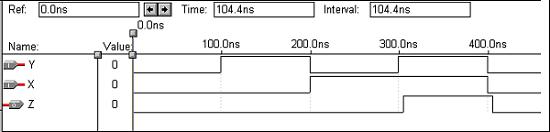

Waveforms

Waveforms AND

Logic Operation – OR Gate

OR GATE
X Y Z
0 0 0
0 1 1
1 0 1
1 1 1

VHDL Code:
Library ieee;
use ieee.std_logic_1164.all;

entity or1 is
   port(x,y:in bit ; z:out bit);
end or1;

architecture virat of or1 is
begin
   z<=x or y;
end virat;

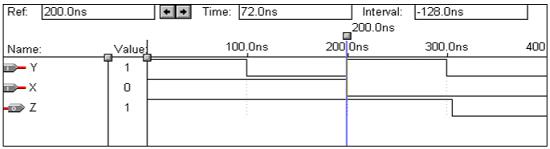

Waveforms

Waveforms OR

Logic Operation – NOT Gate

NOT GATE
X Y
0 1
1 0

VHDL Code:

Library ieee;
use ieee.std_logic_1164.all;

entity not1 is
   port(x:in bit ; y:out bit);
end not1;

architecture virat of not1 is
begin
   y<=not x;
end virat;

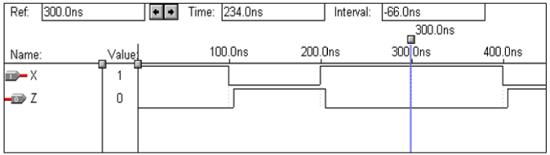

Waveforms

Waveforms Not

Logic Operation – NAND Gate

NAND GATE
X Y z
0 0 1
0 1 1
1 0 1
1 1 0

VHDL Code:

Library ieee;
use ieee.std_logic_1164.all;

entity nand1 is
   port(a,b:in bit ; c:out bit);
end nand1;

architecture virat of nand1 is
begin
   c<=a nand b;
end virat;

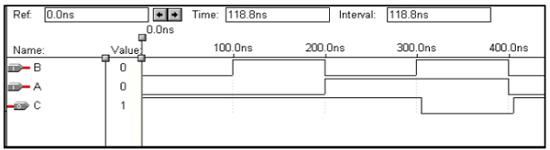

Waveforms

Waveforms NAND

Logic Operation – NOR Gate

NOR GATE
X Y z
0 0 1
0 1 0
1 0 0
1 1 0

VHDL Code:

Library ieee;
use ieee.std_logic_1164.all;

entity nor1 is
   port(a,b:in bit ; c:out bit);
end nor1;

architecture virat of nor1 is
begin
   c<=a nor b;
end virat;

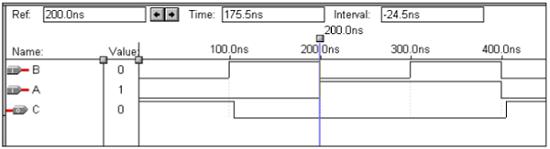

Waveforms

Waveforms NOR

Logic Operation – XOR Gate

XOR GATE
X Y Z
0 0 1
0 1 1
1 0 1
1 1 0

VHDL Code:

Library ieee;
use ieee.std_logic_1164.all;

entity xor1 is
   port(a,b:in bit ; c:out bit);
end xor1;

architecture virat of xor1 is
begin
   c<=a xor b;
end virat;

Waveforms

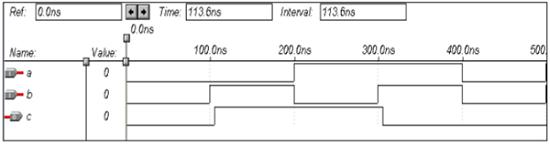

Waveforms XOR

Logic Operation – X-NOR Gate

X Y Z
0 0 1
0 1 1
1 0 1
1 1 0

VHDL Code:

Library ieee;
use ieee.std_logic_1164.all;

entity xnor1 is
   port(a,b:in bit ; c:out bit);
end xnor1;

architecture virat of xnor1 is
begin
   c<=not(a xor b);
end virat;

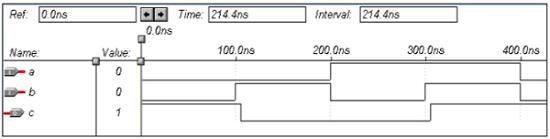

Waveforms

Waveforms X-NOR
