VLSI Design - MOS Inverter

The inverter is truly the nucleus of all digital designs. Once its operation and properties are clearly understood, designing more intricate structures such as NAND gates, adders, multipliers, and microprocessors is greatly simplified. The electrical behavior of these complex circuits can be almost completely derived by extrapolating the results obtained for inverters.

The analysis of inverters can be extended to explain the behavior of more complex gates such as NAND, NOR, or XOR, which in turn form the building blocks for modules such as multipliers and processors. In this chapter, we focus on one single incarnation of the inverter gate, being the static CMOS inverter — or the CMOS inverter, in short. This is certainly the most popular at present and therefore deserves our special attention.

Principle of Operation

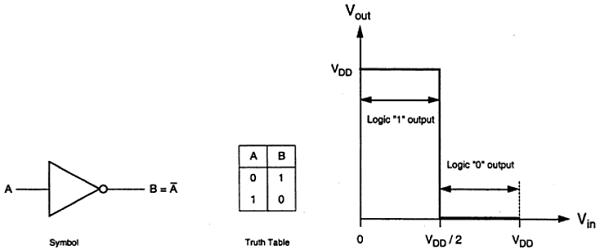

The logic symbol and truth table of ideal inverter is shown in figure given below. Here A is the input and B is the inverted output represented by their node voltages. Using positive logic, the Boolean value of logic 1 is represented by V_dd and logic 0 is represented by 0. V_th is the inverter threshold voltage, which is V_dd /2, where V_dd is the output voltage.

The output is switched from 0 to V_dd when input is less than V_th. So, for 0<V_in<V_th output is equal to logic 0 input and V_th<V_in< V_dd is equal to logic 1 input for inverter.

The characteristics shown in the figure are ideal. The generalized circuit structure of an nMOS inverter is shown in the figure below.

From the given figure, we can see that the input voltage of inverter is equal to the gate to source voltage of nMOS transistor and output voltage of inverter is equal to drain to source voltage of nMOS transistor. The source to substrate voltage of nMOS is also called driver for transistor which is grounded; so V_SS = 0. The output node is connected with a lumped capacitance used for VTC.

Resistive Load Inverter

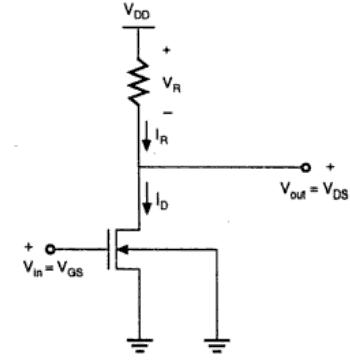

The basic structure of a resistive load inverter is shown in the figure given below. Here, enhancement type nMOS acts as the driver transistor. The load consists of a simple linear resistor R_L. The power supply of the circuit is V_DD and the drain current I_D is equal to the load current I_R.

Circuit Operation

When the input of the driver transistor is less than threshold voltage V_TH (V_in < V_TH), driver transistor is in the cut – off region and does not conduct any current. So, the voltage drop across the load resistor is ZERO and output voltage is equal to the V_DD. Now, when the input voltage increases further, driver transistor will start conducting the non-zero current and nMOS goes in saturation region.

Mathematically,

$$I_{D} = \frac{K_{n}}{2}\left [ V_{GS}-V_{TO} \right ]^{2}$$

Increasing the input voltage further, driver transistor will enter into the linear region and output of the driver transistor decreases.

$$I_{D} = \frac{K_{n}}{2}2\left [ V_{GS}-V_{TO} \right ]V_{DS}-V_{DS}^{2}$$

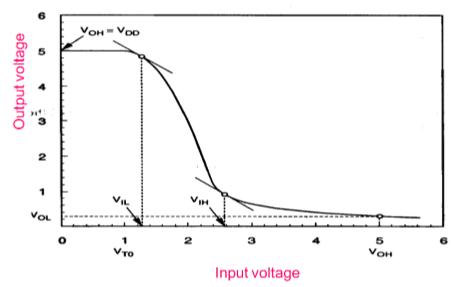

VTC of the resistive load inverter, shown below, indicates the operating mode of driver transistor and voltage points.

Inverter with N type MOSFET Load

The main advantage of using MOSFET as load device is that the silicon area occupied by the transistor is smaller than the area occupied by the resistive load. Here, MOSFET is active load and inverter with active load gives a better performance than the inverter with resistive load.

Enhancement Load NMOS

Two inverters with enhancement-type load device are shown in the figure. Load transistor can be operated either, in saturation region or in linear region, depending on the bias voltage applied to its gate terminal. The saturated enhancement load inverter is shown in the fig. (a). It requires a single voltage supply and simple fabrication process and so V_OH is limited to the V_DD − V_T.

The linear enhancement load inverter is shown in the fig. (b). It always operates in linear region; so V_OH level is equal to V_DD.

Linear load inverter has higher noise margin compared to the saturated enhancement inverter. But, the disadvantage of linear enhancement inverter is, it requires two separate power supply and both the circuits suffer from high power dissipation. Therefore, enhancement inverters are not used in any large-scale digital applications.

Depletion Load NMOS

Drawbacks of the enhancement load inverter can be overcome by using depletion load inverter. Compared to enhancement load inverter, depletion load inverter requires few more fabrication steps for channel implant to adjust the threshold voltage of load.

The advantages of the depletion load inverter are - sharp VTC transition, better noise margin, single power supply and smaller overall layout area.

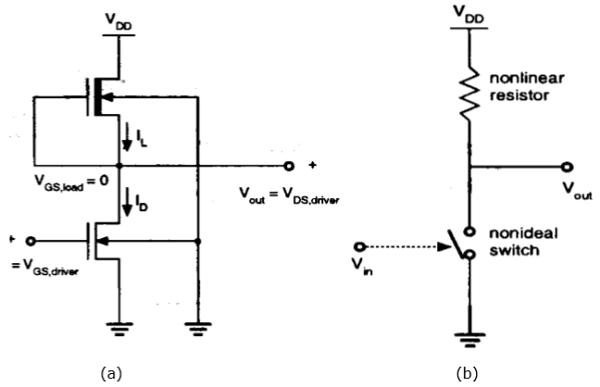

As shown in the figure, the gate and source terminal of load are connected; So, V_GS = 0. Thus, the threshold voltage of the load is negative. Hence,

$$V_{GS,load}> V_{T,load}$$ is satisfied

Therefore, load device always has a conduction channel regardless of input and output voltage level.

When the load transistor is in saturation region, the load current is given by

$$I_{D,load} = \frac{K_{n,load}}{2}\left [ -V_{T,load}\left ( V_{out} \right ) \right ]^{2}$$

When the load transistor is in linear region, the load current is given by

$$I_{D,load} = \frac{K_{n,load}}{2}\left [ 2\left | V_{T,load}\left ( V_{out} \right ) \right |.\left ( V_{DD}-V_{out} \right )-\left ( V_{DD}-V_{out} \right )^{2} \right ]$$

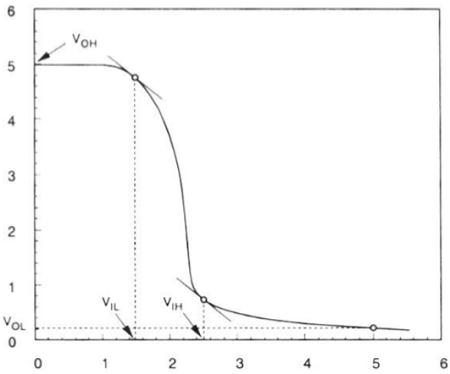

The voltage transfer characteristics of the depletion load inverter is shown in the figure given below −

CMOS Inverter – Circuit, Operation and Description

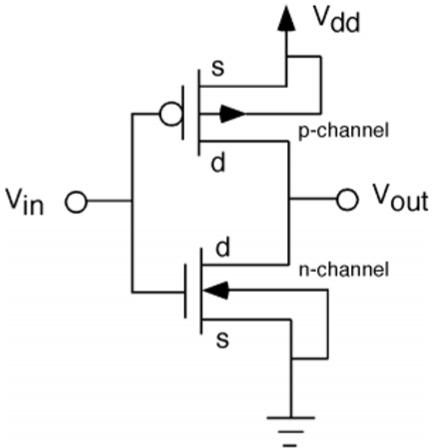

The CMOS inverter circuit is shown in the figure. Here, nMOS and pMOS transistors work as driver transistors; when one transistor is ON, other is OFF.

This configuration is called complementary MOS (CMOS). The input is connected to the gate terminal of both the transistors such that both can be driven directly with input voltages. Substrate of the nMOS is connected to the ground and substrate of the pMOS is connected to the power supply, V_DD.

So V_SB = 0 for both the transistors.

$$V_{GS,n}=V_{in}$$

$$V_{DS,n}=V_{out}$$

And,

$$V_{GS,p}=V_{in}-V_{DD}$$

$$V_{DS,p}=V_{out}-V_{DD}$$

When the input of nMOS is smaller than the threshold voltage (V_in < V_TO,n), the nMOS is cut – off and pMOS is in linear region. So, the drain current of both the transistors is zero.

$$I_{D,n}=I_{D,p}=0$$

Therefore, the output voltage V_OH is equal to the supply voltage.

$$V_{out}=V_{OH}=V_{DD}$$

When the input voltage is greater than the V_DD &plus; V_TO,p, the pMOS transistor is in the cutoff region and the nMOS is in the linear region, so the drain current of both the transistors is zero.

$$I_{D,n}=I_{D,p}=0$$

Therefore, the output voltage V_OL is equal to zero.

$$V_{out}=V_{OL}=0$$

The nMOS operates in the saturation region if V_in > V_TO and if following conditions are satisfied.

$$V_{DS,n}\geq V_{GS,n}-V_{TO,n} $$

$$V_{out}\geq V_{in}-V_{TO,n} $$

The pMOS operates in the saturation region if V_in < V_DD &plus; V_TO,p and if following conditions are satisfied.

$$V_{DS,p}\leq V_{GS,p}-V_{TO,p} $$

$$V_{out}\leq V_{in}-V_{TO,p} $$

For different value of input voltages, the operating regions are listed below for both transistors.

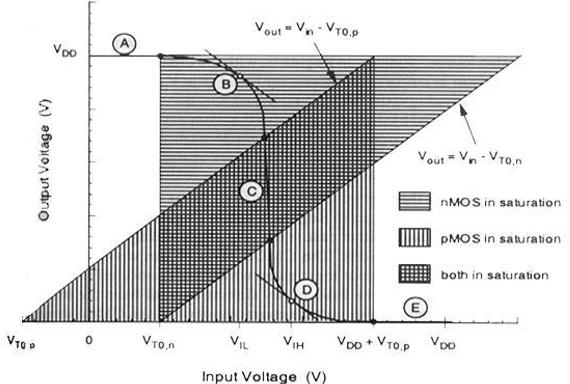

The VTC of CMOS is shown in the figure below −
