In this chapter, we will understand how to install the VMware Workstation Player and its usages.

Installing VMware Workstation Player

VMware workstation player is a “hosted hypervisor”, so you have to have a pre-installed OS before continuing to install it.

VMware workstation player is free version and available for non-commercial, personal and home use. They also encourage students and non-profit organizations to benefit from this offering. To download the VMware workstation player, you can click on the following link https://www.vmware.com/products/player/playerpro-evaluation.html. To install the VMware workstation player, follow the steps given below.

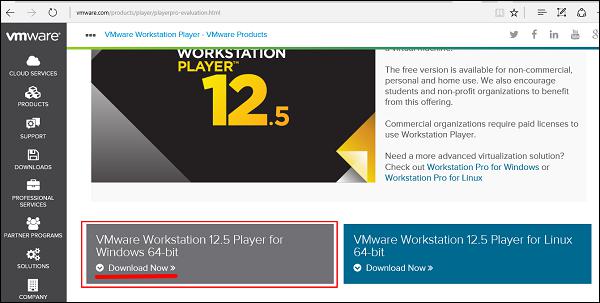

Step 1 − Click on “Download Now” as shown in the screenshot below.

Download

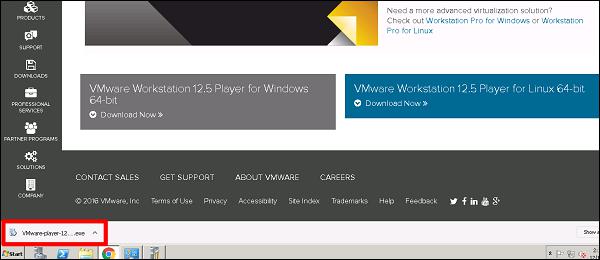

Step 2 − You will see that a file has been downloaded → double click on it.

Double click

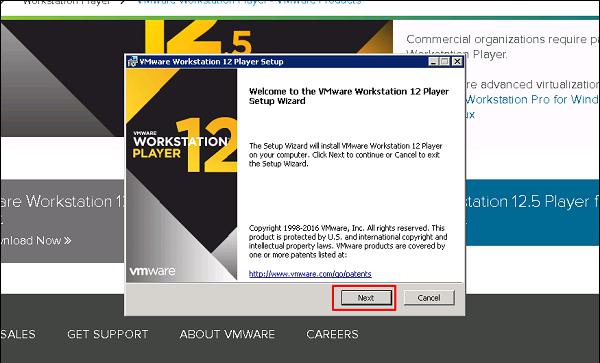

Step 3 − A Table will pop-up initializing the installation of VMware → Click “Next”.

VMware

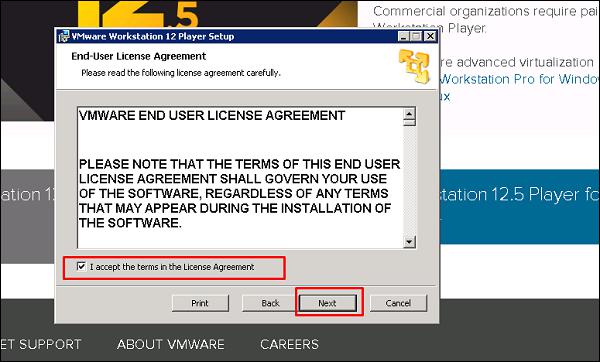

Step 4 − Check the box “I accept the terms in the license agreement” → Click on “Next”.

Agreement

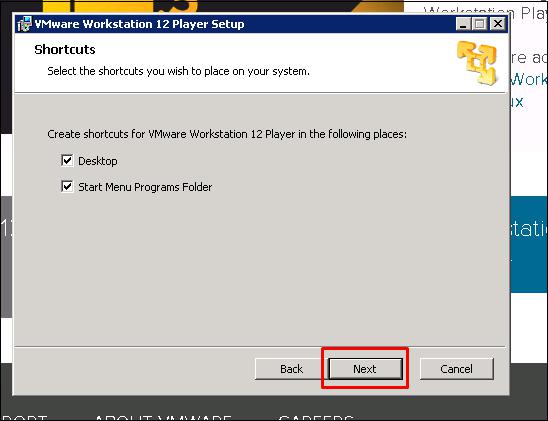

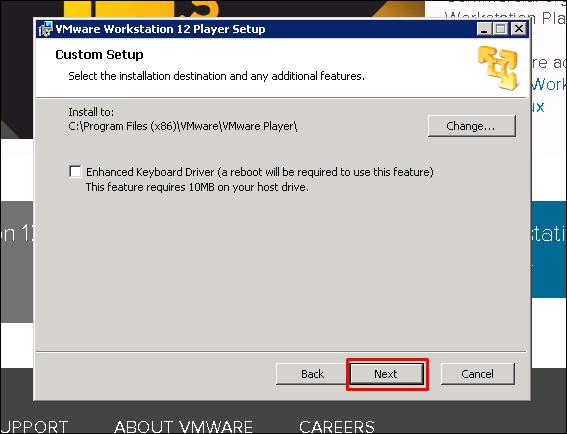

Step 5 − Once again, click on the “Next” button.

Next Button

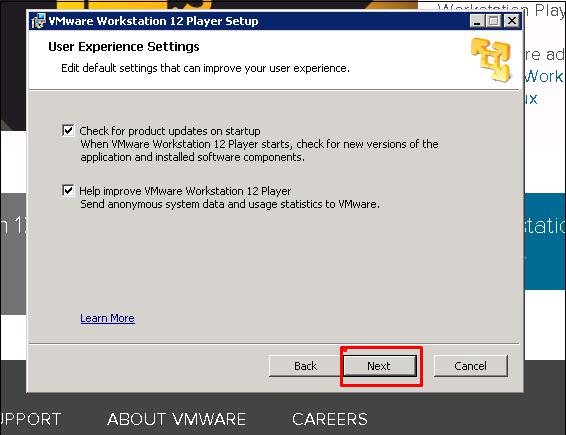

Step 6 − Leave the default values and click on “Next”.

Default

Step 7 − Once again, click on “Next”.

Click Next

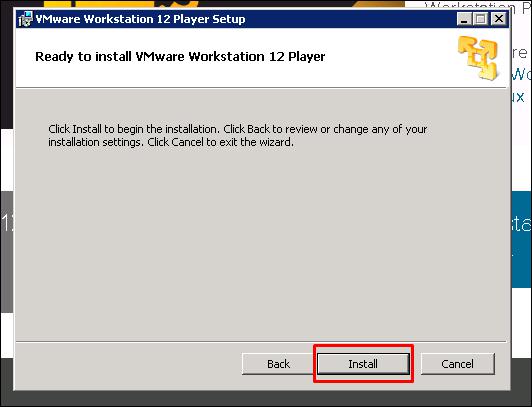

Step 8 − Click on “Install”.

Click Install

Step 9 − An icon will be created on the desktop. Click on it and a table will pop–up, where you have two possibilities: If you want to use it as a non-commercial version, just enter your email address. If you want to use it as a commercial version, check the second option and enter your serial key.

Desktop Icon

Creating a VM with VMware Workstation

To create a virtual machine, we have to follow the steps given below.

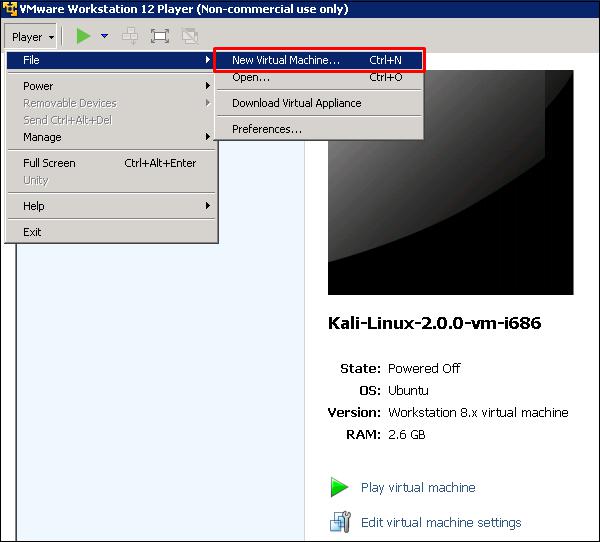

Step 1 − Click on “Player” → File → New Virtual Machine.

Player

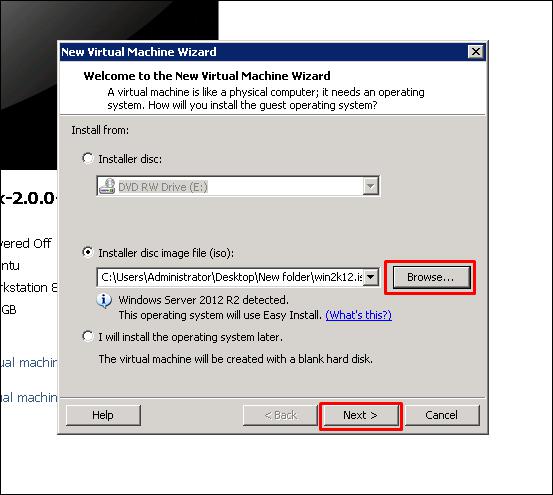

Step 2 − A table will pop-up requesting you to find a “Boot disk”, “Boot Image” or to install OS at a later stage.

We will choose the second option and click on “Browse”. Then we have to click on the ISO image, which we want to install. Once all this is done, click on “Next”.

Browse

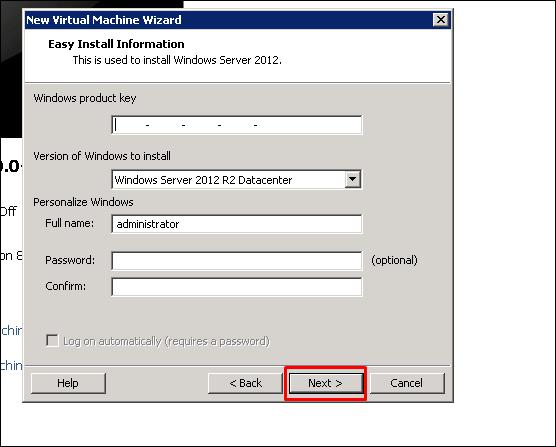

Step 3 − As I am installing windows server 2012, it will pop-up a table requesting to enter the serial key → click directly on “Next”, if you want to activate the noncommercial version for Windows.

Serial Key

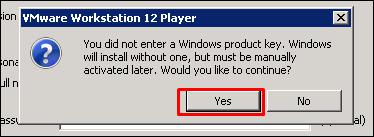

Step 4 − After the above step is complete, a dialogue box opens. Click “Yes”.

Dialogue Box

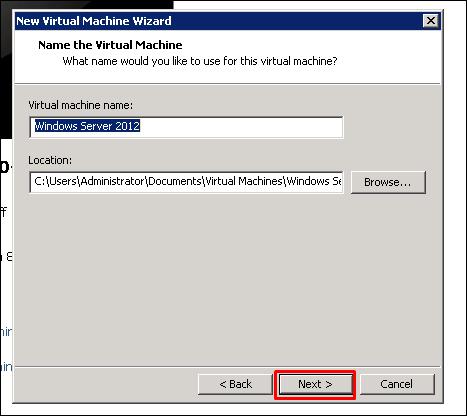

Step 5 − Click “Next”.

Wizard

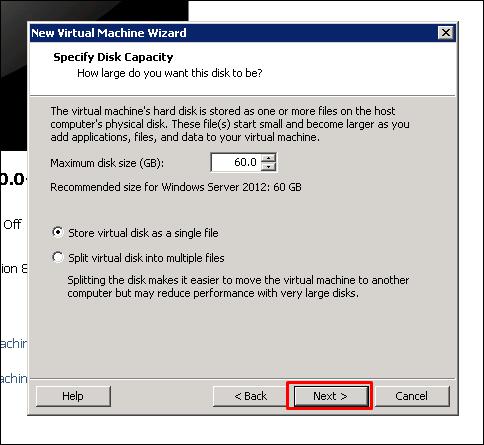

Step 6 − In the “Maximum size disk” box, enter the value of your virtual Hard disk, which in our case is 60GB. Then click on “Next”.

Maximum Size Disk

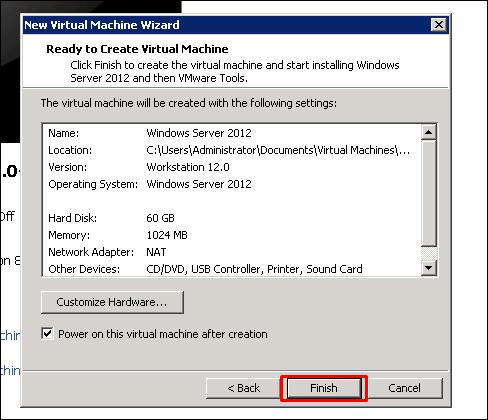

Step 7 − Click on “Finish”.

Click on Finish

Setting up Networking with VMware Workstation

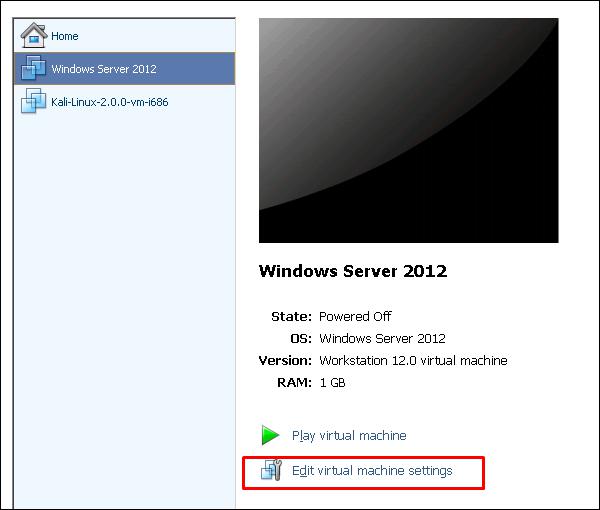

To set up the networking modes of a virtual machine in a VMware Workstation, we have to click on the “Edit virtual machine settings”.

Edit

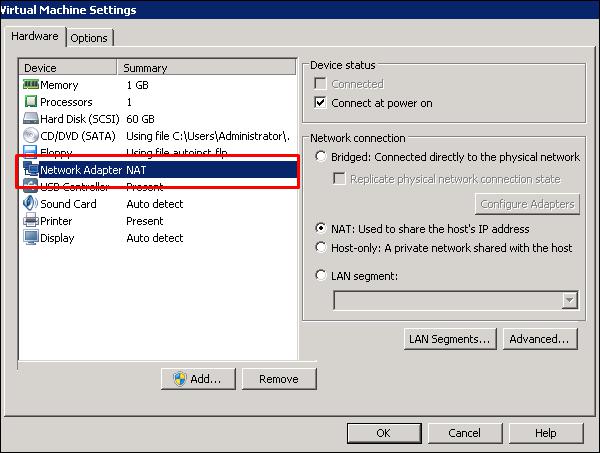

A table will be opened with the settings of networking and on the left hand side panel of this table click on “Network Adaptor”.

Network Adaptor

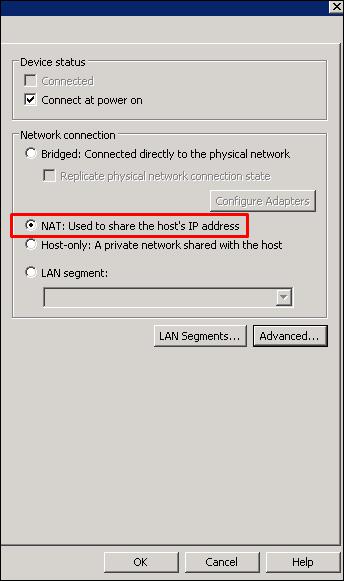

On the left of this table, you can see the networking modes as shown in the following screnshots.

Modes

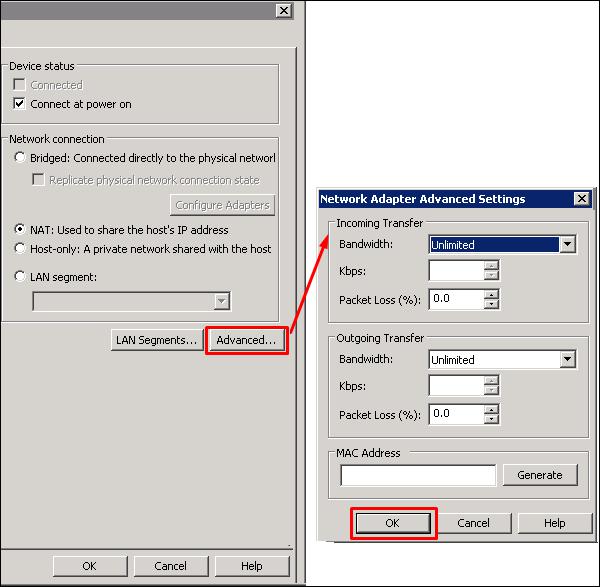

If we want to limit the bandwidth usage of a virtual machine, click on “Advance” and set the incoming and outgoing bandwidths.

Advance

Allocating Processors & Memory to a VM using VMware Workstation

To allocate memory to a virtual machine in a VMware Workstation, we have to click on “Edit virtual machine settings”. A table will be opened and we will have to click on “Memory”.

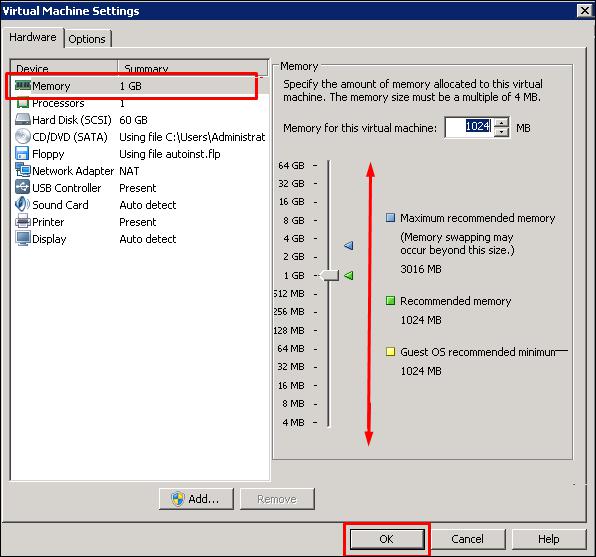

On the left hand side panel, we have to enter the amount of memory manually or by moving the arrow up and down as shown in the following screenshot.

Memory

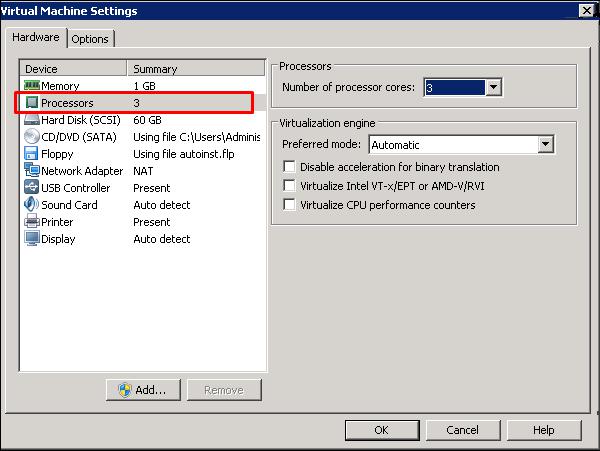

If you click on “Processors”. On the left hand side panel, we have to enter the amount of vCPU as shown in the screenshot below.

Processors

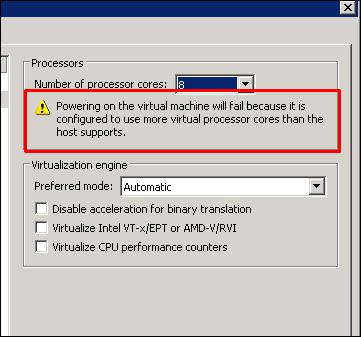

Note − If you put more vCPU-s than what the host supports, it will fail to power on the VM.

vCPU

Duplicating a VM Using VMware Workstation

To create duplicates of VM machines, we have to use the VMware Workstation Commercial Version.

Let us see how to do it in practice by following the steps given below.

Step 1 − Open the VMware managing console and right click on a VM that you want to duplicate. Click on “Manage”.

Click Manage

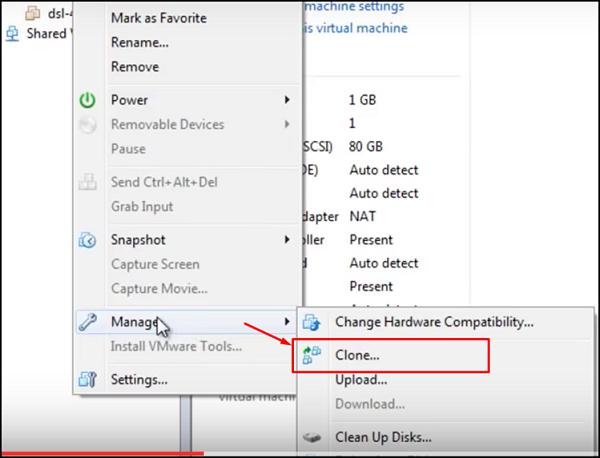

Step 2 − Click on “Clone…” and a wizard will be open.

Clone

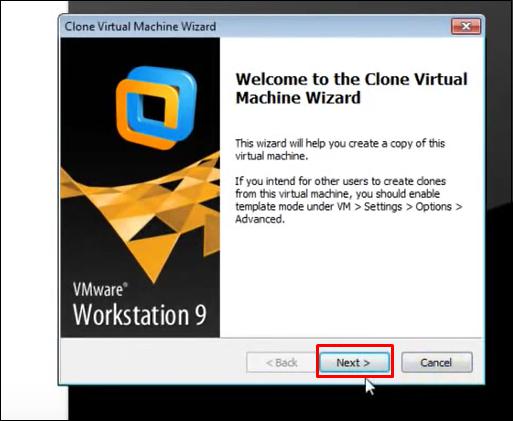

Step 3 − Click on “Next”.

Clone Virtual

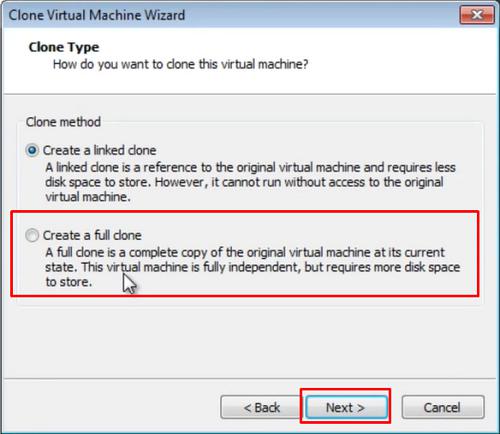

Step 4 − Click on “Create a Full Clone” and “Next”.

Full Clone

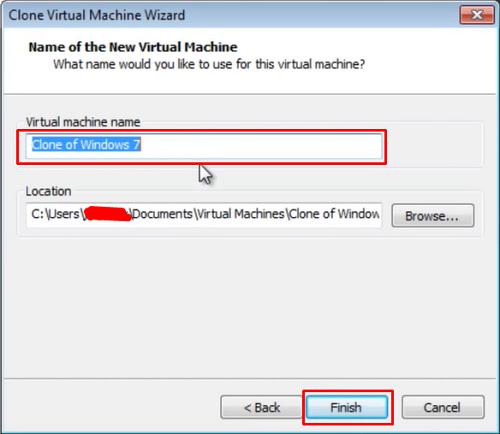

Step 5 − Put a name for the clone that will be created and “Finish”.

Put Name

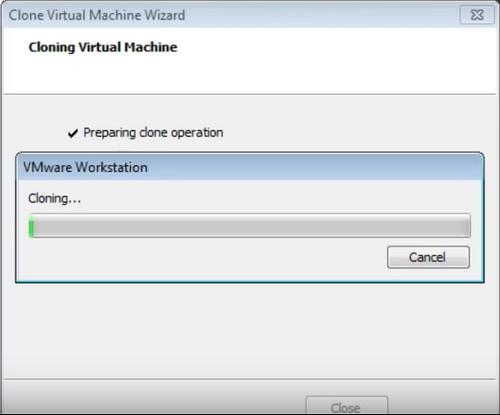

The following screenshots describe the process of cloning.

Cloning

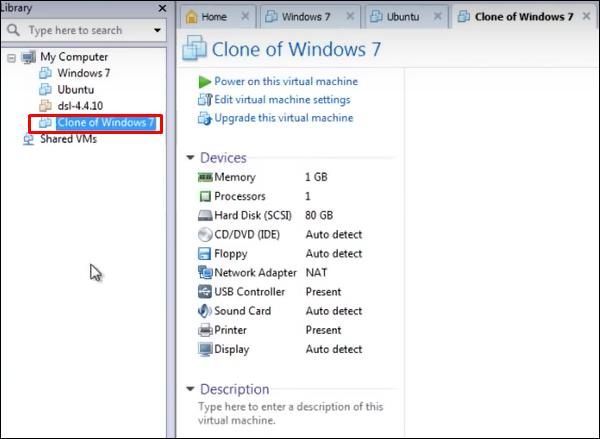

Once the cloning process is complete, the following window will open.

Cloning Complete
