In this chapter, we will discuss Microsoft Hyper-V along with its various modules.

Installing Hyper-V in Windows Server 2012

Microsoft Hyper-V, known as Windows Server Virtualization, is a native (bare) hypervisor. It can create virtual machines on x86-64 systems running Windows OS, starting with Windows 8. Hyper-V supersedes Windows Virtual PC as the hardware virtualization component of the client editions of Windows NT. A server computer running Hyper-V can be configured to expose individual virtual machines to one or more networks.

Hyper-V was first released alongside Windows Server 2008 and Windows 7 and has been available without charge for all the Windows Server versions and some client operating systems since that time.

Let us see how to install a Hyper-V role in a Windows Server 2012 by following the steps given below.

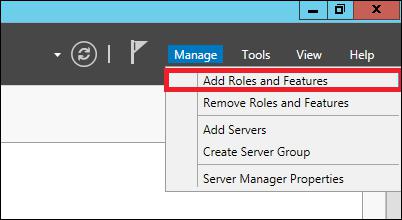

Step 1 − To Install Hyper-V role go to “Server Manager” → Manage → Add Roles and Features.

Manage

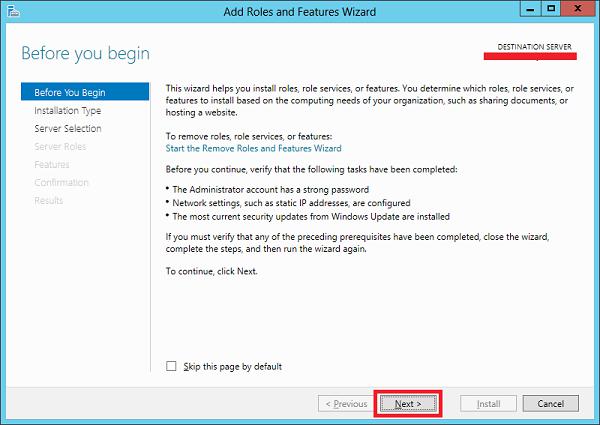

Step 2 − Click on “Next”.

Before Begin

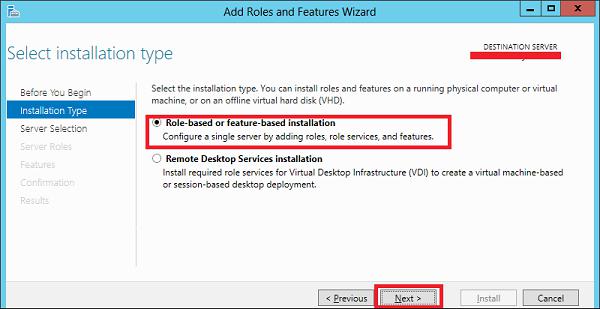

Step 3 − Select “Role-based or feature-based installation” option → click on “Next”.

Role Based

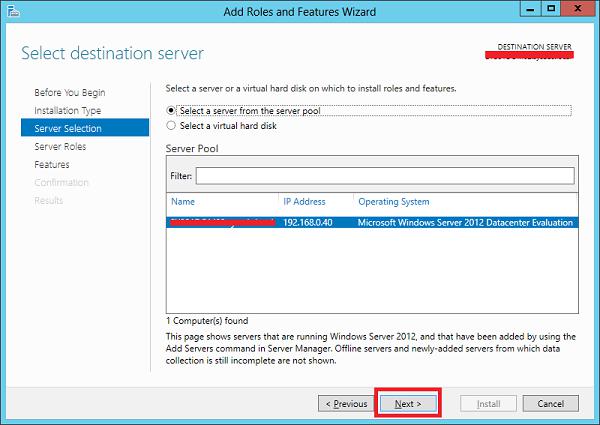

Step 4 − We will locally install the Hyper-V role as such “Select a server from the server pool” → click “Next”.

Server Selection

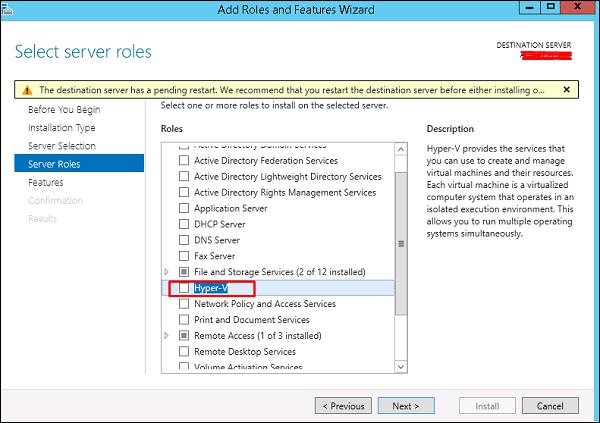

Step 5 − From the Roles lists, check the “Hyper-V” Server role → click on Add Features on the popup window → click “Next”.

Hyper-V

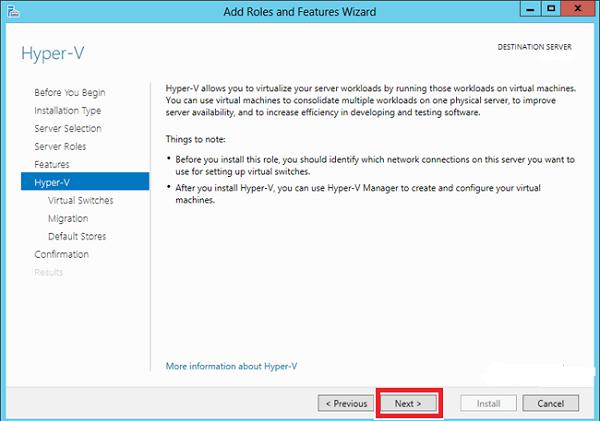

Step 6 − Click “Next”.

Click Next

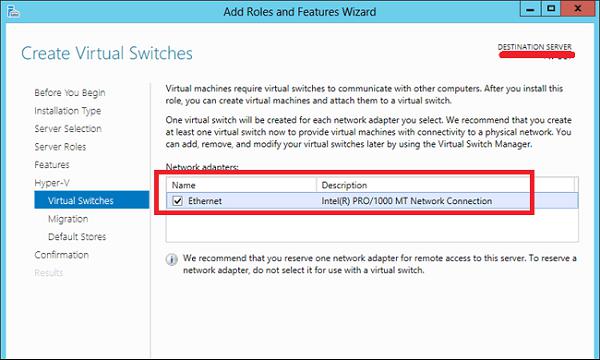

Step 7 − Choose your server’s physical network adapters that will take part in the virtualization and responsible for network switching → click on “Next”.

Switching

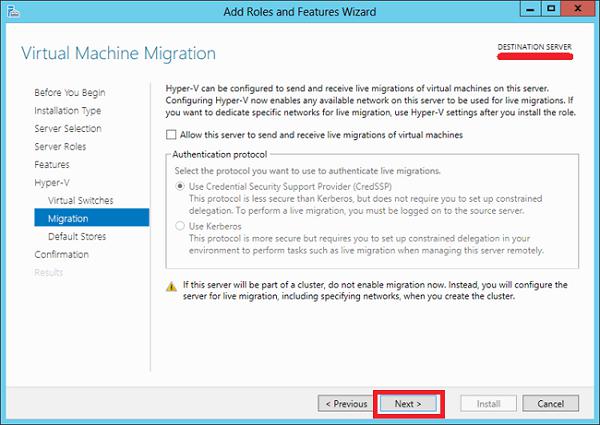

Step 8 − Under Migration, leave the default settings → click on “Next”.

Migration

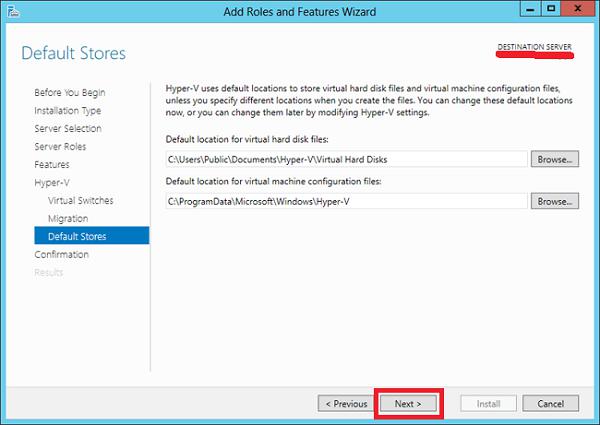

Step 9 − Choose the path where you want to save the file → click on “Next”.

Path

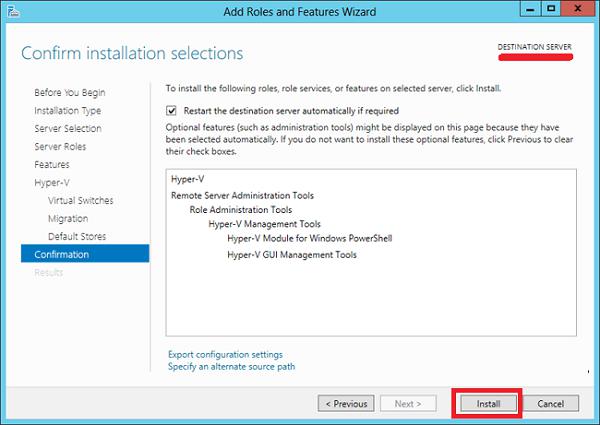

Step 10 − Click “Install” and wait for the installation bar to finish.

Install

Installing Hyper-V in a windows 10 workstation

To install it in Windows 7, 8, 10 versions, you have to check if your computer supports virtualization. Following are the basic requirements −

  • Windows 10 Pro or Enterprise 64-bit Operating System.
  • A 64-bit processor with Second Level Address Translation (SLAT).
  • 4GB system RAM at minimum.
  • BIOS-level Hardware Virtualization support.

In my case, we have a laptop HP Probook 450 G3, which supports it.

Before continuing with the installation, follow the steps given below.

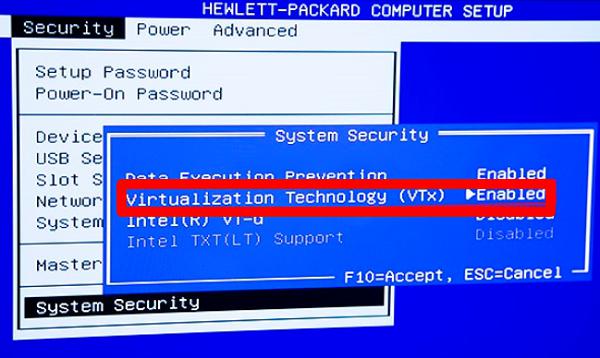

Step 1 − Ensure that hardware virtualization support is turned on in the BIOS settings as shown below −

BIOS

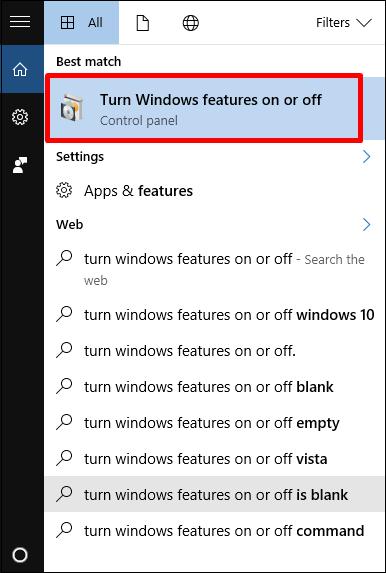

Step 2 − Type in the search bar “turn windows features on or off” and click on that feature as shown below.

Windows On Off

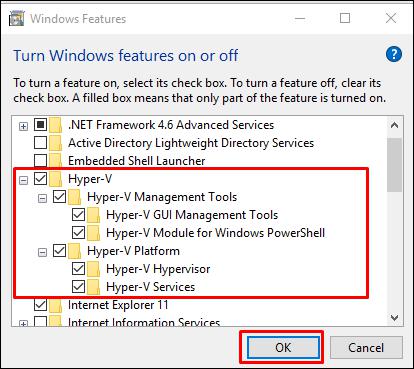

Step 3 − Select and enable Hyper-V.

Enable Hyper-V

Creating a Virtual Machine with Hyper-V

In this section, we will learn how to create a virtual machine. To begin with, we have to open the Hyper-V manager and then follow the steps given below.

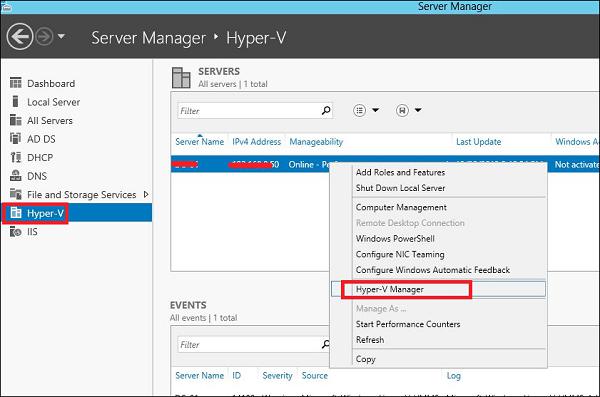

Step 1 − Go to “Server Manager” → Click on “Hyper-V Manager”.

Hyper-V Manager

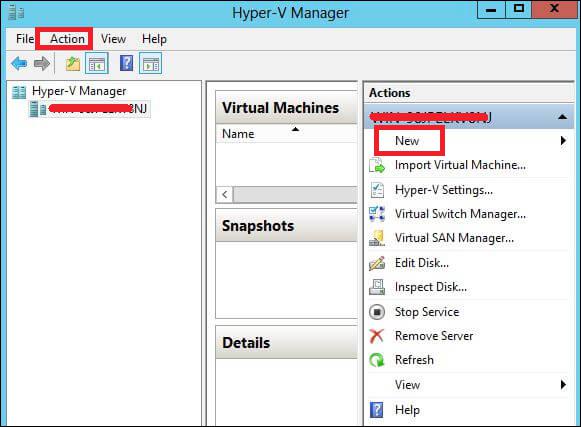

Step 2 − Click “New” on the left Panel or on the “Actions” button.

Actions

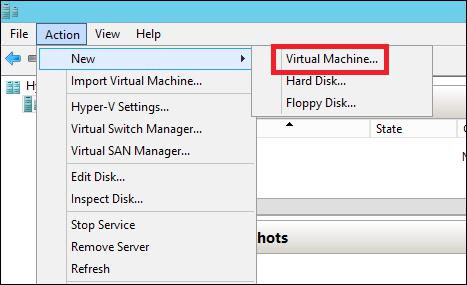

Step 3 − Double-click on “Virtual Machine…”

Virtual Machine

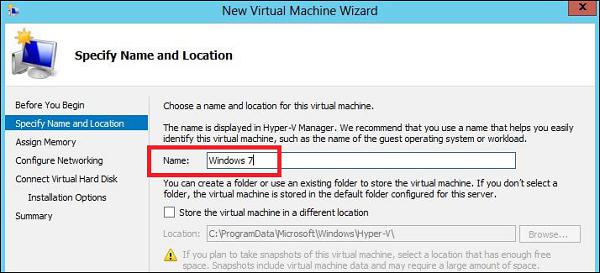

Step 4 − A new table will open → Type Name of your new machine → click “Next”.

Window 7

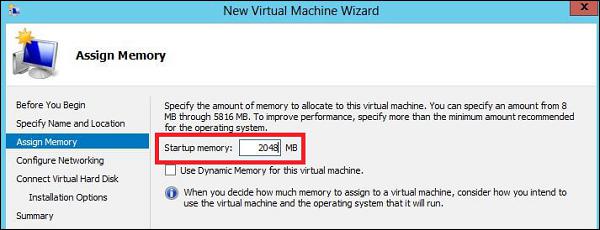

Step 5 − A new table will be opened where you have to allocate the memory. Keep in mind you cannot choose more memory than you have physically.

Memory Allocation

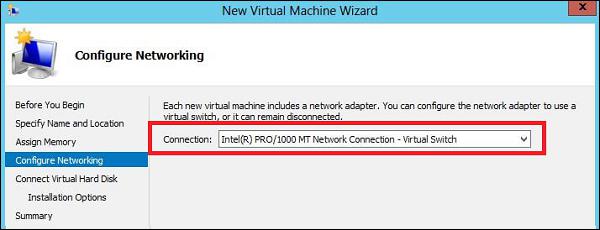

Step 6 − In the “Connection” drop down box, choose your physical network adaptor → click on “Next”.

Connection

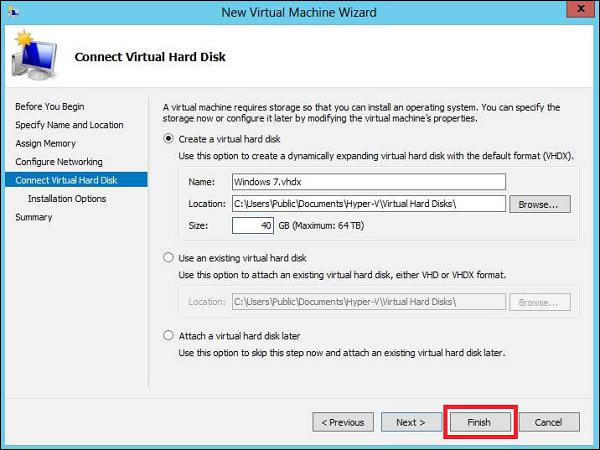

Step 7 − Now it is time to create a Virtual Hard disk, if you already have one, choose the second option.

Hard Disc

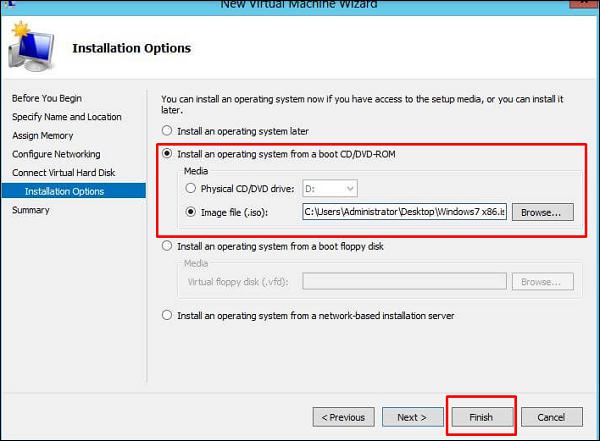

Step 8 − Select the Image of ISO that has to be installed → click on “Finish”.

ISO

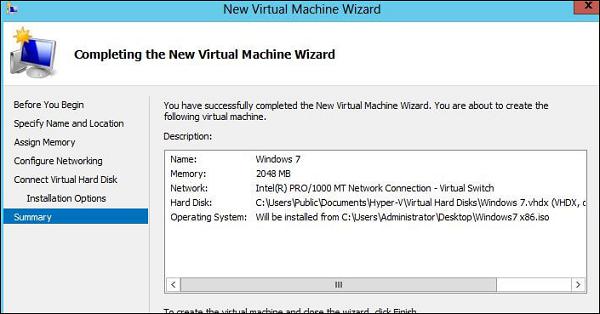

Step 9 − After clicking on finish, you would get the following message as shown in the screenshot below.

Finish

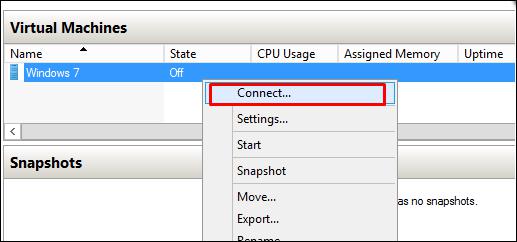

Step 10 − To connect to the Virtual machine, Right Click on the created machine → click on “Connect…”

Connect

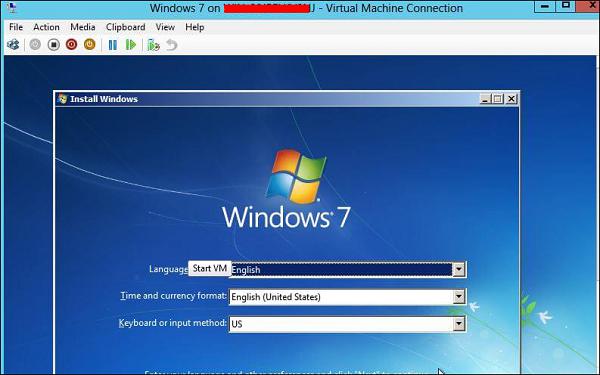

Step 11 − After that, installation of your ISO will continue.

ISO Continue

Setting up Networking with Hyper-V

The Hyper-V vSwitch is a software, layer-2 Ethernet network-traffic switch. It allows administrators to connect VMs to either physical or virtual networks. It is available by default within the Hyper-V Manager installation and contains extended capabilities for security and resource tracking.

If you attempt to create a VM right after the set-up process, you will not be able to connect it to a network.

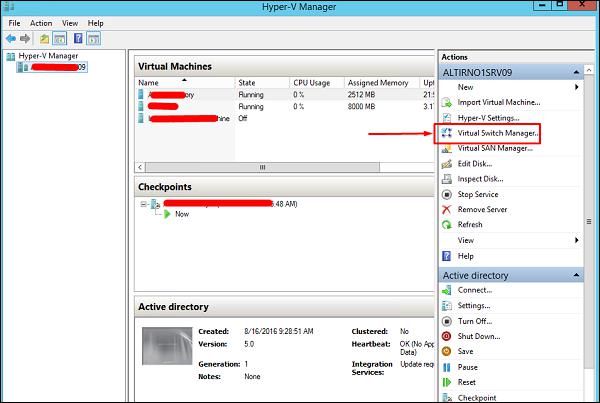

To set up a network environment, you will need to select the Virtual Switch Manager in the right hand side panel of Hyper-V Manager as shown in the screenshot below.

Virtual Switch Manager

The Virtual Switch Manager helps configure the vSwitch and the Global Network Settings, which simply lets you change the default ‘MAC Address Range’, if you see any reason for that.

Creation of the virtual switch is easy and there are three vSwitch types available, which are described below −

  • External vSwitch will link a physical NIC of the Hyper-V host with a virtual one and then give your VMs access outside of the host. This means that your physical network and internet (if your physical network is connected to internet).

  • Internal vSwitch should be used for building an independent virtual network, when you need to connect VMs to each other and to a hypervisor as well.

  • Private vSwitch will create a virtual network where all connected VMs will see each other, but not the Hyper-V host. This will completely isolate the VMs in that sandbox.

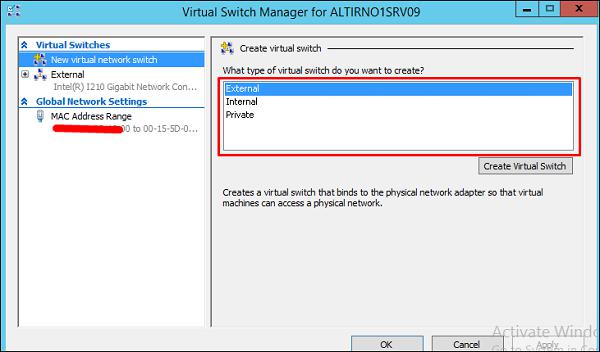

External

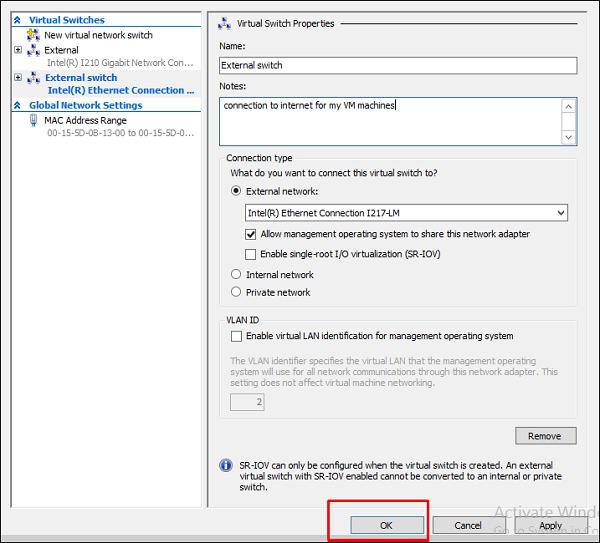

Here, we have selected “External” and then “Create Virtual Switch”. The table with the setting of the vSwitch will be open where we will fill the fields as shown below

  • Name − is the name that we will put to identify the vSwitch.

  • Notes − is the description for us, generally, we put friendly descriptions to be understood.

  • Connection Type − is external as explained earlier and selects a physical network card on my server.

Once all this is entered, Click on “OK”.

Create Switch

Allocating Processors & Memory to a VM using Hyper-V

In this section, we will see the task of allocating CPU, Memory and Disk Resources to the virtual machines that are running on a server. The key to allocating CPU or any other type of resource in Hyper-V is to remember that everything is relative.

For example, Microsoft has released some guidelines for Virtualizing Exchange Server. One of the things that was listed was that the overall system requirements for Exchange Server are identical whether Exchange is being run on a virtual machine or on a dedicated server.

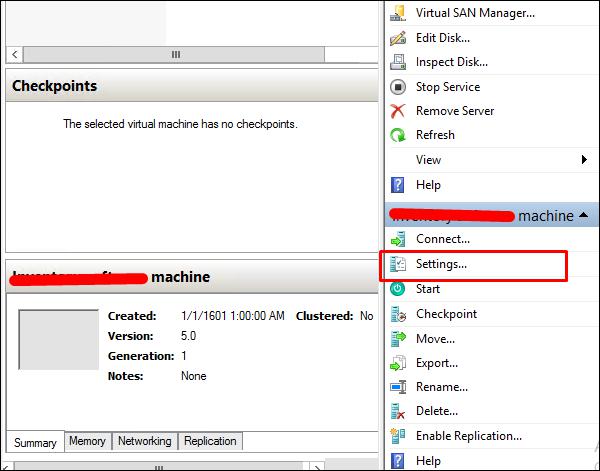

To allocate one of the features mentioned above, we need to click on the “Settings…” tab in the right hand side panel.

Settings

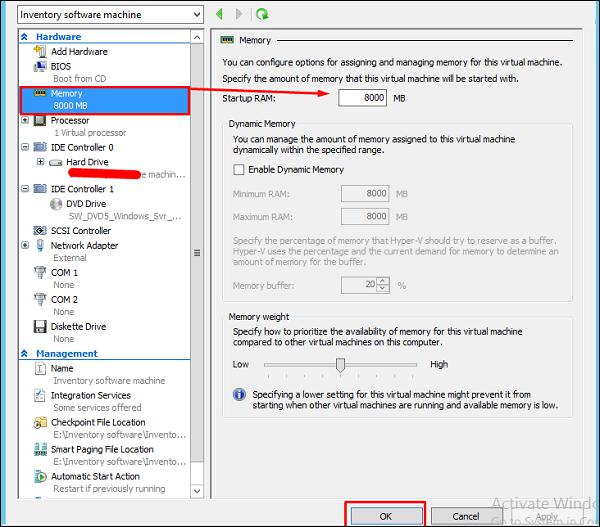

To allocate more memory to the selected virtual machine, click on the “Memory” tab on the left hand side of the screen. You will also have “Startup RAM”, where you can allocate as much ram as you have physically to a VM machine → Click on “Ok”.

Memory Tab

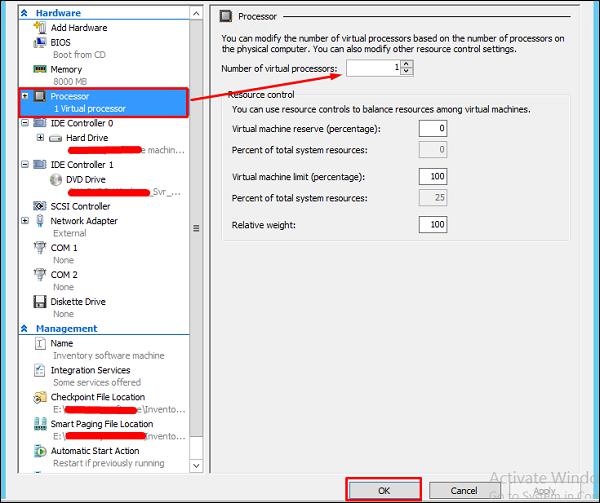

To allocate more processors, click on the “Processor” tab on the left hand side of the panel. Then you can enter the number of virtual processors for your machine.

Processor

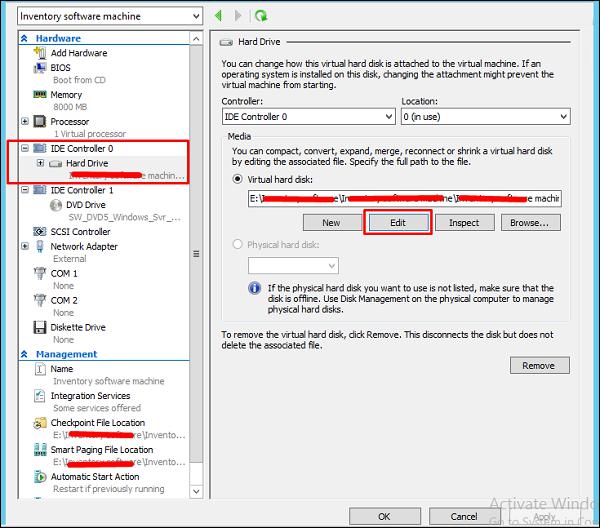

If you need to expand, compress the capacity of the virtual hard disk. Click on the “IDE controller 0” on the left hand side panel → click on “Edit”.

IDE

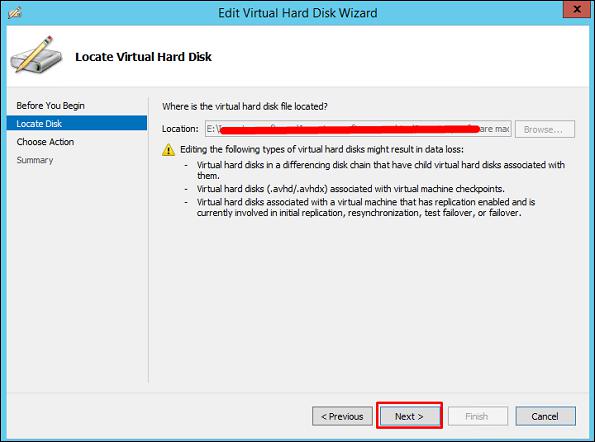

Once all the above changes are done, Click on “Next”.

Changes

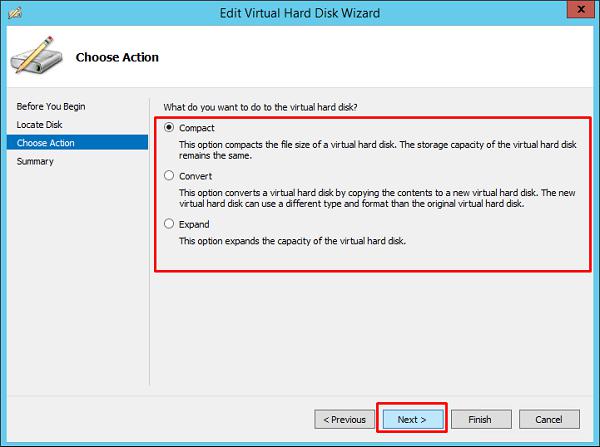

Select one of the options based on your need (all of them have their respective descriptions) and then click on “Next”.

Choose Action

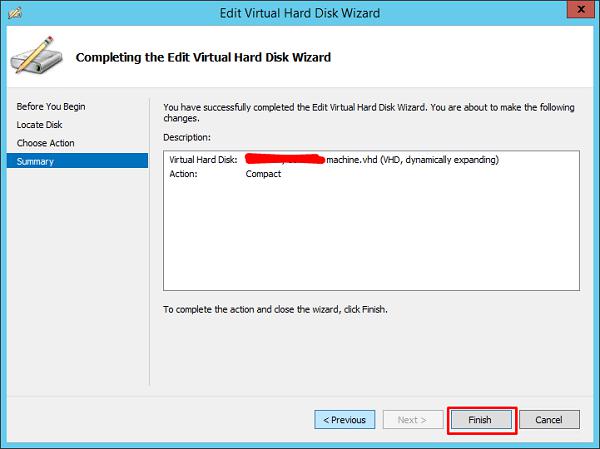

Click on “Finish” and wait for the process to finish.

Finish Click

Using Checkpoints in Hyper-V

Checkpoints in Hyper-V are called snapshots and they help us to revert the machine in a desired state that we had in the past.

To create a checkpoint we should follow the steps given below.

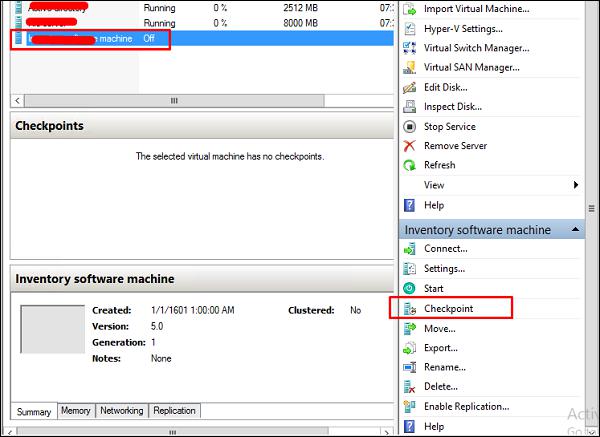

Step 1 − Select the VM by clicking on it. On the left hand side panel, click on “Checkpoint”.

Checkpoint

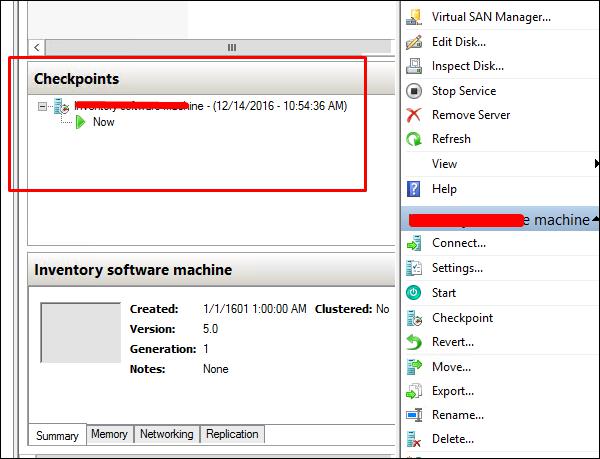

Step 2 − The following checkpoint will be created with the respective date and time in the main Hyper-V manager console.

Console
