Spring WS - Environment Setup

In this Chapter, we will understand the process of setting up Spring-WS on Windows and Linux based systems. The Spring-WS can be easily installed and integrated with your current Java environment and MAVEN by following a few simple steps without any complex setup procedures. User administration is required while installation.

System Requirements

The following table lists out the system requirements, while the subsequent steps will guide us through the environment setup procedure.

Let us now proceed with the steps to install Spring-WS.

Step 1: Verify the Java Installation

To begin with, you need to have Java Software Development Kit (SDK) installed on your system. To verify this, execute any of the following two commands depending on the platform you are working on.

If the Java installation has been done properly, then it will display the current version and specification of your Java installation. A sample output is given in the following table.

• We assume the readers of this tutorial have Java SDK version 1.7.0_60 installed on their system.

• In case you do not have Java SDK, download its current version from https://www.oracle.com/technetwork/java/javase/downloads/index.html and have it installed.

Step 2: Set your Java Environment

Set the environment variable JAVA_HOME to point to the base directory location where Java is installed on your machine.

Append the full path of Java compiler location to the System Path.

Execute the command java -version from the command prompt as explained above.

Step 3: Download Maven archive

Download Maven 3.3.3 from https://maven.apache.org/download.cgi

Step 4: Extract the Maven archive

Extract the archive, to the directory you wish to install Maven 3.3.3. The subdirectory apache-maven-3.3.3 will be created from the archive.

Step 5: Set Maven environment variables

Add M2_HOME, M2 and MAVEN_OPTS to the environment variables.

Step 6: Add Maven bin directory location to the system path

Now append M2 variable to the System Path.

Step 7: Verify Maven installation

Now open the console, execute the following mvn command.

Finally, verify the output of the above commands, which should be something as shown below −

Step 8: Setup Eclipse IDE

All the examples in this tutorial have been written using the Eclipse IDE. It is recommended that the readers should have the latest version of Eclipse installed on their machine. To install the Eclipse IDE, download the latest Eclipse binaries from the following link https://www.eclipse.org/downloads/. Once the installation is downloaded, unpack the binary distribution into a convenient location.

For example in C:\eclipse on windows, or /usr/local/eclipse on Linux/Unix and finally set the PATH variable appropriately. Eclipse can be started by executing the following commands on the windows machine, or you can simply double click on eclipse.exe.

%C:\eclipse\eclipse.exe

Eclipse can be started by executing the following commands on the UNIX (Solaris, Linux, etc.) machine −

$/usr/local/eclipse/eclipse

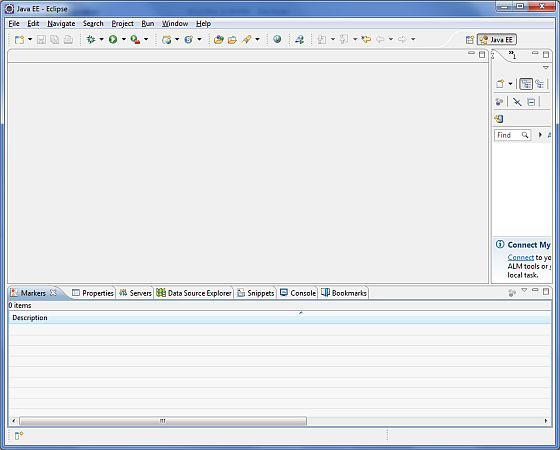

After a successful startup, if everything is fine then it should display the following screen −

Step 9: Setup Apache Tomcat

We can download the latest version of Tomcat from https://tomcat.apache.org/. Once the installation is downloaded, unpack the binary distribution into a convenient location. For example in the C:\apache-tomcat-7.0.59 on a windows machine, or in the /usr/local/apache-tomcat-7.0.59 on a Linux/Unix machine and then set the CATALINA_HOME environment variable pointing to the installation locations.

Tomcat can be started by executing the following commands on a windows machine, or you can simply double click on startup.bat

%CATALINA_HOME%\bin\startup.bat

or

C:\apache-tomcat-7.0.59\bin\startup.bat

Tomcat can be started by executing the following commands on UNIX (Solaris, Linux, etc.) machine −

$CATALINA_HOME/bin/startup.sh

or

/usr/local/apache-tomcat-7.0.59/bin/startup.sh

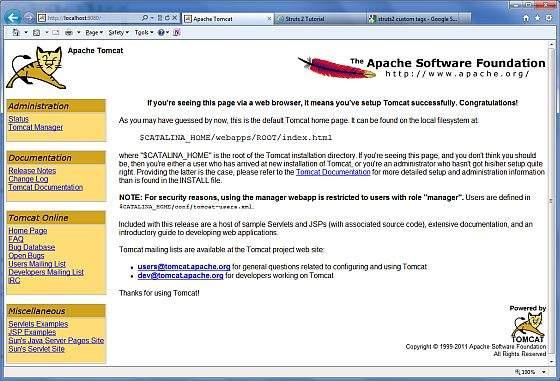

After a successful startup, the default web applications included with Tomcat will be available by visiting – http://localhost:8080/. If everything is ok, then it should display the following screen −

Further information about configuring and running Tomcat can be found in the documentation included here, as well as on the Tomcat website − https://tomcat.apache.org

Tomcat can be stopped by executing the following commands on a windows machine −

%CATALINA_HOME%\bin\shutdown

or

C:\apache-tomcat-7.0.59\bin\shutdown

Tomcat can be stopped by executing the following commands on the UNIX (Solaris, Linux, etc.) machine −

$CATALINA_HOME/bin/shutdown.sh

or

/usr/local/apache-tomcat-7.0.59/bin/shutdown.sh

Once we are done with this last step, we are ready to proceed for the first Web Services Example, which we will discuss in the next chapter.
