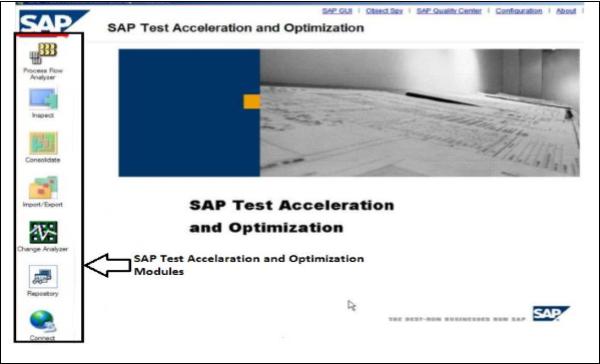

SAP Testing - TAO Folder Structure

There are various modules inside the SAP TAO tool. We have discussed the key components in this chapter.

Process Flow Analyzer

The first component is Process Flow Analyzer which is used to automatically find out the user interfaces used in transaction codes executed in the SAP system. It automatically creates the test components and uploads them to Quality Center.

Process Flow Analyzer is also used to identify the sequence of test components as per user actions and creation of spreadsheet values.

Inspect

You have to add Transaction codes to the list. SAP TAO will return all the screens associated with a particular transaction. You can choose any screen and click on Inspect option.

Consolidate

It allows you to collect multiple test components into one test. You need to find the test in Quality Center from QC tree and click on Consolidate.

Select the Transaction code you want to consolidate and click Add to Consolidate list at the bottom to create a test scenario.

Import and Export

Import and Export options are used to export to Quality Center and import from Quality Center. You need to select the components to be imported and exported and click on the required button.

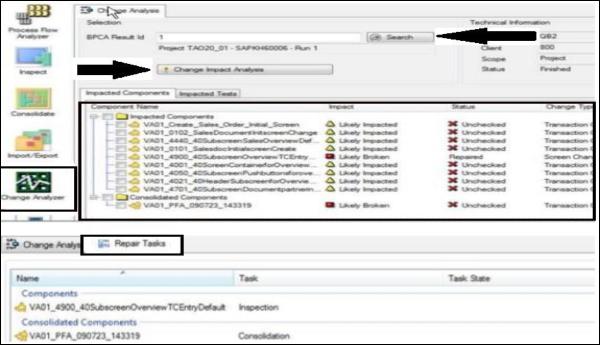

Change Analyzer

Change Analyzer is used to track the changes and impact on the SAP system. When you make any change to a SAP system, it identifies the affected business processes.

To use Change Analyzer, select the specific project and click the change impact analysis option. It will allow you to review and repair the impacted components in the SAP system because of this change.

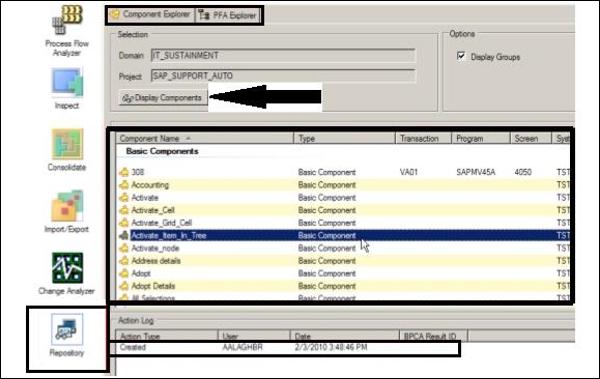

Repository

Repository is used to contain information about all the test components and flow in a project. To review information about any test component and to check the process flow, you can click Component Explorer or PFA Explorer.
