SAP PI - Creating Service Interface

Let us now understand how to create a service interface. We have to create two service interfaces — one for inbound and one for outbound.

Step 1 − Right click Namespace → New → Interface Objects → Service Interface

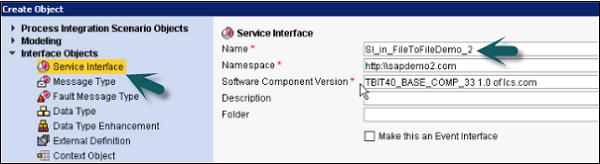

Step 2 − Enter the name of Service Interface (In – Inbound here) and by default, it takes the value of Namespace and the software component version. Click Create button.

Step 3 − In Inbound Service Interface, enter the category as Inbound and the the mode of communication as Synchronous or Asynchronous.

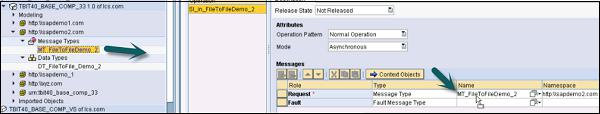

Step 4 − Now, define the Message Type by dragging it from the left pane to Service Interface Inbound Request Message as below. Click the Save button at the top.

Step 5 − Go to Service Interface and Activate after saving this Service Interface.

Step 6 − Similarly, create a Service Interface for outbound process.

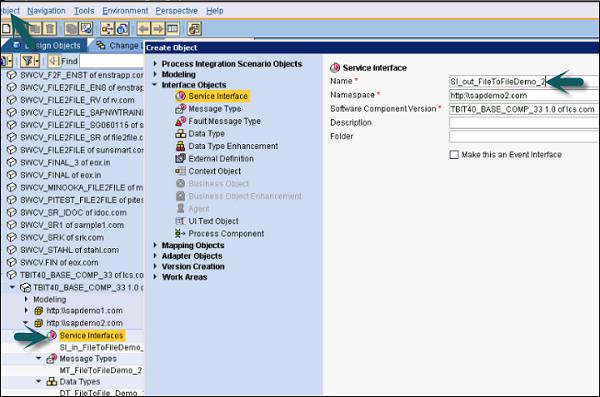

Step 7 − You can select the Service Interface → Object → New.

Step 8 − Enter the name of Service Interface (Out represents outbound process).

Step 9 − Click Create button to create the interface.

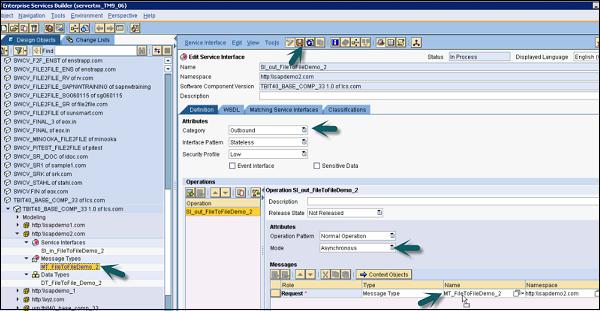

Step 10 − In the next window, define the category and the mode of communication for Outbound Service Interface. As we have one message type for both service interfaces, drag the Message Type from the left pane to request message and click Save.

Step 11 − Once it is saved, click Activate button under the Service Interface button.
