SAP HANA BI Development - Universe


Advertisements

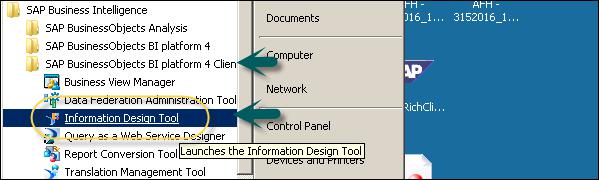

To create a Universe in IDT, go to Start → All Programs → SAP Business Intelligence → SAP Business Objects BI Platform 4 Client Tool.

Universe in IDT

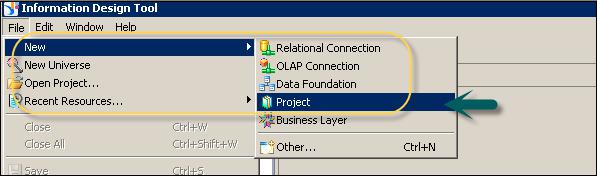

In Information Design Tool, you have to create a New Project. Go to File → New → Project. Enter the Project Name and Click Finish.

Information Design Tool

Once the project is created, next is to create an OLAP or Relational connection to connect to a data source - SAP HANA in this case. A Relational connection is used to connect to the Database layer to import tables and joins. An OLAP connection is used to connect to the multidimensional model like an Information View in SAP HANA.

SAP HANA

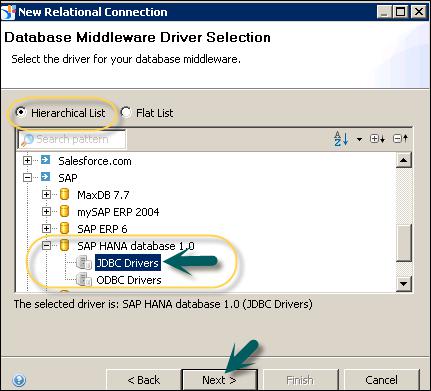

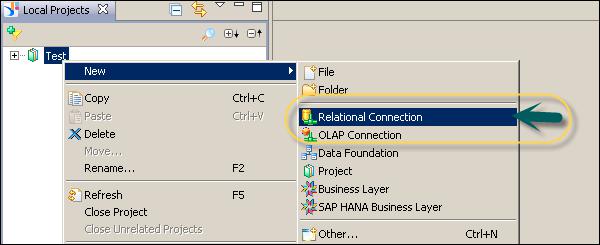

Right-click on Project name → New → Select Relational Connection → Enter connection/resource name → Next. Select SAP from the list → SAP HANA → Select Drivers JDBC → Next → Enter details.

Project Name

Enter the system details, username, password, and click Next. Then, click Finish. Under General Information → Click Test Connection → Successful.

You have to publish this connection to the Repository to make it available for use. Right-click the connection name → Publish the connection to the Repository → Enter BO repository password → Click Connect → Finish → Yes.

The next step is to create a Data Foundation Layer on this secure connection. Right-click .cns Repository connection → Click New Data Foundation.

Data Foundation Layer

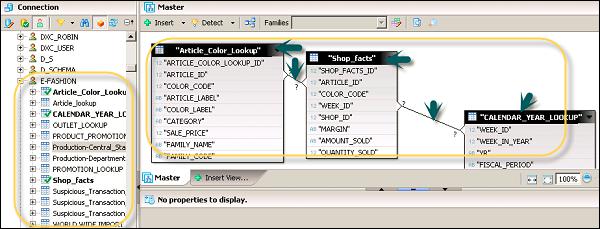

Enter Resource Name and click Finish. It will show you a list of all available schemas in the database. You can add Tables and Joins from Schema to Data Foundation layer. This can be done by dragging the table or by a double-click. Apply the joins on Dimension and Fact tables to create a logical schema.

Logical Schema

To define a Join, double-click the Join between tables. It will show you both the tables. You can select from different Joins as per data requirement and click Detect Cardinality to define the cardinality - 1:1, 1:n, n:n.

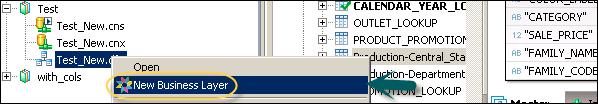

Next is to create a Business Layer on the Data Foundation. Click the Save All icon at the top of the screen. Then, right-click Data foundation .dfx → New Business Layer. Enter Resource Name → (Generating Business Layer for Data Foundation) Finish. It will add Business Layer .blx under the Local Project.

Local Project

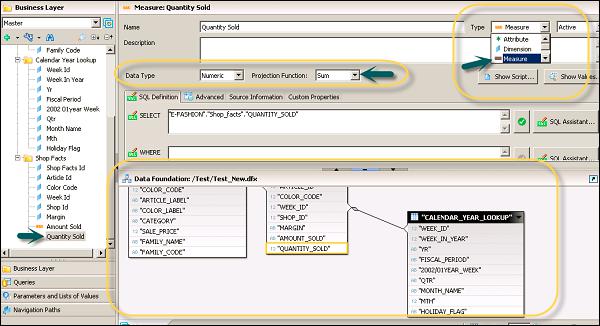

It will show a list of all dimensions and measures under Data Foundation. Define dimensions, measures, aggregation, etc.

All Dimensions

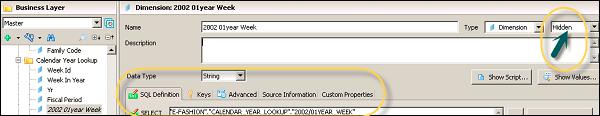

To define an Aggregation, select from the Projection Function. You can hide few objects in the report if you want using the dropdown next to measures and dimension. You can select Hidden for a particular object.

Aggregation

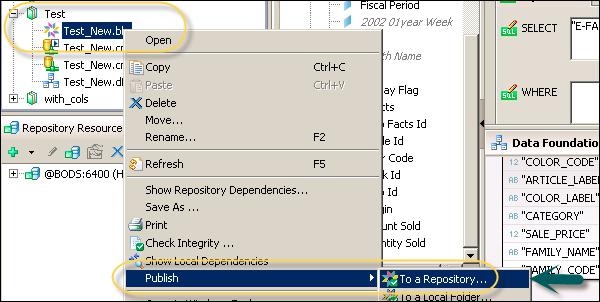

Once you define the Business Layer, click Save All icon at the top of the screen as shown in the following screenshot. To publish a Universe to the Repository, right-click .blx → Publish → To a Repository.

Business Layer

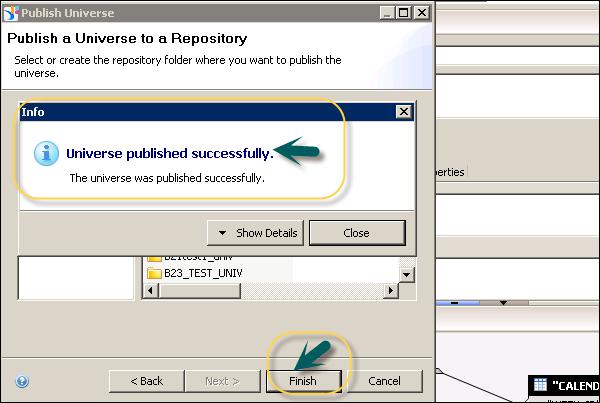

Select Resources, then click Next. In the Publish Universe window, select Next → Select the Repository folder where you want to publish the Universe and click Finish.

Select Resources
