When you select a dataset in Lumira from HANA Repository, it is added to the Prepare tab. You can make changes to the dataset and once it is finalized you can move to "Visualize" tab to create interactive charts in Lumira on top of HANA Modeling views.

Follow are the steps to add a chart: Navigate to the "Visualize" tab and go to Chart Builder.

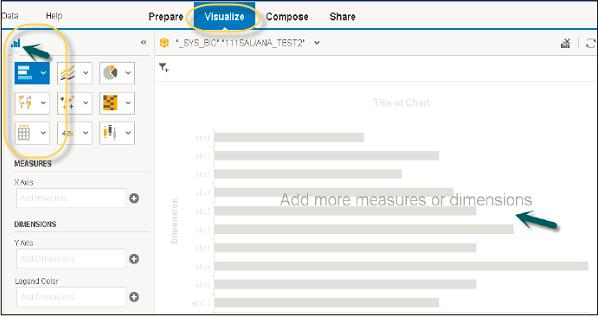

Select a chart type that you want to use in the Chart Builder. Bar Chart is the default chart type, but you can select any chart from the list.

Chart Type

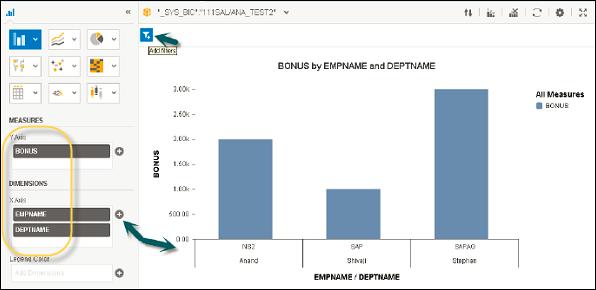

The next step is to choose a measure and drag it to an axis on the Chart Canvas. To add a measure or dimension to the corresponding axis, click the '+' sign next to the axis name.

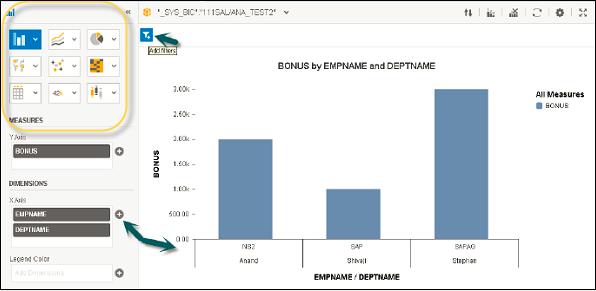

Select a dimension and add to the chart canvas or you can also drag it to the Chart Canvas. The text in the chart body guides you to the correct axis for the dimension.

Chart Canvas

Correct Axis for Dimension

Following chart types are available in SAP Lumira −

Comparison − These chart types are used to compare the difference between values. Common comparison chart types are −

  • Bar Chart
  • Column Chart
  • Radar Chart
  • Area Chart
  • Heat map

Percentage − These are used to show a percentage of parts in a chart. Common percentage type charts are −

  • Pie Chart
  • Donut Chart
  • Tree
  • Funnel Chart

Correlation − These are used to show the relationship between different values. Common chart types are −

  • Scatter Plot
  • Bubble Chart
  • Network Chart
  • Numeric Point
  • Tree

Trend − These are used to show the data patterns or possible patterns. Common chart types are −

  • Line Chart
  • Waterfall Chart
  • Box Plot
  • Parallel Coordinates Chart

Geographic − These are used to present the map of a country or globe present in the analysis. Common chart types are −

  • Geo Bubble Chart
  • Geo Choropleth Chart
  • Geo Pie Chart
  • Geo Map
