In this chapter, we will discuss how to create a Dashboard on top of the SQL Server using Embedded Spreadsheets.

Dynamic Dashboard using SQL Server

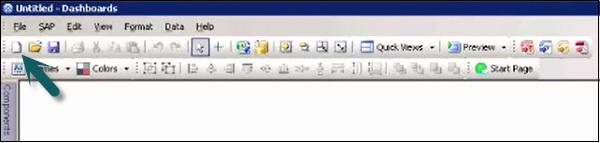

Open the Dashboard Designer and select an untitled dashboard.

Open Dashboard

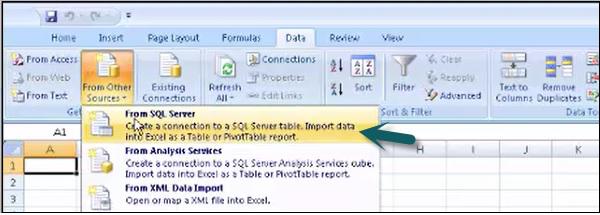

Go to the Data tab in the Spreadsheet → From Other sources → From SQL server.

Data Tab

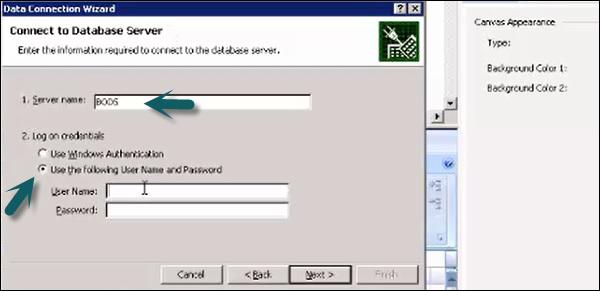

Enter the SQL Server name and credentials to connect to the SQL server database as shown in the following screenshot.

Connect To Database Server

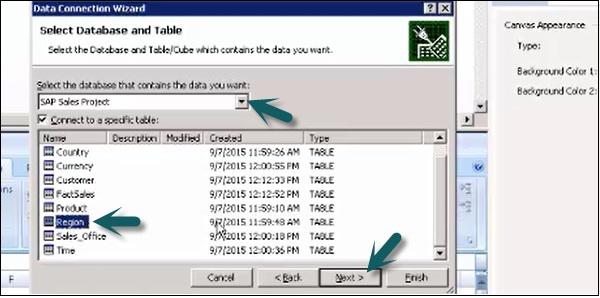

In the next window, select the database and table you want to use in the model.

Select Database And Table

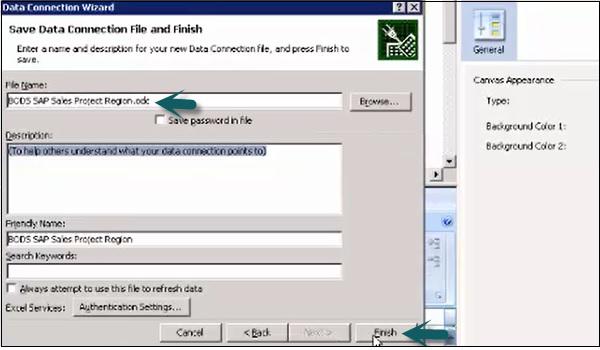

Enter the name of your data connection file and click Finish.

Save DataConnection File

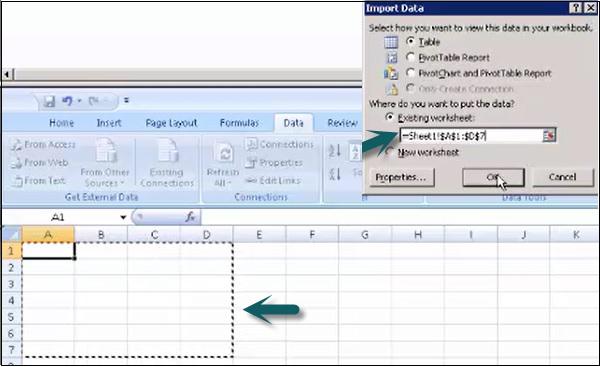

Select the area in the embedded spreadsheet and click ok. Enter the credentials again if it prompts.

Select the area Of Spreadsheet

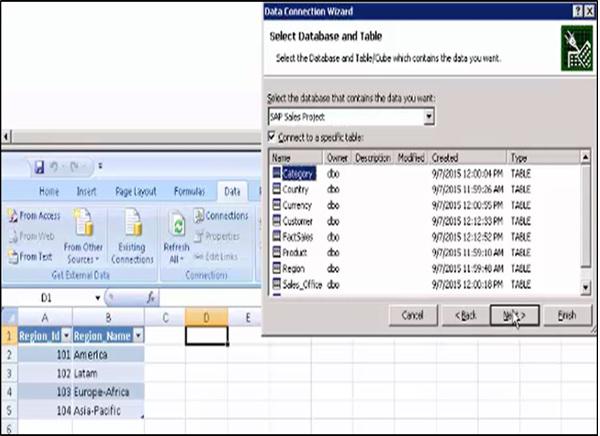

In a similar way, select all the tables from the database to the embedded spreadsheet.

Select Table From Database

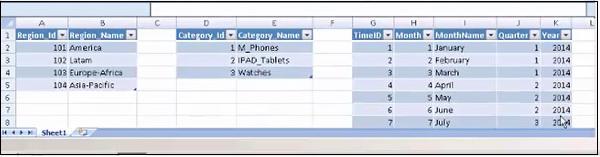

Tables

How to Add a Selector Component?

Here we can add the selector component − A radio button to implement Currency conversion in the data model.

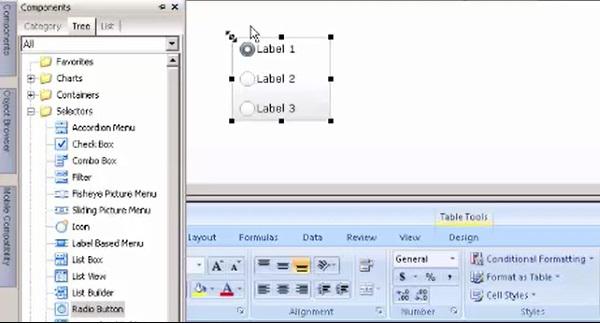

Add Radio Button

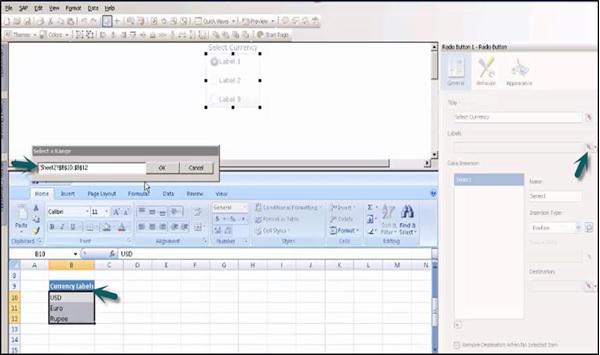

Enter the title of the Radio button and go to the Cell selector to select cells from the spreadsheet.

Title of Radio Button

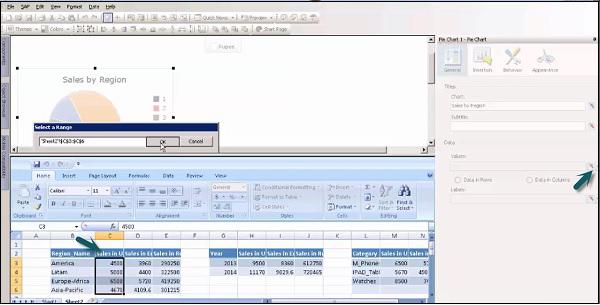

From components, select a Pie chart. Enter the title and sub title of the chart. Go to cell selector from the Values tab and select cells from the spreadsheets.

Title And Sub Title

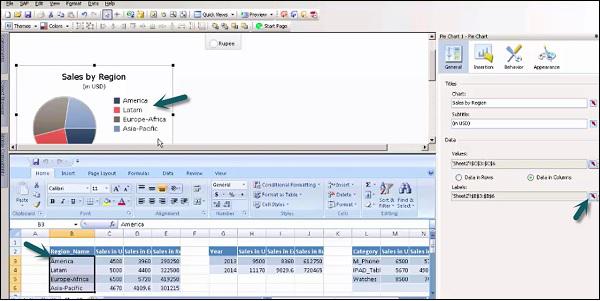

Go to General → Labels → Cell Selector to add labels to this component. Select cells from the spreadsheet to add labels as shown in the following screenshot.

Add Labels

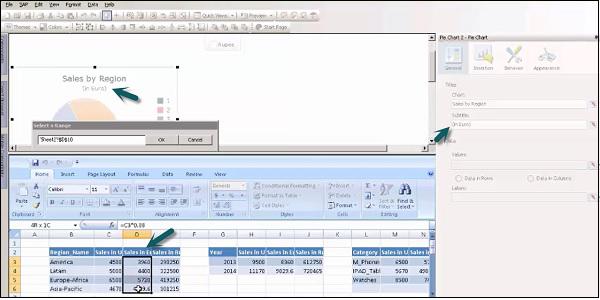

In a similar way, add more pie charts to add Currency in Euros and Rupees to show the sales. Add titles and subtitles to the chart to show the same and go to a cell selector.

Add More Pie Chart

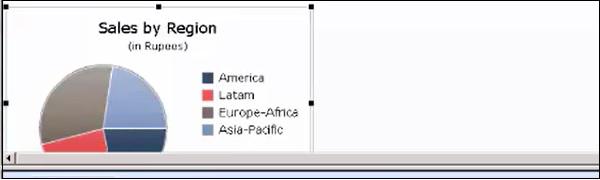

Sales By Region

How to Enable Dynamic Visibility?

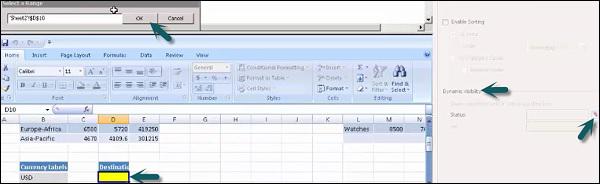

To enable dynamic visibility for each chart, go to Behavior → Dynamic Visibility and Status. Go to that cell in the Chart which stores value for dynamic visibility.

Dynamic Visibility

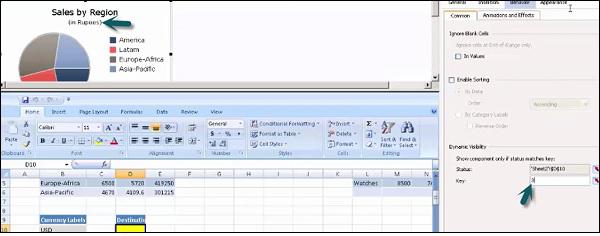

Enter the key value of each pie chart as per the Radio button selector component.

Key Value Pie Chart

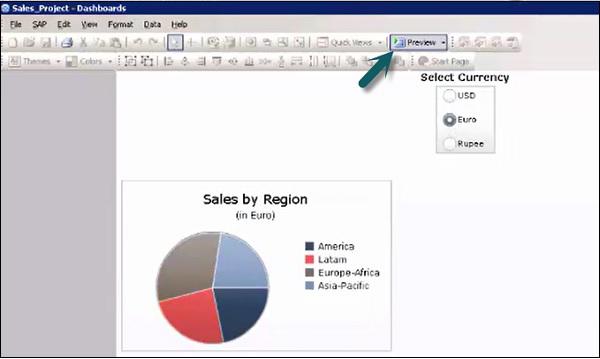

Save the model using the option at the top and go to the Preview option to see the preview as shown in the following screenshot.

Preview Of Sales By Region

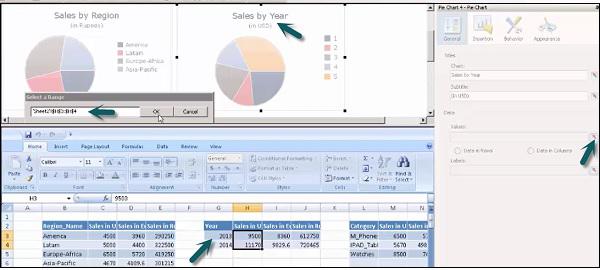

To add more components to show sales by year, select a Pie chart and title it as Sales by year and subtitle as USD. Go to cell selector to pass value from embedded spreadsheet.

Sales By Region And Year

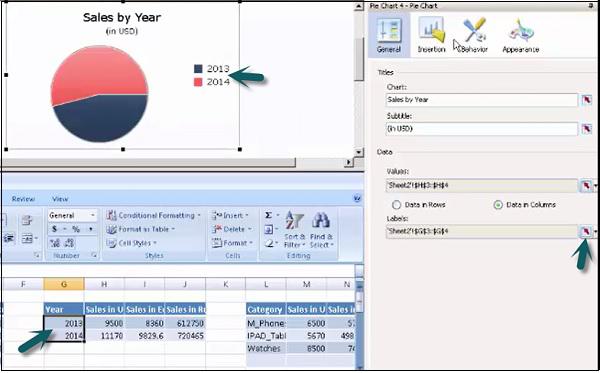

To add years as labels, go to labels and select the Years column from the embedded spreadsheet.

Add Years As Labels

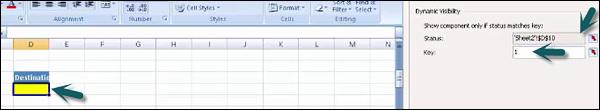

Set the dynamic visibility of the chart as mentioned in the previous topics. Value of the key is stored in the cell under Destination.

Destination

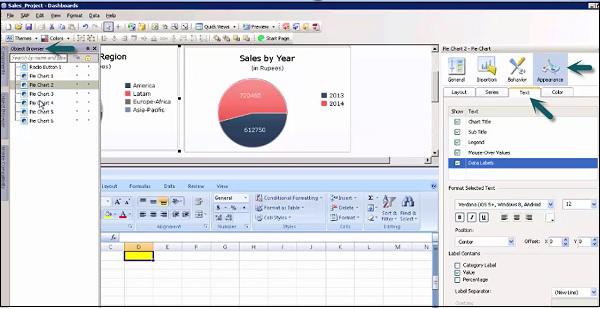

In a similar way, add pie charts for Sales by Year (In Euros) and Sales by Year (In Rupees). Save the Sales Project. To apply any type of formatting, you can view all the charts from the object browser, go to Appearance → Text.

View All Charts

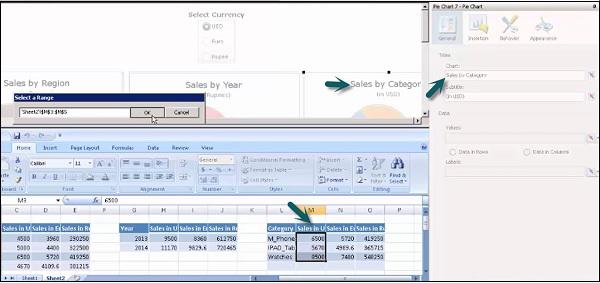

Similarly, you can add more charts with the title − Sales by Category, as shown in the following screenshot.

Sales By Category

Add labels by going to the cell selector. Set the dynamic visibility for the components and multiple charts.

Add Labels to Cell

Save the project again and go to Preview option at the top.

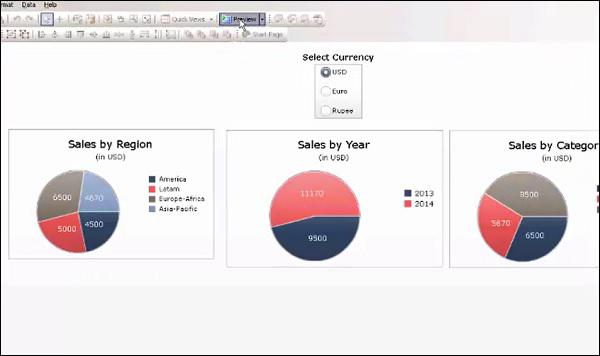

Save And Preview

This is how you can create models in SAP Business Objects Dashboard Designer and use embedded spreadsheets to get data from external data sources and do binding data with different components in the Canvas and use the dynamic visibility feature.
