SAP Basis - System Monitoring


Advertisements

System monitoring involves proactive monitoring of application servers, CPU utilization, database space, monitoring log files, etc.

System monitoring also includes the following −

  • Batch jobs monitoring
  • Database performance monitoring
  • Monitoring application users
  • Spool request monitoring
  • Print requests

To monitor the SAP system, use transaction code — SM51

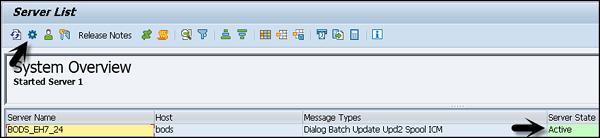

System Overview

To check the list of processes, go to Processes icon.

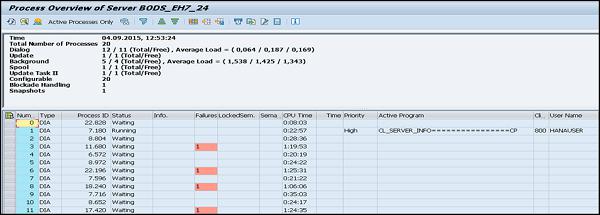

Process Overview

To monitor application users, use transaction codes — AL08 and SM04

List of Users

Use transaction code — SM04

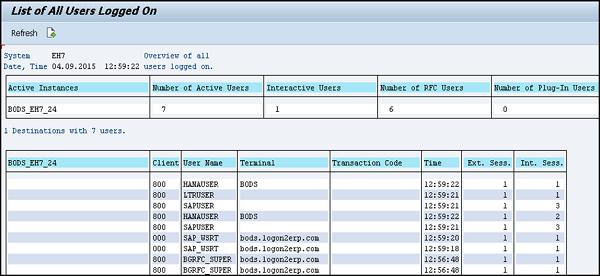

Logged On

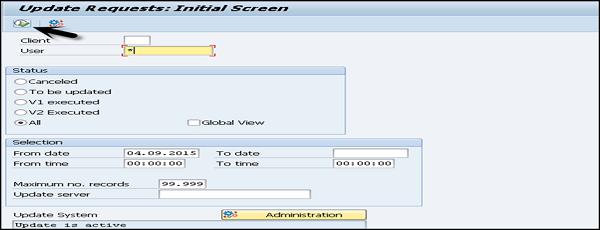

To monitor update processes, use transaction code — SM13. In User field enter ‘*’ and click on Execute.

Update Requests

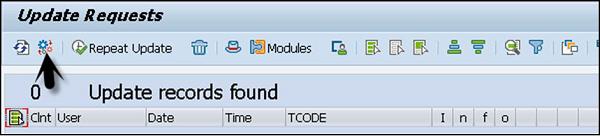

If there is no pending request, queue will be empty as in the following screenshot −

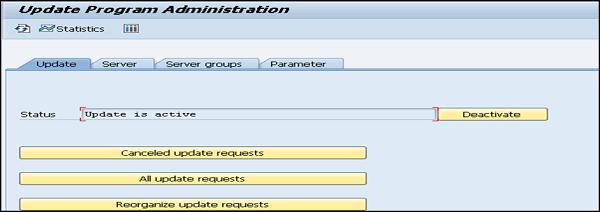

Update Records Found Program Administration

The following table shows important transaction codes for system monitoring and performance checks −

Monitoring System Log SM21
Tune Summary ST02
CPU Utilization ST06
ABAP Dumps ST22
Spool Request Monitoring SP01
Monitoring Batch Job SM37
Database Administration DB02
Database backup logs DB12
