SAP ABAP - SAPscripts


Advertisements

The SAPscript tool of the SAP system can be used to build and manage business forms such as invoices and purchase orders. The SAPscript tool provides numerous templates that simplify the designing of a business form to a great extent.

The SAP system comes with standard SAPscript forms that are delivered with the SAP standard client (generally as client 000). Following are a few examples of standard SAPscript forms delivered with client 000 −

S.No. Form Name & Description
1

RVORDER01

Sales Order Confirmation Form

2

RVDELNOTE

Packing List

3

RVINVOICE01

Invoice

4

MEDRUCK

Purchase Order

5

F110_PRENUM_CHCK

Prenumbered Check

The structure of a SAPscript form consists of 2 main components −

Content − This can be either text (business data) or graphics (company logo).

Layout − This is defined by a set of windows in which the form content appears.

SAPscript – Form Painter Tool

The Form Painter tool provides the graphical layout of a SAPscript form and various functionalities to manipulate the form. In the following example, we are going to create an invoice form after copying its layout structure from a standard SAPscript form RVINVOICE01, and display its layout by accessing the Form Painter tool.

Step 1 − Open the Form Painter. You may request the screen either by navigating the SAP menu or by using the SE71 transaction code.

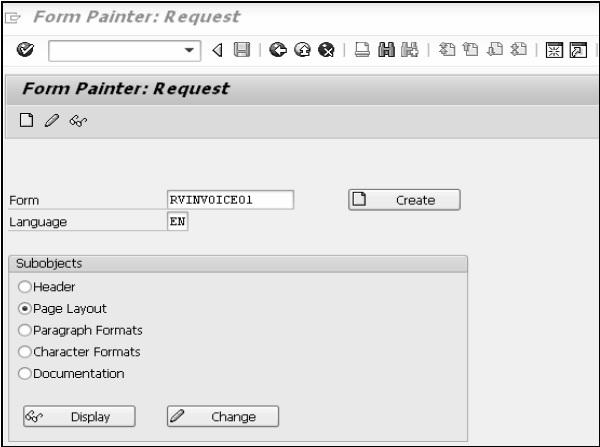

Step 2 − In the Form Painter, request screen, enter a name and language for a SAPscript form in the Form and Language fields, respectively. Let’s enter 'RVINVOICE01' and 'EN' respectively in these fields.

Form Painter Request

Step 3 − Select the Page Layout radio button in the Sub objects group box.

Step 4 − Select Utilities → Copy from Client to create a copy of the RVINVOICE01 form. The 'Copy Forms Between Clients' screen appears.

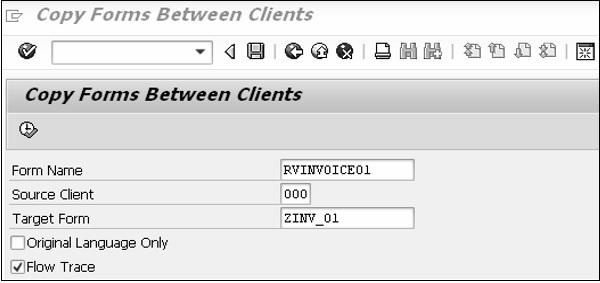

Step 5 − In the 'Copy Forms Between Clients' screen, enter the original name of the form, 'RVINVOICE01', in the Form Name field, the number of the source client '000' in the Source Client field, and the name of the target form as 'ZINV_01' in the Target Form field. Make sure that other settings remain unchanged.

Copy Form Between Client

Step 6 − Next, click the Execute icon in the 'Copy Forms Between Clients' screen. The 'Create Object Directory Entry' dialog box appears. Click the Save icon.

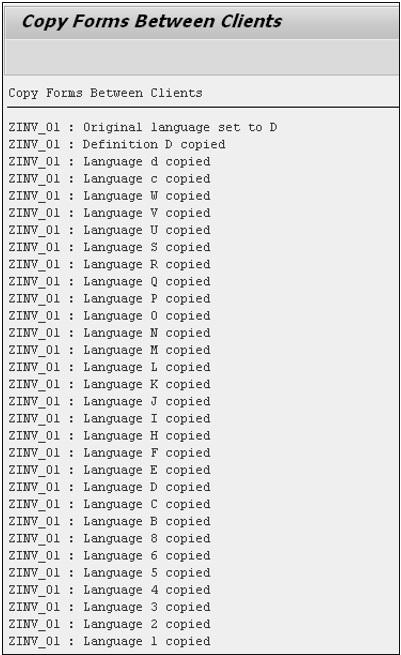

The ZINV_01 form is copied from the RVINVOICE01 form and displayed in the 'Copy Forms Between Clients screen' as depicted in the following snapshot −

Copy Form Between Client

Step 7 − Click the back icon twice and navigate back to the Form Painter: Request screen, which contains the name of the copied form ZINV_01.

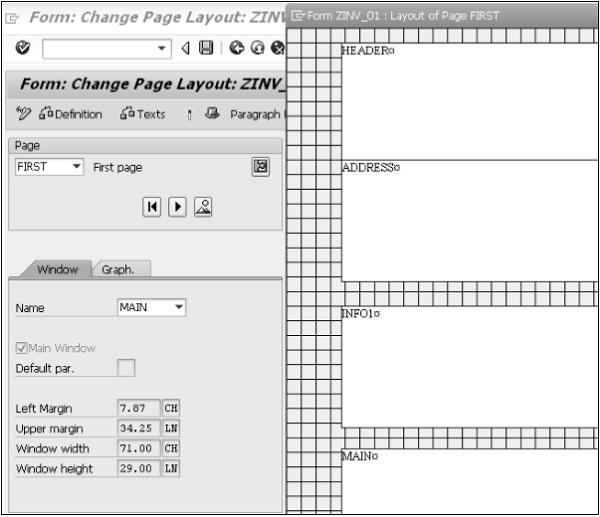

Step 8 − After clicking the Display button, the 'Form ZINV_01: Layout of Page FIRST' window and the 'Form: Change Page Layout: ZINV_01' screen appears as shown in the following screenshot.

Page Layout

Step 9 − The 'Form ZINV_01: Layout of Page FIRST' window shows the initial layout of the form. The layout of the form contains five windows: HEADER, ADDRESS, INFO, INFO1, and MAIN. The description of these windows can be accessed in PC Editor.

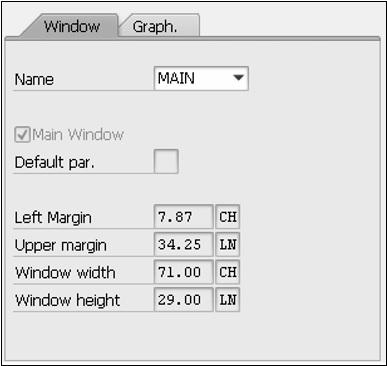

For instance, by just selecting the MAIN window and clicking the Text icon in the 'Form: Change Page Layout: ZINV_01' screen, you can view all the margin values as shown in the following screenshot −

Change Page Layout
