SAP ABAP - Dialog Programming


Advertisements

Dialog programming deals with the development of multiple objects. All these objects are linked hierarchically to the main program and they are executed in a sequence. Dialog program development makes use of tools in the ABAP workbench. These are the same tools used in standard SAP application development.

Here are the main components of dialog programs −

  • Screens
  • Module pools
  • Subroutines
  • Menus
  • Transactions

The Toolset

Toolset

Dialog programs should be developed by the object browser (transaction: SE80) so that all objects become linked to the main program without having to explicitly point each object. Advanced navigation techniques enhance the process of moving from one object to the other.

Screens are made up of screen attributes, screen layout, fields and flow logic. The module pool consists of modularized syntax that is placed inside include programs of the dialog program. These modules can be invoked by the flow logic, which is processed by the dialog processor.

Creating a New Dialog Program

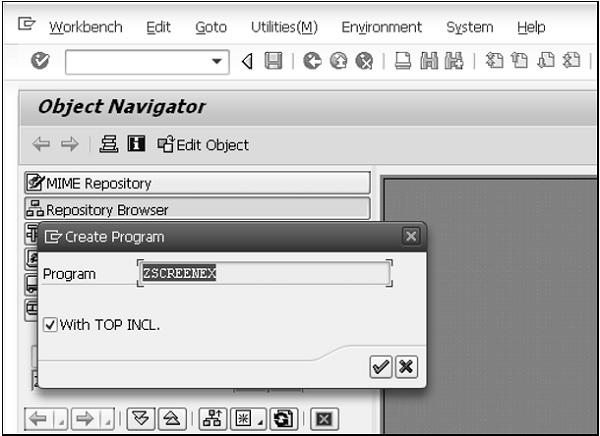

Step 1 − Within the transaction SE80, select ‘Program’ from the dropdown and enter a Z name for your custom SAP program as ‘ZSCREENEX’.

Step 2 − Press Enter, choose ‘With TOP INCL’ and click the ‘Yes’ button.

Creating a New Dialog Program

Step 3 − Enter a name for your top include as ‘ZSCRTOP’ and click the green tick mark.

Step 4 − Within the attributes screen, simply enter a title and click the save button.

Adding a Screen to the Dialog Program

Step 1 − To add a screen to the program, right-click on the program name and select the options Create → Screen.

Step 2 − Enter a screen number as '0211' and click the green tick mark.

Add Screen to Dialog

Step 3 − In the next screen, enter a short title, set to normal screen type and click the save button on the top application toolbar.

Screen Layout and Adding ‘Hello World’ Text

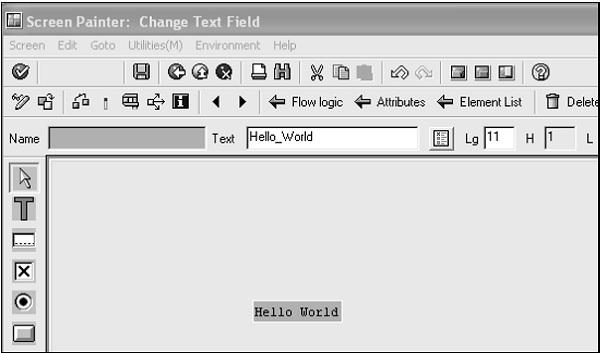

Step 1 − Click the layout button within the application toolbar and the Screen Painter window appears.

Step 2 − Add a Text Field and enter some text such as "Hello World".

Add Hello World

Step 3 − Save and activate the screen.

Creating Transaction

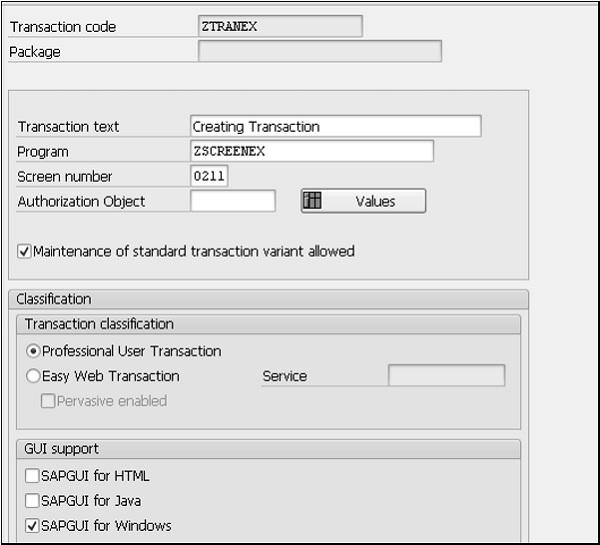

Step 1 − To create a transaction code for your program, simply right click on the program name and choose the option Create → Transaction and enter a transaction code as 'ZTRANEX'.

Creating Transaction

Step 2 − Enter the transaction text, program and screen you have just created (ZSCREENEX & 0211), and tick the ‘SAPGUI for Windows’ checkbox in the ‘GUI support’ section.

Executing the Program

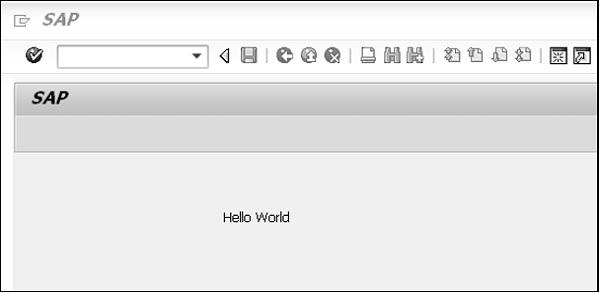

Save and activate everything. You can execute the program. As the program executes, the text you entered is displayed on the screen as shown in the following screenshot.

Executing the Program
