QlikView - Excel Files


Advertisements

QlikView accepts Excel spreadsheet for data analysis by simple drag and drop action. You need to open the QlikView main window and drag and drop the excel file into the interface. It will automatically create the sheet showing the excel data.

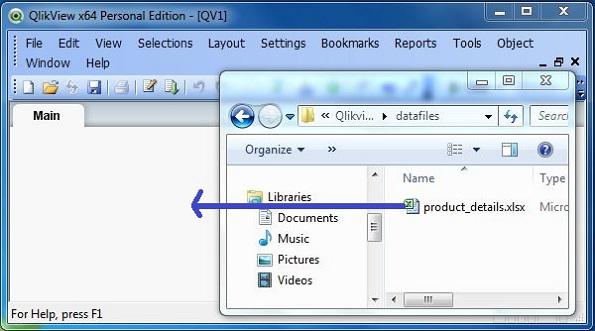

Select the Excel file

Keep the main window of QlikView open and browse for the excel file you want to use.

1_excel_load_data_drag

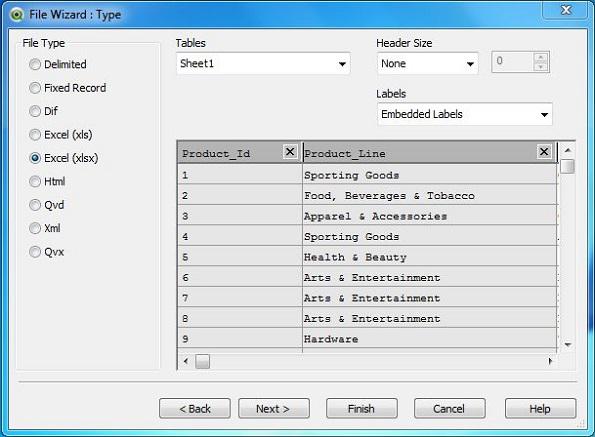

Select a Data Source

On dropping the excel file into the main window, the File wizard appears. The File Type is already chosen as Excel. Under Labels, choose Embedded Labels. Click "Next step" to proceed.

2_excel_file_wizard

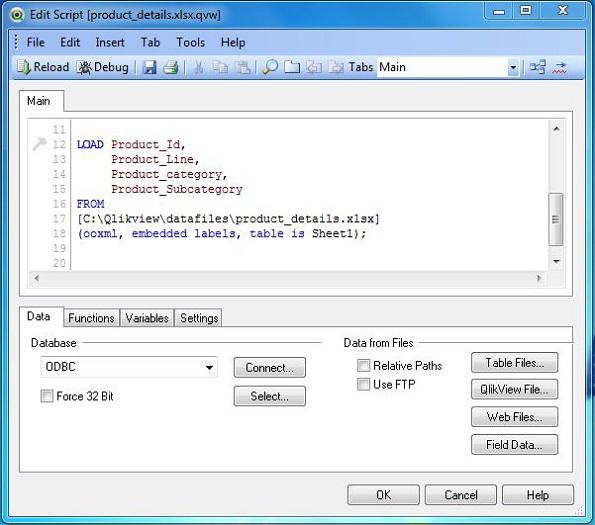

Load Script

The Load script appears which shows the command that loads the data into the QlikView document. This command can be edited.

3_excel_load_script

Now, the Excel wizard prompts to save the file in the form of *.qvw file extension. It asks to select a location where you need to save the file. Click "Next step" to proceed. Now it is time to see the data that is loaded from the Excel file. We use a Table Box sheet object to display this data.

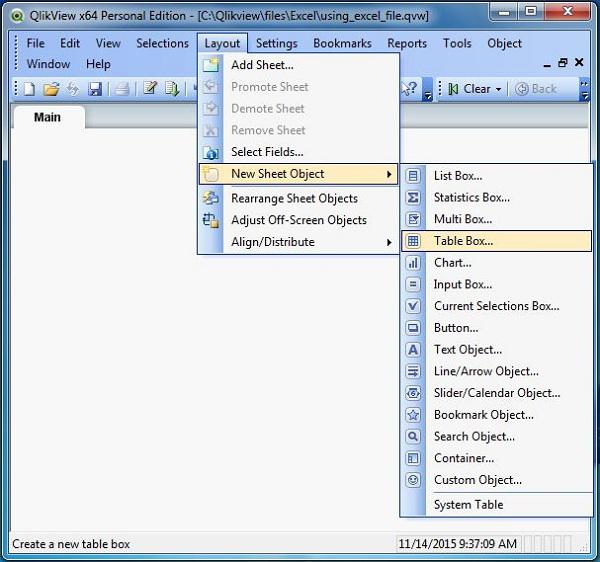

Create Table Box

The Table Box is a sheet object to display the available data as a table. It is invoked from the menu Layout → New Sheet Object → Table Box.

4_table_box_option

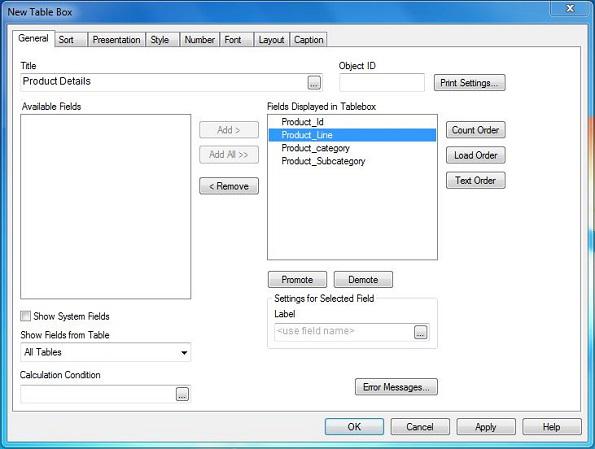

On clicking Next, we get the option to choose the fields from the Table Box. You can use the Promote or Demote buttons to rearrange the fields.

5_Table_box_fields

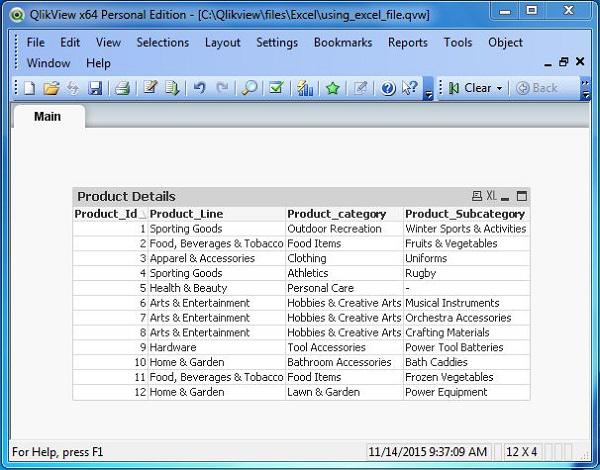

Table Box Data

On completing the above step, the Table Box Sheet Object appears which shows the data that is read from the Excel file.

6_table_box_result
