QlikView - Dashboard


Advertisements

A Dashboard is a powerful feature to display values from many fields simultaneously. QlikeView's feature of data association in memory can display the dynamic values in all the sheet objects.

Input Data

Let us consider the following input data, which represents the sales figure of different product lines and product categories.

Product_Line,Product_category,Value
Sporting Goods,Outdoor Recreation,5642
Food, Beverages & Tobacco,2514
Apparel & Accessories,Clothing,2365
Apparel & Accessories,Costumes & Accessories,4487
Sporting Goods,Athletics,812
Health & Beauty,Personal Care,6912
Arts & Entertainment,Hobbies & Creative Arts,5201
Arts & Entertainment,Paintings,8451
Arts & Entertainment,Musical Instruments,1245
Hardware,Tool Accessories,456
Home & Garden,Bathroom Accessories,241
Food,Drinks,1247
Home & Garden,Lawn & Garden,5462
Office Supplies,Presentation Supplies,577
Hardware,Blocks,548
Baby & Toddler,Diapering,1247
Baby & Toddler,Toys,257
Home & Garden,Pipes,1241
Office Supplies,Display Board,2177

Load Script

The above data is loaded to QlikView memory by using the script editor. Open the Script editor from the File menu or press Control+E. Choose the "Table Files" option from the "Data from Files" tab and browse for the file containing the above data. Edit the load script to add the following code. Click "OK" and press "Control+R" to load the data into the QlikView's memory.

LOAD Product_Line,
     Product_category,
     Value
FROM
[C:\Qlikview\data\product_sales.csv]
(txt, codepage is 1252, embedded labels, delimiter is ',', msq);

Choose Matrices

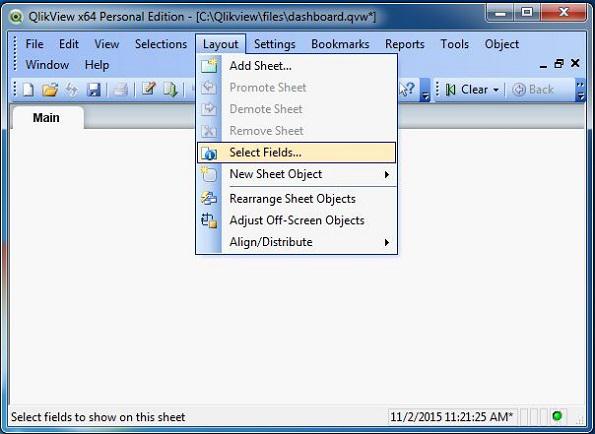

We choose the fields from the above input data as matrices to be displayed in the dashboard. For this, we follow the steps in the menu Layout → Select Fields.

3_dahboard_matrices_fileds

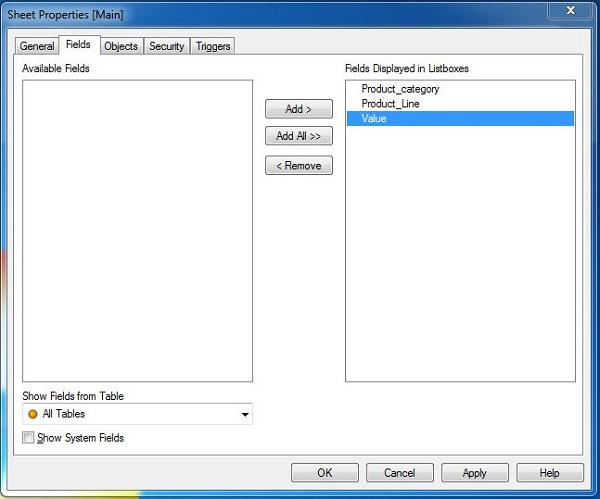

In the next screen, choose the available fields to be displayed in the dashboard. Click "OK".

4_dahboard_listbox_fields

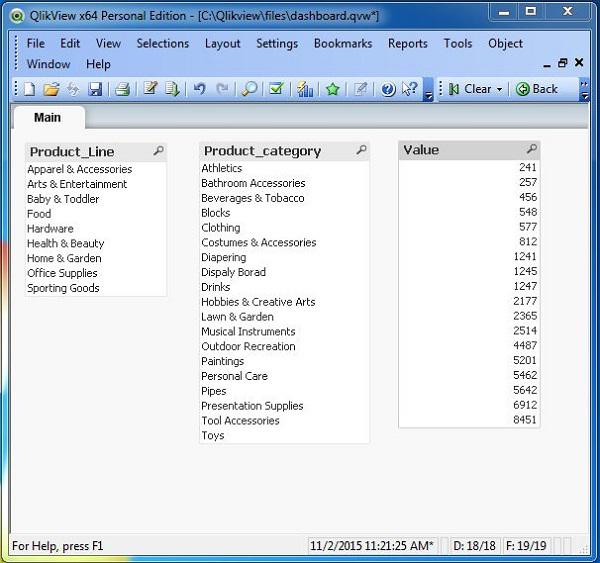

The following screen appears displaying all the fields

5_dahboard_listbox_display

Adding Chart to Dashboard

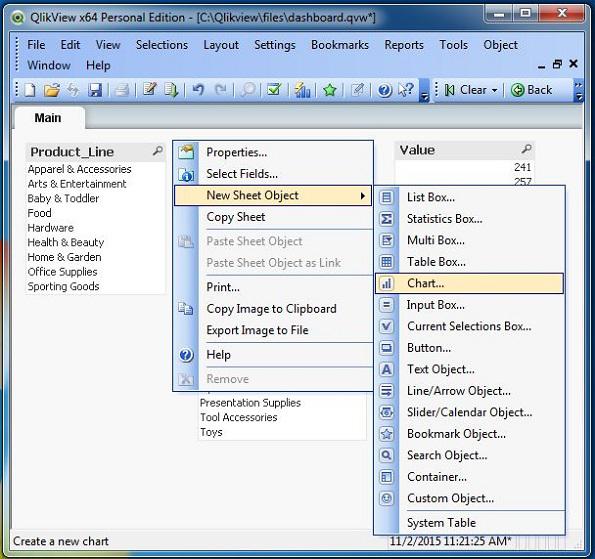

NNow we add a chart to the dashboard by right-clicking anywhere in the sheet and choosing New Sheet Object → Chart.

6_dahboard_add_chart

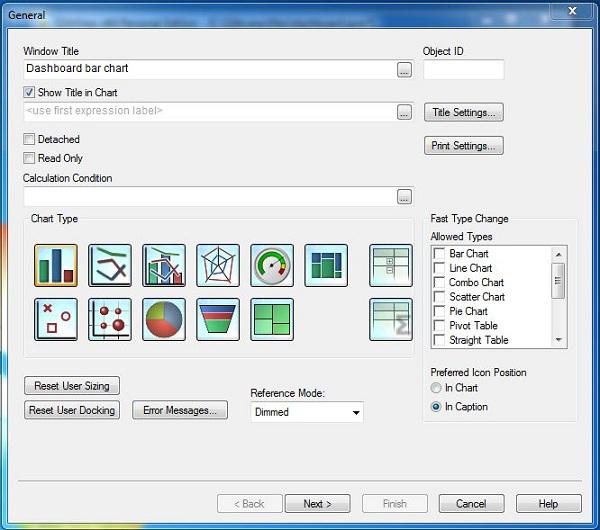

Choose the Chart Type

Let us choose the chart type as a bar chart to display the sales values for various product Lines.

7_dahboard_add_bar_chart

Chart Dimension

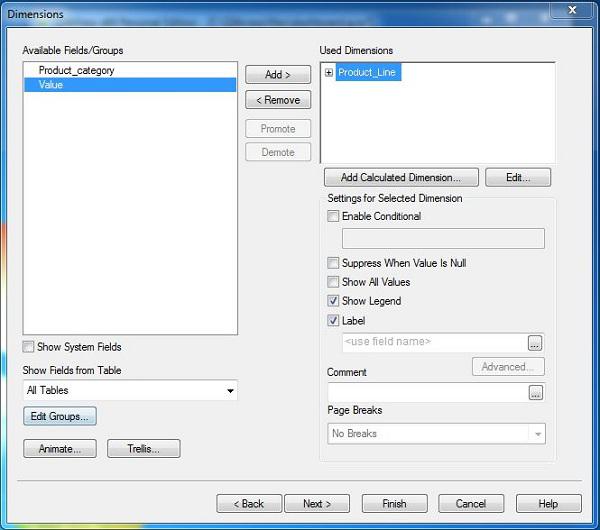

Let us select the Product Line as the Chart Dimension.

8_dahboard_chart_dimension

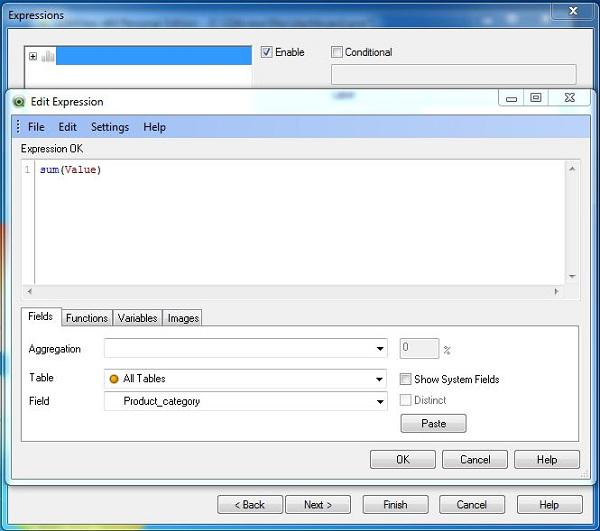

Chart Expression

The expression to display the sales value for the Product Line dimension is written in the expression editor.

9_dahboard_chart_expression

The Dashboard

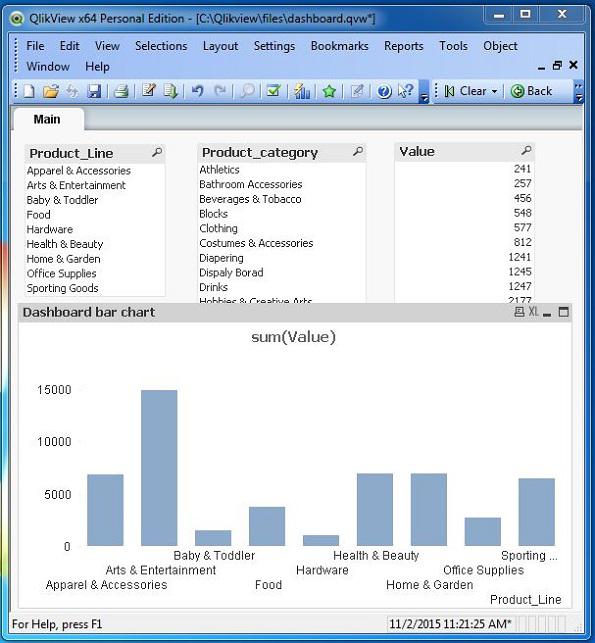

Given below is the dashboard displayed after finishing the above steps.

10_dahboard_data

Using the Dashboard

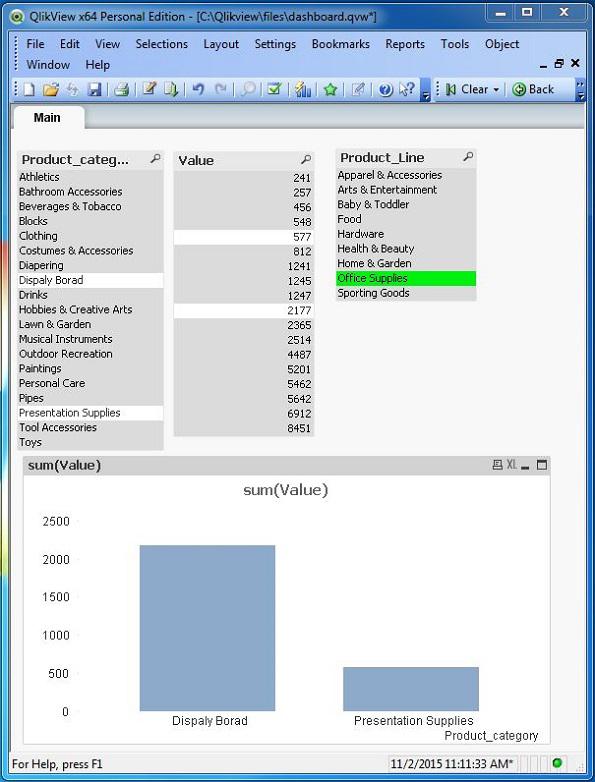

The values in the above Dashboard can be selected for filtering specific products and the chart changes accordingly. In addition, the associated values are highlighted.

11_dahboard_data-associated
