Multiprocessor Configuration Overview

Multiprocessor means a multiple set of processors that executes instructions simultaneously. There are three basic multiprocessor configurations.

• Coprocessor configuration
• Closely coupled configuration
• Loosely coupled configuration

Coprocessor Configuration

A Coprocessor is a specially designed circuit on microprocessor chip which can perform the same task very quickly, which the microprocessor performs. It reduces the work load of the main processor. The coprocessor shares the same memory, IO system, bus, control logic and clock generator. The coprocessor handles specialized tasks like mathematical calculations, graphical display on screen, etc.

The 8086 and 8088 can perform most of the operations but their instruction set is not able to perform complex mathematical operations, so in these cases the microprocessor requires the math coprocessor like Intel 8087 math coprocessor, which can easily perform these operations very quickly.

Block Diagram of Coprocessor Configuration

How is the coprocessor and the processor connected?

• The coprocessor and the processor is connected via TEST, RQ-/GT- and QS₀ & QS₁ signals.

• The TEST signal is connected to BUSY pin of coprocessor and the remaining 3 pins are connected to the coprocessor’s 3 pins of the same name.

• TEST signal takes care of the coprocessor’s activity, i.e. the coprocessor is busy or idle.

• The RT-/GT-is used for bus arbitration.

• The coprocessor uses QS₀ & QS₁ to track the status of the queue of the host processor.

Closely Coupled Configuration

Closely coupled configuration is similar to the coprocessor configuration, i.e. both share the same memory, I/O system bus, control logic, and control generator with the host processor. However, the coprocessor and the host processor fetches and executes their own instructions. The system bus is controlled by the coprocessor and the host processor independently.

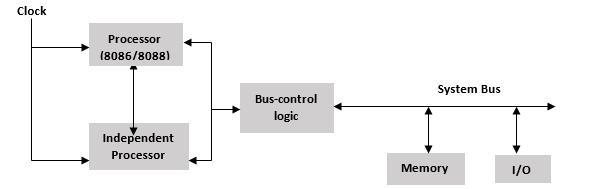

Block Diagram of Closely Coupled Configuration

How is the processor and the independent processor connected?

• Communication between the host and the independent processor is done through memory space.

• None of the instructions are used for communication, like WAIT, ESC, etc.

• The host processor manages the memory and wakes up the independent processor by sending commands to one of its ports.

• Then the independent processor accesses the memory to execute the task.

• After completion of the task, it sends an acknowledgement to the host processor by using the status signal or an interrupt request.

Loosely Coupled Configuration

Loosely coupled configuration consists of the number of modules of the microprocessor based systems, which are connected through a common system bus. Each module consists of their own clock generator, memory, I/O devices and are connected through a local bus.

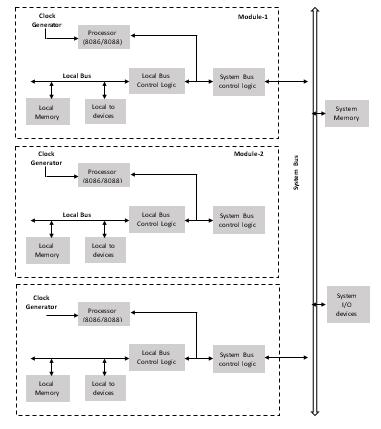

Block Diagram of Loosely Coupled Configuration

Advantages

• Having more than one processor results in increased efficiency.

• Each of the processors have their own local bus to access the local memory/I/O devices. This makes it easy to achieve parallel processing.

• The system structure is flexible, i.e. the failure of one module doesn’t affect the whole system failure; faulty module can be replaced later.
