MFC - Serialization


Advertisements

Serialization is the process of writing or reading an object to or from a persistent storage medium such as a disk file. Serialization is ideal for situations where it is desired to maintain the state of structured data (such as C++ classes or structures) during or after the execution of a program.

When performing file processing, the values are typically of primitive types (char, short, int, float, or double). In the same way, we can individually save many values, one at a time. This technique doesn't include an object created from (as a variable of) a class.

The MFC library has a high level of support for serialization. It starts with the CObject class that is the ancestor to most MFC classes, which is equipped with a Serialize() member function.

Let us look into a simple example by creating a new MFC project.

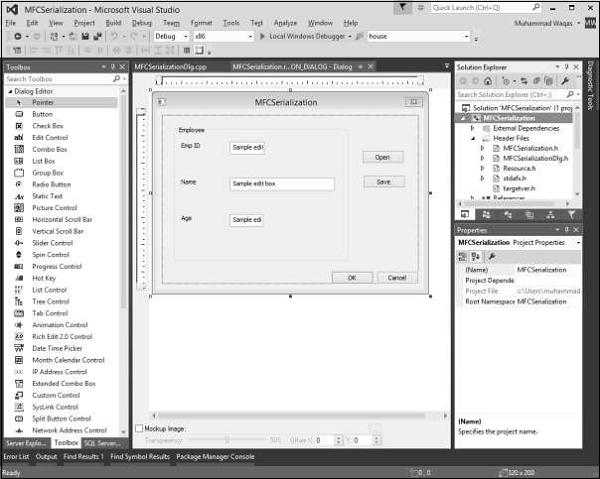

Step 1 − Remove the TODO line and design your dialog box as shown in the following snapshot.

Remove TODO Line

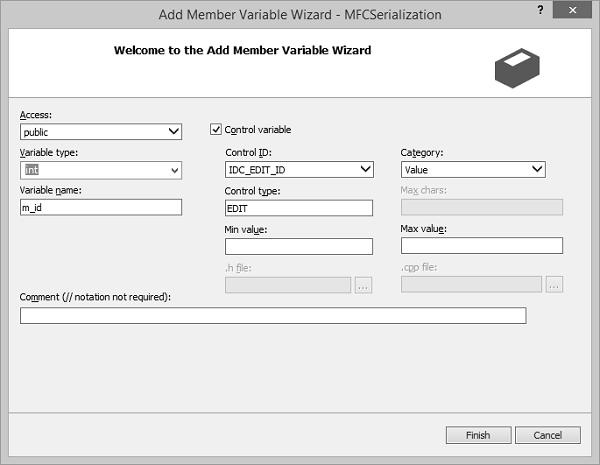

Step 2 − Add value variables for all the edit controls. For Emp ID and Age mentioned, the value type is an integer as shown in the following snapshot.

Serialization Add Var

Step 3 − Add the event handler for both the buttons.

Step 4 − Let us now add a simple Employee class, which we need to serialize. Here is the declaration of Employee class in header file.

class CEmployee : public CObject {
   public:
      int empID;
      CString empName;
      int age;
      CEmployee(void);
      ~CEmployee(void);
   private:

   public:
      void Serialize(CArchive& ar);
      DECLARE_SERIAL(CEmployee);
};

Step 5 − Here is the definition of Employee class in source (*.cpp) file.

IMPLEMENT_SERIAL(CEmployee, CObject, 0)
CEmployee::CEmployee(void) {

}

CEmployee::~CEmployee(void) {

}

void CEmployee::Serialize(CArchive& ar) {
   CObject::Serialize(ar);

   if (ar.IsStoring())
      ar << empID << empName << age;
   else
      ar >> empID >> empName >> age;
}

Step 6 − Here is the implementation of Save button event handler.

void CMFCSerializationDlg::OnBnClickedButtonSave() {
   // TODO: Add your control notification handler code here
   UpdateData(TRUE);
   CEmployee employee;
   CFile file;
   file.Open(L"EmployeeInfo.hse", CFile::modeCreate | CFile::modeWrite);
   CArchive ar(&file, CArchive::store);
   employee.empID = m_id;
   employee.empName = m_strName;
   employee.age = m_age;
   employee.Serialize(ar);
   ar.Close();
}

Step 7 − Here is the implementation of Open button event handler.

void CMFCSerializationDlg::OnBnClickedButtonOpen() {
   // TODO: Add your control notification handler code here
   UpdateData(TRUE);

   CFile file;

   file.Open(L"EmployeeInfo.hse", CFile::modeRead);
   CArchive ar(&file, CArchive::load);
   CEmployee employee;

   employee.Serialize(ar);

   m_id = employee.empID;
   m_strName = employee.empName;
   m_age = employee.age;
   ar.Close();
   file.Close();

   UpdateData(FALSE);
}

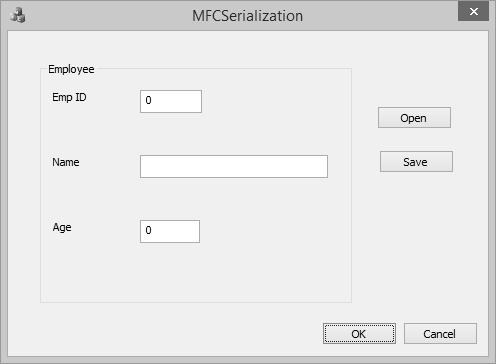

Step 8 − When the above code is compiled and executed, you will see the following output.

Serialization Result

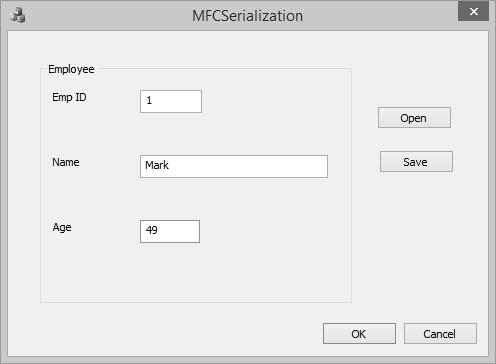

Step 9 − Enter the info in all the fields and click Save and close this program.

Serialization Insert Info

Step 10 − It will save the data. Run the application again and click open. It will load the Employee information.

Serialization Save Info
