JOGL - Pre Defined Shapes


Advertisements

In the Previous chapters we have learned how draw a shapes such as line, triangle, rhombus using JOGL. We draw lines by passing a predefined field, Gl_lines to glBegin() method.

Other than GL_LINES, the glBegin() method accepts eight more parameters. You can use them to draw different shapes. These are used the same way as GL_LINES.

The following table shows the glBegin() method parameters along with their description −

Sr.No Parameters and Description
1

GL_LINES

Creates each pair of vertices as an independent line segment.

2

GL_LINE_STRIP

Draws a connected group of line segments from the first vertex to the last.

3

GL_LINE_LOOP

Draws a connected group of line segments from the first vertex to the last, again back to the first.

4

GL_TRIANGLES

Treats each triplet of vertices as an independent triangle.

5

GL_TRIANGLE_STRIP

Draws a connected group of triangles. One triangle is defined for each vertex presented after the first two vertices.

6

GL_TRIANGLE_FAN

Draws a connected group of triangles. One triangle is defined for each vertex presented after the first two vertices.

7

GL_QUADS

Treats each group of four vertices as an independent quadrilateral.

8

GL_QUAD_STRIP

Draws a connected group of quadrilaterals. One quadrilateral is defined for each pair of vertices presented after the first pair.

9

GL_POLYGON

Draws a single, convex polygon. Vertices 1,…,n define this polygon.

Let us see some examples using glBegin() parameters.

Program to draw a Line Strip

import javax.media.opengl.GL2;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCapabilities;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.GLProfile;
import javax.media.opengl.awt.GLCanvas;

import javax.swing.JFrame;

public class LineStrip implements GLEventListener {

   @Override
   public void display(GLAutoDrawable drawable) {

      final GL2 gl = drawable.getGL().getGL2();

      gl.glBegin (GL2.GL_LINE_STRIP);
      gl.glVertex3f(-0.50f,-0.75f, 0);
      gl.glVertex3f(0.7f,0.5f, 0);
      gl.glVertex3f(0.70f,-0.70f, 0);
      gl.glVertex3f(0f,0.5f, 0);
      gl.glEnd();
   }

   @Override
   public void dispose(GLAutoDrawable arg0) {
      //method body
   }

   @Override
   public void init(GLAutoDrawable arg0) {
      // method body
   }

   @Override
   public void reshape(GLAutoDrawable arg0, int arg1, int arg2, int arg3, int arg4) {
      // method body
   }

   public static void main(String[] args) {

      //getting the capabilities object of GL2 profile
      final GLProfile profile = GLProfile.get(GLProfile.GL2);
      GLCapabilities capabilities = new GLCapabilities(profile);

      // The canvas
      final GLCanvas glcanvas = new GLCanvas(capabilities);
      LineStrip r = new LineStrip();
      glcanvas.addGLEventListener(r);
      glcanvas.setSize(400, 400);

      //creating frame
      final JFrame frame = new JFrame ("LineStrip");

      //adding canvas to frame
      frame.getContentPane().add(glcanvas);

      frame.setSize(frame.getContentPane().getPreferredSize());
      frame.setVisible(true);

   }//end of main

}//end of classimport javax.media.opengl.GL2;

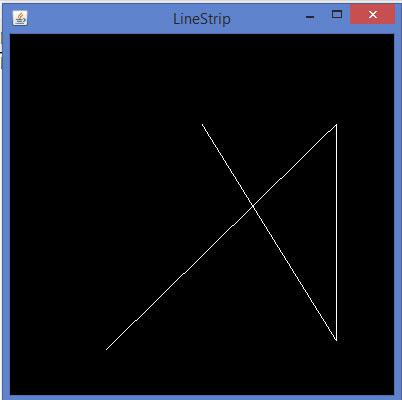

If you compile and execute the above code, the following output is generated −

LineStrip

Code snippet for display() method to draw a Line Loop

public void display(GLAutoDrawable drawable) {

   final GL2 gl = drawable.getGL().getGL2();

   gl.glBegin (GL2.GL_LINE_LOOP);

   gl.glVertex3f( -0.50f, -0.75f, 0);
   gl.glVertex3f(0.7f, .5f, 0);
   gl.glVertex3f(0.70f, -0.70f, 0);
   gl.glVertex3f(0f, 0.5f, 0);

   gl.glEnd();
}

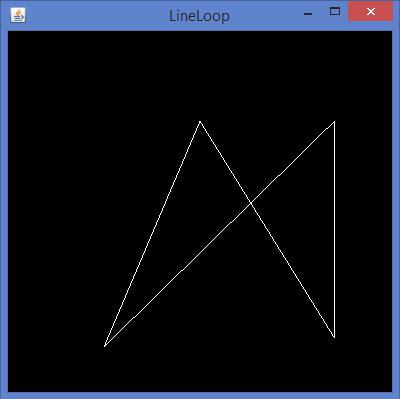

If you replace the display() method of any of the basic template programs with the above code, compile, and execute it, the following output is generated −

Line Loop

Code snippet for display() method to draw a triangle using GL_TRIANGLES

public void display(GLAutoDrawable drawable) {

   final GL2 gl = drawable.getGL().getGL2();

   gl.glBegin(GL2.GL_TRIANGLES);        // Drawing Using Triangles

   gl.glVertex3f(0.5f,0.7f,0.0f);       // Top
   gl.glVertex3f(-0.2f,-0.50f,0.0f);    // Bottom Left
   gl.glVertex3f(0.5f,-0.5f,0.0f);      // Bottom Right

   gl.glEnd();
}

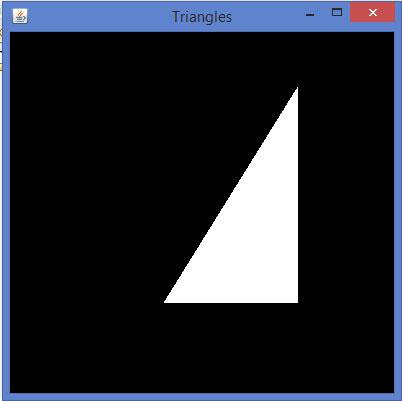

If you replace the display() method of any of the basic template programs with the above code, compile, and execute it, the following output is generated −

Triangles

Code snippet for display() method to draw a Triangle Strip

public void display(GLAutoDrawable drawable) {

   final GL2 gl = drawable.getGL().getGL2();

   gl.glBegin (GL2.GL_TRIANGLE_STRIP);

   gl.glVertex3f(0f,0.5f,0);
   gl.glVertex3f(-0.50f,-0.75f,0);
   gl.glVertex3f(0.28f,0.06f,0);
   gl.glVertex3f(0.7f,0.5f,0);
   gl.glVertex3f(0.7f,-0.7f,0);

   gl.glEnd();
}

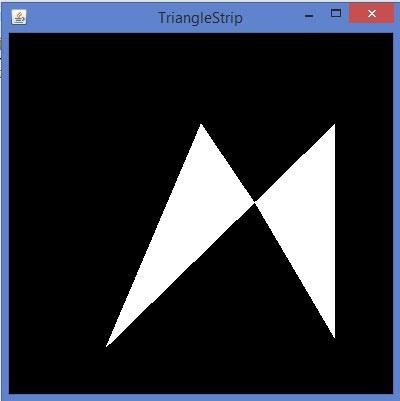

If you replace the display() method of any of the basic template programs with the above code, compile and execute it, the following output is generated −

Triangle Strip

Code snippet for display() method to draw a quadrilateral

public void display(GLAutoDrawable drawable) {

   final GL2 gl = drawable.getGL().getGL2();

   gl.glBegin(GL2.GL_QUADS);

   gl.glVertex3f( 0.0f,0.75f,0);
   gl.glVertex3f(-0.75f,0f,0);
   gl.glVertex3f(0f,-0.75f,0);
   gl.glVertex3f(0.75f,0f,0);

   gl.glEnd();
}

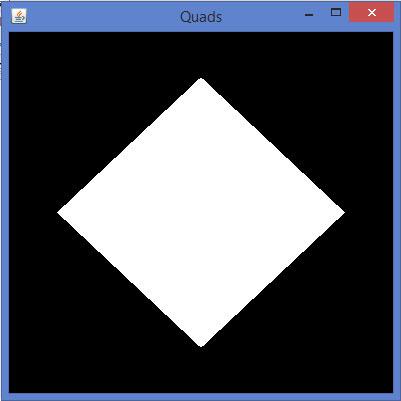

If you replace the display() method of any of the basic template programs with the above code, compile, and execute it, the following output is generated −

Quads

Code snippet for display() method to draw a polygon

public void display(GLAutoDrawable drawable) {

   final GL2 gl = drawable.getGL().getGL2();

   gl.glBegin(GL2.GL_POLYGON);

   gl.glVertex3f(0f,0.5f,0f);
   gl.glVertex3f(-0.5f,0.2f,0f);
   gl.glVertex3f(-0.5f,-0.2f,0f);
   gl.glVertex3f(0f,-0.5f,0f);
   gl.glVertex3f(0f,0.5f,0f);
   gl.glVertex3f(0.5f,0.2f,0f);
   gl.glVertex3f(0.5f,-0.2f,0f);
   gl.glVertex3f(0f,-0.5f,0f);

   gl.glEnd();
}

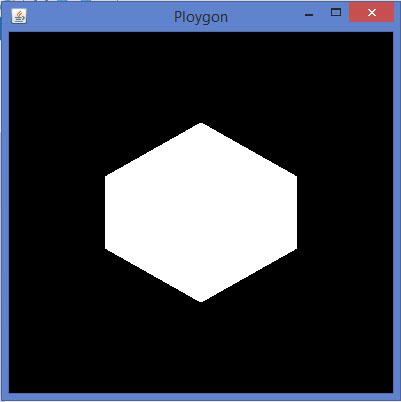

If you replace display() method of any of the basic template programs with the above code, compile, and execute it, the following output is generated −

Polygon
