This chapter teaches you how to apply colours to the objects using JOGL. To apply colour to an object, use the method glColor() of GL2. Below given is the syntax for using glColor method.

Syntax

gl.glColorXY(1f,0f,0f);

where,

  • X denotes the number of colours used, 3 (red, green, blue) or 4(red, green, blue, alpha). To get various colour combinations, the values of these colours are passed as parameters. The sequence of the colour parameters must be maintained in that order.

    Example

    If you pass colour values as (1, 0, 0), then you get red colour. Similarly, (1, 1, 0) gives you yellow colour.

  • Y denotes the data type which accepts parameters such as byte(b), double(d), float(f), int(i), short(s), ubyte(ub), uint(ui), and ushort(us).

gl.glColor3f(1f,0f,0f);   //gives us red
gl.glColor3f(0f,1f,0f);   //gives us green
gl.glColor3f(0f,0f,1f);   //gives us blue

In case of triangle, you can apply different colors for each vertex.

Let us go through the program to apply colors to a triangle −

import javax.media.opengl.GL2;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCapabilities;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.GLProfile;
import javax.media.opengl.awt.GLCanvas;

import javax.swing.JFrame;

public class TriangleColor implements GLEventListener {

   @Override
   public void display( GLAutoDrawable drawable ) {

      final GL2 gl = drawable.getGL().getGL2();
      gl.glBegin( GL2.GL_TRIANGLES );

      // Drawing Using Triangles

      gl.glColor3f( 1.0f, 0.0f, 0.0f );   // Red
      gl.glVertex3f( 0.5f,0.7f,0.0f );    // Top

      gl.glColor3f( 0.0f,1.0f,0.0f );     // green
      gl.glVertex3f( -0.2f,-0.50f,0.0f ); // Bottom Left

      gl.glColor3f( 0.0f,0.0f,1.0f );     // blue
      gl.glVertex3f( 0.5f,-0.5f,0.0f );   // Bottom Right

      gl.glEnd();
   }

   @Override
   public void dispose( GLAutoDrawable arg0 ) {
      //method body
   }

   @Override
   public void init( GLAutoDrawable arg0 ) {
      // method body
   }

   @Override
   public void reshape( GLAutoDrawable arg0, int arg1, int arg2, int arg3, int arg4 ) {
      // method body
   }

   public static void main( String[] args ) {

      //getting the capabilities object of GL2 profile
      final GLProfile profile = GLProfile.get( GLProfile.GL2 );
      GLCapabilities capabilities = new GLCapabilities(profile);

      // The canvas
      final GLCanvas glcanvas = new GLCanvas( capabilities );
      TriangleColor triangle = new TriangleColor();
      glcanvas.addGLEventListener( triangle );
      glcanvas.setSize( 400, 400 );

      //creating frame
      final JFrame frame = new JFrame (" Colored Triangle");

      //adding canvas to it
      frame.getContentPane().add( glcanvas );
      frame.setSize( frame.getContentPane().getPreferredSize());
      frame.setVisible( true );

   } //end of main

} //end of class

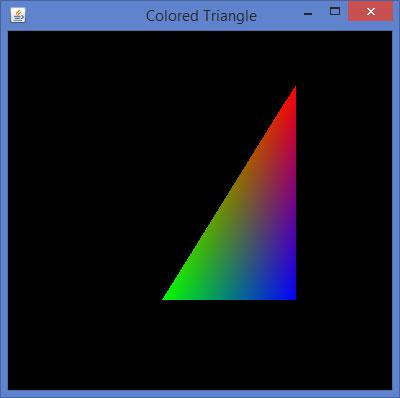

When you compile and execute the above program, you get the following colored triangle −

Triangle Color

Applying Color to a Polygon

Let us go through the program to apply colors to a polygon −

import javax.media.opengl.GL2;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCapabilities;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.GLProfile;
import javax.media.opengl.awt.GLCanvas;

import javax.swing.JFrame;

public class PolygonColor implements GLEventListener {

   @Override
   public void display( GLAutoDrawable drawable ) {

      final GL2 gl = drawable.getGL().getGL2();
      gl.glColor3f( 1f,0f,0f ); //applying red

      gl.glBegin( GL2.GL_POLYGON );

      gl.glVertex3f( 0f,0.5f,0f  );
      gl.glVertex3f( -0.5f,0.2f,0f );
      gl.glVertex3f( -0.5f,-0.2f,0f );
      gl.glVertex3f( 0f,-0.5f,0f );
      gl.glVertex3f( 0f,0.5f,0f );
      gl.glVertex3f( 0.5f,0.2f,0f );
      gl.glVertex3f( 0.5f,-0.2f,0f );
      gl.glVertex3f( 0f,-0.5f,0f );

      gl.glEnd();
   }

   @Override
   public void dispose( GLAutoDrawable arg0 ) {
      //method body
   }

   @Override
   public void init( GLAutoDrawable arg0 ) {
      // method body
   }

   @Override
   public void reshape( GLAutoDrawable arg0, int arg1, int arg2, int arg3, int arg4 ) {
      // method body
   }

   public static void main( String[] args ) {

      //getting the capabilities object of GL2 profile
      final GLProfile profile = GLProfile.get( GLProfile.GL2 );
      GLCapabilities capabilities = new GLCapabilities(profile);

      // The canvas
      final GLCanvas glcanvas = new GLCanvas( capabilities );
      PolygonColor polygon = new PolygonColor();
      glcanvas.addGLEventListener( polygon );
      glcanvas.setSize( 400, 400 );

      //creating frame
      final JFrame frame = new JFrame ( "Colored Polygon" );

      //adding canvas to frame
      frame.getContentPane().add( glcanvas );
      frame.setSize(frame.getContentPane().getPreferredSize() );
      frame.setVisible( true );

   } //end of main

 } //end of class

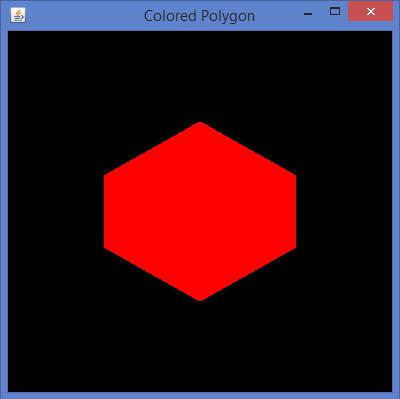

When you compile and execute the above program, you get the following coloured Polygon −

Polygon Color
