JBoss Fuse - Quick Guide
JBoss Fuse - Introduction To ESB
In this chapter, we will start with the essentials of Enterprise Service Bus. Given below is a detailed explanation about ESB along with its advantages, disadvantages and a couple of diagrams for easier understanding.
What is ESB?
ESB stands for Enterprise Service Bus. ESB in its simplest form is a middleware which acts as an information highway aiding multiple applications to communicate.
In the enterprise world, we develop solutions for many things. These solutions may use different technologies and different data formats. It becomes cumbersome to use these solutions together due to compatibility variance of communication or data format in these technologies. Therefore we need a technology that will allow loosely coupled integration between these different solutions.
ESB aims to simplify this problem of integration by becoming a ‘HUB’ that sits in the middle of all your applications and facilitates message routing between them. ESB serves as a mediator, acting as information highway, taking care of data transformation routing, leaving the Coder or the Developer to focus on his own application logic.
Understanding ESB becomes very simple when we understand the problem for which it was especially designed and the solution becomes easy. One should have a clear understanding of how to enable many disparate systems, written in different languages and running on different machines using different data formats to share information and form an integrated business platform.
The Integration Problem
In the enterprise platform, it is common for multiple applications to collaborate and provide business functionality as a whole, but integration of these applications is the most recurring problem. It becomes even difficult with time as applications grow.
Each application may input and output data in their own format. This approach works well if the number of applications is less, but as the number of applications grows, the integration wheels also need to be churned with a better approach. For instance, if a particular application for a business needs to be changed, its output or input data format for all the applications having dependency on that Master application are affected.
Such an approach serves as the biggest hurdle for the Integration which expects a tightly coupled architecture. This is where ESB comes into the picture. Each application need not communicate directly with other application; instead, all the applications communicate with the ESB and the ESB handles the routing of information and internal data format conversion.
Why ESB?
Following are a few points which explain why Enterprise Service Bus is essential.
ESB aims to simplify the problem of integration with variant compatible applications.
It acts as a Middleware, which serves as a mediator of all your applications and facilitates message routing between them.
Instead of every application interfacing with every other application directly, each application now just has one interface to the ESB.
The ESB is responsible for translating messages to/from a common format and routing them to their destinations.
The major saving in this approach comes as a boon if you have to replace any of your existing applications. Instead of writing a whole bunch of new interfaces, you now only have one interface to be concerned about (between your application and the ESB).
SOA & ESB?
SOA and ESB are commonly used interchangeably, but they are completely different.
SOA is a design pattern which allows application to expose its functionalities as a service over network via communication protocols, whereas ESB is a model which facilitates communication between disparate systems, but ESB can be used as a backbone while implementing SOA.
What Is Fuse?
JBoss Fuse is an Open source ESB solution by Redhat. It is an enterprise solution based on community project, Apache Servicemix.
Integration to Fuse
JBoss Fuse is a lightweight and flexible integration platform which allows rapid integration of enterprise applications.
Fuse was initially developed by Progressive software Inc. which was acquired by Redhat in 2012. JBoss Fuse 6.1.0.redhat-379 GA is a stable version of Fuse which can be downloaded from their official website.

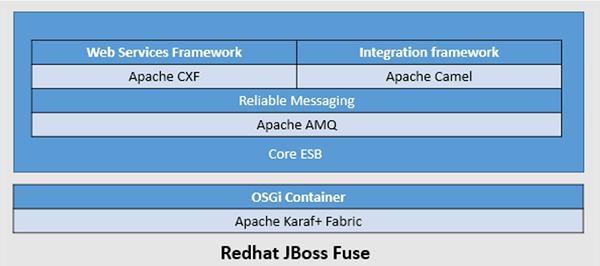

Architecture
Fuse combines various technologies together as a single product.
Components
Apache CXF
Apache CXF is an open source web services development framework which also supports development of SOAP & Rest web services.
Apache Camel
Apache Camel is a EIP based integration framework. EIP or Enterprise Integration patterns are identified solutions to the recurring problems in Enterprise Integration. Complete integration solution can be achieved meteorically with combinations of these pre-defined out of the box patterns.
It allows to write routing logic in several Domain Specific Languages like Java, Spring DSL, and Scala etc.
Apache AMQ
Apache AMQ is a JMS which provides reliable messaging system as per JMS standards. It not only support JMS specification but also provides some exciting and useful features which are not included in JMS specifications.
Apache Karaf
Apache Karaf is lightweight OSGi container which acts as runtime for the artifacts. Apache Karaf is more dynamic in nature as compared to JVM. It allows to install or uninstall modules at runtime. All the artifacts in Fuse are deployed in Karaf.

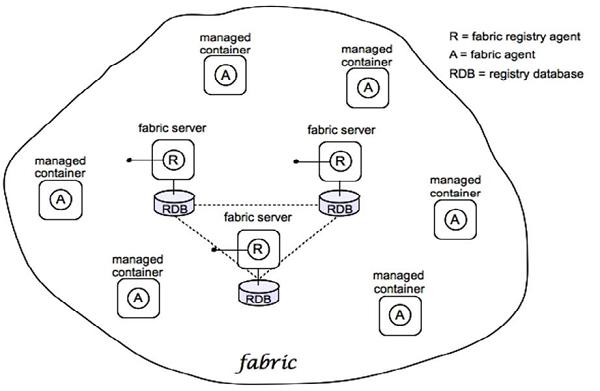

Fabric
Fabric provides easy way to manage deployments of artifacts in a large and distributed environment. It provides centralized management for all multiple fuse instances.
Installing Fuse
Installing Fuse is quite simple. Like other JBoss products, Fuse comes as a zip file that can be extracted and after some minor configuration changes it can directly be started.
Installing Fuse is a four step process −
Download
Download Fuse 6.1.0 GA from the following link. http://www.jboss.org/
Unzip
Like all the other JBoss products, Fuse is also a platform independent zip.
Unzip the downloaded file into the destination directory you want to be the Fuse installation directory. Choose this directory wisely as this should remain same over the lifetime of Fuse instance.
Note − Even though Fuse unzips and starts like other JBoss products, it is not recommended to move Fuse installation from one location to another location after installation is complete.
Configure
After you unzip Fuse, you will find the following directories inside the extracted Directory −
- bin
- etc
- deploy
- lib
- licenses
- extras
- quickstarts
Out of which we are going to use only two directories bin & etc.
Virtually after extracting Fuse, we should be able to start fuse directly, but this will start Fuse with all the default configurations which is not advisable for production environment. It is strongly recommended to do the following changes before starting Fuse.
Set Environment variables
Set the following Environment variables – JAVA_HOME
The variable should point to the java installation directory – M2_HOME
The variable should point to Maven installation directory – PATH
Set the path variable to include Java & Maven executables.
Windows
On windows, settings can be done by following the below given instructions −
Start → My Computer → Right Click → Properties → Advanced System settings → Environment variables.
UNIX & Clones
For each user there is a bash profile in the *nix operating systems. We can add or edit the existing system variable by changing this file.
$ vi ~/.bash_proflle
Note − Any changes in this file are permanent. It is highly recommended to take a backup of the existing file before changing the original.
Basic Configuration
We will discuss about the basic configuration of JBoss Fuse and for that we have to start with the following command Edit $FUSE_INSTALLATION_DIR/etc/
In user.properties
#admin=admin,admin
This needs to be changed according to the first admin with username we want, second admin with password, third one might be kept as it is because it indicates a role and don’t forget to remove #
For example – FuseAdmin = FusePAss,admin
Configuring Maven
Maven is a prerequisite for installing Fuse. If you don’t know what maven is please refer to http://www.howcodex.com/maven/
Maven is a built tool used for building Fuse artifacts. Fuse first searches in Maven local repository for artifacts when we issue command to install artifact. So we must let Fuse know where Maven is installed and the path of Maven’s local repository.
Edit $FUSE_INSTALLATION_DIR/etc/org.ops4j.paxurl.mvn.cfg
Update the following two properties −
- org.ops4j.pax.url.mvn.settings = $M2_HOME/conf /settings.xml
- org.ops4j.pax.url.mvn.localRepository = $local_repo
Note − Please change $local_repo with the actual path of your local repository mentioned in Mavens settings.xml.
Run
After doing basic configuration changes, we can now start Fuse. All the binary files to work with Fuse are located in $FUSE_INSTALLATION_DIR.
There are two ways to start Fuse −
Note − This will start fuse in console mode which means Fuse process will also be stopped when user logs out from session or closes Terminal which is not desirable in production or development scenario. This script should be used only for debugging Fuse.
Using ./start
This won’t show any logs on screen not even the progress but this will start Fuse in background and Fuse service won’t be stopped when user exits session or closes terminal.
In the real world Application, this type of behavior is desired. Fuse should be running in the background even if we close the terminal.
If you want to connect to Fuse running in the background, you can use client script which is located in the same folder.

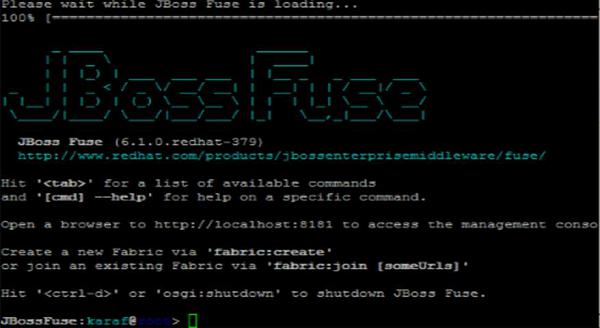

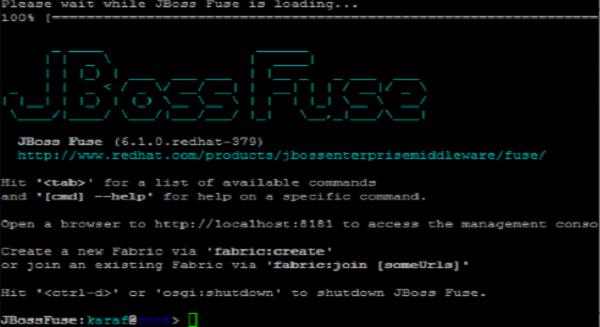

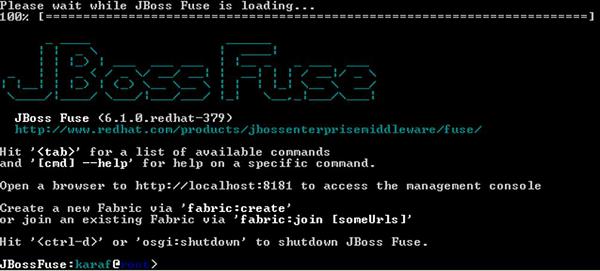

You should get the display as shown in the following screenshot.
Exiting from client script won’t stop Fuse service. It will just close the Fuse console.

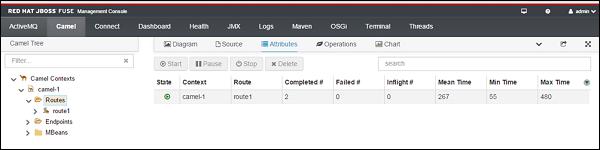

HAWTIO

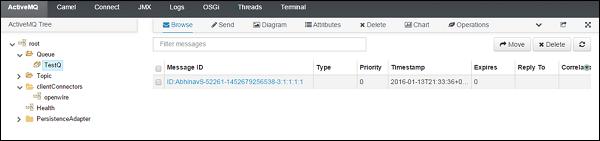

Fuse also provides complete GUI access to it using FMC (Fuse management console). You can find GUI on below URL http://localhost:8181.
Everything we did by executing commands can also be done by accessing this browser-based GUI. It becomes extremely helpful when we have more than one container and we are running in a Fabric environment.
JBoss Fuse - Apache Karaf
In this chapter, we will discuss about Apache Karaf and why it is called as a lightweight OSGi Container along with its benefits and other important features.
The JVM Problem
JVM or Java virtual Machine does not act as an actual virtual machine. A machine which will allow you to stop, start or restart components running inside it on the fly. It may sometimes allow hot deployments at class level but there is no way you could deploy or undeploy a component of your application in your virtual machine without restarting it.
To solve this problem and allow modularity in Java application, Fuse uses an OSGi based runtime known as Apache Karaf.
OSGi
The OSGi technology is a set of specifications that define a dynamic component system for java. These specifications allow a development model where applications are (dynamically) composed of many different (reusable) components.
Benefits of OSGi
Reduced Complexity − Application is built as collaborating components which hide their implementation details from each other resulting in reduced complexity.
Reusability − Many components can leverage same component deployed in a container.
Deployment − OSGi provides support for start, stop and update of components on the fly with its lifecycle management APIs without container restart.
Bundles Vs Features
Following is the comparison between Bundles and Features.
Bundles
Bundles are equivalent to OSGi what jars are to JVM. Bundles are artifacts which are deployable in an OSGi container. The bundles are components which work together or independently to form an application.
These bundles can be installed, uninstalled, updated, started or stopped at runtime without restarting the container.
Features
Features are a way of deploying multiple bundles together. Sometimes it makes more sense to deploy bundles in group. Features allow us to deploy a group of bundles with just one command.
Why another Container?
Apache Karaf is an OSGi based runtime, it is where our Application bundles run. Fuse uses Apache Karaf as its runtime in which bundles run and collaborate to provide business functionality.
Karaf is built on Felix and equinox which are OSGi Frameworks.

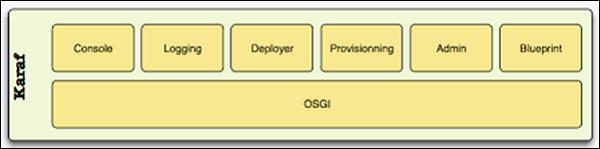

Karaf Architecture
Apache Karaf adds the following additional functionalities to basic OSGi runtime.
Hot Deployment
Karaf supports hot deployment. It contains a hot deploy directory. Anything that is placed in this directory is automatically deployed and installed in Karaf as a bundle.
Logging
Karaf provides centralized logging by generating logs for all bundles in $Fuse_home/data/log. We can edit logger configuration in org.ops4j.pax.logging.cfg in $Fuse_home/etc directory.
Admin console
Karaf provides a sophisticated and lucid Admin console to interact with running instance of fuse. It also provides a pre-installed set of commands which can be used to manage and monitor components (Bundle) at runtime. This console is extensible so it allows us to add new commands to the console by adding new bundles to console.
SSH Access
Karaf allows remote access to this Admin console with SSH. Anyone with valid credentials can connect to karaf admin console over SSH terminal.
JBoss Fuse - Apache Camel
In this chapter, we will discuss what Apache Camel is and how it effectively routes data between endpoints, along with a few examples.
What is Apache Camel?
Apache Camel is an open source integration framework which was started in early 2007.
It is an EIP (Enterprise Integration Pattern) based approach which provides several out of the box patterns implementations that can be used to solve enterprise integration problems. EIP are nothing but proven solutions to the well documented and recurring problems in enterprise integration.
Camel is also known as routing and mediation engine as it effectively routes data between endpoints, while taking heavy load like transformation of data formats, endpoint connectivity and many more.
Basic Example
The prerequisites to use Apache Camel are −
- Java
- Maven
- Redhat JBoss Fuse 6.1-GA-379
Create basic skeleton of Application
mvn:archetype generate
–DgroupId = com.tutorialpoint.app
–DartifactId = camel-first-app
–DarchetypeGroupId = org.apache.camel.archetypes
–DarchetypeArtifactId = camel-archetype-spring
–DinteractiveMode = false -X
This should generate the following directory structure.
This is a basic skeleton of our Camel application being generated.
Edit camel-context.xml
Edit camel-first-app → src → main → resources → META-INF\spring\camel-context.xml to match as below
<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation = "http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://camel.apache.org/schema/spring
http://camel.apache.org/schema/spring/camel-spring.xsd">
<camelContext xmlns = "http://camel.apache.org/schema/spring">
<!-- here is a sample which processes the input file
(leaving them in place - see the 'noop' flag)
then performs content based routing on the message using XPath -->
<route>
<from uri = "file:///d:/src/data?noop=false"/>
<choice>
<when>
<xpath>/person/city = 'London'</xpath>
<log message = "UK message"/>
<to uri = "file:///d:/target/messages/uk"/>
</when>
<otherwise>
<log message = "Other message"/>
<to uri = "file:///d:/target/messages/others"/>
</otherwise>
</choice>
</route>
</camelContext>
</beans>
Edit pom.xml
Add the following code inside <plugins></plugins>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<version>2.3.4</version>
<extensions>true</extensions>
<configuration>
<instructions>
<Bundle-SymbolicName>
${project.artifactId}
</Bundle-SymbolicName>
<Import-Package>*</Import-Package>
</instructions>
</configuration>
</plugin>
Change packaging type from jar → bundle.
<packaging>bundle</packaging>
Build the project using the following command −
mvn clean install
Install Project into Fuse
Start Fuse using Fuse.bat/start.bat. If you start Fuse using start.bat, use client.bat to connect to Fuse. You should get the UI as shown in the following screenshot.
This is the CLI for accessing Karaf and Fuse commands.
install –s mvn:com.tutorialpoint.app/camel-firt-app/1.0-SNAPSHOT
Test if your Project is Running
Now your application should be installed in Fuse. Copy data directory inside camel-first-app and place it in D:/src/ and it should copy message having city = London into D:/target/merssages/uk.
Place the input file in D:/src/data
Input
Message1.xml
<?xml version = "1.0" encoding = "UTF-8"?>
<person user = "james">
<firstName>James</firstName>
<lastName>Strachan</lastName>
<city>London</city>
</person>
Message2.xml
<?xml version = "1.0" encoding = "UTF-8"?>
<person user = "hiram">
<firstName>Hiram</firstName>
<lastName>Chirino</lastName>
<city>Tampa</city>
</person>
Output
In D:/target/messages/uk
<?xml version = "1.0" encoding = "UTF-8"?>
<person user = "james">
<firstName>James</firstName>
<lastName>Strachan</lastName>
<city>London</city>
</person>
In D:/target/messages/others
<?xml version = "1.0" encoding = "UTF-8"?>
<person user = "hiram">
<firstName>Hiram</firstName>
<lastName>Chirino</lastName>
<city>Tampa</city>
</person>
JBoss Fuse - Camel Concepts

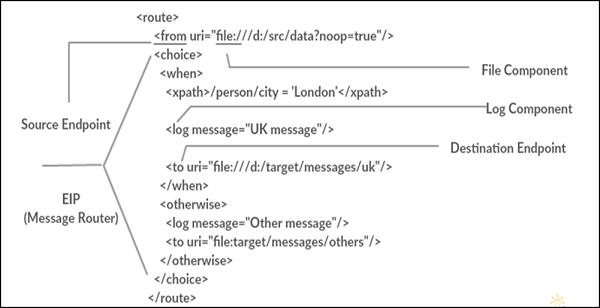

In this chapter, we will understand the different Camel Concepts. Let us start by taking a basic example to understand core concepts to begin with.
CamelContext
Every camel application will have at least one CamelContext. This is the place where we add camel routes. It is similar to ApplicationContext of Spring.
Camel context can be thought as a container which keeps all things together. One camel context can have multiple routes inside it.
Routes
CamelContext may contain one or more routes. Routes are the integration logic which defines how data will flow in camel context from one endpoint to another.
Endpoint
Endpoint is end of channel through which system can send or receive messages. This is what we call as destination or source in communication language.
Components
Components are point of extension in Camel. Components can be an interface to technology, data format, transformers, etc. They may also act as a factory for endpoints.
EIP
EIP stands for Enterprise Integration Pattern. These are identified and well-known solutions to a recurring problem. Camel supports most of the Enterprise Integration Patterns.

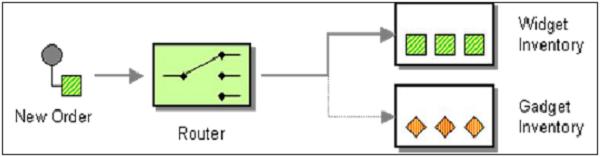

Content Based Router
CBR patterns allow us to route data as per the content of the input file.
This pattern is used when we have to route values depending on the contents of the body of input.
The following example will read data from D:/data/input directory. After reading, it will check for value tag inside the data tag. If the value tag contains value1, it will be sent to D:/value1, If it contains value2, it will be sent to D:/value2 and if none of these both, then it will be sent to others.
<CamelContext xmlns = "http://camel.apache.org/schema/spring">
<route>
<from uri = "file:///D:/data/input"/>
<choice>
<when>
<xpath>/data/value = 'value1'</xpath>
<to uri = "file:///D:/value1"/>
</when>
<when>
<xpath>/data/value = 'value2'</xpath>
<to uri = "file:///D:/value2"/>
</when>
<otherwise>
<to uri = "file:///D:/others "/>
</otherwise>
</choice>
</route>
</camelContext>
Input
D:/data/input/message1.xml
<data>
<value>value1</value>
</data>
D:/data/input/message2.xml
<data>
<value>value2</value>
</data>
Output
D:/value1/
<data>
<value>value1</value>
</data>
D:/value2/
<data>
<value>value2</value>
</data>

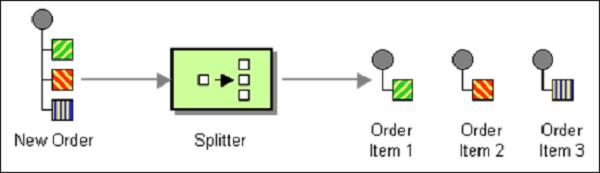

Splitter
A splitter pattern is used to split input data into smaller chunks.
This pattern is used most of the times with huge data input which requires to be split in chunks, so it becomes process-able. It breaks down input into smaller fragments based on input token string.
<CamelContext xmlns = "http://camel.apache.org/schema/spring">
<route>
<from uri = "file:///D:/inbox"/>
<split streaming = "true">
<tokenize token = "order" xml = "true"/>
<to uri = "activemq:queue:order"/>
</split>
</route>
</CamelContext>
Input
D:/inbox/message.xml
<order>
<data>
<value>value1</value>
</data>
</order>
<order>
<data>
<value>value2</value>
</data>
</order>
<order>
<data>
<value>value3</value>
</data>
</order>
Output
If you check AMQ you will find 3 messages posted.
<order>
<data>
<value>value4</value>
</data>
</order>
Recipient List

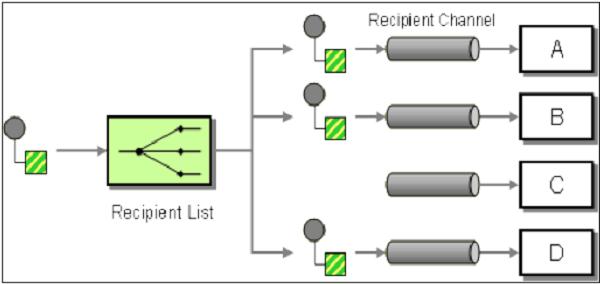

A recipient list pattern is used when a list of recipient needs to be retrieved from the message body itself.
In the following example, a message will be sent to all the recipients who are listed in the customer tag as comma separated list of strings.
<CamelContext xmlns = "http://camel.apache.org/schema/spring">
<route>
<from uri = "jms:xmlOrders" />
<recipientList>
<xpath>/order/customer</xpath>
</recipientList>
</route>
</camelContext>
Other EIPs
Camel provides support to almost all the EIPs identified. Some of commonly used EIP are as mentioned below.
Log − To log complete message or part of it
Message Filter − Filtering contents of messages
Re-Sequencer − To get all tokens in sequence
Wiretap − To inspect travelling messages
The complete list of EIP and their usage can be found at Camel’s official documentation http://camel.apache.org/eip.html
Exception Handling in Camel
Using Error Handler − This is the easiest way to handle exceptions in camel.
To use this, we have to configure Error handler class bean and provide it as reference to CamelContext errorHandlerRef attribute.
<bean id = "loggingErrorHandler" class = "org.apache.camel.builder.LoggingErrorHandler">
<property name = "logName" value = "mylogger.name"/>
<property name = "level" value = "DEBUG"/>
</bean>
<camelContext errorHandlerRef = ” loggingErrorHandler” >
…
</camelContext>
Using Try Catch Finally
Camel also supports Java style Try Catch Finally block for error handling.
Just like Java, it has the following three blocks −
doTry block contains code that may generate exception.
doCatch block contains code that needs to be executed in case of exception.
doFinally block has code that must be executed irrespective of exception. It will always be executed no matter if exception was raised or not.
Note − Mock is testing component and not recommended for other purposes. It is the component in camel used for testing just like jMOck component in Test driven development.
<route>
<from uri = "direct:start"/>
<doTry>
<process ref = "someProcesorThatmayFail"/>
<to uri = "mock:result"/>
<doCatch>
<exception>java.io.IOException</exception>
<exception>java.lang.IllegalStateException</exception>
<to uri = "mock:catch"/>
</doCatch>
<doFinally>
<to uri = "mock:finally"/>
</doFinally>
</doTry>
</route>
In the above example, we can give a list of exceptions that need to be handled by the catch block.
Deploying Bundle in Fuse
Start Fuse using Fuse.bat/start.bat.
If you start Fuse using start.bat, use client.bat to connect to Fuse. You should get the UI as shown in the following screenshot.
This is the CLI for accessing Karaf and Fuse commands.

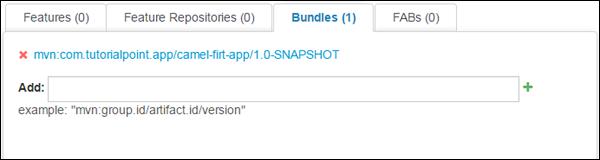

install –s mvn:group.id /artifact.id/version
e.g. install –s mvn:com.tutorialpoint.app/camel-firt-app/1.0-SNAPSHOT
JBoss Fuse - Apache CXF
In this chapter, let us discuss about what Apache CXF is and how it can be helpful in developing SOAP and Rest Web Services.
What is Apache CXF?
Apache CXF is a web service development framework that can be utilized to develop SOAP and Rest web services. CXF is fully compliant with JAX-RS and JAX-Ws standard.
It is most widely used web service development framework now. CXF has learned and improved over Axis2 which is now gradually being replaced by CXF.
CXF vs Axis2
|
CXF |
Axis2 |
| Improvements |
CXF is most used framework as of now.
It has lot improvements over Axis2 |
Axis2 is gradually being replaced by CXf.
It requires more code as compared to CXF
|
| Code required |
CXF requires less code as compared to Axis2 |
Axis2 requires more code comparatively |
| Standard Compliance |
CSF is fully compliant with JAX-RS and JAX-WS |
Axis2 is not fully compliant with JAX-RS and JAX-WS |
| Compatible with Spring |
Yes |
No |
| Separation of front-ends |
Clean separation of front-end from JAX-WS code |
No clean separation is provided |
SOAP
SOAP stands for Simple Object Access Protocol. It is a protocol for exchanging structured information over web services between two systems. It mostly relies on XML for structuring data and uses HTTP or SMTP for message negotiation and transmission.
There are two approaches to develop SOAP web services −
Code first − In this approach, WSDL is generated from code.
Contract first − In contract first, code is generated from WSDL.
SOAP Development Using CXF
Configure Maven
Add the following profile to your settings.xml of Maven.
<profiles>
<profile>
<id>Jboss-Fuse</id>
<activation>
<activeByDefault>true</activeByDefault>
</activation>
<repositories>
<repository>
<id>fusesource</id>
<url>http://repo.fusesource.com/nexus/content/groups/public/</url>
<snapshots>
<enabled>false</enabled>
</snapshots>
<releases>
<enabled>true</enabled>
</releases>
</repository>
</repositories>
</profile>
</profiles>
Create Skeleton
mvn archetype:generate
-DarchetypeGroupId = org.apache.servicemix.tooling
-DarchetypeArtifactId = servicemix-cxf-code-first-osgi-bundle
-DarchetypeVersion=2012.01.0.redhat-60024
-DgroupId = org.fusesource.example
-DartifactId = cxf-basic
-Dversion = 1.0-SNAPSHOT
Build Web Service Project.
mvn clean install
Install web-service into Fuse using the following command.
JBossFuse:karaf@root>install -s mvn:org.fusesource.example/cxf-basic/1.0-SNAPSH
Check if bundle has registered SOQP web-service
Open URL http://localhost:8181/cxf
The web-service should be listed as follows.
Testing Web-Service
mvn -Pclient
INFO − Creating Service {http://ws.totorials.com/} PersonService from class com.to
torials.ws.Person
Invoking getPerson...
getPerson._getPerson_personId = Guillaume
getPerson._getPerson_ssn = 000-000-0000
getPerson._getPerson_name = Guillaume
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 30.668 s
[INFO] Finished at: 2016-02-15T21:01:20+05:30
[INFO] Final Memory: 10M/37M
[INFO] ------------------------------------------------------------------------
JBoss Fuse - Rest Web Services
To begin with, REST stands for Representational State Transfer. It is a way of developing web services based on state-less, cacheable, client-server protocol, which is HTTP in most cases.
REST web services use HTTP requests to post, get, delete data from network.
REST Development using CXF
Create a simple Maven quick-start project
mvn archetype:generate
-DgroupId = com.tuts.abhinav
-DartifactId = rest-service
-DarchetypeArtifactId = maven-archetype-quickstart
-DinteractiveMode = false
Add dependencies
<dependency>
<groupId>org.apache.servicemix.specs</groupId>
<artifactId>org.apache.servicemix.specs.jsr311-api-1.1.1</artifactId>
<version>1.9.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.servicemix</groupId>
<artifactId>servicemix-http</artifactId>
<version>2013.01</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.16</version>
</dependency>
Add Build Instruction
<build>
<defaultGoal>install</defaultGoal>
<plugins>
<plugin>
<groupId>org.apache.felix</groupId>
<artifalctId>maven-bundle-plugin</artifactId>
<version>2.3.4</version>
<extensions>true</extensions>
<configuration>
<instructions>
<Bundle-SymbolicName>rest-example-database-post-method
</Bundle-SymbolicName>
<Import-Package>* </Import-Package>
</instructions>
</configuration>
</plugin>
</plugins>
</build>
Add Fuse Plugin Repositories
<pluginRepositories>
<pluginRepository>
<id>fusesource.m2</id>
<name>FuseSource Community Release Repository</name>
<url>http://repo.fusesource.com/nexus/content/repositories/releases</url>
<snapshots>
<enabled>false</enabled>
</snapshots>
<releases>
<enabled>true</enabled>
</releases>
</pluginRepository>
<pluginRepositories>
Add Repositories
<repositories>
<repository>
<id>fusesource.m2</id>
<name>FuseSource Community Release Repository</name>
<url>http://repo.fusesource.com/nexus/content/repositories/releases</url>
<snapshots>
<enabled>false</enabled>
</snapshots>
<releases>
<enabled>true</enabled>
</releases>
</repository>
<repository>
<id>fusesource.ea</id>
<name>FuseSource Community Early Access Release Repository</name>
<url>http://repo.fusesource.com/nexus/content/groups/ea</url>
<snapshots>
<enabled>false</enabled>
</snapshots>
<releases>
<enabled>true</enabled>
</releases>
</repository>
</repositories>
Create Service Class
Create class UserService.java under com/tuts/
package com.tuts;
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;
@Path("/UserService_1")
public class UserService {
@GET
@Path("/get_data")
@Produces(MediaType.APPLICATION_JSON)
public String getUser() {
String reponse = "This is standard response from REST";
return reponse;
}
}
Create Blueprint.xml
Create blueprint.xml under/src/main/resources/OSGI-INF/blueprint blueprint.xml
<?xml version = "1.0" encoding = "UTF-8"?>
<blueprint xmlns = "http://www.osgi.org/xmlns/blueprint/v1.0.0"
xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xmlns:jaxrs = "http://cxf.apache.org/blueprint/jaxrs"
xsi:schemaLocation = "http://www.osgi.org/xmlns/blueprint/v1.0.0
http://www.osgi.org/xmlns/blueprint/v1.0.0/blueprint.xsd
http://cxf.apache.org/blueprint/jaxrs
http://cxf.apache.org/schemas/blueprint/jaxrs.xsd">
<jaxrs:server id = "service" address = "/users">
<jaxrs:serviceBeans>
<ref component-id = "userService" />
</jaxrs:serviceBeans>
</jaxrs:server>
<bean id = "userService" class = "com.tuts.UserService" />
</blueprint>
Install Rest service in Fuse
install -s mvn:com.tuts.abhinav/rest-service/1.0-SNAPSHOT

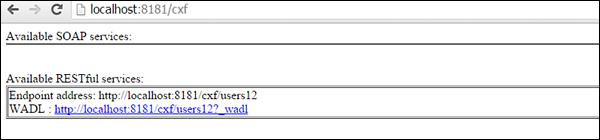

Check if Bundle has a Registered Web-Service
Open URL http://localhost:8181/cxf

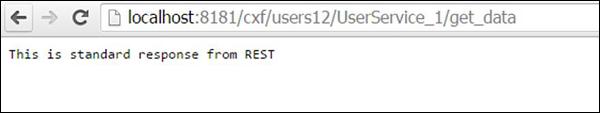

Test Web Service
Open URL http://localhost:8181/cxf/users12/UserService_1/get_data
JBoss Fuse - Apache AMQ
In this chapter, we will get to know about ActiveMQ and how it acts as a broker of messages to allow applications to communicate with each other.
What is AMQ?
ActiveMQ is an open source message broker written in Java. It’s fully compliant with JMS 1.1 standards.
JMS is a specification that allows development of message based system. ActiveMQ acts as a broker of messages which sits in between applications and allows them to communicate in asynchronous and reliable way.
Types of Messaging
There are two types of messaging options explained below for better understanding.

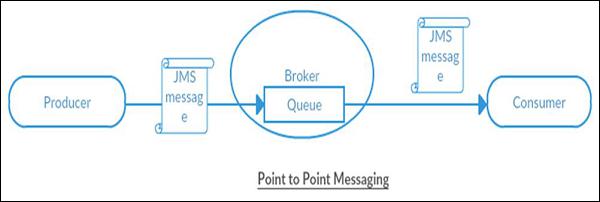

Point to Point
In this type of communication, the broker sends messages to only one consumer, while the other consumers will wait till they get the messages from the broker. No consumer will get the same message.
If there are no consumers, the Broker will hold the messages till it gets a consumer. This type of communication is also called as Queue based communication where the Producer sends messages to a queue and only one consumer gets one message from the queue. If there is more than one consumer, they may get the next message but they won’t get the same message as the other consumer.

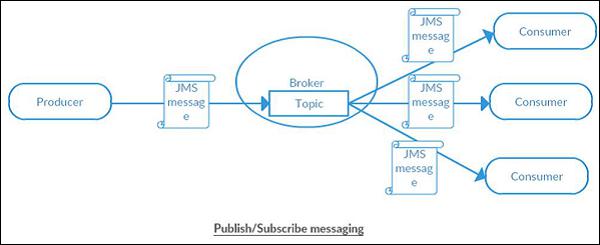

Publish/Subscribe
In this type of communication, the Broker sends same copy of messages to all the active consumers. This type of communication is also known as Topic based communication where broker sends same message to all active consumer who has subscribed for particular Topic. This model supports one-way communication where no verification of transmitted messages is expected.
Creating Queue and Topics
Fuse comes bundled with ActiveMQ. We can access ActiveMQ using FMC console (the browser based interface to work with AMQ).

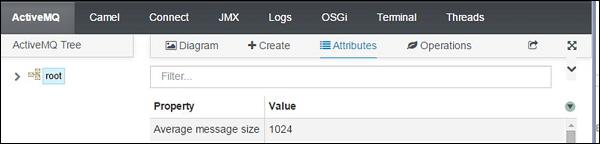

Login to FMC using localhost:8181 and select ActiveMQ tab.

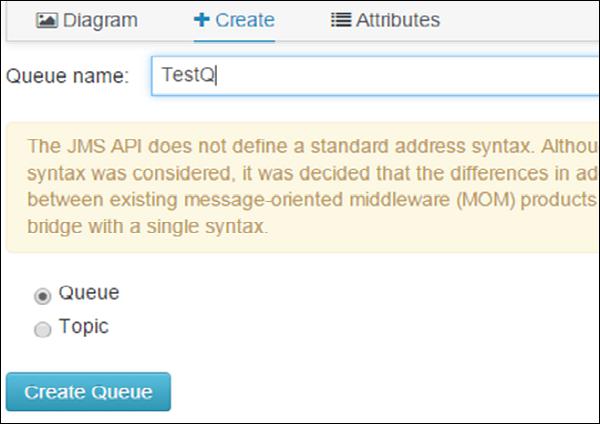

- Click on +Create
- Enter Queue/Topic name
- Select Queue/Topic from radio button
- Click on Create Queue/Create topic

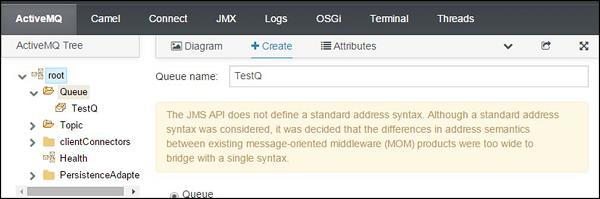

Now you should be able to see the TestQ created under root → Queue →
To check the topic created follow root → Topic.

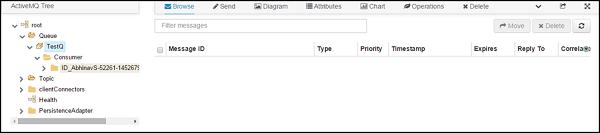

Browsing /Deleting Contents of the Queue

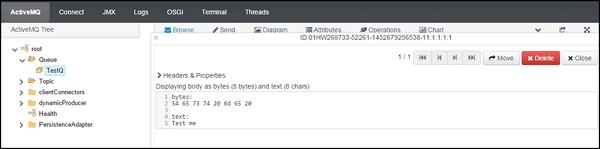

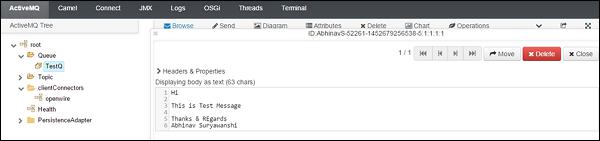

- To check contents of this message, click on that particular message.
JBoss Fuse - AMQ With Camel
In this chapter, we will learn the basics of how ActiveMQ works with Camel.
Configuring to ActiveMQ Component
Before we can use ActiveMQ queue or topic in our code we have to configure ActiveMQComponent. Minimal configuration of ActiveMQComponent can be done as shown in the following program −
<bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
<property name = "brokerURL" value = "tcp://localhost:61616"/>
<property name = "userName" value = "admin"/>
<property name = "password" value = "admin"/>
</bean>
brokerURL − Specifies host and port for AMQ Broker.
username − Specifies username to use for connecting to AMQ Broker.
password − specifies password for connecting to AMQ Broker.
Connecting to Queue
Now that we have configured ActiveMQComponent, we can use it in our CamelContext as endpoint.
We will use AMQ endpoint in the following format −
Activemq:[queue|topic]:[queueName|topicName]
Writing Messages to AMQ
<?xml version = "1.0" encoding="UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation = "http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://camel.apache.org/schema/spring
http://camel.apache.org/schema/spring/camel-spring.xsd">
After deploying this bundle in Fuse container, you should be able to see messages posted to AMQ which were placed as files in D:/src/data.
Input
D:/src/data/input.txt
Test me
Output
Reading from AMQ
<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation = "
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://camel.apache.org/schema/spring
http://camel.apache.org/schema/spring/camel-spring.xsd">
<camelContext xmlns = "http://camel.apache.org/schema/spring">
<!-- here is a sample which processes the input files
(leaving them in place - see the 'noop' flag)
then performs content based routing on the message using XPath -->
<route>
<from uri = "activemq:queue:TestQ"/>
<to uri = "file:///d:/src"/>
</route>
</camelContext>
<bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
<property name = "brokerURL" value = "tcp://localhost:61616"/>
<property name = "userName" value = "admin"/>
<property name = "password" value = "admin"/>
</bean>
</beans>
Input
After deploying this bundle, you should see a file being generated in D:/src and messages are consumed. Also Consumer should be shown for that Queue.
Output
D:/src
Test me
Writing to Topic
<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation = "http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://camel.apache.org/schema/spring
http://camel.apache.org/schema/spring/camel-spring.xsd">
<camelContext xmlns = "http://camel.apache.org/schema/spring">
<!-- here is a sample which processes the input files
(leaving them in place - see the 'noop' flag)
then performs content based routing on the message using XPath -->
<route>
<from uri = "file:///d:/src"/>
<to uri = "activemq:topic:TestTopic” />
</route>
</camelContext>
<bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
<property name = "brokerURL" value = "tcp://localhost:61616"/>
<property name = "userName" value = "admin"/>
<property name = "password" value = "admin"/>
</bean>
</beans>
Reading from Topic
<?xml version = "1.0" encoding = "UTF-8"?>
<!-- Configures the Camel Context-->
<beans xmlns = "http://www.springframework.org/schema/beans"
xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation = "
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://camel.apache.org/schema/spring
http://camel.apache.org/schema/spring/camel-spring.xsd">
<camelContext xmlns = "http://camel.apache.org/schema/spring">
<!-- here is a sample which processes the input files
(leaving them in place - see the 'noop' flag)
then performs content based routing on the message using XPath -->
<route>
<from uri = "activemq:topic:TestTopic"/>
<to uri = "file:///d:/src2"/>
</route>
</camelContext>
<bean id = "activemq" class = "org.apache.activemq.camel.component.ActiveMQComponent">
<property name = "brokerURL" value="tcp://localhost:61616"/>
<property name = "userName" value = "admin"/>
<property name = "password" value = "admin"/>
</bean>
</beans>
Input
D:/src/file1.xml
<order>
<data>
<value>value1</value>
</data>
</order>
<order>
<data>
<value>value2</value>
</data>
</order>
<order>
<data>
<value>value3</value>
</data>
</order>
Output
D:/src/
<order>
<data>
<value>value1</value>
</data>
</order>
<order>
<data>
<value>value2</value>
</data>
</order>
<order>
<data>
<value>value3</value>
</data>
</order>
JBoss Fuse - Fabric
What is Fabric?
Fabric provides management and orchestration capabilities for multiple Fuse instances. Fabric allows us to control all Fuse instances connected to it from a single point. A normal Fuse container can be converted to act as a Fabric. Fabric has fabric registry in it which serves as data store that contains all information regarding containers, it manages.
Why Fabric?
Fabric has the following special abilities which makes it an ideal candidate for use in distributed environments.
- Monitoring the state of all containers in the fabric.
- Starting and stopping remote containers.
- Provisions remote container to run a particular application.
- Upgrading applications and rolling out patches in the live system.
- Starting and provisioning with new containers quickly for example to cope with increased load on the system.
Fabric Setup
Creating Fabric
Normal Fuse container can be converted to Fabric by using the following command
fabric: create --clean --zookeeper-password myZooPass
Connecting other container to Fabric −
fabric:join --zookeeper-password myZooPass <fabric_host>:2181 Cont1
Note − Please replace <fabric_host> with actual host name on which fabric is running.

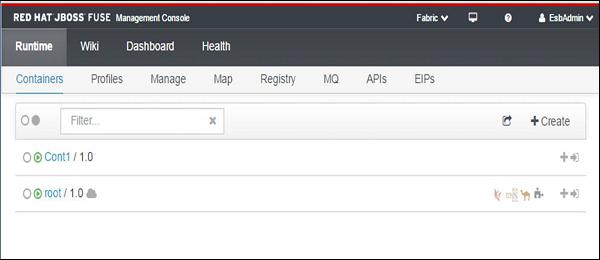

When you login to the Fuse Management Console from your browser using localhost:8181, you should be able to see two containers as shown in the following screenshot. The Fabric container is indicated by a small cloud symbol in front of it.
Profiles
A Profile contains the following information −
- Bundles to be installed
- Features to be installed
- Configurations to be applied
A Profile provides a way in fabric environment to install same set of bundles, features and configuration on multiple servers.
If the same profile is applied to multiple containers and we do changes to that profile from any container similar changes will be deployed automatically to the remaining containers to which it is applied.
Creating Profiles

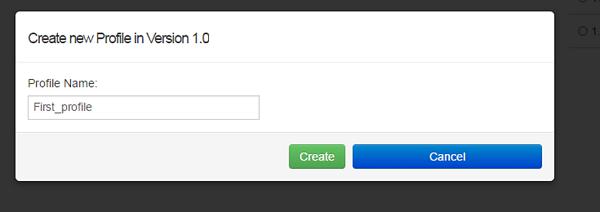

Enter the name you want to give to the profile and click create.
After this, the profile should be created.

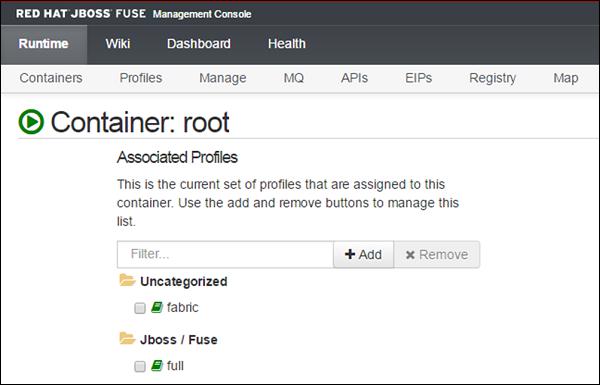

Applying Profile to Container
Runtime → Containers → root (select the container you want)

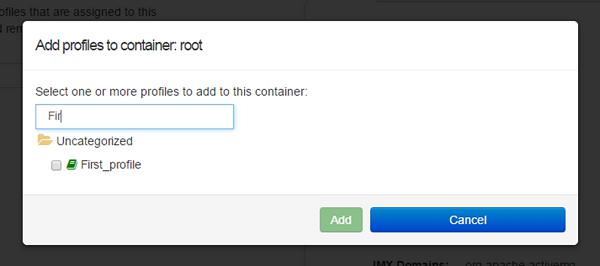

Click Add which will lead to a pop-up box. Search for the profile you want and then again click Add.

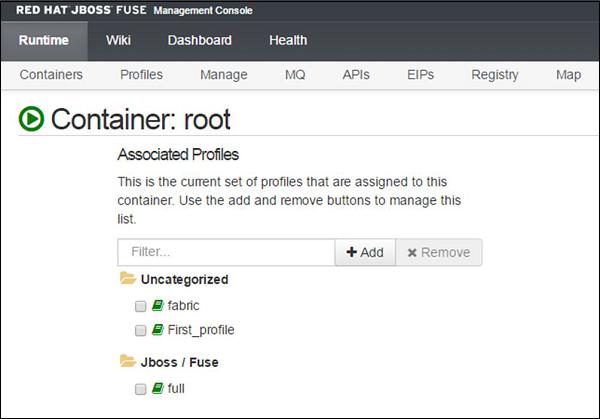

The profile should be shown in the list as shown in the following screenshot.
Deploying a Bundle
To deploy a bundle, use the following path −
Runtime → Containers → root (select the container you want) → First_profile (select profile)

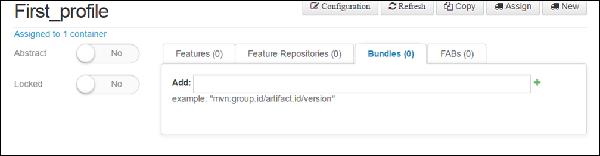

Click the Bundles tab. Set the bundle path in the following format and then click +.
mvn:group.id/artifact.id/version
For example: mvn:com.tutorialpoint.app/camel-firt-app/1.0-SNAPSHOT
A bundle will be added to the profile and will be deployed on all the containers to which the profile is assigned.
Un-deploying a Bundle
To un-deploy a bundle, use the following path −
Runtime → Containers → root (select container you want) → First_profile (select profile)
Click the Bundles tab and search for the bundle that you want to delete and then click on X. The Bundle will be deleted from all the containers to which the profile is applied.
JBoss Fuse - Child Container
A Child Container provides the easiest way to manage the increasing load. When the system is experiencing sudden load in traffic and a single container is not able to cope up with the load, we can easily create a set of child containers and distribute the load among them, rather than creating a complete new container.
Creating a Child Container
Login to FMC using localhost:8181

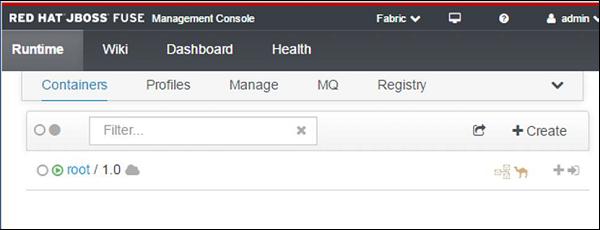

Now, follow the path: Runtime → container → +Create (button on right hand side)

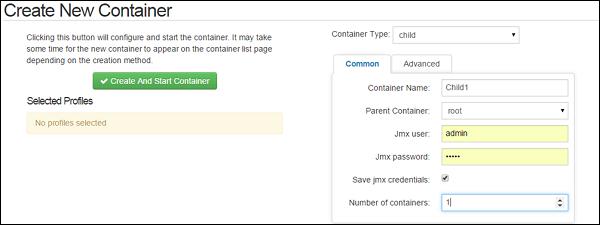

Enter details like child name, parent container Number of instances etc.

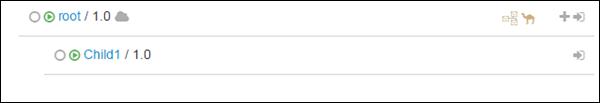

Click Create And Start Container
Managing a Child Container
A Child container acts as a normal container only.
Stopping a Child Container
To stop a child container, follow the path: Runtime → Container → Child1
Click Stop to stop the Child Container.

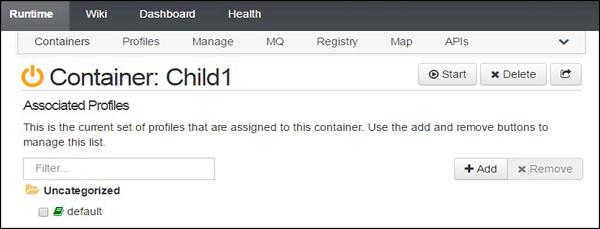

Starting a Child Container
To start a child container, follow the path: Runtime → Container → Child1
Click Start to start the child container.
JBoss Fuse - Issues and Solutions
In this chapter, we will discuss a few known issues that you might encounter while working with Fuse. We will also discuss how you can get over these issues.
Code Changes are not Reflected
Connect to Fuse instance using a client script. Search the bundle for which you are facing an issue, using the following command.
JBossFuse:karaf@root > list|grep <Bundle Description>
For Example:
JBossFuse:karaf@root > list|grep Camel
[ 255] [Active ] [ ] [ ] [ 60] Fabric8 :: Camel Component (1.0.0.redhat-379)
[ 266] [Active ] [ ] [Started] [ 60] A Camel Spring Route (1.0.0.SNAPSHOT)
Note − Bundle ID for the bundle from output of above command and use below command.
JBossFuse:karaf@root > update <bundle id>
JBossFuse:karaf@root > update 266
Bundle not Being Downloaded
It may happen because of the following two reasons −
- Maven repository not specified
- Bundle not present in repository
Maven Repository not Specified
Maven is a built tool used for building Fuse artifacts. Fuse first searches in Maven local repository for artifacts, when we issue command to install artifact. So we must let Fuse know where Maven is installed and path of Mavens local repository.
Edit $FUSE_INSTALLATION_DIR/etc/org.ops4j.paxurl.mvn.cfg
Update the following two properties −
- org.ops4j.pax.url.mvn.settings = $M2_HOME/conf /settings.xml
- org.ops4j.pax.url.mvn.localRepository = $local_repo
Note − Please change $local_repo with actual path of your local repository mentioned in Mavens settings.xml
Bundle not Present in Repository
If Maven settings are in place but still if you face issues while downloading the bundle, make sure bundles JAR is present at the correct location in Maven Repository.
For Example, if the following bundle is throwing errors while downloading −
mvn:com.tutorialpoint.app/camel-first-app/1.0-SNAPSHOT
We have to check in $M2_REPO/com/tutorialpoint/app/camel-first-app/1.0-SNAPSHOT if actual JAR is present.
Note − $M2_REPO needs to be replaced with actual path of Maven repository we have Fuse configured to use.
Not Able to Login into FMC (Browser based GUI)

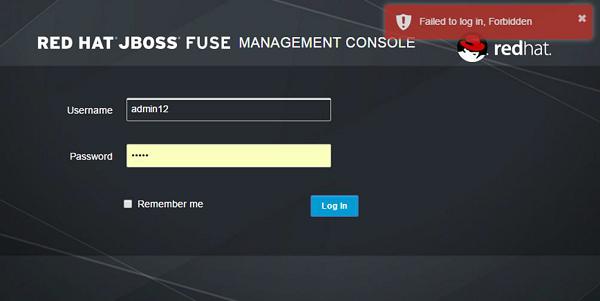

Users not Created − If you are getting the following UI but not able to login with a message saying “Failed to log in, Forbidden”.
Check whether you have added users in $FUSE_INSTALLATION_HOME/etc/users.properties
The correct format to add users is −
Username = Password,Role
HAWTIO Port is Different
If you are not even able to get the UI at localhost:8181 in the browser, check if you have mentioned correct port in URL.
$FUSE_INSTALLATION_HOME/etc/org.ops4j.pax.web.cfg
Edit the following property in the file to use port you want to access.
org.osgi.service.http.port=8181
AMQ Broker is not working
Make sure that the 61616 port is open and not being currently used by another port. If you want to change the default 61616 port for the same, you can edit it in $FUSE_INSTALLATION_HOME/etc/System.properties
activemq.port = 61616
